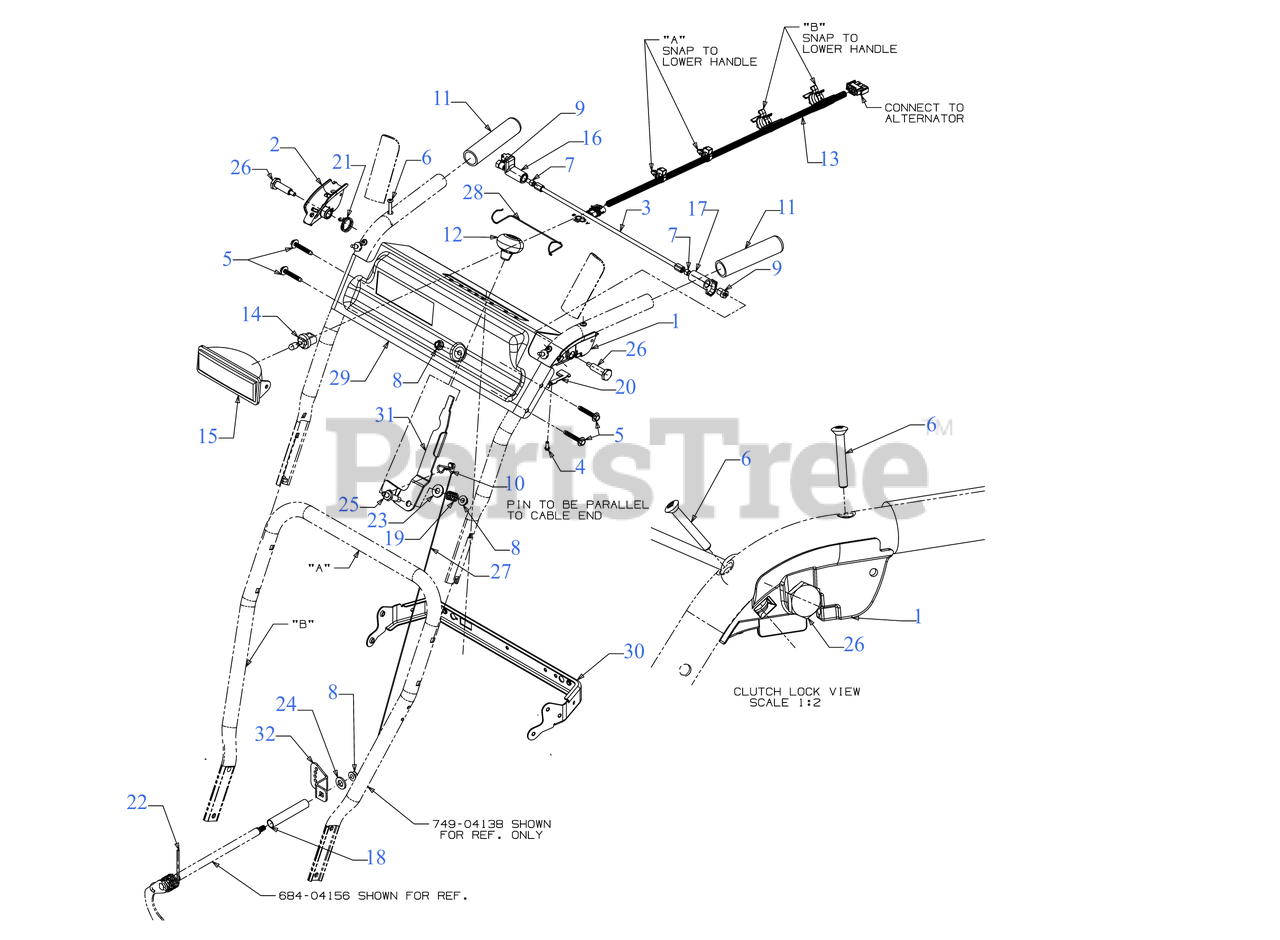

31AM6CFG752 - Yard Machines Snow Thrower (2018) Panel Parts Diagram

Snow Thrower

Panel Parts Diagram

  • Title
1

MTD 631-04133A

CLUTCH LOCK HANDLE ASSEMBLY (LH)

$15.99

$

In Stock, Qty 8

0

2

MTD 631-04134B

CLUTCH LOCK HANDLE ASSEMBLY (RH)

$15.99

$

In Stock, only 1 left!

0

3

MTD 684-04250

PIVOT ROD

$12.99

$

In Stock, only 4 left!

0

4

MTD 710-04326

SCREW #8-16 x .50

$3.99

$

In Stock, only 2 left!

0

5

MTD 710-04586

SCREW 1/4-20 x 1.625

$6.99

$

In Stock, only 2 left!

0

6

MTD 710-1233

SCREW #10-24 x 1.375

$4.99

$

In Stock, Qty 11

0

7

MTD 710-3069

SCREW 1/4-20 x .50

$4.99

$

In Stock, Qty 10

0

8

MTD 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

9

MTD 712-04081A

HEX NUT W/PATCH

$7.49

$

In Stock, Qty 20+

0

10

MTD 914-0145

INTERNAL COTTER PIN
(Superseded to 714-0145)

$4.99

$

In Stock, Qty 20+

0

11

$11.99

$

In Stock, Qty 11

0

12

MTD 720-04039

SHIFT KNOB

$10.99

$

In Stock, only 1 left!

0

13

MTD 725-06926

HALOGEN HEADLGHT HARNESS
(Superseded to 925-06926)

$32.99

$

Usually ships in 3-6 days

0

14

MTD 925-1658

HALOGEN BULB

$60.99

$

In Stock, only 4 left!

0

15

MTD 925-1672

LAMP HOUSING ASSEMBLY

$89.99

$

Usually ships in 3-6 days

0

16

MTD 731-04894D

LOCK PLATE

$5.49

$

In Stock, Qty 11

0

17

MTD 731-04896B

CLUTCH LOCK CAM
(Superseded to 731-04896C)

$4.49

$

In Stock, Qty 20+

0

18

MTD 731-16011

COVER .505 X .635 X 3.64

$3.49

$

Usually ships in 3-6 days

0

19

MTD 732-0193

COMPRESSION SPRING

$4.99

$

In Stock, Qty 6

0

20

MTD 732-04219C

CLUTCH SPRING

$4.49

$

In Stock, Qty 20+

0

21

MTD 732-04238B

TORSION SPRING

$5.49

$

In Stock, Qty 11

0

22

MTD 732-04311A

TORSION SPRING

$10.99

$

In Stock, only 3 left!

0

23

MTD 736-0262

FLAT WASHER .385X.870X.090

$3.99

$

In Stock, Qty 20+

0

24

MTD 936-3015

FLAT WASHER

$4.49

$

In Stock, Qty 20+

0

25

MTD 738-04118

SHOULDER BOLT

$5.49

$

Usually ships in 3-6 days

0

26

MTD 738-04348

SHOULDER SCREW .437 x 1.345 1/4-20

$3.99

$

In Stock, Qty 20+

0

27

MTD 946-04397A

SPEED SELECTOR CABLE (STEEL)

$20.99

$

In Stock, Qty 14

0

28

MTD 747-1136

RETAINER

$11.99

$

Usually ships in 3-6 days

0

29

MTD 790-00209A-0637

HANDLE PANEL:STEEL (POWDER BLACK)

$63.99

$

Usually ships in 3-6 days

0

30

MTD 790-00248E-0637

HANDLE SUPPORT BRACKET (POWDER BLACK)

$24.99

$

In Stock, Qty 5

0

31

MTD 790-00313A-0637

SPEED SHIFT LEVER (POWDER BLACK)

$48.99

$

Usually ships in 3-6 days

0

32

MTD 790P01117

SPEED SELECT SHIFT BRACKET
(Superseded to 753-11084)

$53.99

$

In Stock, only 1 left!

0
