31AM6CFG752 - Yard Machines Snow Thrower (2017) Chute Parts Diagram

Snow Thrower

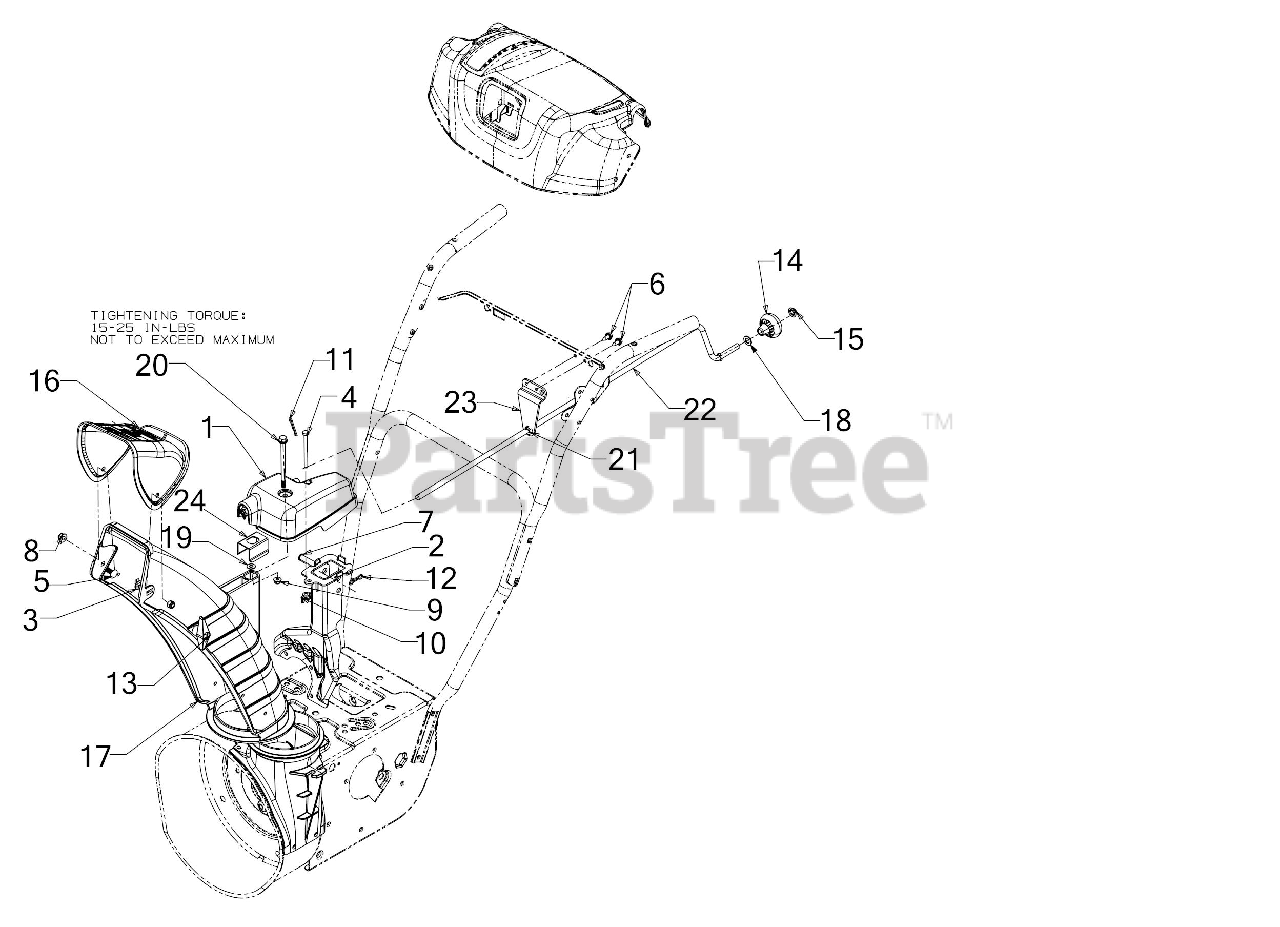

Chute Parts Diagram

  • Title
1

MTD 918-04933A

WORM GEARBOX ASSEMBLY
(Superseded to 918-04933B)

Note: (See Separate Breakdown)

$93.99

$

In Stock, only 1 left!

0

2

MTD 684-04311A-0637

CHUTE SUPPORT BRACKET ASSEMBLY

$42.99

$

Usually ships in 3-6 days

0

3

MTD 710-04071

CARRIAGE BOLT 5/16-18 x 1

$4.49

$

In Stock, Qty 10

0

4

MTD 710-04370

SCREW 1/4-20 x 3.0 GR5

$4.49

$

In Stock, Qty 8

0

5

MTD 710-0451

CARRIAGE BOLT 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-1652

SCREW 1/4-20X.625

$4.49

$

In Stock, Qty 20+

0

7

MTD 711-04469A

CLEVIS PIN 3/8 x 1.87

$5.99

$

In Stock, only 2 left!

0

8

MTD 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

9

MTD 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

10

MTD 712-3087

WING NUT 1/4-20

$3.99

$

In Stock, Qty 20+

0

11

MTD 914-0101

INTERNAL COTTER PIN
(Superseded to 714-0101)

$

$

Not available

12

MTD 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

13

MTD 920-0284

WING NUT KNOB
(Superseded to 720-0284)

$6.99

$

In Stock, Qty 20+

0

13

MTD 720-04072A

STAR KNOB 5/16

Note: (Not Shown)

$6.99

$

In Stock, Qty 20+

0

13

MTD 912-0429

HEX NUT
(Superseded to 712-0429)

Note: (Not Shown)

$4.49

$

In Stock, Qty 20+

0

14

MTD 720-04102

SHIFT KNOB

$6.99

$

In Stock, Qty 17

0

15

MTD 926-0100

PUSH NUT
(Superseded to 726-0100)

$

$

Not available

16

MTD 731-04426A

UPPER CHUTE
(Superseded to 731-04426C)

$19.99

$

In Stock, Qty 9

0

17

MTD 731-06440A

LOWER CHUTE 5" DIA

$51.99

$

In Stock, Qty 14

0

18

MTD 936-0185

FLAT WASHER
(Superseded to 736-0185)

$3.99

$

In Stock, Qty 20+

0

19

MTD 736-04446

FLAT WASHER

$4.49

$

In Stock, Qty 20+

0

20

MTD 738-04367

SHOULDER SCREW

$4.99

$

In Stock, Qty 8

0

21

MTD 941-0475

BUSHING .380 ID

$4.49

$

In Stock, Qty 20+

0

22

MTD 747-05386-0637

CHUTE CRANK
(Superseded to 747-05386A-0637)

$31.99

$

In Stock, only 1 left!

0

23

MTD 790-00341-0637

ROD SUPPORT BRACKET

$16.99

$

In Stock, only 1 left!

0

24

MTD 790-00503

CHUTE BRACKET

$6.49

$

In Stock, only 3 left!

0
