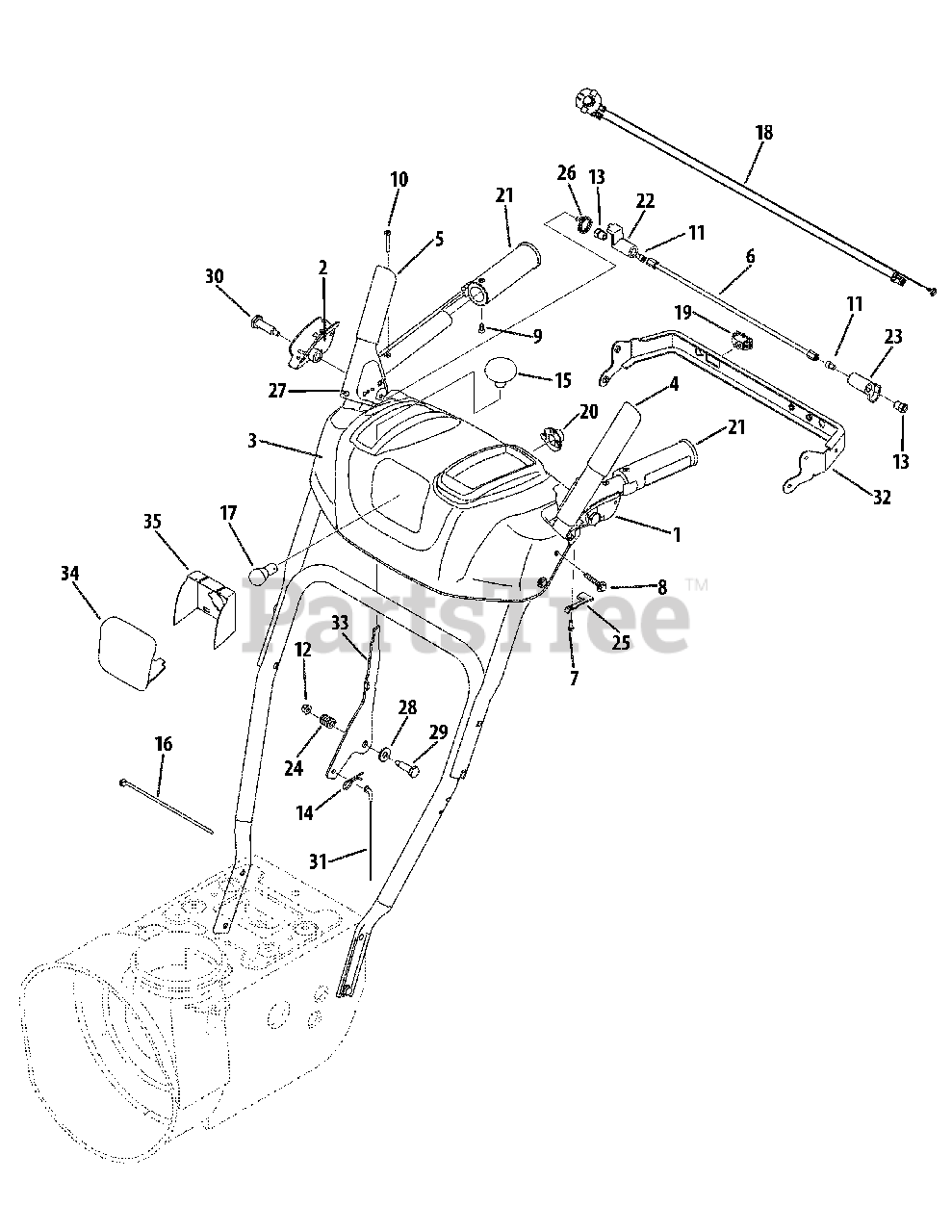

31AM63LF704 - MTD Gold Snow Thrower (2008) (Target) Panel K Style Parts Diagram

Gold Snow Thrower

Panel K Style Parts Diagram

  • Title

1

MTD 631-04133A

Clutch Lock Handle Assembly, LH

$15.99

$

In Stock, only 1 left!

0

2

MTD 631-04134B

Clutch Lock Handle Assembly, RH

$15.99

$

In Stock, only 1 left!

0

3

MTD 631-04186

Handle Panel
(Superseded to 931-05348A)

$68.99

$

Usually ships in 3-6 days

0

4

MTD 684-04105B

Engagement Assembly, LH
(Superseded to 684-04105D)

$22.99

$

In Stock, only 1 left!

0

5

MTD 684-04106B

Engagement Assembly, RH
(Superseded to 684-04106D)

$21.99

$

In Stock, only 1 left!

0

6

MTD 684-04250

Clutch 736- Lock Rod Assembly

$12.99

$

In Stock, only 2 left!

0

7

MTD 710-04326

Hex Washer Screw, #8-16 x .50

$3.99

$

In Stock, only 2 left!

0

8

MTD 710-04586

Hex Washer Screw, 1/4-20 x 1.625

$6.99

$

In Stock, only 2 left!

0

9

MTD 710-0837

Screw, #10-16 x .625

$4.49

$

In Stock, Qty 5

0

10

MTD 710-1233

Machine Screw, #10-24 x 1.375

$4.99

$

In Stock, Qty 11

0

11

MTD 710-3069

Socket Screw, 1/4-20 x .50

$4.99

$

In Stock, Qty 10

0

12

MTD 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

13

MTD 712-04081A

Hex Nut, 1/4-20

$7.49

$

In Stock, Qty 20+

0

14

MTD 714-0145

Click Pin, .092 x 1.64

$4.99

$

In Stock, Qty 20+

0

15

MTD 720-04039

Shift Knob

$10.99

$

In Stock, only 2 left!

0

16

MTD 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

17

MTD 725-04213

Lamp
(Superseded to 925-04213)

$4.99

$

In Stock, Qty 11

0

18

MTD 725-04216A

Wire Harness
(Superseded to 725-04216B)

$75.99

$

Usually ships in 3-6 days

0

19

MTD 725-04393

Heated Grip Switch

$16.99

$

Usually ships in 3-6 days

0

20

MTD 725-1649

Nylon Socket
(Superseded to 925-1649A)

$11.99

$

In Stock, Qty 20+

0

21

MTD 725-1757

Heated Grip

$111.99

$

Usually ships in 3-6 days

0

22

MTD 731-04894D

Lock Plate

$5.49

$

In Stock, Qty 11

0

23

MTD 731-04896B

Clutch Lock Cam
(Superseded to 731-04896C)

$4.49

$

In Stock, Qty 20+

0

24

MTD 723-0193

Compression Spring, .39 x .60 x .88

$

$

Currently unavailable

25

MTD 732-04219C

Clutch Lock Spring

$4.49

$

In Stock, Qty 20+

0

26

MTD 732-04238

Torsion Spring, .8156 ID x .3038
(Superseded to 732-04238B)

$5.49

$

In Stock, Qty 11

0

27

MTD 735-0199A

Rubber Bumper, .62 OD x .22 Thick

$7.99

$

In Stock, only 4 left!

0

28

MTD 736-0267

Flat Washer, .385 x .87 x .06

$4.49

$

In Stock, Qty 20+

0

29

MTD 738-04125

Shoulder Screw, .374 Dia. x 1.05 LG.

$4.99

$

In Stock, only 3 left!

0

30

MTD 738-04348

Shoulder Screw, .437 x 1.345 x 1/4-20

$3.99

$

In Stock, Qty 20+

0

31

MTD 746-04396

Speed Selector Cable
(Superseded to 946-04396A)

$20.99

$

In Stock, Qty 20+

0

32

MTD 790-00248B

Panel Bracket
(Superseded to 790-00248E-0637)

Variations

MTD 790-00248B-0637

Handle Support Bracket - POWDER BLACK (0637)

$24.99

$

In Stock, only 1 left!

0

$24.99

$

In Stock, only 1 left!

0

33

MTD 790-00311

Shift Lever
(Superseded to 790-00311C-0637)

Variations

MTD 790-00311-0637

Shift Lever - POWDER BLACK (0637)

$27.99

$

In Stock, only 1 left!

0

$27.99

$

In Stock, only 1 left!

0

34

MTD 731-05320

Headlight Lens

$12.99

$

Usually ships in 3-6 days

0

35

MTD 777X41803

YM Lens Label

$10.99

$

Usually ships in 3-6 days

0
