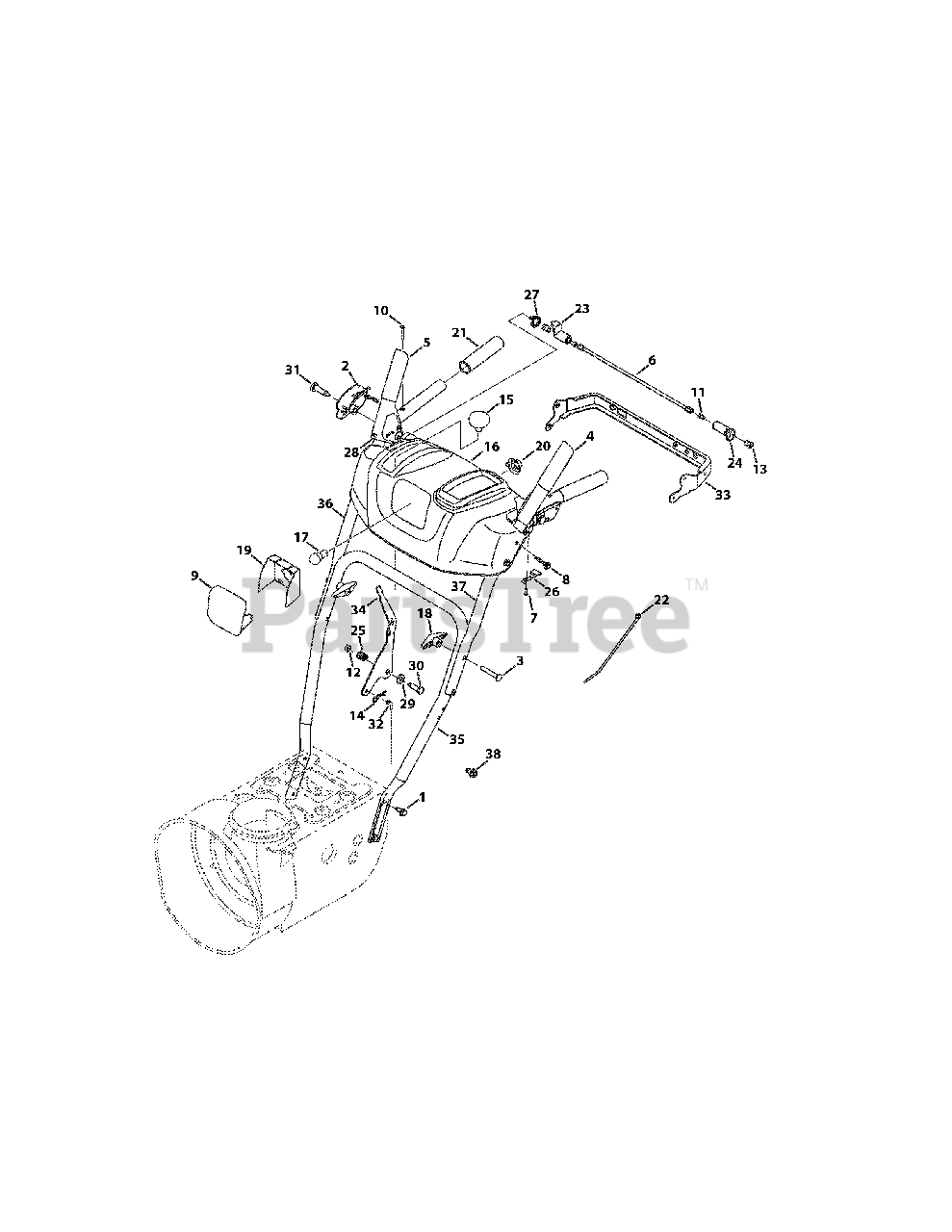

31AM63HE731 - Huskee Snow Thrower (2015) Handle Panel Parts Diagram

Snow Thrower

Handle Panel Parts Diagram

  • Title

1

MTD 710-04484

Screw, Taptite, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

2

MTD 631-04134B

Clutch Lock, RH

$15.99

$

In Stock, only 1 left!

0

2

MTD 631-04133A

Clutch Lock, LH

$15.99

$

In Stock, Qty 8

0

3

MTD 710-0572

Screw, Carriage, 5/16-18 x 2.50

$4.49

$

In Stock, Qty 20+

0

4

MTD 684-04105C

Auger Engage, Black, LH
(Superseded to 684-04105D)

$22.99

$

In Stock, only 4 left!

0

5

MTD 684-04106C

Drive Engage, Black, RH
(Superseded to 684-04106D)

$21.99

$

In Stock, only 2 left!

0

6

MTD 684-04250

Pivot Rod

$12.99

$

In Stock, only 4 left!

0

7

MTD 710-04326

Screw, Plastite, 8-16 x .50

$3.99

$

In Stock, only 2 left!

0

8

MTD 710-04586

Screw, Taptite, 1/4-20 x 1.625

$6.99

$

In Stock, only 2 left!

0

9

MTD 731-05320

Lens Panel

$12.99

$

Usually ships in 3-6 days

0

10

MTD 710-1233

Screw, 10-24 x 1.375

$4.99

$

In Stock, Qty 11

0

11

MTD 710-3069

Screw, 1/4-20 x .50

$4.99

$

In Stock, Qty 11

0

12

MTD 712-04064

Nut, Flangelock, 1/4-20

$3.99

$

In Stock, Qty 20+

0

13

MTD 712-04081A

Nut, Hex, 1/4-20

$7.49

$

In Stock, Qty 20+

0

14

MTD 914-0145

Click Pin, .092 x 1.64
(Superseded to 714-0145)

$4.99

$

In Stock, Qty 20+

0

15

MTD 720-04039

Shift Knob

$10.99

$

In Stock, only 2 left!

0

16

MTD 631-04185

Handle Panel Black, H Style

$84.99

$

Usually ships in 3-6 days

0

17

MTD 925-1629

Lamp

$11.99

$

In Stock, Qty 13

0

18

MTD 920-0284

Wing Knob, 5/16-18
(Superseded to 720-0284)

$6.99

$

In Stock, Qty 20+

0

19

MTD 777X41803

Lens Label

$10.99

$

Usually ships in 3-6 days

0

20

MTD 925-1649

Lamp Socket
(Superseded to 925-1649A)

$11.99

$

In Stock, Qty 20+

0

21

MTD 720-0274

Grip, 1.0 ID x 5.0 LG

$11.99

$

In Stock, Qty 11

0

22

MTD 926-0154

Cable Tie, Push Mount

$6.49

$

Usually ships in 3-6 days

0

23

MTD 731-04894D

Plate, Lock

$5.49

$

In Stock, Qty 11

0

24

MTD 731-04896B

Cam, Clutch Lock
(Superseded to 731-04896C)

$4.49

$

In Stock, Qty 20+

0

25

MTD 732-0193

Compression Spring, .39 x .60 x .88

$4.99

$

In Stock, Qty 6

0

26

MTD 732-04219C

Clutch Lock Spring

$4.49

$

In Stock, Qty 20+

0

27

MTD 732-04238B

Torsion Spring, 0.8156 x .3038

$5.49

$

In Stock, Qty 11

0

28

MTD 935-0199A

Rubber Bumper
(Superseded to 735-0199A)

$7.99

$

In Stock, only 4 left!

0

29

MTD 936-0267

Washer, Flat, .385 x .87
(Superseded to 736-0267)

$4.49

$

In Stock, Qty 20+

0

30

MTD 738-04125

Screw, Shield, .374 x 1.05

$4.99

$

In Stock, only 3 left!

0

31

MTD 738-04348

Screw, Shoulder, .437 x 1.345 x 1/4-20

$3.99

$

In Stock, Qty 20+

0

32

MTD 946-04396A

Speed Selector Cable

$20.99

$

In Stock, Qty 20+

0

33

MTD 790-00248C

Panel Bracket
(Superseded to 790-00248E-0637)

Variations

MTD 790-00248C-0637

Handle Support Bracket - POWDER BLACK (0637)

$24.99

$

In Stock, Qty 5

0

$24.99

$

In Stock, Qty 5

0

34

MTD 790-00311C-0637

Shift Lever

$27.99

$

In Stock, only 4 left!

0

35

MTD 749-04138B-0637

Lower Handle
(Superseded to 749-04138C-0637)

$88.99

$

Usually ships in 3-6 days

0

36

MTD 749-04190A-0637

Upper RH Handle

$45.99

$

Usually ships in 3-6 days

0

37

MTD 749-04191A-0637

Upper LH Handle

$45.99

$

Usually ships in 3-6 days

0

38

MTD 710-0599

Screw, TT, 1/4-20 x .500 (For ground wire)

$4.49

$

In Stock, Qty 20+

0

MTD 925-04137

Harness Assembly

Note: (not shown)

$20.99

$

Usually ships in 3-6 days
