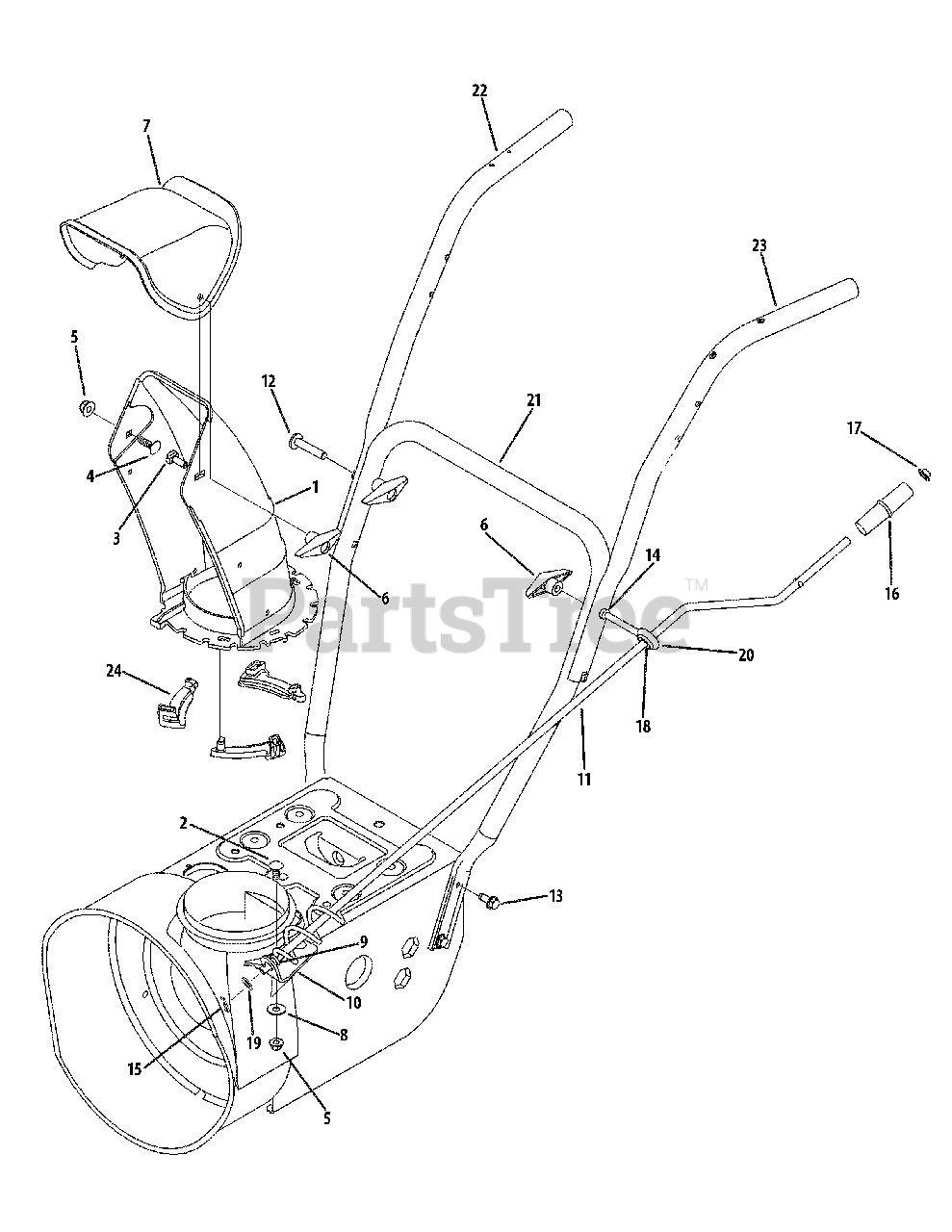

31AM63FF752 - Yard Machines Snow Thrower (2008) (Walmart) Standard 2 way Chute Parts Diagram

Snow Thrower

Standard 2 way Chute Parts Diagram

  • Title

1

MTD 631-04131B

Chute Assembly

$37.99

$

In Stock, Qty 14

0

2

MTD 710-0276

Carriage Screw, 5/16-18 x 1.00

$3.99

$

In Stock, Qty 11

0

3

MTD 710-04071

Carriage Bolt, 5/16-18 x 1.00

$4.49

$

In Stock, Qty 13

0

4

MTD 710-0451

Carriage Bolt, 5/16-18 x .750

$4.49

$

In Stock, Qty 20+

0

5

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

6

MTD 720-0284

Wing Knob

$6.99

$

In Stock, Qty 20+

0

7

MTD 731-04426A

Upper Chute
(Superseded to 731-04426C)

$19.99

$

In Stock, only 3 left!

0

8

MTD 736-0159

Flat Washer, .349 x .879 x .063

$4.49

$

In Stock, Qty 20+

0

9

MTD 741-0475

Plastic Bushing, .380 ID
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

10

MTD 784-5647

Chute Crank Bracket
(Superseded to 784-5647-0637)

Variations

MTD 784-5647-0637

Chute Crank Bracket, Black - POWDER BLACK (0637)

$14.99

$

In Stock, Qty 5

0

$14.99

$

In Stock, Qty 5

0

11

MTD 684-04104

Chute Crank Assembly
(Superseded to 684-04104-0637)

Variations

MTD 684-04104-0637

Chute Crank Assembly, Powder Black - POWDER BLACK (0637)

$62.99

$

In Stock, only 1 left!

0

$62.99

$

In Stock, only 1 left!

0

12

MTD 710-0449

Carriage Screw, 5/16-18 x 2.25
(Superseded to 710-0572)

$4.49

$

In Stock, Qty 20+

0

13

MTD 710-04484

Hex Washer Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

14

MTD 712-3010

Hex Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

15

MTD 714-0104

Cotter Pin, .072 x 1.13

$4.49

$

In Stock, Qty 20+

0

16

MTD 720-0201A

Chute Crank Knob

$10.99

$

In Stock, Qty 5

0

17

MTD 726-0100

Push Rod Cap, 3/8

$4.49

$

In Stock, only 1 left!

0

18

MTD 735-0234

Rubber Grom., .44 ID x .94 OD x .50

$5.49

$

In Stock, only 2 left!

0

19

MTD 736-0185

Flat Washer, .375 x .738 x .063

$3.99

$

In Stock, Qty 20+

0

20

MTD 747-0697

Chute Crank Eye Bolt, .70

$8.49

$

In Stock, only 1 left!

0

21

MTD 749-04138A

Lower Handle

Variations

MTD 749-04138A-0637

Lower Handle, Snow - POWDER BLACK (0637)

$88.99

$

Usually ships in 3-6 days

0

MTD 749-04138A-0638

Lower Handle, Snow - MTD/TROY-BILT RED (0638)

$88.99

$

Usually ships in 3-6 days

0

MTD 749-04138A-0650

HANDLE-LOWER SNOW - RED METALLIC (0650)

$77.99

$

Usually ships in 3-6 days

0

MTD 749-04138A-0662

HANDLE-LOWER SNOW - OYSTER GRAY (0662)

$88.99

$

Usually ships in 3-6 days

0

MTD 749-04138A-0665

HANDLE-LOWER SNOW - YARDMAN GREEN (0665)

$77.99

$

Usually ships in 3-6 days

0

MTD 749-04138A-0668

HANDLE-LOWER SNOW - MOSS GREEN (0668)

$88.99

$

Usually ships in 3-6 days

0

MTD 749-04138A-0689

HANDLE-LOWER SNOW - POLO GREEN (0689)

$77.99

$

Usually ships in 3-6 days

0

MTD 749-04138A-0691

HANDLE-LOWER SNOW - BLACK JACK (0691)

$88.99

$

Usually ships in 3-6 days

0

MTD 749-04138A-0709

HANDLE-LOWER SNOW - MASTERCRAFT GREEN (0709)

$88.99

$

Usually ships in 3-6 days

0

MTD 749-04138A-0729

HANDLE-LOWER SNOW - STORM GRAY (0729)

$77.99

$

Usually ships in 3-6 days

0

MTD 749-04138A-4033

HANDLE-LOWER SNO - FLINT MICA (4033)

$88.99

$

Usually ships in 3-6 days

0

$88.99

$

Usually ships in 3-6 days

0

22

MTD 749-04190A

Upper Handle, RH

Variations

MTD 749-04190A-0637

Right Upper Handle with Hole - POWDER BLACK (0637)

$45.99

$

Usually ships in 3-6 days

0

MTD 749-04190A-0638

Right Upper Handle with Hole - MTD/TROY-BILT RED (0638)

$45.99

$

Usually ships in 3-6 days

0

MTD 749-04190A-0650

HANDLE-UPPER RH - RED METALLIC (0650)

$39.99

$

Usually ships in 3-6 days

0

MTD 749-04190A-0662

HANDLE-UPPER RH - OYSTER GRAY (0662)

$39.99

$

Usually ships in 3-6 days

0

MTD 749-04190A-0689

HANDLE-UPPER RH - POLO GREEN (0689)

$39.99

$

Usually ships in 3-6 days

0

MTD 749-04190A-0691

HANDLE-UPPER RH - BLACK JACK (0691)

$45.99

$

Usually ships in 3-6 days

0

MTD 749-04190A-0709

HANDLE-UPPER RH - MASTERCRAFT GREEN (0709)

$39.99

$

Usually ships in 3-6 days

0

MTD 749-04190A-0729

HANDLE-UPPER RH - STORM GRAY (0729)

$39.99

$

Usually ships in 3-6 days

0

MTD 749-04190A-4033

HANDLE-UPPER RH - FLINT MICA (4033)

$45.99

$

Usually ships in 3-6 days

0

MTD 749-04190A-0665

HANDLE-UPPER RH - YARDMAN GREEN (0665)

$

$

Not available

$39.99

$

Usually ships in 3-6 days

0

23

MTD 749-04191A

Upper Handle, LH

Variations

MTD 749-04191A-0638

Left Upper Handle with Hole - MTD/TROY-BILT RED (0638)

$45.99

$

Usually ships in 3-6 days

0

MTD 749-04191A-0637

Left Upper Handle with Hole - POWDER BLACK (0637)

$45.99

$

Usually ships in 3-6 days

0

MTD 749-04191A-0650

HANDLE-UPPER LH - RED METALLIC (0650)

$39.99

$

Usually ships in 3-6 days

0

MTD 749-04191A-0662

HANDLE-UPPER LH - OYSTER GRAY (0662)

$39.99

$

Usually ships in 3-6 days

0

MTD 749-04191A-0665

HANDLE-UPPER LH - YARDMAN GREEN (0665)

$39.99

$

Usually ships in 3-6 days

0

MTD 749-04191A-0689

HANDLE-UPPER LH - POLO GREEN (0689)

$39.99

$

Usually ships in 3-6 days

0

MTD 749-04191A-0691

HANDLE-UPPER LH - BLACK JACK (0691)

$39.99

$

Usually ships in 3-6 days

0

MTD 749-04191A-0709

HANDLE-UPPER LH - MASTERCRAFT GREEN (0709)

$39.99

$

Usually ships in 3-6 days

0

MTD 749-04191A-0729

HANDLE-UPPER LH - STORM GRAY (0729)

$39.99

$

Usually ships in 3-6 days

0

MTD 749-04191A-4033

HANDLE-UPPER LH - FLINT MICA (4033)

$45.99

$

Usually ships in 3-6 days

0

$39.99

$

Usually ships in 3-6 days

0

24

MTD 731-04869

Chute Flange Keeper
(Superseded to 731-04869A)

$4.49

$

In Stock, Qty 20+

0
