31AM62FE752 - Yard Machines Snow Thrower (2010) (Walmart) Engine Assembly 365-SUB 2010 & After Parts Diagram

Snow Thrower

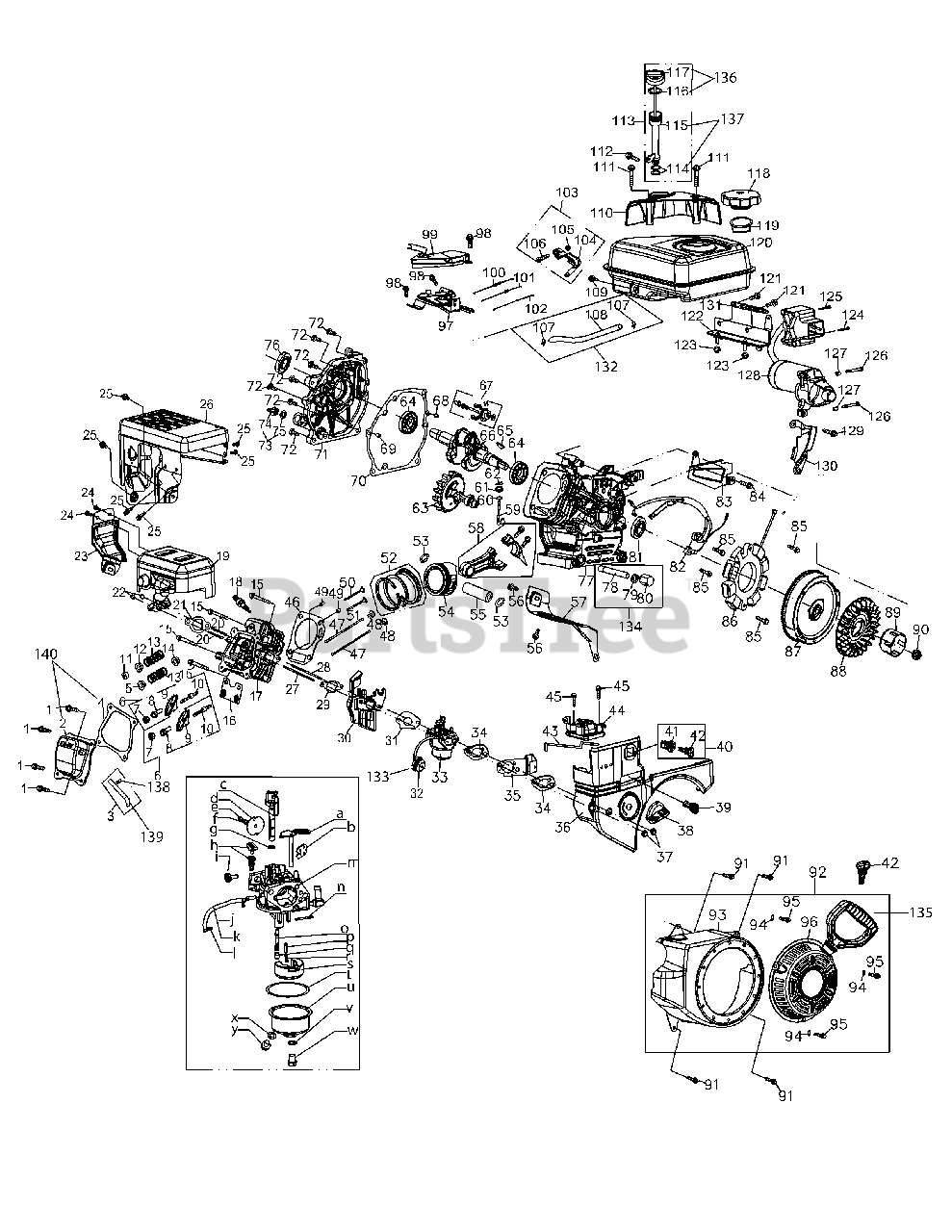

Engine Assembly 365-SUB 2010 & After Parts Diagram

  • Title

1

MTD 710-04968

Bolt M6×16

$6.99

$

In Stock, only 3 left!

0

2

MTD 951-11054

Valve Cover
(Superseded to 951-11054B)

$15.99

$

Usually ships in 3-6 days

0

3

N/A

Breather Hose Assembly

Note: Furnish Components

$

$

Not available

4

MTD 951-11565

Valve Cover Gasket
(Superseded to 751P11565B)

Note: Also Available in Kit Below

$10.99

$

In Stock, Qty 12

0

5

MTD 951-12000

Intake Valve Spring Retainer

Note: Also Available in Kit Below

$4.49

$

In Stock, only 1 left!

0

6

MTD 951-11892

Rocker Arm Assembly

$40.99

$

Usually ships in 3-6 days

0

7

MTD 751-11124

Nut, Pivot Locking

Note: Also Available in Kit Below

$9.49

$

In Stock, only 2 left!

0

8

MTD 751-11123

Adjusting Nut ,Valve

Note: Also Available in Kit Below

$10.99

$

In Stock, only 4 left!

0

9

MTD 951-11893

Rocker Arm

Note: Also Available in Kit Below

$7.99

$

Usually ships in 3-6 days

0

10

MTD 710-04902

Bolt, Pivot

Note: Also Available in Kit Below

$6.99

$

In Stock, only 4 left!

0

11

MTD 951-12002

Exhaust Valve Adjuster
(Superseded to 751P12002A)

Note: Also Available in Kit Below

$2.99

$

In Stock, only 3 left!

0

12

MTD 951-12003

Exhaust Valve Spring Retainer

Note: Also Available in Kit Below

$4.49

$

In Stock, only 1 left!

0

13

MTD 951-12004

Valve Spring
(Superseded to 751P12004A)

Note: Also Available in Kit Below

$1.99

$

In Stock, Qty 5

0

14

MTD 951-11894

Intake Valve Seal

Note: Also Available in Kit Below

$10.99

$

Usually ships in 3-6 days

0

15

MTD 710-04933

Bolt M8×55

$3.99

$

In Stock, Qty 10

0

16

MTD 951-11895

Push Rod Guide

Note: Also Available in Kit Below

$8.99

$

Usually ships in 3-6 days

0

17

N/A

Cylinder Head

Note: Furnish Cylinder Head Kit

$

$

Not available

18

MTD 951-10292

Spark Plug
(Superseded to 951-10292A)

$6.99

$

In Stock, Qty 20+

0

19

MTD 951-11282

Muffler Assembly

$

$

Not available

20

MTD 710-05001

Stud M8×36

$3.99

$

Usually ships in 3-6 days

0

20

MTD 951-10657

Muffler Stud Assembly

$10.99

$

Usually ships in 3-6 days

0

21

MTD 951-11289

Exhaust Pipe Gasket
(Superseded to 751P11289A)

Note: Also Available in Kit Below

$2.49

$

In Stock, Qty 20+

0

22

MTD 712-04214

Nut, M8

$4.49

$

In Stock, Qty 5

0

23

MTD 951-11111

Exhaust Pipe Shield

$12.99

$

Usually ships in 3-6 days

0

24

MTD 710-04914

Bolt M6×10

$4.49

$

In Stock, only 3 left!

0

25

MTD 710-04915

Bolt M6×12

$4.49

$

In Stock, Qty 20+

0

26

MTD 951-10642A

Muffler Shroud
(Superseded to 951-10642B)

$

$

Not available

27

MTD 710-04939

Stud M6×117

$6.99

$

In Stock, only 2 left!

0

28

MTD 710-04910

Stud M6×105

$6.49

$

In Stock, Qty 8

0

29

MTD 951-11567

Carburetor Insulator Gasket
(Superseded to 751P11567B)

Note: Also Available in Kit Below

$1.99

$

In Stock, Qty 20+

0

30

MTD 951-11896

Carburetor Insulator
(Superseded to 951-11896A)

Note: Also Available in Kit Below

$11.99

$

In Stock, Qty 6

0

31

MTD 951-11569

Carburetor Gasket
(Superseded to 951-11569A)

$5.99

$

In Stock, Qty 20+

0

32

MTD 951-10639A

Primer Assembly

$15.99

$

In Stock, Qty 20+

0

33

MTD 951-10974A

Carburetor Assembly
(Superseded to 951-12705)

$100.99

$

In Stock, Qty 20+

0

34

MTD 951-11897

Carburetor Gasket Plate
(Superseded to 751P11897B)

$1.99

$

In Stock, Qty 20+

0

35

MTD 951-11112

Choke Control Bracket

$25.99

$

In Stock, Qty 5

0

36

MTD 951-10634

Engine Shroud
(Superseded to 951-10634A)

$32.99

$

Usually ships in 3-6 days

0

37

MTD 712-04213

Nut

$6.99

$

In Stock, only 4 left!

0

38

MTD 951-11284

Choke Knob

$7.49

$

In Stock, only 4 left!

0

39

MTD 951-10757

Throttle Control Knob
(Superseded to 951-11224)

$7.99

$

In Stock, only 4 left!

0

40

MTD 951-10637

Ignition Switch

$14.99

$

In Stock, Qty 8

0

41

N/A

Key Switch Base

Note: Furnish Assembly

$

$

Not available

42

MTD 731-05632

Ignition Key
(Superseded to 951-10630)

$6.99

$

Usually ships in 3-6 days

0

43

MTD 951-10640

Choke Push Rod

$10.99

$

In Stock, Qty 6

0

44

MTD 951-10635

Air Filter Heating Pipe Cover

$16.99

$

In Stock, only 2 left!

0

45

MTD 710-04919

Bolt M6×25

$4.49

$

Usually ships in 3-6 days

0

46

MTD 951-11898

Gasket, Cylinder Head

Note: Also Available in Kit Below

$11.99

$

In Stock, only 2 left!

0

47

MTD 951-10648

Push Rod Kit

$17.99

$

In Stock, only 3 left!

0

48

MTD 951-11899

Tappet

Note: Also Available in Kit Below

$8.49

$

In Stock, only 4 left!

0

49

MTD 715-04090

Dowel Pin 10×16
(Superseded to 715-04108)

Note: Also Available in Kit Below

$4.49

$

In Stock, only 1 left!

0

50

MTD 951-10647

Valve Kit
(Superseded to 951-10647A)

Note: Also Available in Kit Below

$64.99

$

Usually ships in 3-6 days

0

51

MTD 951-10647

Valve Kit
(Superseded to 951-10647A)

Note: Also Available in Kit Below

$64.99

$

Usually ships in 3-6 days

0

52

MTD 951-11553

Piston Ring Set
(Superseded to 951-11688)

Note: Also Available in Kit Below

$19.99

$

In Stock, only 3 left!

0

53

MTD 951-11632

Piston Pin Snap Ring

Note: Also Available in Kit Below

$4.49

$

Usually ships in 3-6 days

0

54

MTD 951-11900

Piston

Note: Also Available in Kit Below

$34.99

$

In Stock, only 1 left!

0

55

MTD 951-11901

Piston Pin

Note: Also Available in Kit Below

$7.99

$

Usually ships in 3-6 days

0

56

MTD 710-04915

Bolt M6×12

$4.49

$

In Stock, Qty 20+

0

57

MTD 951-11113

Air Shield

$9.49

$

Usually ships in 3-6 days

0

58

MTD 951-11573

Connecting Rod Assembly
(Superseded to 751P11573A)

Note: Also Available in Kit Below

$10.99

$

In Stock, Qty 9

0

59

MTD 951-11356

Governor Arm Shaft
(Superseded to 951-14053)

Note: Also Available in Kit Below

$15.99

$

Usually ships in 3-6 days

0

60

MTD 736-04461

Washer 5.2×1.9

Note: Also Available in Kit Below

$3.99

$

Usually ships in 3-6 days

0

61

MTD 951-11902

Governor Seal
(Superseded to 951-11902A)

Note: Also Available in Kit Below

$3.99

$

In Stock, only 2 left!

0

62

MTD 714-04074

Cotter Pin
(Superseded to 714-04078)

Note: Also Available in Kit Below

$4.49

$

In Stock, only 1 left!

0

63

MTD 951-11575

Camshaft Assy.

Note: Also Available in Kit Below

$65.99

$

Usually ships in 3-6 days

0

64

MTD 951-11369

Bearing

Note: Also Available in Kit Below

$34.99

$

Usually ships in 3-6 days

0

65

MTD 951-10307

Flywheel Key
(Superseded to 751P10307A)

Note: Also Available in Kit Below

$2.49

$

In Stock, Qty 10

0

66

N/A

Crankshaft Assembly

Note: Also Available in Kit Below

$

$

Not available

67

MTD 951-11576

Governor Gear/Shaft Assembly
(Superseded to 751P11576A)

Note: Also Available in Kit Below

$3.49

$

Usually ships in 3-6 days

0

68

MTD 715-04092

Dowel Pin 7x14
(Superseded to 715-04096A)

Note: Also Available in Kit Below

$4.49

$

Usually ships in 3-6 days

0

69

MTD 715-04096

Dowel Pin 9x14
(Superseded to 715-04096A)

Note: Also Available in Kit Below

$4.49

$

Usually ships in 3-6 days

0

70

MTD 951-11371

Crankcase Cover Gasket
(Superseded to 951-11371A)

Note: Also Available in Kit Below

$3.99

$

In Stock, Qty 20+

0

71

N/A

Cover Comp, Left Crankcase

Note: Also Available in Kit Below

$

$

Not available

72

MTD 710-04932

Bolt:M8X32

Note: Also Available in Kit Below

$4.49

$

Usually ships in 3-6 days

0

73

MTD 951-11283

Oil Fill Plug Assembly

Note: Incl Ref No. 74 & 75

$6.99

$

In Stock, only 1 left!

0

74

N/A

Fill Plug

Note: Also Available in Kit Below

$

$

Not available

75

MTD 951-11577

O-Ring

Note: Also Available in Kit Below

$4.49

$

Usually ships in 3-6 days

0

76

MTD 951-11368

Oil Seal
(Superseded to 751P11368A)

Note: Also Available in Kit Below

$3.49

$

In Stock, Qty 12

0

77

N/A

Crankcase

Note: Furnish Crankcase Kit

$

$

Not available

78

MTD 951-11350

Oil Drain Pipe

Note: Also Available in Kit Below

$9.49

$

Usually ships in 3-6 days

0

79

MTD 736-04454

Washer 10×16×1.5
(Superseded to 736-04440A)

Note: Also Available in Kit Below

$6.99

$

In Stock, only 2 left!

0

80

MTD 710-04906

Oil Drain Plug

Note: Also Available in Kit Below

$6.99

$

In Stock, Qty 13

0

81

MTD 951-11370

Oil Seal 25×41.25×6
(Superseded to 751P11370A)

Note: Also Available in Kit Below

$2.99

$

In Stock, Qty 12

0

82

MTD 951-10646

Ignition Coil
(Superseded to 951-10646A)

$105.99

$

In Stock, only 3 left!

0

83

MTD 951-11110

Air Flow Shield

$4.49

$

Usually ships in 3-6 days

0

84

MTD 710-04940

Bolt M6 x 10

$5.49

$

In Stock, only 3 left!

0

85

MTD 710-04919

Bolt,Flange M6 x 25

$4.49

$

Usually ships in 3-6 days

0

86

MTD 951-12050

Stator
(Superseded to 951-12050A)

$97.99

$

Usually ships in 3-6 days

0

87

MTD 951-12051

Flywheel

$135.99

$

Usually ships in 3-6 days

0

88

MTD 951-10934

Cooling Fan
(Superseded to 951-10909A)

$23.99

$

Usually ships in 3-6 days

0

89

MTD 951-10911

Starter Cup

$17.99

$

Usually ships in 3-6 days

0

90

MTD 712-04209

Nut M14
(Superseded to 712-04287)

$6.99

$

In Stock, only 1 left!

0

91

MTD 710-04941

Bolt, M6 x 12
(Superseded to 710-05103)

$4.49

$

In Stock, only 2 left!

0

92

N/A

Recoil Starter

Note: Furnish Components

$

$

Not available

93

MTD 951-10663A

Blower Housing
(Superseded to 951-12644)

$60.99

$

Usually ships in 3-6 days

0

94

MTD 736-04455

Flat Washer
(Superseded to 736-04455B)

$6.99

$

Usually ships in 3-6 days

0

95

MTD 710-04974

Bolt,Flange M6 x 10

$6.99

$

In Stock, only 3 left!

0

96

MTD 951-10658

Recoil Starter Assembly
(Superseded to 951-14151)

$85.99

$

In Stock, Qty 20+

0

97

MTD 951-10758

Throttle Control Assembly

$23.99

$

Usually ships in 3-6 days

0

98

MTD 710-05103

Bolt, M6 x 12

$4.49

$

In Stock, only 2 left!

0

99

MTD 951-11108

Governor Shield

$4.99

$

Usually ships in 3-6 days

0

100

MTD 951-11935

Governor Spring

$7.99

$

In Stock, Qty 11

0

101

MTD 951-10664

Throttle Return Spring
(Superseded to 751P10664A)

$2.49

$

In Stock, only 1 left!

0

102

MTD 951-10665

Governor Rod
(Superseded to 751P10665A)

$1.99

$

In Stock, Qty 20+

0

103

N/A

Governor Arm Assembly

Note: Furnish Components

$

$

Not available

104

MTD 951-11106

Governor Arm Bracket

$7.99

$

Usually ships in 3-6 days

0

105

MTD 712-04212

Nut M6
(Superseded to 712-05015)

$6.99

$

In Stock, Qty 6

0

106

MTD 710-04908

BOLT:M6 X 21 GOVN ARM

$6.49

$

Usually ships in 3-6 days

0

107

MTD 951-11731

Fuel Hose Clamp
(Superseded to 951-11700A)

$4.49

$

Usually ships in 3-6 days

0

108

N/A

Fuel Hose

Note: Furnish Assembly

$

$

Not available

109

MTD 710-04915

BOLT:M6X12 ZINC COATING

$4.49

$

In Stock, Qty 20+

0

110

MTD 951-11914

Cover - Engine/Dipstick

$14.99

$

In Stock, Qty 7

0

111

MTD 710-04905

Bolt

$4.49

$

Usually ships in 3-6 days

0

112

MTD 710-04915

Bolt, M6 x 12

$4.49

$

In Stock, Qty 20+

0

113

N/A

Dipstick Assembly Complete

Note: Furnish Components

$

$

Not available

114

MTD 951-11903

O-Ring - Oil Fill Tube
(Superseded to 951-11381)

$5.49

$

In Stock, Qty 10

0

115

N/A

Dipstick Tube

Note: Furnish Assembly

$

$

Not available

116

MTD 951-11904

O-Ring - Dipstick

$4.49

$

In Stock, Qty 9

0

117

N/A

Dipstick Cap

Note: Furnish Assembly

$

$

Not available

118

MTD 951-10649

Fuel Cap Assembly
(Superseded to 951-12533)

$23.99

$

In Stock, only 1 left!

0

119

MTD 951-11933

Fuel Level Indicator

$9.99

$

Usually ships in 3-6 days

0

120

MTD 951-10653B

Fuel Tank

$79.99

$

In Stock, Qty 10

0

120

MTD 951-10651

Fuel Tank Nipple

$15.99

$

In Stock, Qty 16

0

121

MTD 710-04914

Bolt, Flange M6 x 20

$4.49

$

In Stock, only 3 left!

0

122

MTD 951-11114

Switch Hsg Mounting Bracket

$17.99

$

Usually ships in 3-6 days

0

123

MTD 712-04212

Bolt, M6
(Superseded to 712-05015)

$6.99

$

In Stock, Qty 6

0

124

MTD 710-04965

Screw M4 x 55

$6.99

$

In Stock, only 1 left!

0

125

MTD 710-04935

Screw M4 x 60

$4.49

$

In Stock, only 1 left!

0

126

MTD 710-05182

Screw M6 x 32

$4.49

$

In Stock, only 1 left!

0

127

MTD 715-04088

Dowel Pin
(Superseded to 715-04088A)

$3.49

$

Usually ships in 3-6 days

0

128

MTD 951-10645A

Electric Starter

$304.99

$

In Stock, only 1 left!

0

129

MTD 710-04979

Bolt, M6 x 18

$3.99

$

Usually ships in 3-6 days

0

130

MTD 951-11109

Blower Housing Shield

$7.49

$

Usually ships in 3-6 days

0

131

MTD 951-11680

Flexible Clamp

$4.49

$

Usually ships in 3-6 days

0

132

MTD 951-10650

Fuel Line Kit

Note: Incl Ref No. 107 & 108

$28.99

$

In Stock, only 2 left!

0

133

MTD 951-11824

Primer Bulb

$11.99

$

In Stock, only 2 left!

0

134

MTD 951-10641

Oil Drain Assembly

Note: Incl Ref No. 78-80

$12.99

$

In Stock, only 2 left!

0

135

MTD 731-05696

Starter Handle

$16.99

$

In Stock, only 3 left!

0

136

MTD 951-11912

Dipstick Assembly

Note: Incl Ref No. 116 & 117

$15.99

$

In Stock, only 1 left!

0

137

MTD 951-11913

Oil Fill Tube Assembly

Note: Incl Ref No. 114 & 115

$16.99

$

In Stock, Qty 5

0

138

MTD 726-04101

Clamp

$4.49

$

Usually ships in 3-6 days

0

139

MTD 951-14855

Breather Hose

$8.99

$

In Stock, Qty 6

0

140

MTD 951-11063

Valve Cover Kit
(Superseded to 951-12626)

Note: Incl Ref No. 2 & 4

$28.99

$

Usually ships in 3-6 days

0

a

N/A

Choke Shaft

Note: Also Available in Kit Below

$

$

Not available

b

N/A

Choke Plate

Note: Also Available in Kit Below

$

$

Not available

c

N/A

Throttle Shaft

Note: Also Available in Kit Below

$

$

Not available

d

N/A

Throttle Plate

Note: Also Available in Kit Below

$

$

Not available

e

N/A

Screw M3×5

Note: Also Available in Kit Below

$

$

Not available

f

N/A

Lock Washer

Note: Also Available in Kit Below

$

$

Not available

g

N/A

Gasket, Throttle Plate

Note: Also Available in Kit Below

$

$

Not available

h

N/A

Idle Jet Assembly

Note: Also Available in Kit Below

$

$

Not available

i

N/A

Idle Speed Adjusting Screw

Note: Also Available in Kit Below

$

$

Not available

j

N/A

Mixture Screw

Note: Also Available in Kit Below

$

$

Not available

k

MTD 951-11905

Primer Hose

Note: Also Available in Kit Below

$

$

Currently unavailable

l

MTD 951-11906

Hose Clamp

Note: Also Available in Kit Below

$3.99

$

In Stock, Qty 5

0

m

N/A

Carburetor Body

Note: Also Available in Kit Below

$

$

Not available

n

N/A

Float Pin

Note: Also Available in Kit Below

$

$

Not available

o

N/A

Emulsion Tube

Note: Also Available in Kit Below

$

$

Not available

p

N/A

Needle Valve

Note: Also Available in Kit Below

$

$

Not available

q

N/A

Main Jet

Note: Also Available in Kit Below

$

$

Not available

r

N/A

Needle Valve Spring

Note: Also Available in Kit Below

$

$

Not available

s

N/A

Float

Note: Also Available in Kit Below

$

$

Not available

t

MTD 951-11589

Fuel Bowl Gasket ( O-Ring )
(Superseded to 951-11589A)

Note: Also Available in Kit Below

$6.99

$

In Stock, Qty 20+

0

u

N/A

Fuel Bowl

Note: Also Available in Kit Below

$

$

Not available

v

MTD 951-11348

Fuel Bowl Gasket
(Superseded to 951-11348A)

Note: Also Available in Kit Below

$5.99

$

In Stock, Qty 20+

0

w

MTD 710-04945

Fuel Bowl Mounting Bolt

Note: Also Available in Kit Below

$4.49

$

In Stock, Qty 13

0

x

MTD 951-11349

Fuel Drain Plug Gasket
(Superseded to 951-11349A)

Note: Also Available in Kit Below

$4.49

$

In Stock, Qty 20+

0

y

MTD 710-04903

Fuel Drain Plug
(Superseded to 710-04938)

Note: Also Available in Kit Below

$4.49

$

In Stock, Qty 10

0

MTD 951-11062A

Short Block Assembly
(Superseded to 951-11062B)

Note: Incl Ref No. 4,21,29,30,46,48,49,52-55,58-72,74-81

$380.99

$

Usually ships in 3-6 days

0

MTD 951-11061A

Gasket Kit - Complete

Note: Incl Ref No. 4,21,29-31,34,46,60,61,70,76,79 & 81

$44.99

$

In Stock, only 2 left!

0

MTD 951-10661B

Gasket Kit - External

Note: Incl Ref No. 4,21,29,30,31,34 & 79

$32.99

$

In Stock, Qty 5

0

MTD 951-10722A

Cylinder Head Assembly
(Superseded to 951-10722B)

Note: Incl Ref No. 4,5,7-14,16,17,21,29,30,46,50 & 51

$170.99

$

In Stock, only 1 left!

0

MTD 951-14050

Carburetor Repair Kit - HAUYI

Note: Incl Ref No. g,n,o,p,q,r,s,t,v & x

$58.99

$

In Stock, Qty 7

0

MTD 951-12712

Carburetor Repair Kit - DENI

Note: Incl Ref No. g,n,o,p,q,r,s,t,v & x

$58.99

$

In Stock, only 1 left!

0

MTD 951-11246

Crankcase Cover Kit
(Superseded to 951-11248A)

Note: Incl Ref No. 64,70,71,72,74-76

$200.99

$

In Stock, only 1 left!

0

MTD 951-11247A

Crankshaft Kit

Note: Incl Ref No. 64-66,76 & 81

$136.99

$

Usually ships in 3-6 days

0

MTD 951-11248A

Crankcase Kit

Note: Incl Ref No. 61,64,70,76,77 & 81

$200.99

$

In Stock, only 1 left!

0

MTD 952Z365-SUB-10

Complete Engine
(Superseded to 952Z670-WUB)

$887.99

$

Usually ships in 3-6 days

0
