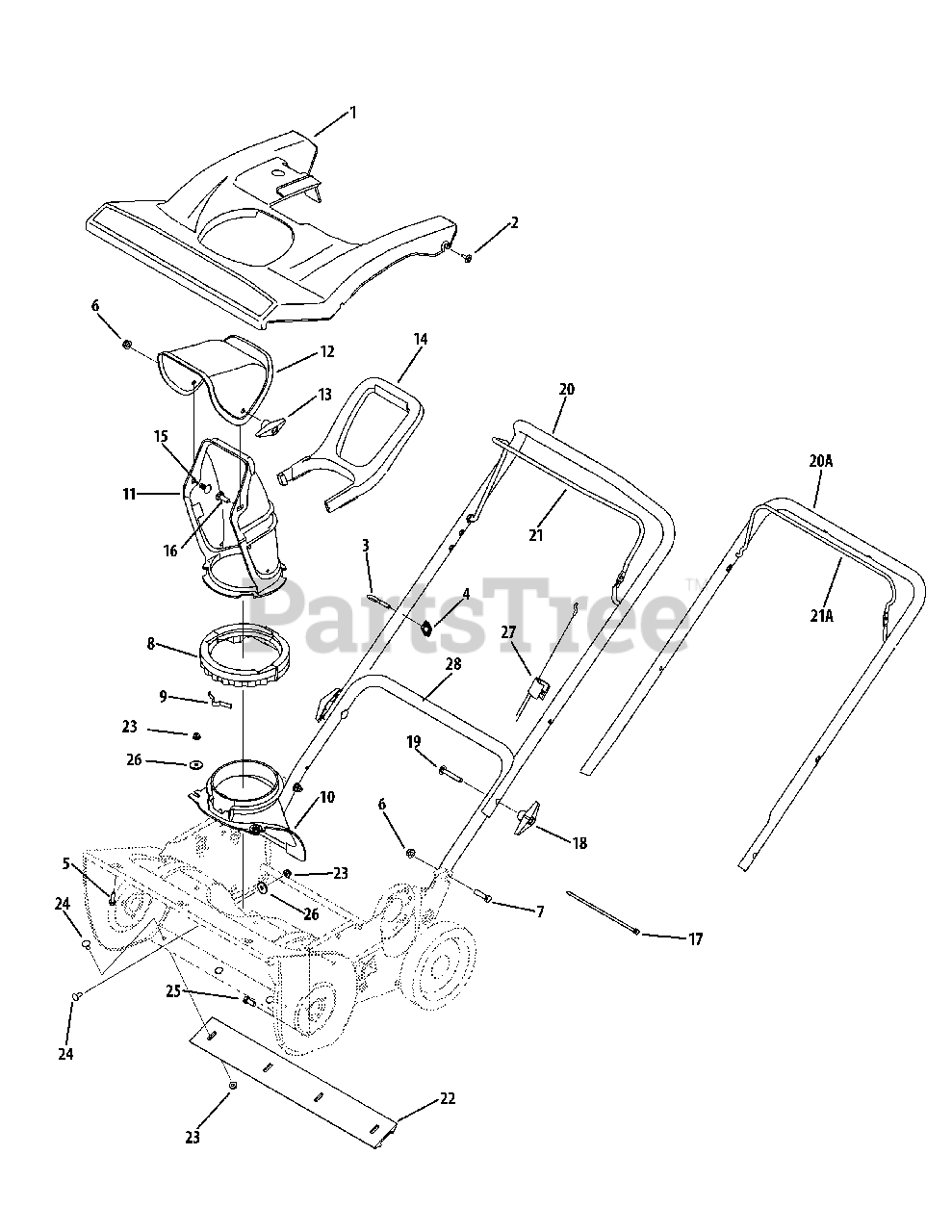

31AM2P5B704 - MTD Gold Snow Thrower (2009) Shroud, Chute, Handle & Auger Housing Parts Diagram

Gold Snow Thrower

Shroud, Chute, Handle & Auger Housing Parts Diagram

  • Title
1

MTD 731-06452

Shroud

$

$

Not available

2

MTD 710-04669

Hex Washer Screw, 10-16 x .625

$3.49

$

In Stock, Qty 20+

0

3

MTD 710-1205

Eye Bolt, 1.4-20

$3.99

$

In Stock, Qty 20+

0

4

MTD 720-0279

Knob Handle

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-0895

Hex Washer Screw, 1.4-15 x .750

$6.49

$

In Stock, Qty 10

0

6

MTD 712-04063

Flange Lock Nut, 5.16-18

$3.99

$

In Stock, Qty 20+

0

7

MTD 710-0528

Hex Screw, 5.16-18 x 1.25

$4.49

$

In Stock, Qty 19

0

8

MTD 931-04353

Lower Chute Ring

$18.99

$

In Stock, only 4 left!

0

9

MTD 932-04111

Chute Adjustment Spring

$4.99

$

In Stock, Qty 20+

0

10

MTD 931-04886

Chute Adapter

$20.99

$

Usually ships in 3-6 days

0

11

MTD 931-04127

Lower Chute, 5h Diameter

$33.99

$

Usually ships in 3-6 days

0

12

MTD 731-04426A

Upper Chute
(Superseded to 731-04426C)

$19.99

$

In Stock, Qty 11

0

13

MTD 720-04072A

Wing Knob

$6.99

$

In Stock, Qty 20+

0

14

MTD 731-04388A

Chute Handle

$26.99

$

Usually ships in 3-6 days

0

15

MTD 710-0451

Carriage Bolt, 5.16-18 x .750

$4.49

$

In Stock, Qty 20+

0

16

MTD 710-04071

Carriage Bolt, 5.16-18 x 1.00

$4.49

$

In Stock, Qty 10

0

17

MTD 725-0157

Cable Tie, 3.16 x .05 x 7.4

$3.99

$

In Stock, Qty 20+

0

18

MTD 720-04072A

Wing Nut

$6.99

$

In Stock, Qty 20+

0

19

MTD 720-04072A

Carriage Screw, 5.16-18 x 2.00

$6.99

$

In Stock, Qty 20+

0

20

MTD 749-04106A-0637

Gullwing Handle

$51.99

$

Usually ships in 3-6 days

0

20A

$39.99

$

Usually ships in 3-6 days

0

21

MTD 747-04159A-0637

Gullwing Control Bail

$36.99

$

In Stock, Qty 8

0

21A

MTD 747-04165-0637

Control Bail

$13.99

$

In Stock, only 3 left!

0

22

MTD 731-1033

Shave Plate, 21h

$47.99

$

In Stock, Qty 13

0

23

MTD 712-04064

Flange Lock Nut, 1.4-20

$3.99

$

In Stock, Qty 20+

0

24

MTD 710-0134

Carriage Screw, 1.4-20 x .62

$4.49

$

In Stock, Qty 20+

0

25

MTD 710-3008

Hex Screw, 5.16-18 x .75

$4.49

$

In Stock, Qty 20+

0

26

MTD 936-0176

Flat Washer, .265 x .938 x .120
(Superseded to 736-0176)

$4.99

$

In Stock, only 4 left!

0

27

MTD 746-04237

Clutch Cable
(Superseded to 946-04237)

$24.99

$

Usually ships in 3-6 days

0

28

MTD 749-04114B-0637

Lower Handle

$39.99

$

Usually ships in 3-6 days

0
