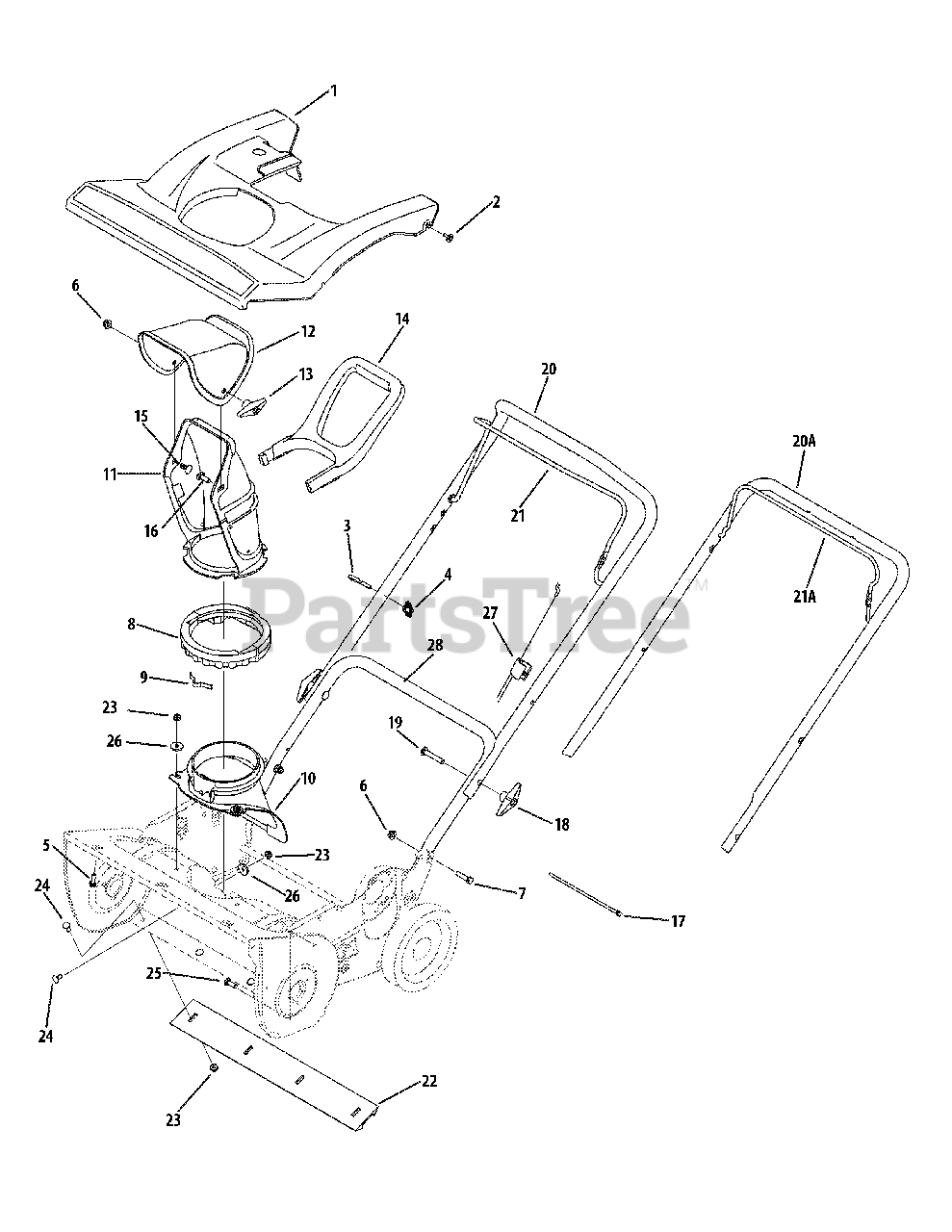

31AM2N1B795 - MTD Pro Snow Thrower (2008) General Assembly Parts Diagram

Pro Snow Thrower

General Assembly Parts Diagram

  • Title
1

MTD 731-06452

Shroud

$

$

Not available

2

MTD 710-04669

Hex Washer Screw, 10-16 x .625

$3.49

$

In Stock, Qty 20+

0

3

MTD 710-1205

Eye Bolt, 1/4-20

$3.99

$

In Stock, Qty 20+

0

4

MTD 720-0279

Knob Handle

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-0895

Hex Washer Screw, 1/4-15 x .750

$6.49

$

In Stock, only 4 left!

0

6

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

7

MTD 710-0528

Hex Screw, 5/16-18 x 1.25

$4.49

$

In Stock, Qty 20+

0

8

MTD 731-04353

Lower Chute Ring
(Superseded to 931-04353)

$18.99

$

In Stock, Qty 5

0

9

MTD 732-04111

Chute Adjustment Spring
(Superseded to 932-04111)

$4.99

$

In Stock, Qty 20+

0

10

MTD 731-04886

Chute Adapter
(Superseded to 931-04886)

$20.99

$

Usually ships in 3-6 days

0

11

MTD 731-04127

Lower Chute, 5" Diameter
(Superseded to 931-04127)

$33.99

$

Usually ships in 3-6 days

0

12

MTD 731-04426A

Upper Chute
(Superseded to 731-04426C)

$19.99

$

In Stock, Qty 14

0

13

MTD 720-04072

Wing Knob
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

14

MTD 731-04388A

Chute Handle

$26.99

$

Usually ships in 3-6 days

0

15

MTD 710-0451

Carriage Bolt, 5/16-18 x .750

$4.49

$

In Stock, Qty 20+

0

16

MTD 710-04071

Carriage Bolt, 5/16-18 x 1.00

$4.49

$

In Stock, Qty 13

0

17

MTD 725-0157

Cable Tie, 3/16 x .05 x 7.4

$3.99

$

In Stock, Qty 20+

0

18

MTD 720-04072

Wing Nut
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

19

MTD 710-04532

Carriage Screw, 5/16-18 x 2.00

$6.49

$

In Stock, Qty 5

0

20

MTD 749-04106A-0637

Gullwing Handle

$51.99

$

Usually ships in 3-6 days

0

20A

$39.99

$

Usually ships in 3-6 days

0

21

MTD 747-04159A-0637

Gullwing Control Bail

$36.99

$

In Stock, Qty 9

0

21A

MTD 747-04165-0637

Control Bail

$13.99

$

In Stock, Qty 5

0

22

MTD 731-1033

Shave Plate, 21"

$47.99

$

In Stock, Qty 13

0

23

MTD 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

24

MTD 710-0134

Carriage Screw, 1/4-20 x .62

$4.49

$

In Stock, Qty 20+

0

25

MTD 710-3008

Hex Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

26

MTD 736-0176

Flat Washer, .265 x .938 x .120

$4.99

$

In Stock, only 4 left!

0

27

MTD 746-04237

Clutch Cable
(Superseded to 946-04237)

$24.99

$

Usually ships in 3-6 days

0

28

MTD 749-04114

Lower Handle
(Superseded to 749-04114B)

Variations

MTD 749-04114-0637

HANDLE-LOWER SNOW - POWDER BLACK (0637)

$39.99

$

Usually ships in 3-6 days

0

MTD 749-04114-0638

HANDLE-LOWER SNOW - MTD/TROY-BILT RED (0638)

$34.99

$

Usually ships in 3-6 days

0

$34.99

$

Usually ships in 3-6 days
