31AM2N1B729 - Yard Machines Snow Thrower (2009) (Home Depot) Drive & Auger Assembly Parts Diagram

Snow Thrower

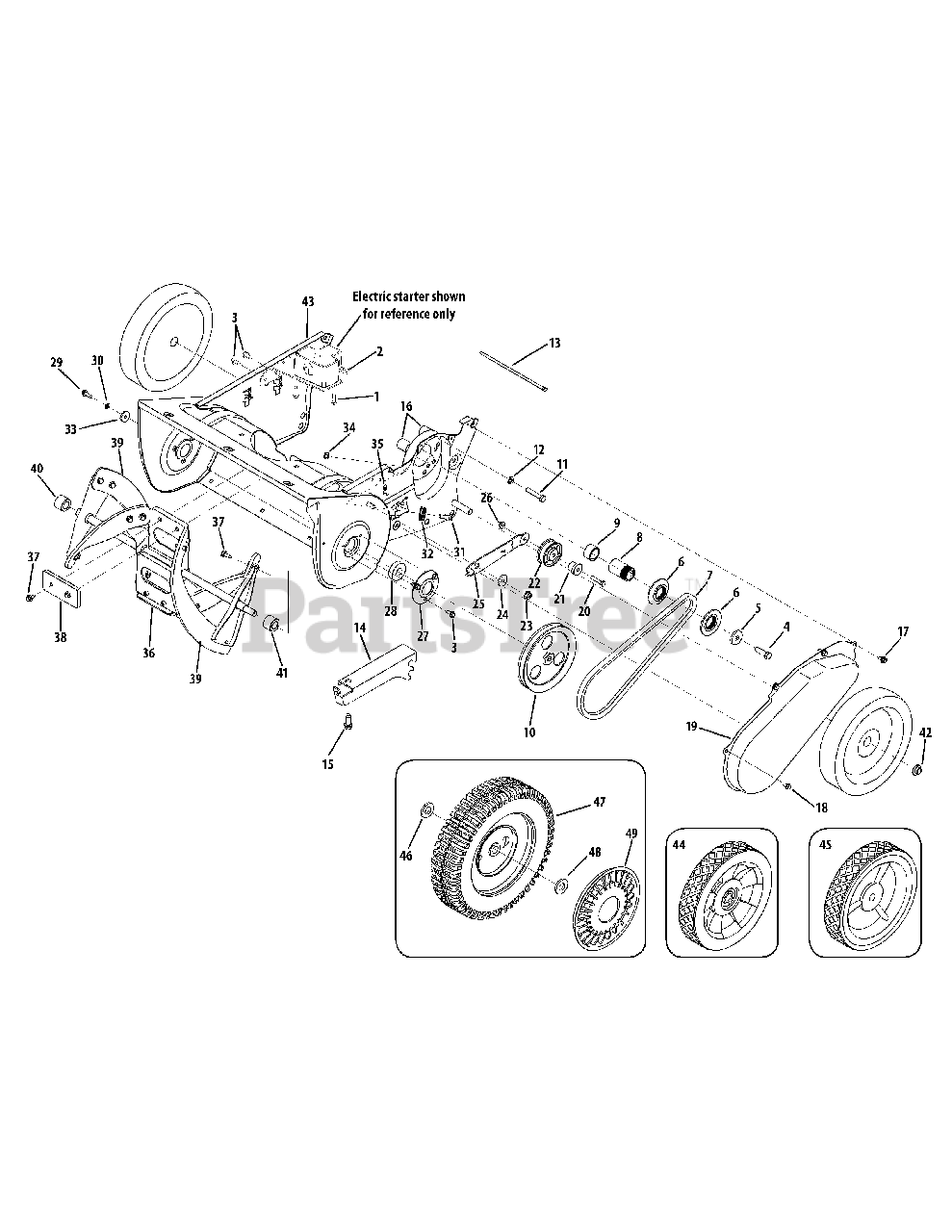

Drive & Auger Assembly Parts Diagram

  • Title

1

MTD 710-04373A

Hex Screw, #12-16 x .75

$4.49

$

In Stock, Qty 15

0

2

MTD 790-00335-0637

Electric Starter Support Bracket

$

$

Not available

3

MTD 710-0599

Hex Screw, 1.4-14 x .500

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-1810

Hex Screw, 3.8-24 x 1.25

$26.99

$

Usually ships in 3-6 days

0

5

MTD 736-0247

Flat Washer, .406 x 1.25 x .157

$9.49

$

In Stock, Qty 12

0

6

MTD 756-04353

Pulley Half, 4L-V x 2.30

$7.49

$

Usually ships in 3-6 days

0

7

MTD 954-04204

V-Belt

$23.99

$

In Stock, Qty 7

0

8

MTD 750-04303

Spacer, .875 x 1.185

$17.99

$

In Stock, only 4 left!

0

9

MTD 750-05084

Spacer, .88 x 1.18 x .74

$

$

Not available

10

MTD 756-04232

V-Type Pulley, 1.2 x 35.7

$60.99

$

In Stock, only 1 left!

0

11

MTD 710-0409

Hex Screw, 5.16-24 x 1.75

$4.99

$

Usually ships in 3-6 days

0

12

MTD 936-0119

Lock Washer, 5.16

$4.99

$

In Stock, Qty 20+

0

13

MTD 926-0154

Cable Tie, 7.5

$6.49

$

Usually ships in 3-6 days

0

14

MTD 790-00334-0637

Engine Support Bracket

$

$

Not available

15

MTD 710-0654A

Hex Washer Screw, 3.8-16 x 1.000

$4.49

$

In Stock, Qty 20+

0

16

MTD 750-04297B

Spacer, .875 x .320 x 1.027

$4.49

$

Usually ships in 3-6 days

0

17

MTD 710-0896

Hex Washer Screw, 1.4-14 x .625

$4.49

$

In Stock, Qty 20+

0

18

MTD 710-0653

Hex Washer Screw, 1.4-20 x .375

$4.49

$

In Stock, Qty 7

0

19

MTD 790-00045C-0638

Belt Cover - Red
(Superseded to 790-00045C-0637)

$57.99

$

Usually ships in 3-6 days

0

19

MTD 790-00045C-0662

Belt Cover - Gray

$

$

Not available

20

MTD 710-0106

Hex Screw, 1.4-20 x 1.25

$3.99

$

In Stock, Qty 12

0

21

MTD 750-04571

Shoulder Spacer, .260 x .785 x .538

$6.99

$

In Stock, only 2 left!

0

22

MTD 684-04168

Pulley Assembly, 1.917

$38.99

$

Usually ships in 3-6 days

0

23

MTD 712-04063

Flange Lock Nut, 5.16-18

$3.99

$

In Stock, Qty 20+

0

24

MTD 748-0234

Shoulder Spacer

$4.49

$

In Stock, Qty 20+

0

25

MTD 790-00238A-0637

Idler Bracket w/ Brake

$10.99

$

Usually ships in 3-6 days

0

26

MTD 712-04064

Flange Lock Nut, 1.4-20

$3.99

$

In Stock, Qty 20+

0

27

MTD 790-00249-0637

Bearing Cup

$18.99

$

Usually ships in 3-6 days

0

28

MTD 741-04188A

Ball Bearing, 1.25 x 37 x 12.6301

$12.99

$

In Stock, only 2 left!

0

29

MTD 710-0642

Hex Screw, 1.4-20 x .750

$4.49

$

In Stock, Qty 20+

0

30

MTD 936-0329

Lock Washer, 1.4

$4.49

$

In Stock, Qty 9

0

31

MTD 738-0924A

Shoulder Screw, .340 x .335 x 1.4-28

$6.99

$

In Stock, Qty 5

0

32

MTD 756-0625

Cable Roller

$9.49

$

In Stock, Qty 11

0

33

MTD 936-0176

Flat Washer, .265 x .938 x .120
(Superseded to 736-0176)

$4.99

$

In Stock, only 3 left!

0

34

MTD 712-0896

Hex Lock Nut, 1.4-28

$4.99

$

In Stock, Qty 6

0

35

MTD 932-0357A

Extension Spring, .33 x 1.12
(Superseded to 732-0357A)

$4.49

$

In Stock, Qty 13

0

36

MTD 684-04252-0637

Auger Assembly, 21inch

$180.99

$

In Stock, only 2 left!

0

37

MTD 710-0896

Hex Screw, 1.4-14 x .625

$4.49

$

In Stock, Qty 20+

0

38

MTD 735-04033

Rubber Pad

$8.49

$

In Stock, Qty 20+

0

39

MTD 735-04032

Spiral Crescent

$18.99

$

In Stock, Qty 20+

0

40

MTD 750-04758

RH Spacer

$6.49

$

In Stock, Qty 8

0

41

MTD 750-04757

LH Spacer

$8.49

$

Usually ships in 3-6 days

0

42

MTD 726-0299

Push Cap, 1.2

$8.49

$

In Stock, Qty 20+

0

43

MTD 684-04315-0638

Auger Housing - Red

$

$

Not available

43

MTD 684-04315-0662

Auger Housing - Gray

$

$

Not available

43

MTD 684-04314-0662

Auger Housing - Gray

$

$

Not available

44

MTD 734-04063

Wheel, 7 x 1.5 - Gray
(Superseded to 734-04063B)

$18.99

$

In Stock, only 3 left!

0

45

MTD 734-04070

Wheel, 7 x 1.61- White

$18.99

$

Usually ships in 3-6 days

0

46

MTD 936-0326

Flat Washer, .510 x 1.000 x .125
(Superseded to 736-0326)

$4.49

$

In Stock, only 2 left!

0

47

MTD 734-2010A

Wheel, 9 x 2.125
(Superseded to 734-2010B)

$51.99

$

In Stock, Qty 20+

0

48

MTD 936-0160

Flat Washer, .53 x .93 x .050

$4.49

$

In Stock, only 1 left!

0

49

MTD 731-07001

Hub Cap

$5.49

$

In Stock, only 2 left!

0

MTD 729-04035

Amp Connector

Note: Not Shown

$

$

Not available

MTD 753-04472

Rubber Auger Replacement Kit

Note: Not Shown

$100.99

$

In Stock, Qty 9

0
