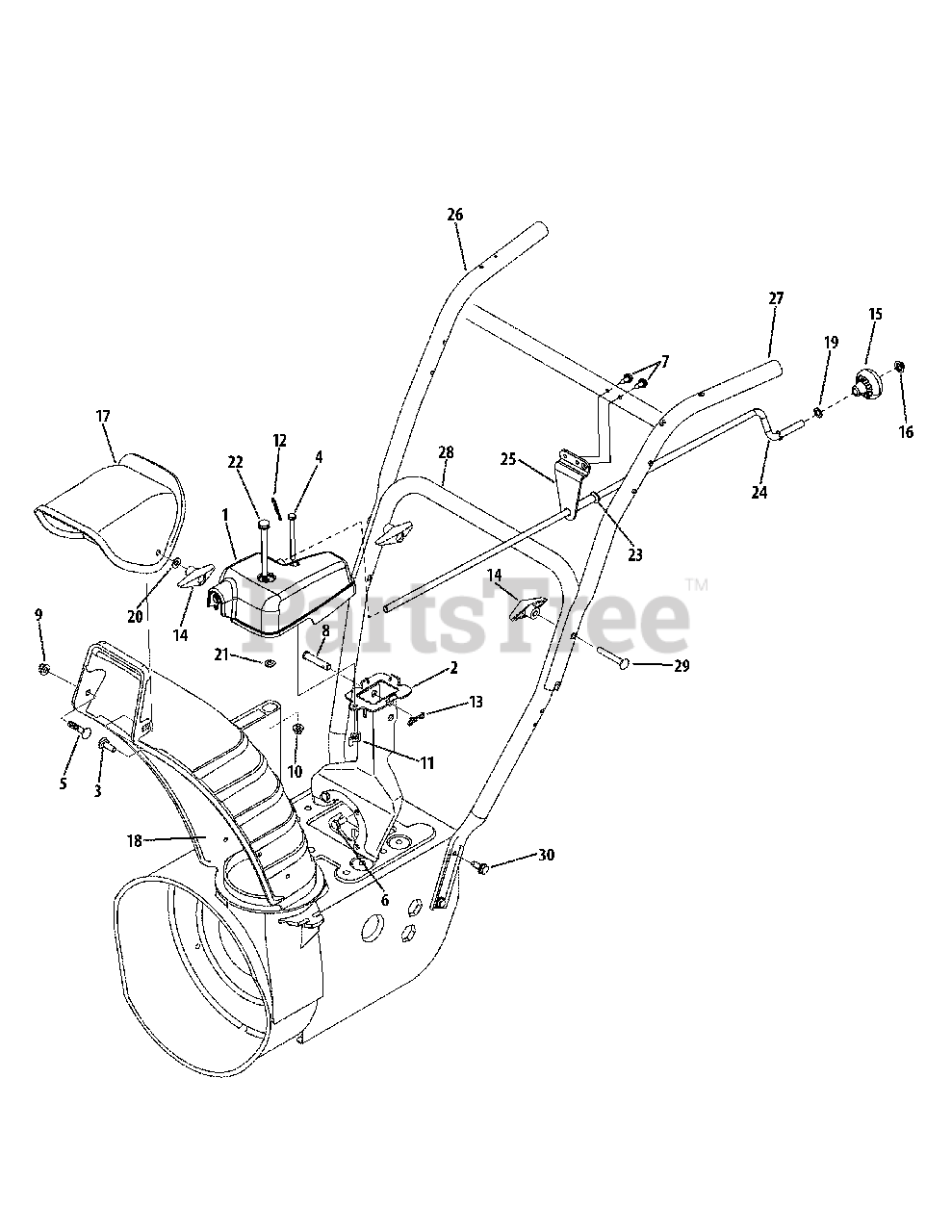

31AH6ZFH700 - Yard Machines Snow Thrower (2008) Extended Chute B&S & Tec Engines Parts Diagram

Snow Thrower

Extended Chute B&S & Tec Engines Parts Diagram

  • Title
1

MTD 618-04748

Chute Rotation Gear Box
(Superseded to 918-04933B)

$93.99

$

In Stock, only 1 left!

0

2

MTD 684-04311

Chute Support Bracket
(Superseded to 684-04311A-0637)

Variations

MTD 684-04311-0637

Support Bracket Assembly - POWDER BLACK (0637)

$42.99

$

Usually ships in 3-6 days

0

$42.99

$

Usually ships in 3-6 days

0

3

MTD 710-04071

Carriage Bolt, 5/16-18 x .750

$4.49

$

In Stock, Qty 10

0

4

MTD 710-04370

Hex Screw, 1/4-20 x 3.00

$4.49

$

In Stock, Qty 8

0

5

MTD 710-0451

Carriage Bolt, 5/16-18 x .750

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-0627

Hex Lock Screw, 5/16-24 x .750

$4.49

$

In Stock, Qty 20+

0

7

MTD 710-1652

Hex Washer Screw, 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

8

MTD 711-04469A

Clevis Pin, 3/8-1.87

$5.99

$

In Stock, only 2 left!

0

9

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

10

MTD 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

11

MTD 712-3087

Wing Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

12

MTD 714-0101

Cotter Pin, .08 x 1.42

$4.99

$

In Stock, only 1 left!

0

13

MTD 714-04040

Bow-tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

14

MTD 720-0284

Wing Knob, 5/16-18

$6.99

$

In Stock, Qty 20+

0

15

MTD 720-04102

Shift Knob, .390

$6.99

$

In Stock, Qty 17

0

16

MTD 726-0100

Push Cap, 3/8

$4.49

$

In Stock, Qty 18

0

17

MTD 731-04426A

Upper Chute
(Superseded to 731-04426C)

$19.99

$

In Stock, Qty 9

0

18

MTD 731-06440

Lower Chute, 5.0
(Superseded to 731-06440A)

$51.99

$

In Stock, Qty 15

0

19

MTD 736-0140

Flat Washer, .385 x .62 x .063

$7.49

$

In Stock, Qty 6

0

20

MTD 736-0159

Flat Washer, .349 x .879 x .063

$4.49

$

In Stock, Qty 20+

0

21

MTD 736-0463

Flat Washer, .25 x .630 x .0515

$4.49

$

In Stock, Qty 20+

0

22

MTD 738-04367

Shoulder Screw, .312 x .5 x 1/4-20

$4.99

$

In Stock, Qty 8

0

23

MTD 741-0475

Plastic Bushing
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

24

MTD 747-05006

Chute Crank
(Superseded to 747-05386A-0637)

Variations

MTD 747-05006-0637

CRANK-CHUTE - POWDER BLACK (0637)

$31.99

$

In Stock, only 1 left!

0

$31.99

$

In Stock, only 1 left!

0

25

MTD 790-00341

Rod Support Bracket

Variations

MTD 790-00341-0637

Support Rod Bracket - POWDER BLACK (0637)

$16.99

$

In Stock, only 1 left!

0

$13.99

$

Usually ships in 3-6 days

0

26

MTD 749-04190A

Upper Handle, RH

Variations

MTD 749-04190A-0637

Right Upper Handle with Hole - POWDER BLACK (0637)

$45.99

$

Usually ships in 3-6 days

0

MTD 749-04190A-0638

Right Upper Handle with Hole - MTD/TROY-BILT RED (0638)

$45.99

$

Usually ships in 3-6 days

0

MTD 749-04190A-0650

HANDLE-UPPER RH - RED METALLIC (0650)

$39.99

$

Usually ships in 3-6 days

0

MTD 749-04190A-0662

HANDLE-UPPER RH - OYSTER GRAY (0662)

$39.99

$

Usually ships in 3-6 days

0

MTD 749-04190A-0689

HANDLE-UPPER RH - POLO GREEN (0689)

$39.99

$

Usually ships in 3-6 days

0

MTD 749-04190A-0691

HANDLE-UPPER RH - BLACK JACK (0691)

$45.99

$

Usually ships in 3-6 days

0

MTD 749-04190A-0709

HANDLE-UPPER RH - MASTERCRAFT GREEN (0709)

$39.99

$

Usually ships in 3-6 days

0

MTD 749-04190A-0729

HANDLE-UPPER RH - STORM GRAY (0729)

$39.99

$

Usually ships in 3-6 days

0

MTD 749-04190A-4033

HANDLE-UPPER RH - FLINT MICA (4033)

$45.99

$

Usually ships in 3-6 days

0

MTD 749-04190A-0665

HANDLE-UPPER RH - YARDMAN GREEN (0665)

$

$

Not available

$39.99

$

Usually ships in 3-6 days

0

27

MTD 749-04191A

Upper Handle, LH

Variations

MTD 749-04191A-0638

Left Upper Handle with Hole - MTD/TROY-BILT RED (0638)

$45.99

$

Usually ships in 3-6 days

0

MTD 749-04191A-0637

Left Upper Handle with Hole - POWDER BLACK (0637)

$45.99

$

Usually ships in 3-6 days

0

MTD 749-04191A-0650

HANDLE-UPPER LH - RED METALLIC (0650)

$39.99

$

Usually ships in 3-6 days

0

MTD 749-04191A-0662

HANDLE-UPPER LH - OYSTER GRAY (0662)

$39.99

$

Usually ships in 3-6 days

0

MTD 749-04191A-0665

HANDLE-UPPER LH - YARDMAN GREEN (0665)

$39.99

$

Usually ships in 3-6 days

0

MTD 749-04191A-0689

HANDLE-UPPER LH - POLO GREEN (0689)

$39.99

$

Usually ships in 3-6 days

0

MTD 749-04191A-0691

HANDLE-UPPER LH - BLACK JACK (0691)

$39.99

$

Usually ships in 3-6 days

0

MTD 749-04191A-0709

HANDLE-UPPER LH - MASTERCRAFT GREEN (0709)

$39.99

$

Usually ships in 3-6 days

0

MTD 749-04191A-0729

HANDLE-UPPER LH - STORM GRAY (0729)

$39.99

$

Usually ships in 3-6 days

0

MTD 749-04191A-4033

HANDLE-UPPER LH - FLINT MICA (4033)

$45.99

$

Usually ships in 3-6 days

0

$39.99

$

Usually ships in 3-6 days

0

28

MTD 749-04138A

Lower Handle

Variations

MTD 749-04138A-0637

Lower Handle, Snow - POWDER BLACK (0637)

$88.99

$

Usually ships in 3-6 days

0

MTD 749-04138A-0638

Lower Handle, Snow - MTD/TROY-BILT RED (0638)

$88.99

$

Usually ships in 3-6 days

0

MTD 749-04138A-0650

HANDLE-LOWER SNOW - RED METALLIC (0650)

$77.99

$

Usually ships in 3-6 days

0

MTD 749-04138A-0662

HANDLE-LOWER SNOW - OYSTER GRAY (0662)

$88.99

$

Usually ships in 3-6 days

0

MTD 749-04138A-0665

HANDLE-LOWER SNOW - YARDMAN GREEN (0665)

$77.99

$

Usually ships in 3-6 days

0

MTD 749-04138A-0668

HANDLE-LOWER SNOW - MOSS GREEN (0668)

$88.99

$

Usually ships in 3-6 days

0

MTD 749-04138A-0689

HANDLE-LOWER SNOW - POLO GREEN (0689)

$77.99

$

Usually ships in 3-6 days

0

MTD 749-04138A-0691

HANDLE-LOWER SNOW - BLACK JACK (0691)

$88.99

$

Usually ships in 3-6 days

0

MTD 749-04138A-0709

HANDLE-LOWER SNOW - MASTERCRAFT GREEN (0709)

$88.99

$

Usually ships in 3-6 days

0

MTD 749-04138A-0729

HANDLE-LOWER SNOW - STORM GRAY (0729)

$77.99

$

Usually ships in 3-6 days

0

MTD 749-04138A-4033

HANDLE-LOWER SNO - FLINT MICA (4033)

$88.99

$

Usually ships in 3-6 days

0

$88.99

$

Usually ships in 3-6 days

0

29

MTD 710-0449

Carriage Screw, 5/16-18 x 2.25
(Superseded to 710-0572)

$4.49

$

In Stock, Qty 20+

0

30

MTD 710-04484

Hex Washer Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0
