31AH6LLH801 - Yard-Man Snow Thrower (2005-2) Handle Assembly Parts Diagram

Snow Thrower

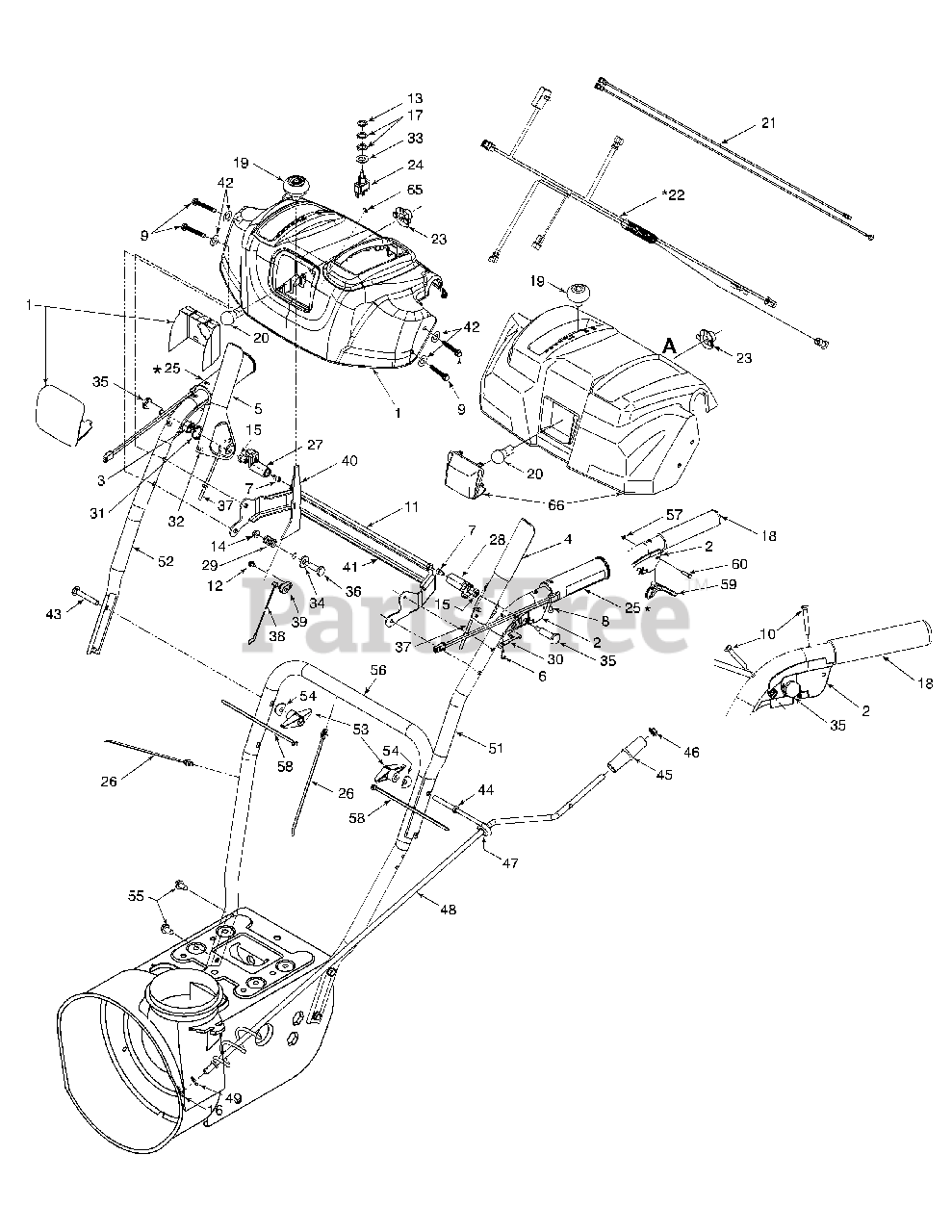

Handle Assembly Parts Diagram

  • Title

1

MTD 631-04180

Handle Panel Ass’y - Yellow

$83.99

$

Usually ships in 3-6 days

0

2

MTD 631-04133

LH Clutch Lock Handle Ass’y
(Superseded to 631-04133A)

$15.99

$

In Stock, Qty 7

0

3

MTD 631-04134A

RH Clutch Lock Handle Ass’y
(Superseded to 631-04134B)

$15.99

$

Usually ships in 3-6 days

0

4

MTD 684-04105A

EngagementHandle Assembly LH
(Superseded to 684-04105D)

$22.99

$

In Stock, only 3 left!

0

5

MTD 684-04106A

Engagement Handle Assembly RH
(Superseded to 684-04106D)

$21.99

$

In Stock, only 2 left!

0

6

MTD 710-04326

Screw #8-16 x .50

$3.99

$

In Stock, only 2 left!

0

7

MTD 710-04354

Screw 1/4-20 x .375

$3.99

$

In Stock, Qty 20+

0

8

MTD 710-0837

Oval HD C-Sunk Scr #10 x 5/8

$4.49

$

In Stock, Qty 5

0

9

MTD 710-1026

Hex TT-Tap Scr 1/4-20 x 1.75

$6.99

$

In Stock, Qty 13

0

10

MTD 710-1233

Oval C-Sunk Hd Screw 10-24 x 1.375

$4.99

$

In Stock, Qty 11

0

11

MTD 711-04287

Pivot Rod
(Superseded to 753-04882C)

$42.99

$

In Stock, only 2 left!

0

12

MTD 710-0224

Screw #10-16 x .50
(Superseded to 910-0224)

$3.99

$

In Stock, Qty 20+

0

13

MTD 712-0693

Hex Nut

$

$

Not available

14

MTD 712-04064

Hex L-Flanged Nut 1/4-20 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

15

MTD 712-04081A

Hex Shoulder Nut 1/4-20

$7.49

$

In Stock, Qty 20+

0

16

MTD 714-0104

Int. Cotter Pin .072 x 1.13" Lg.

$4.49

$

In Stock, Qty 20+

0

17

MTD 716-0398

Lock Ring - Toggle Switch

$

$

Not available

18

MTD 720-0274

Grip

$11.99

$

In Stock, Qty 8

0

19

MTD 720-04039

Shift Knob

$10.99

$

In Stock, only 1 left!

0

19

MTD 720-04045

Shift Knob - Yellow

$

$

Not available

20

MTD 725-04213

Lamp #1295
(Superseded to 925-04213)

$4.99

$

In Stock, Qty 10

0

21

MTD 725-04214

Wire Harness

$

$

Not available

22

MTD 725-04216A

Heated Grip Wire Harness
(Superseded to 725-04216B)

$75.99

$

Usually ships in 3-6 days

0

23

MTD 725-1649

Socket
(Superseded to 925-1649A)

$11.99

$

In Stock, Qty 20+

0

24

MTD 725-1756

Toggle Switch - Single Throw
(Superseded to 925-1756)

$31.99

$

Usually ships in 3-6 days

0

25

MTD 725-1757

Heated Grip

$111.99

$

Usually ships in 3-6 days

0

26

MTD 726-0470

Cable Tie 19 x 8.39"

$4.99

$

Usually ships in 3-6 days

0

27

MTD 731-04894B

Lock Plate
(Superseded to 731-04894D)

$5.49

$

In Stock, Qty 9

0

28

MTD 731-04896A

Clutch Lock Cam
(Superseded to 731-04896C)

$4.49

$

In Stock, Qty 20+

0

29

MTD 732-0193

Compression Spring .38 ID x .88 Lg

$4.99

$

In Stock, Qty 6

0

30

MTD 732-04219

Spring: Clutch Lock
(Superseded to 732-04219C)

$4.49

$

In Stock, Qty 20+

0

31

MTD 732-04238

Torsion Spring .8156 x .3038
(Superseded to 732-04238B)

$5.49

$

In Stock, Qty 10

0

32

MTD 735-0199A

Rubber Bumper

$7.99

$

In Stock, only 1 left!

0

33

MTD 736-0226

Flat Washer .469 ID x .88 OD x .063
(Superseded to 936-0226)

$3.99

$

In Stock, only 2 left!

0

34

MTD 736-0262

Flat Washer .38 ID x .87 OD x .09

$3.99

$

In Stock, Qty 20+

0

35

MTD 738-04122

Shoulder Screw 1/4-20 x 1.345
(Superseded to 738-04348)

$3.99

$

In Stock, Qty 20+

0

36

MTD 738-04125

Shoulder Screw .374 Dia. x 1.05 Lg.

$4.99

$

In Stock, only 3 left!

0

37

MTD 746-0778

Z Fitting
(Superseded to 946-0778)

$10.99

$

In Stock, Qty 5

0

38

MTD 746-04227

SelectorSpeedCable
(Superseded to 746-04227A)

$22.99

$

In Stock, Qty 15

0

39

MTD 746-0605

Cable Barrel Holder
(Superseded to 946-0605)

$4.49

$

In Stock, Qty 20+

0

40

MTD 790-00203

Shift Lever
(Superseded to 790-00203-0637)

Variations

MTD 790-00203-0637

Shift Lever - POWDER BLACK (0637)

$

$

Not available

$

$

42

MTD 736-0463

Flat Washer .25 x .63 x .050

$4.49

$

In Stock, Qty 20+

0

41

MTD 790-00140

Panel Support
(Superseded to 790-00140-0637)

Variations

MTD 790-00140-0637

BRACKET-PANEL - POWDER BLACK

$

$

Not available

$

$

43

MTD 710-0449

Carriage Bolt 5/16-18 x 2.25
(Superseded to 710-0572)

$4.49

$

In Stock, Qty 20+

0

44

MTD 747-04263

Chute Crank Eye Bolt Special

$9.49

$

In Stock, only 2 left!

0

45

MTD 720-0201A

Knob 1.0 x 3.2

$10.99

$

In Stock, Qty 5

0

46

MTD 726-0100

Push Nut 3/8" Rod

$4.49

$

In Stock, Qty 18

0

47

MTD 735-0234

Grommet

$5.49

$

In Stock, only 2 left!

0

48

MTD 684-04104

Chute Crank Assembly
(Superseded to 684-04104-0637)

Variations

MTD 684-04104-0637

Chute Crank Assembly, Powder Black - POWDER BLACK (0637)

$62.99

$

In Stock, only 1 left!

0

$62.99

$

In Stock, only 1 left!

0

49

MTD 736-0185

Flat Washer .406" I.D. x .75" O.D.

$3.99

$

In Stock, Qty 20+

0

51

MTD 749-04142

Upper Handle LH
(Superseded to 749-04191A)

Variations

MTD 749-04142-0638

HANDLE-UPPER LH - MTD/TROY-BILT RED (0638)

$45.99

$

Usually ships in 3-6 days

0

MTD 749-04142-0637

HANDLE-UPPER LH - POWDER BLACK (0637)

$45.99

$

Usually ships in 3-6 days

0

$39.99

$

Usually ships in 3-6 days

0

51

MTD 749-04191

Upper Handle LH (Heated Grips)
(Superseded to 749-04191A)

Variations

MTD 749-04191-0638

Left Upper Handle with Hole - MTD/TROY-BILT RED (0638)

$45.99

$

Usually ships in 3-6 days

0

MTD 749-04191-0637

HANDLE-UPPER LH - POWDER BLACK (0637)

$45.99

$

Usually ships in 3-6 days

0

$39.99

$

Usually ships in 3-6 days

0

52

MTD 749-04141

Upper Handle RH

Variations

MTD 749-04141-0637

Right Upper Handle - POWDER BLACK (0637)

$45.99

$

Usually ships in 3-6 days

0

MTD 749-04141-0638

HANDLE-UPPER RH - MTD/TROY-BILT RED (0638)

$45.99

$

Usually ships in 3-6 days

0

$53.99

$

Usually ships in 3-6 days

0

52

MTD 749-04190

Upper Handle RH (Heated Grips)
(Superseded to 749-04190A)

Variations

MTD 749-04190-0637

Right Upper Handle with Hole - POWDER BLACK (0637)

$45.99

$

Usually ships in 3-6 days

0

MTD 749-04190-0638

Right Upper Handle with Hole - MTD/TROY-BILT RED (0638)

$45.99

$

Usually ships in 3-6 days

0

$39.99

$

Usually ships in 3-6 days

0

53

MTD 720-04065

Handle Knob Assembly
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

54

MTD 736-0451

Saddle Wash. .320 ID x .937 OD

$4.49

$

In Stock, Qty 11

0

55

MTD 710-1260A

Hex Wash HD Lo Tap Scr 5/16 x .75

$3.99

$

In Stock, Qty 20+

0

56

MTD 749-04138

Lower Handle
(Superseded to 749-04138A)

Variations

MTD 749-04138-0637

Lower Handle, Snow - POWDER BLACK (0637)

$88.99

$

Usually ships in 3-6 days

0

MTD 749-04138-0638

Lower Handle, Snow - MTD/TROY-BILT RED (0638)

$88.99

$

Usually ships in 3-6 days

0

$88.99

$

Usually ships in 3-6 days

0

57

MTD 716-04036

E Ring

$6.49

$

In Stock, Qty 19

0

58

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

59

MTD 731-04913

SteeringControl

$5.49

$

Usually ships in 3-6 days

0

60

MTD 738-04126

Pin 3/16

$3.99

$

In Stock, Qty 20+

0

65

MTD 716-04046

E-Ring 0.76

$

$

Not available

66

MTD 631-04181

Handle Panel Ass’y - Troy-Bilt
(Superseded to 931-04181A)

$59.99

$

Usually ships in 3-6 days

0
