31AH6LLH801 - Yard-Man Snow Thrower (2005-2) Drive Assembly Parts Diagram

Snow Thrower

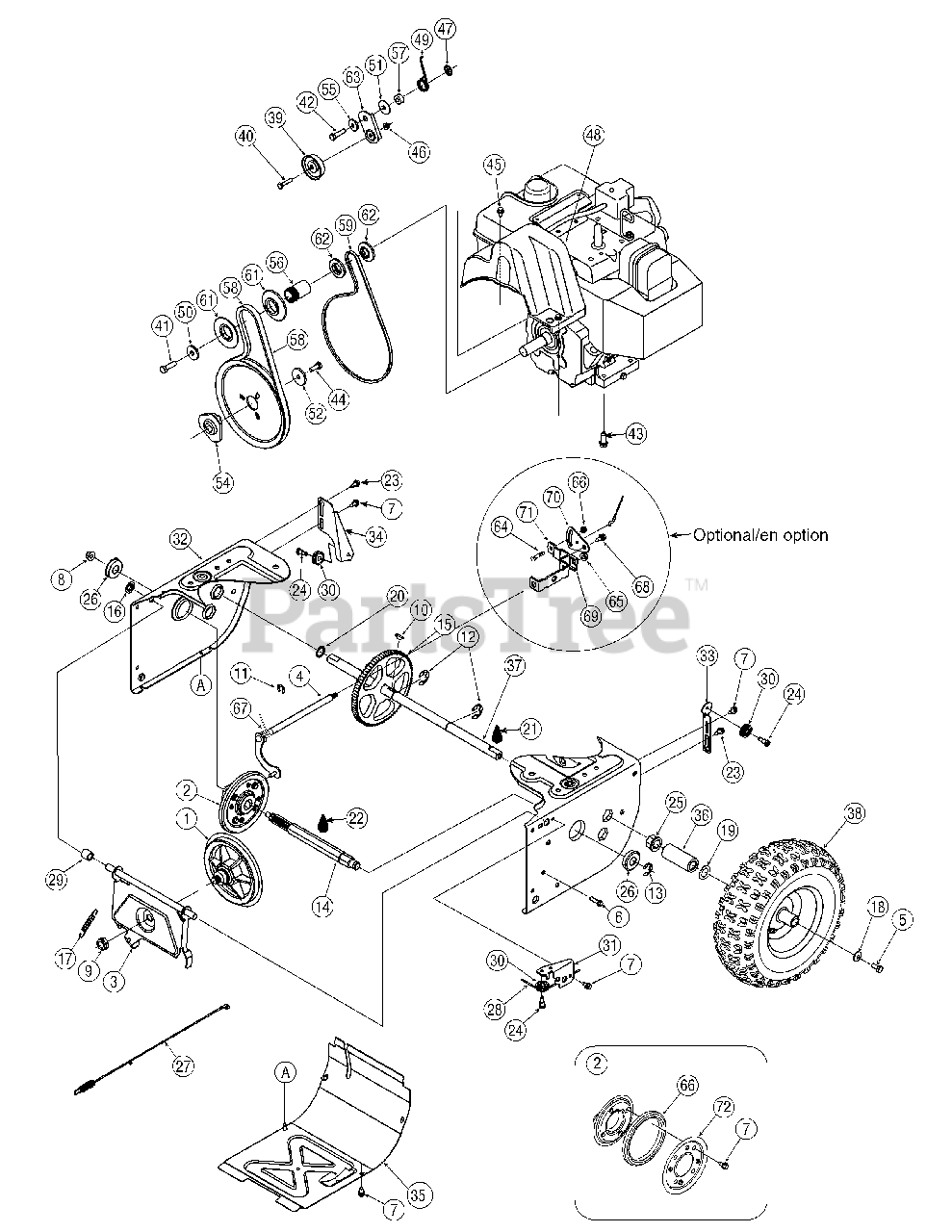

Drive Assembly Parts Diagram

  • Title

1

MTD 656-04025

Friction Wheel Disc Assembly
(Superseded to 656-04055A)

$59.99

$

In Stock, Qty 15

0

2

MTD 684-04153

Friction Wheel Ass’y, Bearing 5.5 OD
(Superseded to 684-04153C)

$101.99

$

In Stock, Qty 20+

0

3

MTD 684-04154

Friction Wheel Support Brkt Ass’y
(Superseded to 684-04154B-0637)

Variations

MTD 684-04154-0637

BRACKET ASM-SUPPORT - POWDER BLACK (0637)

$41.99

$

Usually ships in 3-6 days

0

$41.99

$

Usually ships in 3-6 days

0

4

MTD 684-04156

Shift Rod Ass’y
(Superseded to 684-04156A)

$61.99

$

Usually ships in 3-6 days

0

5

MTD 710-0627

Hex L-Bolt 5/16-24 x .75 Gr. 5

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-0788

Hex Bolt 1/4-20 x 1.00

$7.49

$

In Stock, only 2 left!

0

7

MTD 710-1652

Hex Wash Hd TT Scr. 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

8

MTD 712-04065

Flange Lock-Nut 3/8-16 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

9

MTD 712-0413

Jam L-Nut 5/8-18 Gr. 5 Nylon

$6.49

$

In Stock, only 1 left!

0

10

MTD 714-0126

#9 HI-Pro Key 3/16 x 3/4 Dia HT

$4.99

$

In Stock, Qty 12

0

11

MTD 716-0104

Retaining Ring
(Superseded to 916-0104)

$3.99

$

In Stock, Qty 20+

0

12

MTD 716-0136

RetainerRing

$8.99

$

In Stock, Qty 18

0

13

MTD 716-0231

“E" Ring

$3.99

$

In Stock, Qty 20+

0

14

MTD 717-04209

Hex Shaft .8125 - 7 tooth
(Superseded to 917-04209B)

$143.99

$

In Stock, only 2 left!

0

15

MTD 717-04230

Gear - 80 Tooth
(Superseded to 917-04230)

$108.99

$

Usually ships in 3-6 days

0

16

MTD 726-0221

Cap Speed Nut 1/4 Rod

$6.49

$

In Stock, only 2 left!

0

17

MTD 732-0264

Extension Spring 3/8 OD x 2.50
(Superseded to 932-0264)

$4.99

$

In Stock, Qty 20+

0

18

MTD 736-0242

Cupped Washer .345 ID x .88 OD x .060

$4.49

$

In Stock, Qty 20+

0

19

MTD 736-0287

Flat Washer .79 ID x 1.25 OD x .06

$4.49

$

In Stock, Qty 20+

0

20

MTD 736-04161

Flat Washer .75 x 1.00 x .06

$6.99

$

Usually ships in 3-6 days

0

21

MTD 737-0288

Grease

$

$

Currently unavailable

22

MTD 737-04027

LubricantIndustrial LPS 2

$

$

Currently unavailable

23

MTD 738-04184

Shoulder Screw .373 x .105:TT 1/4-20
(Superseded to 738-04184A)

$6.99

$

In Stock, Qty 5

0

24

MTD 738-0924

Hex Shld.Scr.1/4-28 x .375
(Superseded to 738-0924A)

$6.99

$

In Stock, Qty 5

0

25

MTD 741-0245

Hex. Flange Bearing.751" ID
(Superseded to 941-0245)

$9.99

$

In Stock, Qty 20+

0

26

MTD 741-0563

Ball Bearing w/snap ring
(Superseded to 941-0563)

$36.99

$

In Stock, Qty 7

0

27

MTD 746-04229

Drive Clutch Cable 44.83" Lg.
(Superseded to 946-04229B)

$21.99

$

In Stock, Qty 20+

0

28

MTD 746-04230

Auger Clutch Cable 47.23" Lg.
(Superseded to 946-04230B)

$23.99

$

In Stock, Qty 20+

0

29

MTD 748-0190

Spacer .513 ID x 1.0

$6.49

$

In Stock, Qty 11

0

30

MTD 756-0625

Cable Guide Roller

$9.49

$

In Stock, Qty 14

0

31

MTD 790-00096

Auger Cable Guide Bracket
(Superseded to 790-00096B)

Variations

Cub Cadet 790-00096A-0637

Auger Cable Bracket, Black - POWDER BLACK

$9.49

$

In Stock, only 2 left!

0

$9.49

$

In Stock, only 2 left!

0

32

MTD 790-00180

Frame
(Superseded to 790-00180D)

Variations

Cub Cadet 790-00180C-0637

FRAME-WHL DRV 600 - POWDER BLACK

$160.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00180D-0638

FRAME-DRIVE HSG - MTD/TROY-BILT RED

$160.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00180D-0665

FRAME-DRIVE HSG - YARDMAN GREEN

$139.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00180D-4044

FRAME-DRIVE HSG - CRAFTSMAN RED

$153.99

$

Usually ships in 3-6 days

0

$139.99

$

Usually ships in 3-6 days

0

33

MTD 790-00206

Guide Bracket - Auger Cable
(Superseded to 790-00206B)

Variations

MTD 790-00206-0637

Auger Cable Guide Bracket - POWDER BLACK (0637)

$8.49

$

In Stock, only 1 left!

0

$8.49

$

In Stock, only 1 left!

0

34

MTD 790-00207

Guide Bracket - Drive Cable
(Superseded to 790-03997)

Variations

MTD 790-00207-0637

Clutch Drive Cable - POWDER BLACK (0637)

$5.49

$

In Stock, Qty 6

0

$5.49

$

In Stock, Qty 6

0

35

MTD 790-00226

Frame Cover

Variations

MTD 790-00226-0637

Frame Cover - POWDER BLACK (0637)

$

$

Not available

MTD 790-00226-0638

Frame Cover - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

36

MTD 731-04873

Spacer

$10.99

$

In Stock, Qty 7

0

37

MTD 738-04168

Axle .75 x 22" Lg.
(Superseded to 938-04493)

$63.99

$

In Stock, Qty 5

0

38

MTD 634-04142A

15 x 5 Snow Hog Wheel Assembly

Variations

MTD 634-04142A-0911

WHEEL ASM COMPLETE - Carlisle Gray (0911)

$201.99

$

Usually ships in 3-6 days

0

$163.99

$

Usually ships in 3-6 days

0

38

MTD 734-1859

Tire
(Superseded to 734-1859-0901)

Variations

MTD 734-1859-0901

TIRE 15X5 - Carlisle (0901)

$105.99

$

Usually ships in 3-6 days

0

$105.99

$

Usually ships in 3-6 days

0

38

MTD 634-04151A

Rims
(Superseded to 634-04172A)

$43.99

$

Usually ships in 3-6 days

0

39

MTD 684-04169

Idler Pulley Assembly 1.917 OD

$34.99

$

In Stock, Qty 8

0

40

MTD 710-0106

Hex Screw 1/4-20 x 1.25

$3.99

$

In Stock, Qty 12

0

41

MTD 710-0191

Hex Screw 3/8-24 x 1.25

$4.99

$

In Stock, Qty 9

0

42

MTD 710-04520

Hex Hd Cap Scr. 5/16-24 x 1.25 Gr. 5

$

$

Not available

43

MTD 710-0654A

Hex Wash HD Tap Scr 3/8-16 x .88

$4.49

$

In Stock, Qty 20+

0

44

MTD 710-1245B

Hex Bolt 5/16-24 x 0.875

$8.49

$

In Stock, only 4 left!

0

45

MTD 710-1652

Hex Wash Hd TT Scr. 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

46

MTD 712-04064

Hex L-Flanged Nut 1/4-20 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

47

MTD 726-04012

Push Nut

$7.49

$

In Stock, Qty 8

0

48

MTD 731-04792A

Belt Cover
(Superseded to 731Z04792F)

$24.99

$

In Stock, only 4 left!

0

49

MTD 732-04308

Torsion Spring .850 ID x .354" Lg.
(Superseded to 732-04308C)

$5.49

$

In Stock, Qty 20+

0

50

MTD 736-0247

Flat Washer .40 ID x 1.25 OD x .160

$9.49

$

In Stock, Qty 12

0

51

MTD 736-0362

Flat Washer .22 ID x 1.25

$4.49

$

In Stock, only 4 left!

0

52

MTD 736-0505

Flat Washer .34 x 1.50 x .150

$6.49

$

In Stock, Qty 11

0

53

MTD 737-0318

Grease:Arctic:EP NLGI 1-58F
(Superseded to 737-0318-CRTG)

$23.99

$

Usually ships in 3-6 days

0

54

MTD 748-04053

Pulley Adapter
(Superseded to 748-04053A)

$22.99

$

In Stock, only 3 left!

0

55

MTD 748-04097

ShoulderSpacer

$4.99

$

Usually ships in 3-6 days

0

56

MTD 750-04303

Spacer .875 ID x 1.185 OD

$17.99

$

In Stock, only 4 left!

0

57

MTD 750-04477

Spacer .340 x .750 x .360" Lg.
(Superseded to 750-04477A)

$5.49

$

In Stock, only 1 left!

0

58

MTD 754-04050

Belt .5 x 35.0" Lg.
(Superseded to 954-04050A)

$27.99

$

In Stock, Qty 20+

0

59

MTD 754-04088

Belt 33.0" Lg.

$15.99

$

In Stock, Qty 19

0

60

MTD 756-04109

Auger Pulley

$54.99

$

Usually ships in 3-6 days

0

61

MTD 756-04113

Pulley Half
(Superseded to 756-06563)

$3.99

$

In Stock, only 2 left!

0

62

MTD 756-04179

Pulley Half 1/4 V x 1.5 OD
(Superseded to 956-04179)

$

$

Not available

63

MTD 790-00208

Wheel Drive Idler Bracket
(Superseded to 790-00208D)

$8.99

$

In Stock, Qty 9

0

64

MTD 710-0751

Hex Bolt 1/4-20 x .62 Gr. 5

$3.99

$

In Stock, Qty 20+

0

65

MTD 712-04063

Flange Locknut 5/16-18 Gr. F, Nylon

$3.99

$

In Stock, Qty 20+

0

66

MTD 735-04054

Friction Wheel Rubber
(Superseded to 935-04054A)

$39.99

$

In Stock, Qty 20+

0

67

MTD 732-04311

Torsion Spring .750 ID x .968" Lg.
(Superseded to 732-04311A)

$10.99

$

In Stock, only 3 left!

0

68

MTD 738-04184

Shoulder Screw .373 x .105:TT 1/4-20
(Superseded to 738-04184A)

$6.99

$

In Stock, Qty 5

0

69

MTD 790-00156

Shift Spacer Bracket

$7.99

$

Usually ships in 3-6 days

0

70

MTD 790-00217

Pivot Bracket
(Superseded to 790-00217A-0637)

Variations

MTD 790-00217-0637

Pivot Bracket - POWDER BLACK (0637)

$53.99

$

Usually ships in 3-6 days

0

$53.99

$

Usually ships in 3-6 days

0

71

MTD 790-00218

Shift Bracket
(Superseded to 790-00218A-0637)

Variations

MTD 790-00218-0637

Shift Speed Bracket - POWDER BLACK (0637)

$47.99

$

In Stock, only 1 left!

0

$47.99

$

In Stock, only 1 left!

0

72

MTD 790-00174

FrictionPlate
(Superseded to 790-00174C)

$14.99

$

Usually ships in 3-6 days

0
