31AH65FH700 - Yard Machines Snow Thrower (2016) Auger Housing Parts Diagram

Snow Thrower

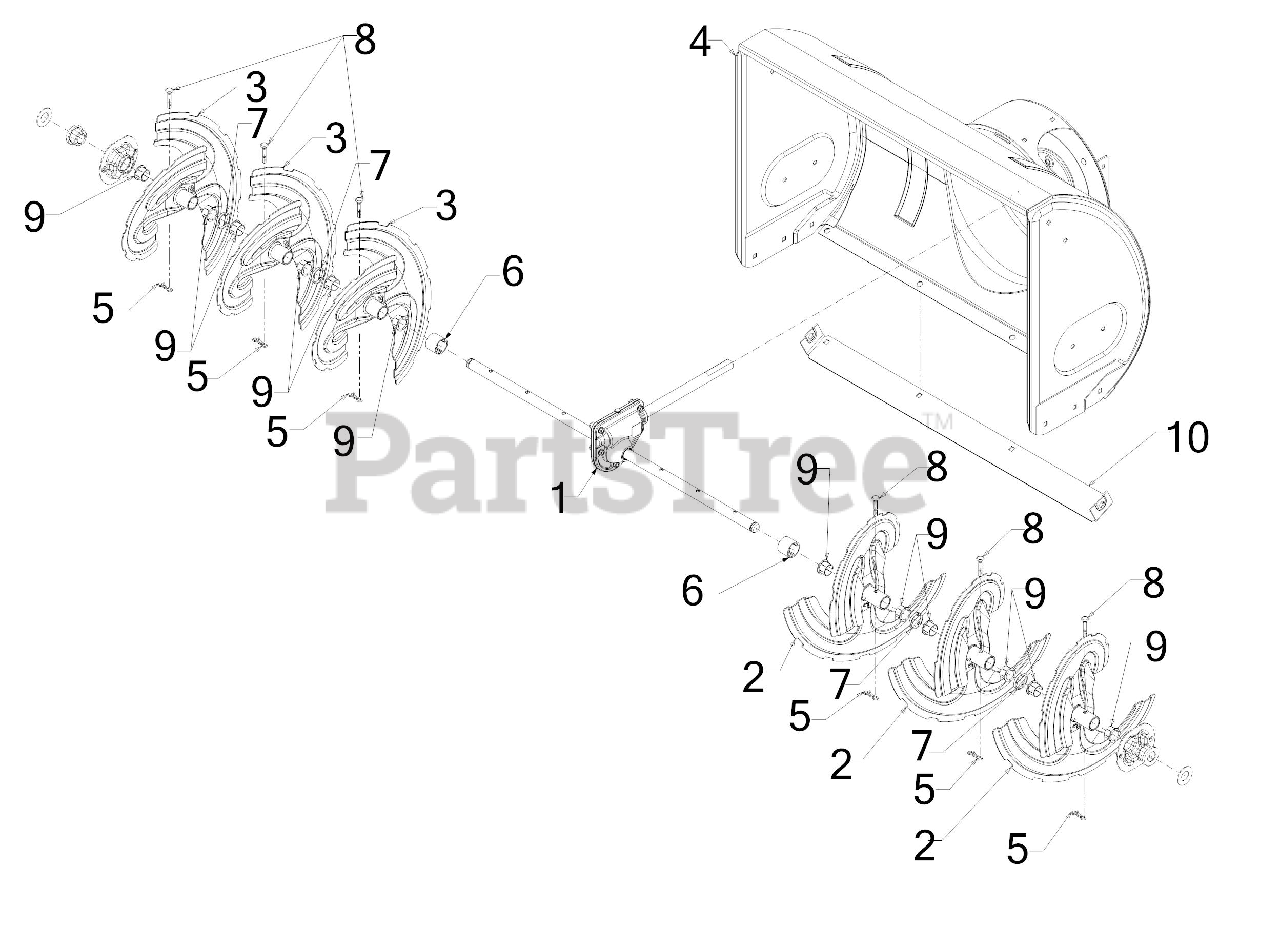

Auger Housing Parts Diagram

  • Title
1

MTD 918-04165B

30" GEARBOX ASSEMBLY

Note: (See Separate Breakdown)

$447.99

$

In Stock, only 1 left!

0

2

MTD 684-04107A-0637

AUGER ASSEMBLY (LH)

$89.99

$

In Stock, Qty 20+

0

3

MTD 684-04108A-0637

AUGER ASSEMBLY (RH)

$94.99

$

In Stock, Qty 10

0

4

MTD 684-05205-0638

30" AUGER HOUSING
(Superseded to 684-05205A-0638)

$336.99

$

Usually ships in 3-6 days

0

5

MTD 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

6

MTD 731-04870

SPACER 1.25OD x .75ID X1.00 LG

$4.99

$

In Stock, Qty 20+

0

7

MTD 731-04871

SPCR 1.25 OD x 75IDX2.00LG

$6.99

$

In Stock, Qty 20+

0

8

MTD 738-04124A

SHEAR PIN .25 x 1.50 GR2

$1.99

$

In Stock, Qty 20+

0

9

MTD 741-0493C

FLANGE BUSHING

$4.49

$

In Stock, Qty 20+

0

10

MTD 790-00119-0638

30" SHAVE PLATE
(Superseded to 790-00119-0637)

$39.99

$

In Stock, Qty 20+

0
