31AH65FH700 - Yard Machines Snow Thrower (2009) Extended Chute Parts Diagram

Snow Thrower

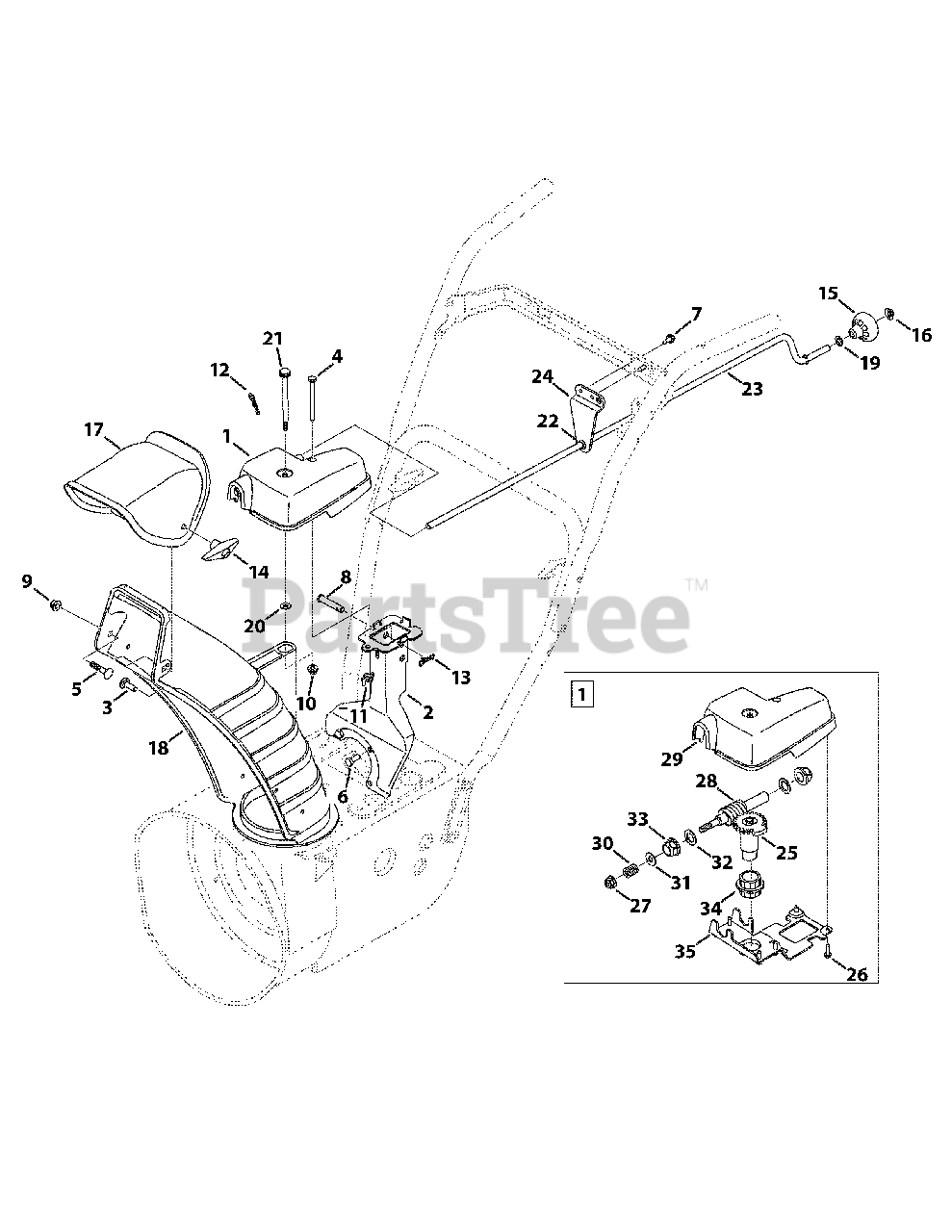

Extended Chute Parts Diagram

  • Title

1

MTD 918-04748

Chute Rotation Gear Box
(Superseded to 918-04933B)

$93.99

$

In Stock, only 1 left!

0

2

MTD 684-04310A-0637

Chute Support Bracket
(Superseded to 684-04310B-0637)

$40.99

$

Usually ships in 3-6 days

0

3

MTD 710-04071

Carriage Bolt, 5.16-18 x 1.00

$4.49

$

In Stock, Qty 13

0

4

MTD 710-04370

Hex Screw, 1.4-20 x 3.00

$4.49

$

In Stock, Qty 11

0

5

MTD 710-0451

Carriage Bolt, 5.16-18 x .750

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-0627

Hex Lock Screw, 5.16-24 x .750

$4.49

$

In Stock, Qty 20+

0

7

MTD 710-1652

Hex Washer Screw, 1.4-20 x .625

$4.49

$

In Stock, Qty 20+

0

8

MTD 711-04469A

Clevis Pin, 3.8-1.87

$5.99

$

In Stock, only 3 left!

0

9

MTD 712-04063

Flange Lock Nut, 5.16-18

$3.99

$

In Stock, Qty 20+

0

10

MTD 712-04064

Flange Lock Nut, 1.4-20

$3.99

$

In Stock, Qty 20+

0

11

MTD 712-3087

Wing Nut, 1.4-20

$3.99

$

In Stock, Qty 20+

0

12

MTD 914-0101

Cotter Pin, .08 x 1.42
(Superseded to 714-0101)

$

$

Not available

13

MTD 714-04040

Bow-tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

14

MTD 720-04072A

Wing Knob, 5.16-18

$6.99

$

In Stock, Qty 20+

0

15

MTD 720-04102

Shift Knob, .390

$6.99

$

In Stock, Qty 20+

0

16

MTD 926-0100

Push Cap, 3.8
(Superseded to 726-0100)

$

$

Not available

17

MTD 731-04426A

Upper Chute
(Superseded to 731-04426C)

$19.99

$

In Stock, Qty 14

0

18

MTD 731-06440A

Lower Chute, 5.0

$51.99

$

In Stock, Qty 17

0

19

MTD 936-0185

Flat Washer, .375 x .738 x .063
(Superseded to 736-0185)

$3.99

$

In Stock, Qty 20+

0

20

MTD 736-04446

Flat Washer, .25 x .630 x .0515

$4.49

$

In Stock, Qty 20+

0

21

MTD 738-04367

Shoulder Screw, .312 x 3.5 x 1/4-20

$4.99

$

In Stock, Qty 11

0

22

MTD 941-0475

Plastic Bushing, .380 ID

$4.49

$

In Stock, Qty 20+

0

23

MTD 747-05006-0637

Chute Crank
(Superseded to 747-05386A-0637)

$31.99

$

In Stock, only 1 left!

0

24

MTD 790-00341-0637

Support Rod Bracket

$16.99

$

In Stock, only 1 left!

0

25

MTD 684-04336A

Gear Assembly

$

$

Not available

26

MTD 710-04373A

Screw, 12-16 x .75

$4.49

$

In Stock, Qty 15

0

27

MTD 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

28

MTD 917-04636

Worm Shaft

$42.99

$

Usually ships in 3-6 days

0

29

MTD 731-06618

Gear Cover

$

$

Not available

30

MTD 732-0193

Compression Spring, .39 x .60 x .88

$4.99

$

In Stock, Qty 6

0

31

MTD 936-0267

Flat Washer, .385 x .87 x .06
(Superseded to 736-0267)

$4.49

$

In Stock, Qty 20+

0

32

MTD 736-0290

Flawt Washer, .625 x 1.0 x .067

$6.99

$

In Stock, Qty 20+

0

33

MTD 941-0225

Hex Bearing

$7.49

$

In Stock, Qty 20+

0

34

MTD 741-04354

Flange Bearing

$4.49

$

Usually ships in 3-6 days

0

35

MTD 790-00342A-0637

Gear Bracket
(Superseded to 790-00342C-0637)

$28.99

$

Usually ships in 3-6 days

0
