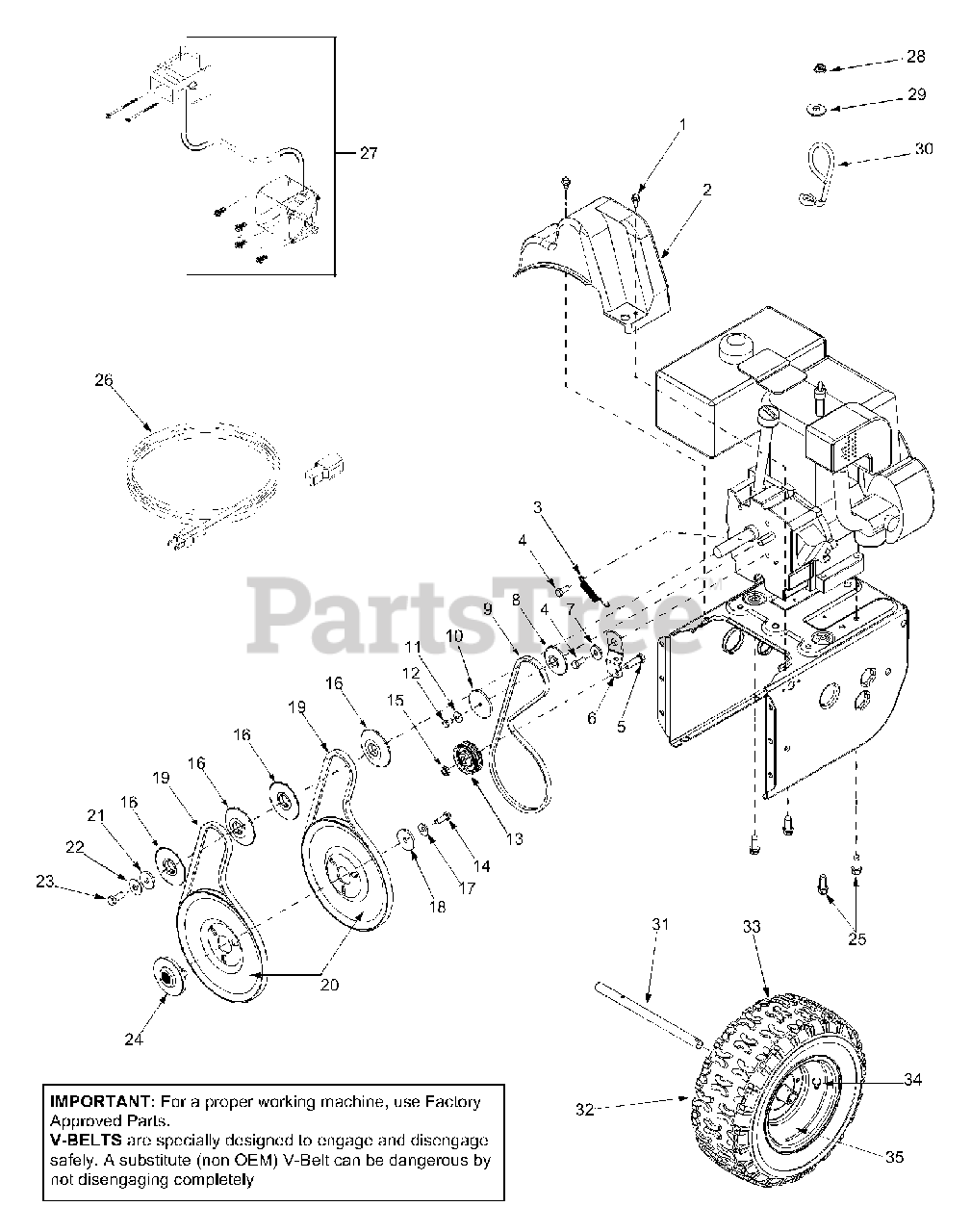

31AH5C3F401 - Yard-Man Snow Thrower (2002) Engine & Belts Parts Diagram

Snow Thrower

Engine & Belts Parts Diagram

  • Title

1

MTD 710-1652

Hex Washer Screw 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

2

MTD 731-1324

Belt Cover

$21.99

$

In Stock, only 3 left!

0

3

MTD 732-0710

Extension Spring
(Superseded to 932-0710)

$7.49

$

In Stock, Qty 16

0

4

MTD 710-0627

Hex Screw 5/16-24 x .75

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-3005

Hex Cap Screw 3/8-16 x 1.25

$3.99

$

In Stock, Qty 20+

0

6

MTD 05896A

Drive Clutch Idler Bracket

Variations

MTD 05896A-0637

No Longer Available BRACKET-ID - POWDER BLACK (0637)

$

$

Not available

$

$

7

MTD 748-0234

Shoulder Spacer

$4.49

$

In Stock, Qty 20+

0

8

MTD 756-0987

Pulley Half
(Superseded to 956-0987)

$

$

Not available

9

MTD 754-0346

V-Belt
(Superseded to 954-0346)

$28.99

$

In Stock, Qty 20+

0

10

MTD 756-0986

Pulley Half

$

$

Not available

11

MTD 736-0270

Bell Washer

$3.99

$

In Stock, Qty 20+

0

12

MTD 710-0230

Hex Cap Screw 1/4-28 x .50

$

$

Not available

13

MTD 756-0313

Flat Idler

$26.99

$

In Stock, only 4 left!

0

14

MTD 710-1245A

Lock Hex Cap Screw 5/16-24

$

$

Not available

15

MTD 712-0181

Lock Jam Nut 3/8-16

$4.49

$

In Stock, only 3 left!

0

16

MTD 756-0569

Pulley Half

$10.99

$

Usually ships in 3-6 days

0

17

MTD 736-0242

Bell Washer

$4.49

$

In Stock, Qty 20+

0

18

MTD 736-0505

Flat Washer

$6.49

$

In Stock, Qty 11

0

19

MTD 754-0430A

Belt
(Superseded to 954-0430C)

$28.99

$

In Stock, Qty 20+

0

20

MTD 756-0967

Auger Pulley

$56.99

$

Usually ships in 3-6 days

0

21

MTD 736-0247

Flat Washer 3/8 x 1.25 OD

$9.49

$

In Stock, Qty 12

0

22

MTD 736-0331

Bell Washer

$3.99

$

In Stock, Qty 20+

0

23

MTD 710-0696

Hex Cap Screw 3/8-24

$6.99

$

In Stock, only 2 left!

0

24

MTD 748-0360

Adapter Pulley
(Superseded to 948-0360)

$22.99

$

In Stock, only 1 left!

0

25

MTD 710-0654A

Hex Screw 3/8-16 x 1.0

$4.49

$

In Stock, Qty 20+

0

26

MTD 629-0071

Extension Cord
(Superseded to 929-0071B)

$21.99

$

In Stock, Qty 12

0

27

MTD OEM-390-987

Electric Start Kit
(Superseded to TC-33329H)

$

$

Not available

28

MTD 712-0324

Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 16

0

29

MTD 736-0173

Flat Washer, .28 x .74 x .063

$4.49

$

In Stock, Qty 20+

0

30

MTD 732-0705

Cable Guide

$11.99

$

Usually ships in 3-6 days

0

31

MTD 738-0994A

Axle: .75 dia. x 12.2" Lg.

$67.99

$

In Stock, only 1 left!

0

32

MTD 734-1709

Wheel Ass'y Comp 16.5" x 4.8"

Variations

MTD 734-1709-0911

No Longer Available - Carlisle Gray (0911)

$

$

Not available

MTD 734-1709-0931

No Longer Available - Carlisle Beige (0931)

$

$

Not available

MTD 734-1709-0915

No Longer Available WHEEL - Duro Gray (0915)

$

$

Not available

MTD 734-1709-0935

WHEEL ASM 16X4.8 - Duro Beige (0935)

$

$

Not available

MTD 734-1709-0941

WHEEL ASM 16X4.8 - Carlisle Yellow (0941)

$

$

Not available

$

$

33

MTD 734-1530

Tire 16.5" x 4.8" x 4"

Variations

MTD 734-1530-0901

TIRE-SNOW HOG-4.80 - Carlisle (0901)

$168.99

$

Usually ships in 3-6 days

0

MTD 734-1530-0905

TIRE-SNOW HOG-4.80 - Duro (0905)

$168.99

$

Usually ships in 3-6 days

0

$137.99

$

Usually ships in 3-6 days

0

34

MTD 734-0255

Tubeless Air Valve
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

35

MTD 734-1708

Rim Assembly

Variations

MTD 734-1708-0499

No Longer Available WHEEL-RIM - CUB BEIGE (0499)

$

$

Not available

MTD 734-1708-0629

No Longer Available WHEEL-RIM - SILVER FLAKE (0629)

$

$

Not available

MTD 734-1708-0662

No Longer Available WHEEL-RIM - OYSTER GRAY (0662)

$

$

Not available

MTD 734-1708-0674

No Longer Available WHEEL-RIM - YARDMAN YELLOW (0674)

$

$

Not available

$

$
