31AH55LH704 - MTD Gold Snow Thrower (2009) Chute Control Parts Diagram

Gold Snow Thrower

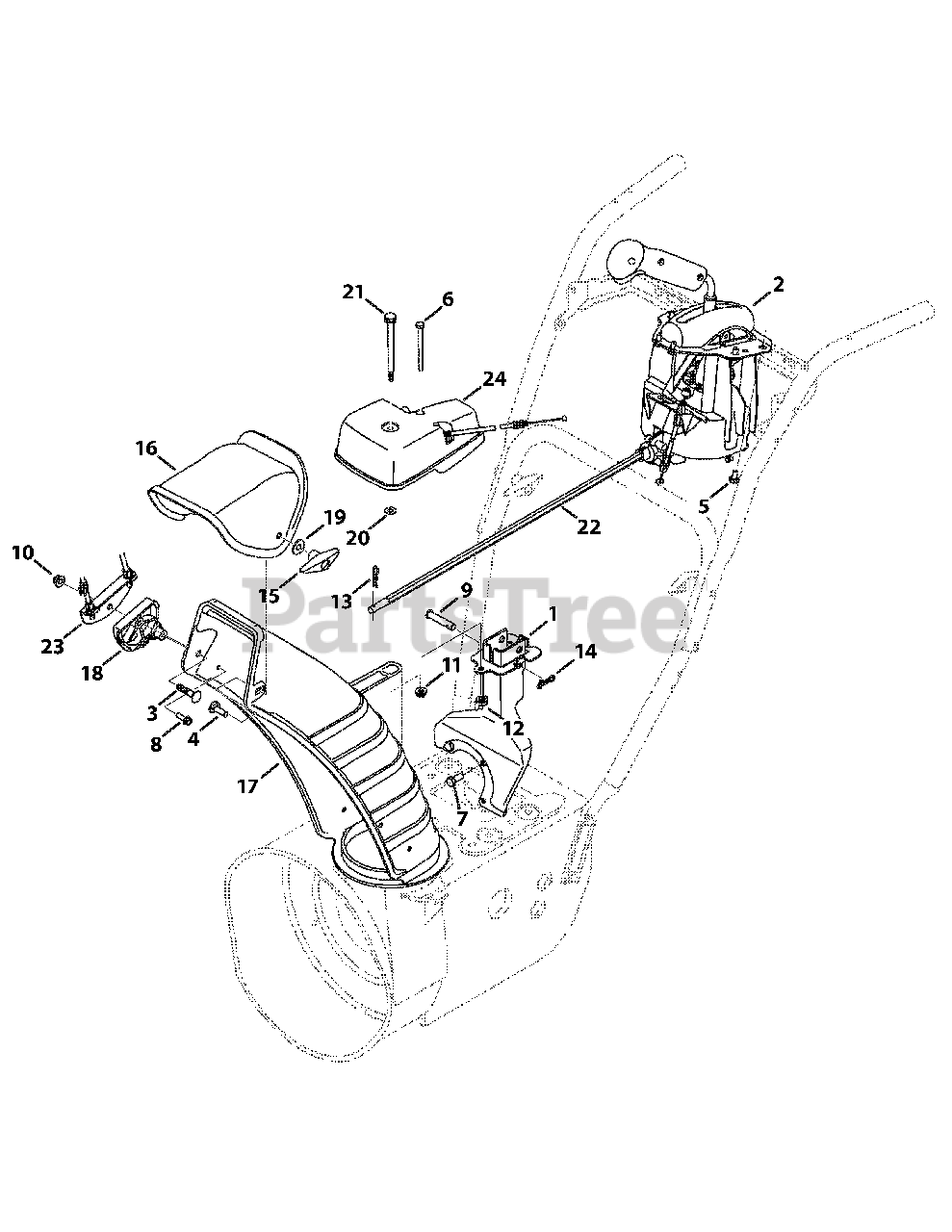

Chute Control Parts Diagram

  • Title
1

MTD 684-04310A-0637

Chute Support Bracket
(Superseded to 684-04310B-0637)

$40.99

$

Usually ships in 3-6 days

0

2

MTD 984-04348

Complete Control Assy

Note: (2-way(

$130.99

$

In Stock, only 2 left!

0

2

MTD 753-06154

Joystick Housing Kit

Note: (2-way, Not shown)

$52.99

$

Usually ships in 3-6 days

0

2

MTD 753-06152

Joystick Gear Set Kit

Note: (2-way, Not shown)

$25.99

$

In Stock, only 2 left!

0

2

MTD 984-04347

Shift Assembly

Note: (2-way, Not shown)

$67.99

$

Usually ships in 3-6 days

0

2

MTD 753-06151

Control, Trigger Housing Kit

Note: (2-way, Not shown)

$28.99

$

Usually ships in 3-6 days

0

3

MTD 710-0262

Bolt, Carriage, 5/16-18 x 1.50

$3.99

$

In Stock, Qty 12

0

4

MTD 710-04071

Bolt, Carrier, 5/16-18 x 1.00

$4.49

$

In Stock, Qty 15

0

5

MTD 710-04187

Screw, HL, 1/4-15 x 0.50
(Superseded to 710-04187A)

$6.99

$

In Stock, Qty 7

0

6

MTD 710-04370

Hex Head Screw, 1/4-20 x 3.00

$4.49

$

In Stock, only 1 left!

0

7

MTD 710-0627

Hex Head Screw, 5/16-24 x .750

$4.49

$

In Stock, Qty 20+

0

8

MTD 710-0895

Screw, HL, 1/4-15 x 0.750

$6.49

$

In Stock, Qty 5

0

9

MTD 711-04469A

Clevis Pin, 3/8 x 1.87

$5.99

$

In Stock, only 4 left!

0

10

MTD 712-04063

Nut, Flangelock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

11

MTD 712-04064

Nut, Flangelock, 1/4-20

$3.99

$

In Stock, Qty 20+

0

12

MTD 712-3087

Wing Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

13

MTD 914-0101

Internal Cotter Pin
(Superseded to 714-0101)

$

$

Not available

14

MTD 714-04040

Bow-Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

15

MTD 720-04072A

Star Knob, 5/16-18

$6.99

$

In Stock, Qty 20+

0

16

MTD 731-04427A

Chute, Upper
(Superseded to 731-04427B)

$16.99

$

In Stock, only 1 left!

0

17

MTD 731-06440A

Chute, Lower

$51.99

$

In Stock, Qty 19

0

18

MTD 731-06451

Cable Guide, Chute Tilt

$4.99

$

Usually ships in 3-6 days

0

19

MTD 936-0159

Washer, Flat, .349 x .879 x .063
(Superseded to 736-0159)

$

$

Not available

20

MTD 736-04446

Washer, Flat, .25 x .630 x .0515

$4.49

$

In Stock, only 2 left!

0

21

MTD 738-04367

Screw, Shoulder, .312 x 3.5 x 1/4-20

$4.99

$

In Stock, only 1 left!

0

22

MTD 747-05116

Chute Rod, 3/8 Hex

$30.99

$

In Stock, Qty 5

0

23

MTD 784-5594-0637

Cable Bracket

$11.99

$

In Stock, only 1 left!

0

24

MTD 918-04801

Gearbox Assembly, Chute Rotation
(Superseded to 918-04801B)

$128.99

$

In Stock, Qty 20+

0
