31AH553G401 - Yard-Man Snow Thrower (2001) Wheels And Axle Parts Diagram

Snow Thrower

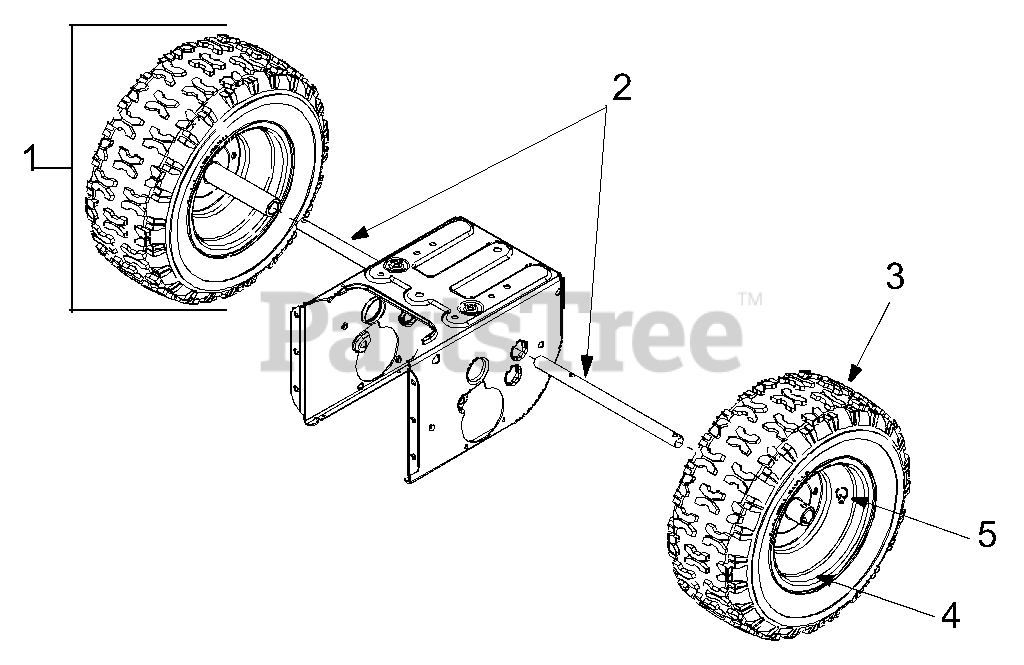

Wheels And Axle Parts Diagram

  • Title

1

MTD 734-1709

Wheel Assy Comp: 16.5" x 4.8"

Variations

MTD 734-1709-0911

No Longer Available - Carlisle Gray (0911)

$

$

Not available

MTD 734-1709-0931

No Longer Available - Carlisle Beige (0931)

$

$

Not available

MTD 734-1709-0915

No Longer Available WHEEL - Duro Gray (0915)

$

$

Not available

MTD 734-1709-0935

WHEEL ASM 16X4.8 - Duro Beige (0935)

$

$

Not available

MTD 734-1709-0941

WHEEL ASM 16X4.8 - Carlisle Yellow (0941)

$

$

Not available

$

$

2

MTD 738-0994A

Axle: .75" dia. x 12.201" Lg.

$67.99

$

Usually ships in 3-6 days

0

3

MTD 734-1530

Tire, Snow Hog, 16.5 x 4.8 - 4

Variations

MTD 734-1530-0901

TIRE-SNOW HOG-4.80 - Carlisle (0901)

$168.99

$

Usually ships in 3-6 days

0

MTD 734-1530-0905

TIRE-SNOW HOG-4.80 - Duro (0905)

$168.99

$

Usually ships in 3-6 days

0

$137.99

$

Usually ships in 3-6 days

0

4

MTD 734-1708

Rim Assembly

Variations

MTD 734-1708-0499

No Longer Available WHEEL-RIM - CUB BEIGE (0499)

$

$

Not available

MTD 734-1708-0629

No Longer Available WHEEL-RIM - SILVER FLAKE (0629)

$

$

Not available

MTD 734-1708-0662

No Longer Available WHEEL-RIM - OYSTER GRAY (0662)

$

$

Not available

MTD 734-1708-0674

No Longer Available WHEEL-RIM - YARDMAN YELLOW (0674)

$

$

Not available

$

$

5

MTD 734-0255

Tubeless Air Valve
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0
