31AH553G401 - Yard-Man Snow Thrower (2000) Handle Assembly Parts Diagram

Snow Thrower

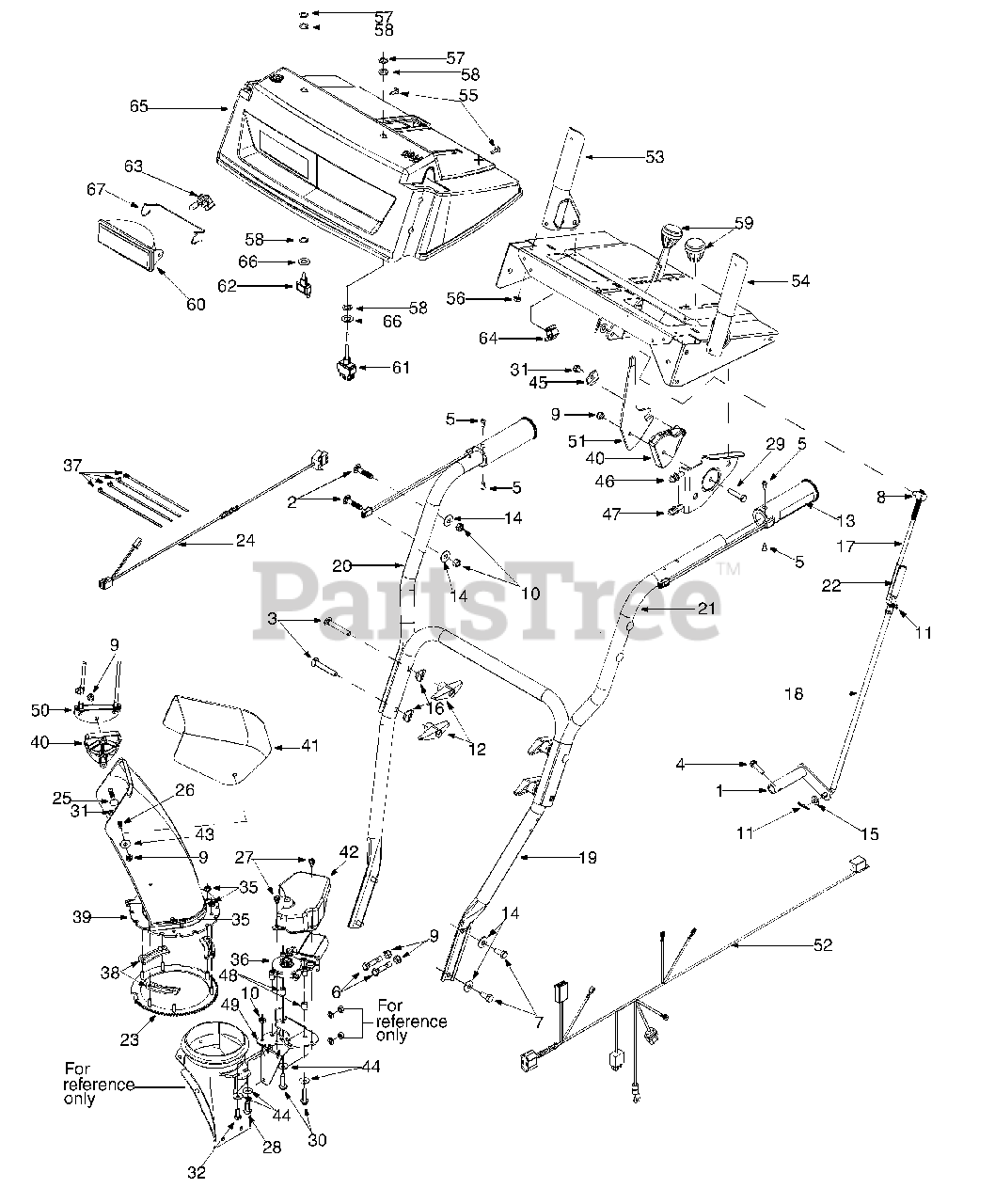

Handle Assembly Parts Diagram

  • Title
1

MTD 684-0008A

Shift Arm Assembly
(Superseded to 684-0008A-0637)

Variations

MTD 684-0008A-0637

Shift Arm Assembly - POWDER BLACK (0637)

$50.99

$

Usually ships in 3-6 days

0

$50.99

$

Usually ships in 3-6 days

0

2

MTD 710-0262

Carriage Bolt 5/16-18 x 1.5"

$3.99

$

In Stock, Qty 9

0

3

MTD 710-0449

Carriage Bolt 5/16-18 x 2.25"
(Superseded to 710-0572)

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-0788

TT Screw 1/4-20 x 1"

$7.49

$

In Stock, only 2 left!

0

5

MTD 710-0837

Oval C-Sk. Screw AB #10-16 x 0.625"

$4.49

$

In Stock, Qty 5

0

6

MTD 710-0890A

Shear Bolt 5/16-18 x 1.5"

$1.99

$

In Stock, Qty 20+

0

7

MTD 710-3008

Hex Screw 5/16-18 x .75"

$4.49

$

In Stock, Qty 20+

0

8

MTD 711-0677

Ferrule
(Superseded to 911-0677)

$17.99

$

In Stock, only 4 left!

0

9

MTD 712-0429

Hex Lock Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

10

MTD 712-3010

Hex Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

11

MTD 714-0104

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

12

MTD 720-0284

Handle Knob

$6.99

$

In Stock, Qty 20+

0

13

MTD 725-1757

Heated Grip

$111.99

$

Usually ships in 3-6 days

0

14

MTD 736-0242

Belleville Washer

$4.49

$

In Stock, Qty 20+

0

15

MTD 736-0275

Flat Washer

$6.99

$

Usually ships in 3-6 days

0

16

MTD 736-0451

Saddle Washer

$4.49

$

In Stock, Qty 11

0

17

MTD 747-0620A

Shift Rod: Upper

$11.99

$

In Stock, only 3 left!

0

18

MTD 747-0621

Shift Rod: Lower

$

$

Not available

19

MTD 749-0951

Lower Handle
(Superseded to 749-0951A)

Variations

MTD 749-0951-0637

HANDLE-LOWER SNOW - POWDER BLACK (0637)

$66.99

$

Usually ships in 3-6 days

0

MTD 749-0951-0638

HANDLE-LOWER SNOW - MTD/TROY-BILT RED (0638)

$

$

Not available

$66.99

$

Usually ships in 3-6 days

0

20

MTD 749-0952A

Upper Handle: L Style RH

Variations

MTD 749-0952A-0637

HANDLE-UPPER-RH - POWDER BLACK (0637)

$

$

Not available

MTD 749-0952A-0638

HANDLE-UPPER-RH - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 749-0952A-0665

HANDLE-UPPER-RH - YARDMAN GREEN (0665)

$

$

Not available

$

$

21

MTD 749-0953A

Upper Handle: L Style LH

Variations

MTD 749-0953A-0637

HANDLE-UPPER-LH - POWDER BLACK (0637)

$

$

Not available

MTD 749-0953A-0638

HANDLE-UPPER-LH - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 749-0953A-0665

HANDLE-UPPER-LH - YARDMAN GREEN (0665)

$

$

Not available

$

$

22

MTD 750-0963

Connector: Shift Rod
(Superseded to 950-0963)

$34.99

$

In Stock, only 3 left!

0

23

MTD 618-0419

Gear Assembly: Ring

$

$

Not available

24

MTD 629-0937

Electric Harness: Lower

$

$

Not available

25

MTD 710-0262

Carriage Bolt: 5/16-18 x 1.5"

$3.99

$

In Stock, Qty 9

0

26

MTD 710-0451

Carriage Bolt: 5/16-18 x .75"

$4.49

$

In Stock, Qty 20+

0

27

MTD 710-0599

TT Screw: 1/4-20 x 0.5"

$4.49

$

In Stock, Qty 20+

0

28

MTD 710-0602

TT Screw: 5/16-18 x 1"

$4.49

$

In Stock, Qty 20+

0

29

MTD 710-0805

Hex Screw: 5/16-18 x 1.5"
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

30

MTD 710-0817

TT Screw: 5/16-18 x 1.25"

$6.99

$

In Stock, Qty 15

0

31

MTD 710-0896

Hex Screw AB: 1/4-14 x 0.625"

$4.49

$

In Stock, Qty 20+

0

32

MTD 710-3008

Hex Screw: 5/16-18 x .75"

$4.49

$

In Stock, Qty 20+

0

35

MTD 712-3027

Hex Flange Lock Nut
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

36

MTD 724-0249

Electric Motor: Chute Crank
(Superseded to 953-0912A)

$

$

Not available

37

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

38

MTD 731-0851A

Chute Flange Keeper

$4.49

$

In Stock, Qty 20+

0

39

MTD 731-1300A

Lower Chute
(Superseded to 731-1300E)

$56.99

$

In Stock, Qty 8

0

40

MTD 731-1313C

Cable Guide: Chute Tilt

$11.99

$

In Stock, Qty 20+

0

41

MTD 731-1320

Upper Chute
(Superseded to 731-04427B)

$16.99

$

In Stock, Qty 8

0

42

MTD 731-2279

Motor Cover: Chute Rotation

$

$

Not available

43

MTD 736-0159

5/16 Washer

$4.49

$

In Stock, Qty 20+

0

44

MTD 736-0242

Belleville Washer

$4.49

$

In Stock, Qty 20+

0

45

MTD 736-0506

Special Washer
(Superseded to 736-0506A)

$

$

Not available

46

MTD 746-0896

Control Cable
(Superseded to 946-0896)

$56.99

$

In Stock, only 1 left!

0

47

MTD 746-0901

Control Cable
(Superseded to 946-0901)

$64.99

$

Usually ships in 3-6 days

0

48

MTD 750-1232

Spacer

$

$

Not available

49

MTD 782-0599

Motor Bracket

Variations

MTD 782-0599-0637

No Longer Available BRACKET-MO - POWDER BLACK (0637)

$

$

Not available

$

$

50

MTD 784-5594

Cable Bracket

Variations

MTD 784-5594-0498

Cable Bracket - OLD CUB YELLOW (0498)

$11.99

$

In Stock, only 3 left!

0

MTD 784-5594-0637

Cable Bracket - POWDER BLACK (0637)

$11.99

$

In Stock, only 3 left!

0

MTD 784-5594-0716

Cable Bracket - CUB YELLOW-99 (0716)

$11.99

$

In Stock, only 3 left!

0

$10.99

$

Usually ships in 3-6 days

0

51

MTD 784-5604

Handle: Chute Tilt
(Superseded to 784-5604A-0637)

Variations

MTD 784-5604-0637

Chute Handle Bracket - POWDER BLACK (0637)

$25.99

$

Usually ships in 3-6 days

0

$25.99

$

Usually ships in 3-6 days

0

52

MTD 629-0936

Harness Assembly: Upper
(Superseded to 629-0936A)

$

$

Not available

53

MTD 684-0036

Handle Assembly RH: Engagement, Black
(Superseded to 684-0036A)

$44.99

$

Usually ships in 3-6 days

0

54

MTD 684-0037

Handle Assembly LH: Engagement, Black
(Superseded to 684-0037B)

$38.99

$

In Stock, only 2 left!

0

55

MTD 710-1003

Special Hex Screw
(Superseded to 710-04669)

$3.49

$

In Stock, Qty 20+

0

56

MTD 712-0271

Hex Sems Nut: 1/4-20

$4.49

$

In Stock, Qty 19

0

57

MTD 712-0693

Hex Nut

$

$

Not available

58

MTD 716-0398

Lock Ring: Toggle Switch

$

$

Not available

59

MTD 720-0232

Shift Knob
(Superseded to 920-0232)

$10.99

$

In Stock, Qty 10

0

60

MTD 725-1672

Lamp Housing
(Superseded to 925-1672)

$89.99

$

Usually ships in 3-6 days

0

61

MTD 725-1755

Toggle Switch: Double Throw
(Superseded to 925-1755)

$117.99

$

Usually ships in 3-6 days

0

62

MTD 725-1756

Toggle Switch: Single Throw
(Superseded to 925-1756)

$31.99

$

Usually ships in 3-6 days

0

63

MTD 725-1759

Halogen Lamp: 50W, 12V
(Superseded to 925-1759)

$51.99

$

In Stock, only 1 left!

0

64

MTD 726-0152

Mounting Clamp

$

$

Not available

65

MTD 731-2275

Handle Panel

$

$

Not available

66

MTD 736-0226

Flat Washer
(Superseded to 936-0226)

$3.99

$

In Stock, only 2 left!

0

67

MTD 747-1136

Headlight Retainer

$11.99

$

Usually ships in 3-6 days

0
