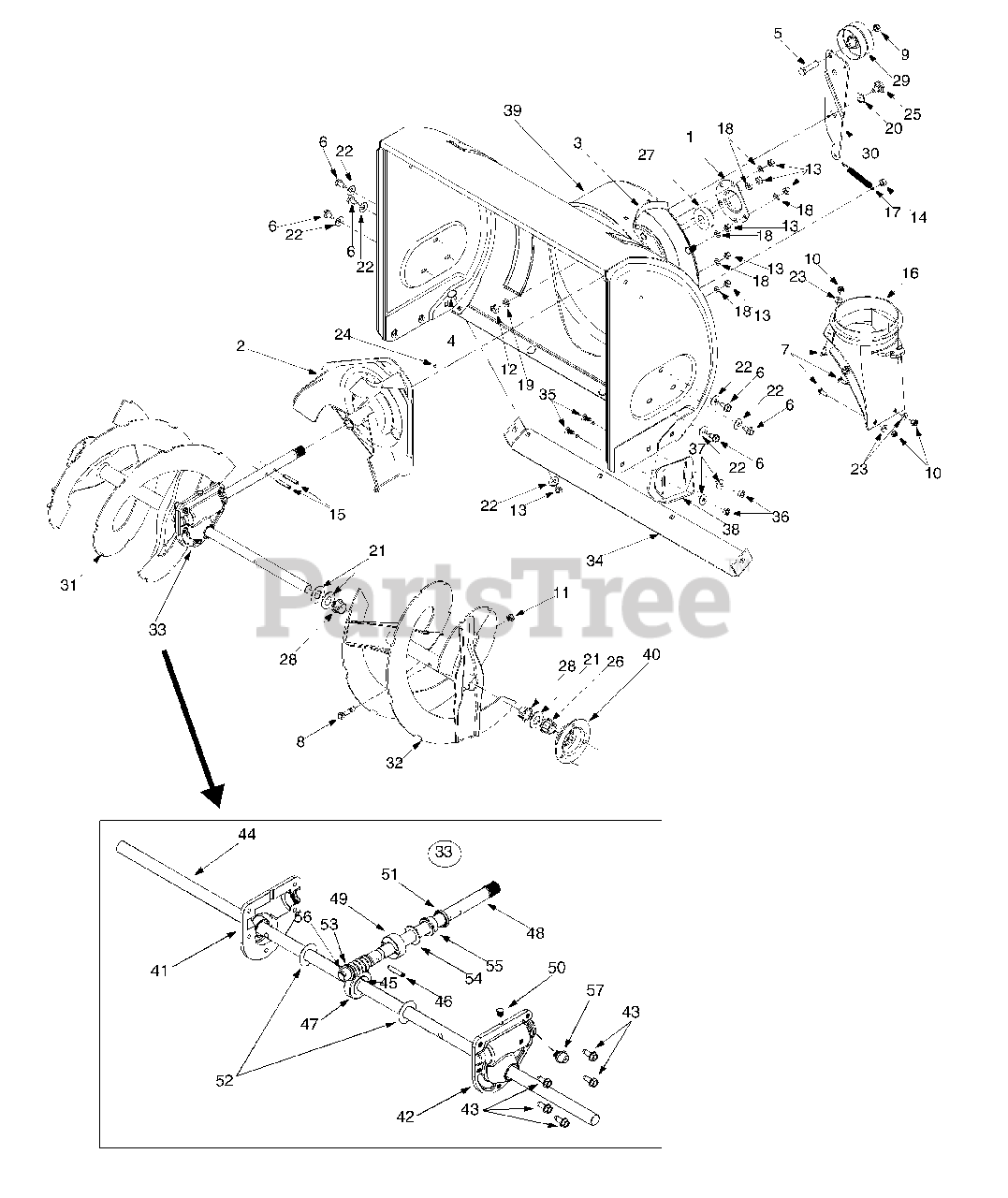

31AH553G401 - Yard-Man Snow Thrower (2000) Blower Housing Parts Diagram

Snow Thrower

Blower Housing Parts Diagram

  • Title

1

MTD 05931

Bearing Housing
(Superseded to 05931A)

$10.99

$

Usually ships in 3-6 days

0

2

MTD 684-0065

Impeller Assy. 12" dia.
(Superseded to 984-0065-0637)

Variations

MTD 684-0065-0662

Impeller, 3-Blade 12" - OYSTER GRAY (0662)

$90.99

$

In Stock, Qty 6

0

MTD 684-0065-0665

Impeller, 3-Blade 12" - YARDMAN GREEN (0665)

$90.99

$

In Stock, Qty 6

0

$90.99

$

In Stock, Qty 6

0

3

MTD 705-5226

Chute Reinforcement

Variations

MTD 705-5226-0637

Chute Reinforcement - POWDER BLACK (0637)

$10.99

$

In Stock, Qty 7

0

MTD 705-5226-0638

Chute Reinforcement - MTD/TROY-BILT RED (0638)

$10.99

$

In Stock, Qty 7

0

$9.99

$

Usually ships in 3-6 days

0

4

MTD 710-0451

Carriage Bolt 5/16-18 x .75" Gr.2

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-0459A

Hex Screw 3/8-24 x 1.5" Gr.5

$6.99

$

In Stock, Qty 8

0

6

MTD 710-0604

Hex Washer Head Self-Tapping
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

Screw 5/16-18 x .62"

$

$

Not available

7

MTD 710-0703

Carriage Screw 1/4-20 x .75"

$4.49

$

In Stock, Qty 20+

0

8

MTD 710-0890A

Shear Bolt 5/16-18 x 1.5"

$1.99

$

In Stock, Qty 20+

0

9

MTD 712-0116

Jam Nut 3/8-24

$4.99

$

In Stock, Qty 6

0

10

MTD 712-0324

Hex Lock Nut 1/4-20

$3.99

$

In Stock, Qty 16

0

11

MTD 712-0429

Hex Lock Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

12

MTD 712-0798

Hex Nut 3/8-16 Gr.2

$4.49

$

In Stock, Qty 12

0

13

MTD 712-3010

Hex Nut 5/16-18 Gr.5

$4.49

$

In Stock, Qty 20+

0

14

MTD 712-3068

Hex Patch Nut 5/16-18
(Superseded to 912-3009)

$

$

Not available

15

MTD 715-0114

Spiral Pin

$9.49

$

In Stock, Qty 20+

0

16

MTD 731-1379A

Chute Adapter
(Superseded to 731-1379D)

$65.99

$

In Stock, Qty 8

0

17

MTD 732-0611

Extension Spring
(Superseded to 932-0611)

$7.49

$

In Stock, Qty 20+

0

18

MTD 736-0119

Lock Washer
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

19

MTD 736-0169

Lock Washer

$3.99

$

In Stock, Qty 20+

0

20

MTD 736-0174

Wave Washer

$6.99

$

In Stock, Qty 11

0

21

MTD 736-0188

Flat Washer

$4.49

$

In Stock, Qty 20+

0

22

MTD 736-0242

Belleville Washer

$4.49

$

In Stock, Qty 20+

0

23

MTD 736-0463

Flat Washer

$4.49

$

In Stock, Qty 12

0

24

MTD 737-3007

Grease

$

$

Currently unavailable

25

MTD 738-0281

Shoulder Screw

$10.99

$

In Stock, Qty 7

0

26

MTD 741-0245

Hex Flange Bearing
(Superseded to 941-0245)

$9.99

$

In Stock, Qty 20+

0

27

MTD 741-0309

Flange Ball Bearing
(Superseded to 941-0309)

$74.99

$

Usually ships in 3-6 days

0

28

MTD 741-0493A

Flange Bushing
(Superseded to 741-0493C)

$4.49

$

In Stock, Qty 20+

0

29

MTD 756-0178

Flat Idler

$20.99

$

In Stock, Qty 6

0

30

MTD 784-5632A

Auger Idler Arm
(Superseded to 984-0064-0637)

Variations

MTD 784-5632A-0637

ARM ASSY-IDLER - POWDER BLACK (0637)

$32.99

$

In Stock, only 2 left!

0

$32.99

$

In Stock, only 2 left!

0

31

MTD 605-5196A

Spiral Assembly: RH 28"
(Superseded to 684-04184-0637)

Variations

MTD 605-5196A-0637

Auger Spiral Assembly, RH 28" - POWDER BLACK (0637)

$218.99

$

Usually ships in 3-6 days

0

$218.99

$

Usually ships in 3-6 days

0

32

MTD 605-5197A

Spiral Assembly: LH 28"
(Superseded to 684-04185-0637)

Variations

MTD 605-5197A-0637

Auger Spiral Assembly, LH 28" - POWDER BLACK (0637)

$184.99

$

Usually ships in 3-6 days

0

$184.99

$

Usually ships in 3-6 days

0

33

MTD 618-0122

Gear Assembly: Auger 28"
(Superseded to 918-0416B)

Note: (Includes Ref. # 41-56)

$474.99

$

Usually ships in 3-6 days

0

34

MTD 784-5582A

Shave Plate: Auger 28"
(Superseded to 790-00118-0637)

Variations

MTD 784-5582A-0637

Shave Plate, 28" Powder Black - POWDER BLACK (0637)

$37.99

$

In Stock, Qty 20+

0

$37.99

$

In Stock, Qty 20+

0

35

MTD 710-0451

Carr. Bolt: 5/16-18 x 0.75

$4.49

$

In Stock, Qty 20+

0

36

MTD 712-3010

Hex Nut: 5/16-18 Gr.5

$4.49

$

In Stock, Qty 20+

0

37

MTD 736-0242

Belleville Washer

$4.49

$

In Stock, Qty 20+

0

38

MTD 784-5580

Slide Shoe

Variations

MTD 784-5580-0637

Snow Slide Shoe, Black - POWDER BLACK (0637)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-0638

Snow Slide Shoe, Black - MTD/TROY-BILT RED (0638)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-0662

Snow Slide Shoe, Black - OYSTER GRAY (0662)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-0665

Snow Slide Shoe, Black - YARDMAN GREEN (0665)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-0688

Snow Slide Shoe, Black - SPRING GREEN (0688)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-0721

Snow Skid Shoe - SEARS RED (0721)

$23.99

$

In Stock, Qty 18

0

MTD 784-5580-4044

Snow Skid Shoe - CRAFTSMAN RED (4044)

$23.99

$

In Stock, Qty 18

0

MTD 784-5580-0691

Snow Slide Shoe, Black - BLACK JACK (0691)

$23.99

$

In Stock, Qty 7

0

MTD 784-5580-0729

Snow Skid Shoe - STORM GRAY (0729)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-4043

Snow Skid Shoe - CRAFTSMAN METALLIC GRAY (4043)

$23.99

$

In Stock, Qty 20+

0

$23.99

$

In Stock, Qty 20+

0

39

MTD 684-0041C

Auger Housing Assy. 28"
(Superseded to 684-0041D)

Variations

MTD 684-0041C-0689

HOUSING ASM-28" - POLO GREEN (0689)

$

$

Not available

MTD 684-0041C-0650

HOUSING ASM-28" - RED METALLIC (0650)

$

$

Not available

MTD 684-0041C-0483

HOUSING ASM-28" - CHARCOAL GRAY (0483)

$

$

Not available

MTD 684-0041C-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

MTD 684-0041C-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 684-0041C-0662

HOUSING ASM-28" - OYSTER GRAY (0662)

$

$

Not available

MTD 684-0041C-0665

HOUSING ASM-28" - YARDMAN GREEN (0665)

$

$

Not available

MTD 684-0041C-0691

HOUSING ASM-28" - BLACK JACK (0691)

$

$

Not available

MTD 684-0041C-0716

28" HOUSING ASSEMBLY (CUB YELLOW-99) - CUB YELLOW-99 (0716)

$

$

Not available

$

$

40

MTD 784-5618

Bearing Housing
(Superseded to 784-5618A-0637)

Variations

MTD 784-5618-0637

Bearing Housing, Black - POWDER BLACK (0637)

$13.99

$

In Stock, only 2 left!

0

$13.99

$

In Stock, only 2 left!

0

41

MTD 618-0123

RH Housing
(Superseded to 918-0123A)

$52.99

$

In Stock, Qty 17

0

42

MTD 618-0124

LH Housing
(Superseded to 918-0124A)

$52.99

$

In Stock, Qty 15

0

43

MTD 710-0642

TT Screw, 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

44

MTD 711-0910

Spiral Axle, 28"
(Superseded to 711-0910A)

$130.99

$

Usually ships in 3-6 days

0

45

MTD 714-0161

Hi-Pro Key, 3/16 x 5/8
(Superseded to 914-0161)

$4.49

$

In Stock, Qty 20+

0

46

MTD 715-0143

Spring Spiral Pin, .25 x 1.25

$4.99

$

In Stock, Qty 12

0

47

MTD 717-0528

Worm Gear, 20-tooth
(Superseded to 917-04861)

$43.99

$

In Stock, Qty 20+

0

48

MTD 717-0526

Worm Shaft
(Superseded to 717P0526)

$108.99

$

In Stock, only 4 left!

0

49

MTD 718-0186

Thrust Collar

$8.49

$

In Stock, Qty 12

0

50

MTD 721-0325

Grease Plug

$4.49

$

In Stock, Qty 20+

0

51

MTD 721-0327

Grease Seal

$6.99

$

In Stock, Qty 20+

0

52

MTD 736-0351

Flat Washer, .76 x 1.5 x .030

$4.49

$

In Stock, Qty 20+

0

53

MTD 736-0369

Flat Washer, .508 x 1.0 x .020

$4.49

$

In Stock, Qty 20+

0

54

MTD 736-0445

Flat Washer, .76 x 1.5 x .060

$4.49

$

In Stock, Qty 11

0

55

MTD 741-0662

Flange Bearing, .75 x 1.0 x .59

$10.99

$

In Stock, Qty 17

0

56

MTD 741-0663

Flange Bearing, .503 ID x 75 OD

$9.99

$

In Stock, Qty 20+

0

57

MTD 737-3000

Grease Fitting
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

MTD 737-0168

Grease (Two Ounces)
(Superseded to 737-0168A)

$30.99

$

In Stock, Qty 14

0
