31AE9P3J801 - Yard-Man Snow Thrower (2005-2) Panel Assembly Parts Diagram

Snow Thrower

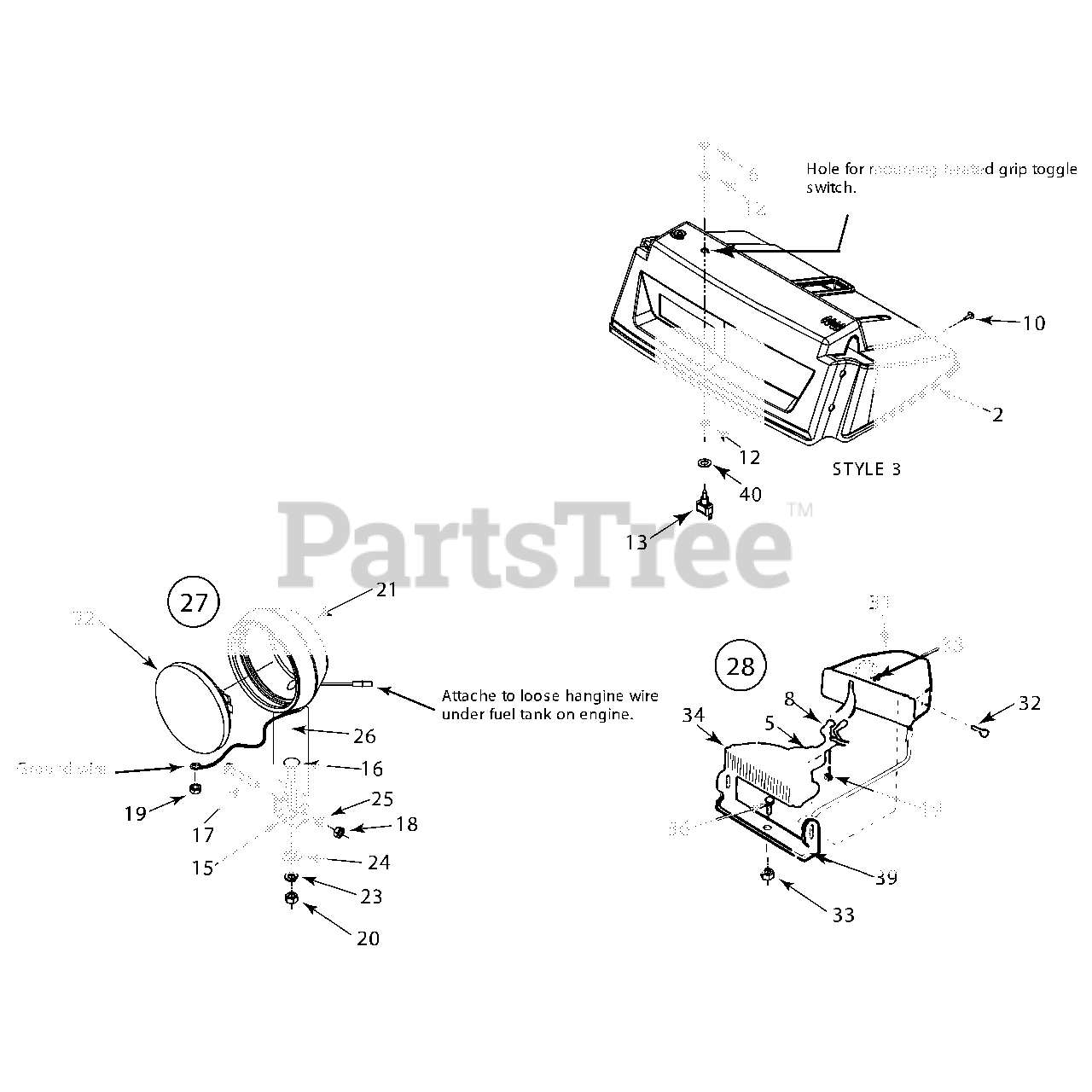

Panel Assembly Parts Diagram

  • Title

2

MTD 731-1873A

Yellow Handle Panel (w/hole for top mounting light and chute tilt cut out) STYLE 3

$

$

Not available

2

MTD 731-2564

Yellow Handle Panel (w/light cut and chute tilt cut out and heated grips) STYLE 3

$

$

Not available

4

MTD 731-04068

Black Handle Panel (w/light cut and chute tilt cut out and heated grips)
(Superseded to 931-04068)

$

$

Not available

5

MTD 725-1658

Bulb #890, 12 V, 27 Watt
(Superseded to 925-1658)

$60.99

$

In Stock, only 4 left!

0

5

MTD 725-1759

Bulb, #886, 12 V, 50 Watt (Style 3 w/heated grips)
(Superseded to 925-1759)

$51.99

$

In Stock, only 1 left!

0

6

MTD 712-0693

Hex Nut

$

$

Not available

7

MTD 725-1672

Headlight Housing
(Superseded to 925-1672)

$89.99

$

Usually ships in 3-6 days

0

8

MTD 629-0059

Wire Harness
(Superseded to 929-0059)

$100.99

$

Usually ships in 3-6 days

0

9

MTD 747-1136

Retainer

$11.99

$

Usually ships in 3-6 days

0

10

MTD 710-1003

Hex Tapp Wash Hd. Scr. #10 x 5/8
(Superseded to 710-04669)

$3.49

$

In Stock, Qty 20+

0

12

MTD 716-0398

Lock Ring - Toggle Switch

$

$

Not available

13

MTD 725-1756

Toggle Switch,Single Throw (heated grips)
(Superseded to 925-1756)

$31.99

$

Usually ships in 3-6 days

0

15

MTD 13359

Mounting Lamp Bracket

$

$

Not available

16

MTD 710-0276

Carriage Bolt 5/16-18 x 1.00" Lg

$3.99

$

In Stock, Qty 11

0

17

MTD 710-0559

Hex Screw 1/4-28 x 1.75 Gr 5

$

$

Not available

18

MTD 712-0138

Hex Nut 1/4-28 Gr 5

$6.99

$

Usually ships in 3-6 days

0

19

MTD 712-0271

Sems Hex Nut 1/4-20

$4.49

$

In Stock, Qty 10

0

20

MTD 712-3010

Hex Nut 5/16-18 hd. Gr. 5

$4.49

$

In Stock, Qty 20+

0

21

MTD 725-0586

Lamp Housing

$

$

Currently unavailable

22

MTD 725-1300

Sealed Beam 18 Watt CGE #4414-1
(Superseded to 925-1300)

$

$

Not available

23

MTD 736-0119

L-Wash 5/16 ID
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

25

MTD 736-0329

L-Wash 1/4 ID
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

26

Ground Wire (Purchase locally)

$

$

Not available

27

MTD 725-1301

Top Mount 18 watt Lamp Ass’y (sealed beam)

$

$

Not available

28

MTD 625-0007

Top Mounting Halogen Lamp Assembly
(Superseded to 625-0007AP)

$

$

Not available

31

MTD 731-1364

Halogen Lamp Housing

$39.99

$

Usually ships in 3-6 days

0

32

MTD 710-1240

Phillips Pan Hd. Scr. M4 x 16mm

$7.49

$

Usually ships in 3-6 days

0

33

MTD 712-04063

Hex Flange Locknut 5/16-18 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

34

MTD 725-1669

Lamp/Lens Housing Ass’y
(Superseded to 925-1669P)

$

$

Not available

36

MTD 710-0451

Carriage Bolt 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

38

MTD 735-0225

Grommet .38 ID X .50 OD X .12

$3.49

$

Usually ships in 3-6 days

0

39

MTD 705-5217

Lamp Mounting Brkt.

$43.99

$

Usually ships in 3-6 days

0

40

MTD 736-0226

Flat Washer .474 ID x .879 OD x .064
(Superseded to 936-0226)

$3.99

$

Usually ships in 3-6 days

0
