31AE993I401 - Yard-Man Snow Thrower (2003) Handle & Chute Parts Diagram

Snow Thrower

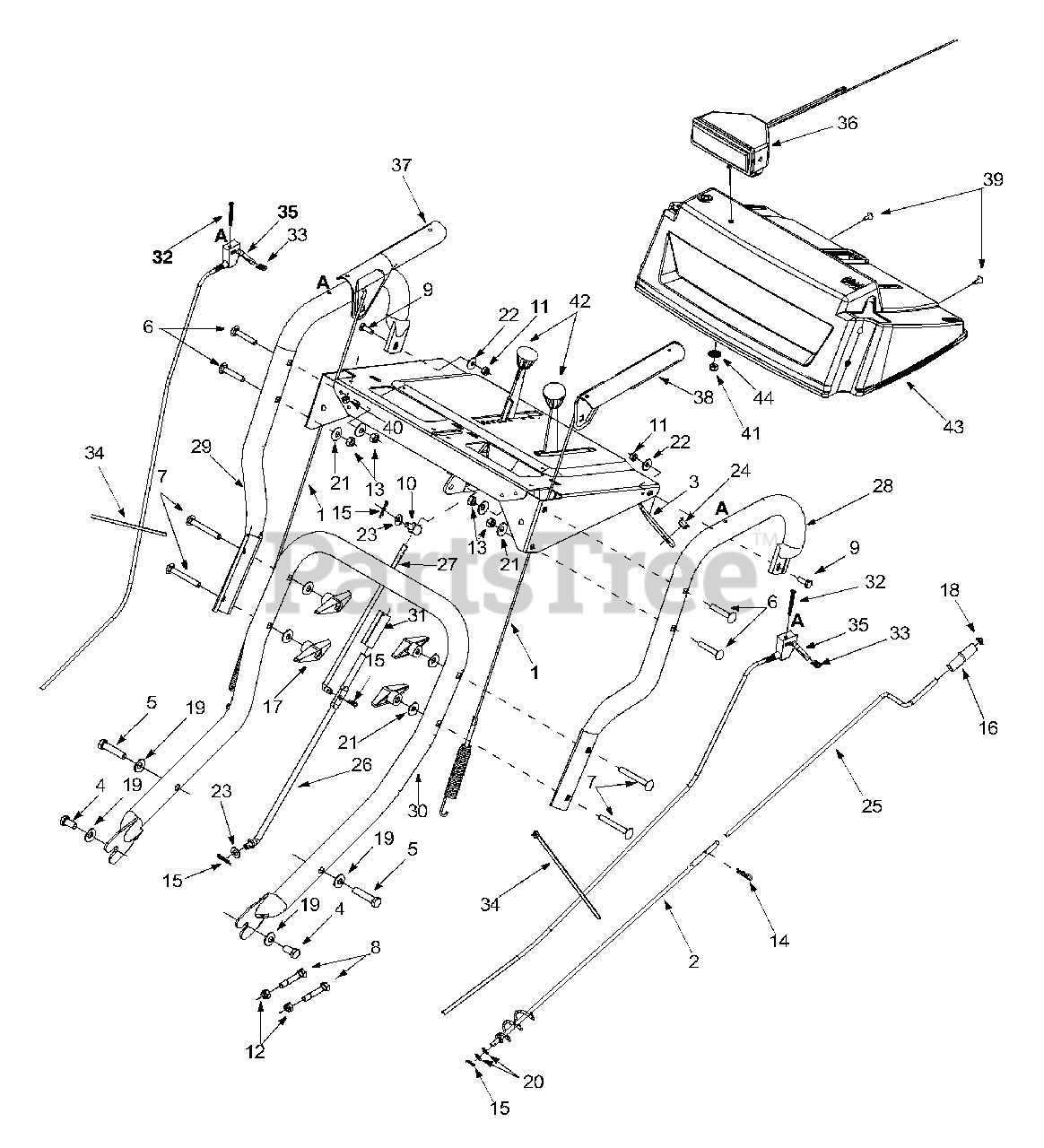

Handle & Chute Parts Diagram

  • Title

1

MTD 646-0012

Cable Assembly: Auger/Drive

$36.99

$

In Stock, only 1 left!

0

2

MTD 684-0053B

Chute Crank Assembly
(Superseded to 684-0053B-0637)

Variations

MTD 684-0053B-0637

Chute Crank Assembly, Powder Black - POWDER BLACK (0637)

$

$

Not available

$

$

3

MTD 705-5266

Chute Crank Bracket
(Superseded to 705-5266-0637)

Variations

MTD 705-5266-0637

Chute Crank Bracket - POWDER BLACK (0637)

$15.99

$

Usually ships in 3-6 days

0

$15.99

$

Usually ships in 3-6 days

0

4

MTD 710-1879

Hex Screw 3/8-16 x .88"

$6.99

$

Usually ships in 3-6 days

0

5

MTD 710-1878

Hex Screw 3/8-16 x 1.75"
(Superseded to 710-04682)

$5.99

$

Usually ships in 3-6 days

0

6

MTD 710-0458

Carriage Bolt 5/16-18 x 1.75"

$4.49

$

In Stock, only 4 left!

0

7

MTD 710-0572

Carriage Bolt 5/16-18 x 2.5"

$4.49

$

In Stock, Qty 20+

0

8

MTD 710-0891

Shear Bolt 5/16-18 x 1.75"

$7.49

$

In Stock, Qty 16

0

9

MTD 710-3015

Hex Screw 1/4-20 x .75"

$3.99

$

In Stock, Qty 20+

0

10

MTD 711-0677

Ferrule
(Superseded to 911-0677)

$17.99

$

In Stock, only 4 left!

0

11

MTD 712-0287

Hex Nut 1/4-20
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

12

MTD 712-0429

Hex Lock Nut

$4.49

$

In Stock, Qty 20+

0

13

MTD 712-3010

Hex Nut

$4.49

$

In Stock, Qty 20+

0

14

MTD 714-0101

Hairpin Clip

$4.99

$

In Stock, only 2 left!

0

15

MTD 714-0104

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

16

MTD 720-0201A

Chute Crank Knob

$10.99

$

In Stock, Qty 5

0

17

MTD 720-0284

Knob

$6.99

$

In Stock, Qty 9

0

18

MTD 726-0100

Push Cap

$4.49

$

In Stock, Qty 20+

0

19

MTD 736-0105

Bell Washer

$4.49

$

In Stock, Qty 20+

0

20

MTD 736-0185

Flat Washer

$3.99

$

In Stock, Qty 20+

0

21

MTD 736-0242

Beleville Washer

$4.49

$

In Stock, Qty 20+

0

22

MTD 736-0270

Bell Washer

$3.99

$

In Stock, Qty 20+

0

23

MTD 736-0275

Flat Washer

$6.99

$

Usually ships in 3-6 days

0

24

MTD 741-0475

Plastic Bushing
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

25

MTD 747-0624

Chute Crank
(Superseded to 747-0624-0637)

Variations

MTD 747-0624-0637

Crank Chute - POWDER BLACK (0637)

$24.99

$

Usually ships in 3-6 days

0

$24.99

$

Usually ships in 3-6 days

0

26

MTD 747-0983

Lower Shift Rod
(Superseded to 747-0983A)

$45.99

$

Usually ships in 3-6 days

0

27

MTD 747-0997

Upper Shift Rod

$69.99

$

Usually ships in 3-6 days

0

28

MTD 749-0989A

Upper Handle LH

Variations

MTD 749-0989A-0637

HANDLE-UPPER LH - POWDER BLACK (0637)

$91.99

$

Usually ships in 3-6 days

0

MTD 749-0989A-0638

HANDLE-UPPER LH - MTD/TROY-BILT RED (0638)

$91.99

$

Usually ships in 3-6 days

0

MTD 749-0989A-0650

HANDLE-UPPER LH - RED METALLIC (0650)

$79.99

$

Usually ships in 3-6 days

0

MTD 749-0989A-0665

HANDLE-UPPER LH - YARDMAN GREEN (0665)

$79.99

$

Usually ships in 3-6 days

0

MTD 749-0989A-0691

HANDLE-UPPER LH - BLACK JACK (0691)

$79.99

$

Usually ships in 3-6 days

0

$79.99

$

Usually ships in 3-6 days

0

29

MTD 749-0990A

Upper Handle RH

Variations

MTD 749-0990A-0637

HANDLE-UPPER RT - POWDER BLACK (0637)

$94.99

$

Usually ships in 3-6 days

0

MTD 749-0990A-0638

HANDLE-UPPER RT - MTD/TROY-BILT RED (0638)

$94.99

$

Usually ships in 3-6 days

0

MTD 749-0990A-0650

HANDLE-UPPER RT - RED METALLIC (0650)

$76.99

$

Usually ships in 3-6 days

0

MTD 749-0990A-0665

HANDLE-UPPER RT - YARDMAN GREEN (0665)

$76.99

$

Usually ships in 3-6 days

0

MTD 749-0990A-0691

HANDLE-UPPER RT - BLACK JACK (0691)

$82.99

$

Usually ships in 3-6 days

0

$82.99

$

Usually ships in 3-6 days

0

30

MTD 749-0991

Lower Handle

Variations

MTD 749-0991-0637

Lower Handle - POWDER BLACK (0637)

$79.99

$

Usually ships in 3-6 days

0

MTD 749-0991-0638

HANDLE-LOWER - MTD/TROY-BILT RED (0638)

$68.99

$

Usually ships in 3-6 days

0

MTD 749-0991-0650

HANDLE-LOWER - RED METALLIC (0650)

$79.99

$

Usually ships in 3-6 days

0

MTD 749-0991-0665

HANDLE-LOWER - YARDMAN GREEN (0665)

$79.99

$

Usually ships in 3-6 days

0

MTD 749-0991-0691

HANDLE-LOWER - BLACK JACK (0691)

$79.99

$

Usually ships in 3-6 days

0

MTD 749-0991-4033

HANDLE-LOWER - FLINT MICA (4033)

$79.99

$

Usually ships in 3-6 days

0

$68.99

$

Usually ships in 3-6 days

0

31

MTD 750-0963

Clutch Rod Connector
(Superseded to 950-0963)

$34.99

$

In Stock, only 3 left!

0

32

MTD 710-1625

Oval C-Sunk Screw

$6.99

$

Usually ships in 3-6 days

0

33

MTD 712-0127

Flat Weld Nut

$3.49

$

In Stock, Qty 13

0

34

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

35

MTD 746-0950

Trigger Control
(Superseded to 746-0950A)

$22.99

$

Usually ships in 3-6 days

0

36

MTD 625-0007

Light Assembly
(Superseded to 625-0007AP)

$

$

Not available

MTD 725-1658

Halogen Lamp
(Superseded to 925-1658)

$60.99

$

In Stock, only 4 left!

0

MTD 725-1672

Lens Assembly
(Superseded to 925-1672)

$89.99

$

Usually ships in 3-6 days

0

37

MTD 705-5218

Handle Engagement RH

$37.99

$

Usually ships in 3-6 days

0

38

MTD 705-5219

Handle Engagement LH

$37.99

$

Usually ships in 3-6 days

0

39

MTD 710-1003

Special B Screw
(Superseded to 710-04669)

$3.49

$

In Stock, Qty 20+

0

40

MTD 712-0271

Hex Sems Nut

$4.49

$

In Stock, Qty 20+

0

41

MTD 712-0429

Hex Lock Nut

$4.49

$

In Stock, Qty 20+

0

42

MTD 720-0232

Shift Knob
(Superseded to 920-0232)

$10.99

$

In Stock, Qty 10

0

43

MTD 731-1873A

Handle Panel

$

$

Not available

44

MTD 736-0159

5/16 Washer

$4.49

$

In Stock, Qty 20+

0

MTD 777D00133

Label: Front Handle Panel

$

$

Not available

MTD 777D00181

Label: Yard Man Engine

$

$

Not available

MTD 777D05319

Label: Auger 13/33

$

$

Not available

MTD 777I20412

Label: Panel Steering RH

$

$

Not available

MTD 777I20747

Label: Panel Steering LH

$

$

Not available

MTD 777S32065

Label: Chute w/Tool

$

$

Not available

MTD 777S32066

Label: Housing w/Tool

$

$

Not available
