31AE993I401 - Yard-Man Snow Thrower (2003) Drive Assembly Parts Diagram

Snow Thrower

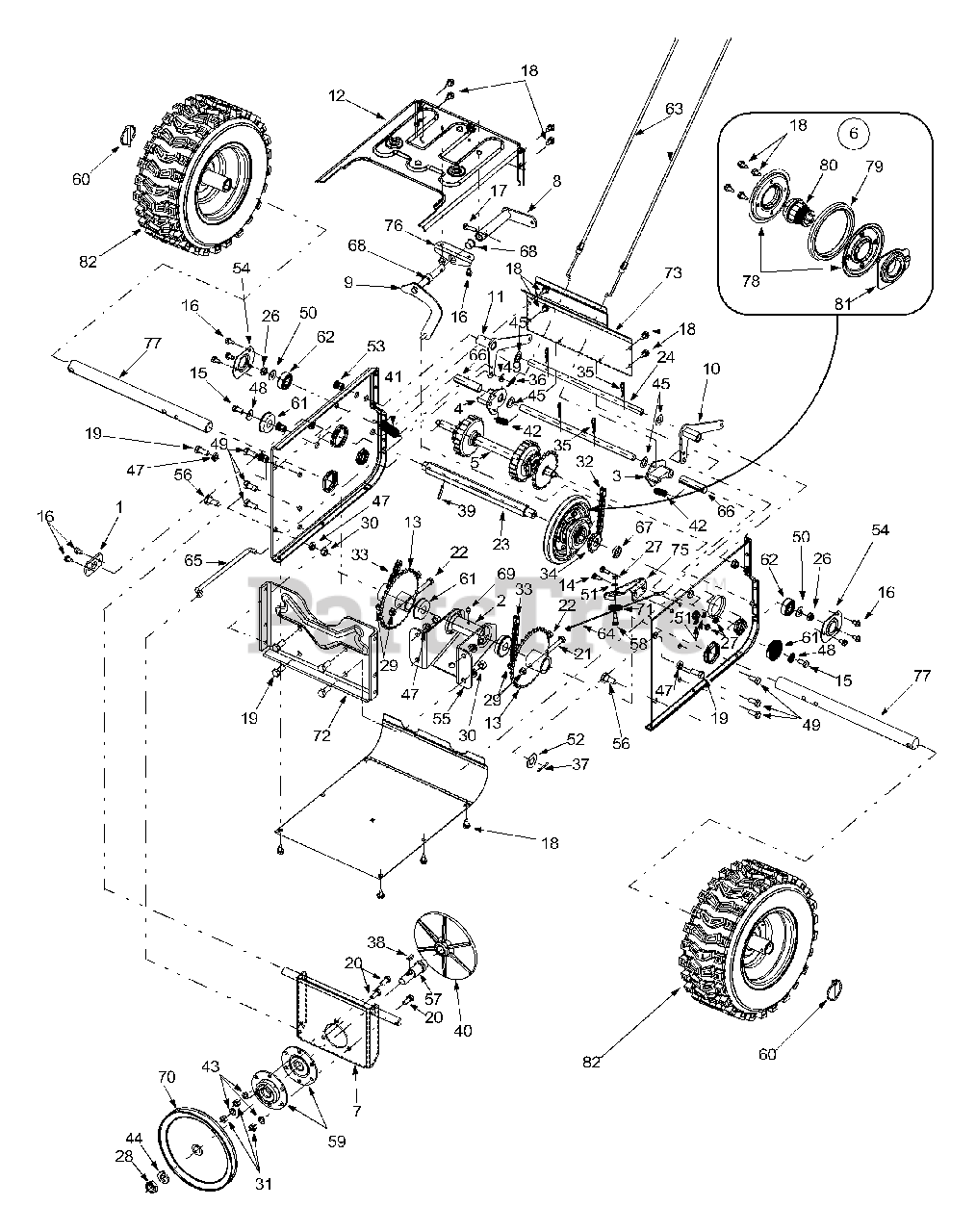

Drive Assembly Parts Diagram

  • Title

1

MTD 05523

Pivot Support Bracket

$

$

Not available

2

MTD 750-1302A

Spacer, .6725 x 1.125 x 2.485
(Superseded to 750-1302B)

$47.99

$

In Stock, only 1 left!

0

3

MTD 618-0279

Dogg Assembly LH
(Superseded to 918-0279A)

$42.99

$

Usually ships in 3-6 days

0

4

MTD 618-0280

Dogg Assembly RH
(Superseded to 918-0280A)

$42.99

$

Usually ships in 3-6 days

0

5

MTD 618-0282D

Shaft Assembly
(Superseded to 918-0282E)

$559.99

$

Usually ships in 3-6 days

0

6

MTD 618-0296A

Wheel Bearing Assembly
(Superseded to 918-0296B)

$207.99

$

Usually ships in 3-6 days

0

7

MTD 684-0162

Support Bracket Assembly

Variations

MTD 684-0162-0637

Drive Pivot Plate - POWDER BLACK (0637)

$

$

Not available

$

$

8

MTD 684-0161

Shift Arm Assembly
(Superseded to 684-0161-0637)

Variations

MTD 684-0161-0637

ARM ASM-SHIFT - POWDER BLACK (0637)

$70.99

$

Usually ships in 3-6 days

0

$70.99

$

Usually ships in 3-6 days

0

9

MTD 684-0117

Shift Rod Assembly

$91.99

$

Usually ships in 3-6 days

0

10

MTD 684-0118

Auger Actuator Bracket Assy.
(Superseded to 684-0118B-0637)

$

$

Not available

11

MTD 684-0119

Drive Actuator Bracket Assy.
(Superseded to 684-0119B-0637)

Variations

MTD 684-0119-0637

BRACKET AUGER ACTUATOR - POWDER BLACK (0637)

$

$

Not available

$

$

12

MTD 684-0120

Frame Assembly

Variations

MTD 684-0120-0498

FRAME ASSY-TRANSMI - OLD CUB YELLOW (0498)

$

$

Not available

MTD 684-0120-0638

No Longer Available FRAME ASM - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 684-0120-0650

No Longer Available FRAME ASM - RED METALLIC (0650)

$

$

Not available

MTD 684-0120-0662

Frame Assembly - OYSTER GRAY (0662)

$

$

Not available

MTD 684-0120-0665

No Longer Available FRAME ASM - YARDMAN GREEN (0665)

$

$

Not available

MTD 684-0120-0716

No Longer Available FRAME ASM - CUB YELLOW-99 (0716)

$

$

Not available

$

$

13

MTD 684-0122

Sprocket Assembly

$238.99

$

Usually ships in 3-6 days

0

14

MTD 710-0195

Hex Screw, 1/4-28 x .625"
(Superseded to 910-0195)

$3.99

$

In Stock, only 1 left!

0

15

MTD 710-0538

Hex Screw, 5/16-18 x .625"

$4.49

$

In Stock, Qty 7

0

16

MTD 710-0599

Self-tapping Screw, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

17

MTD 710-0788

Self-tapping Screw, 1/4-20 x 1"

$7.49

$

In Stock, only 2 left!

0

18

MTD 710-1652

Self-tapping Screw, 1/4-20 x .625"

$4.49

$

In Stock, Qty 20+

0

19

MTD 710-3001

Hex Screw 3/8-16 x .880"

$7.49

$

In Stock, Qty 9

0

20

MTD 710-3008

Hex Screw 5/16-18 x .75"

$4.49

$

In Stock, Qty 20+

0

21

MTD 710-3103

Hex Screw 5/16-18 x 2"

$4.49

$

In Stock, Qty 20+

0

22

MTD 710-3180

Hex Screw 5/16-18 x 1.75"

$5.49

$

In Stock, Qty 20+

0

23

MTD 711-1191

Hex Shaft: Drive

$

$

Not available

24

MTD 711-1193

Actuator Shaft

$

$

Not available

?25

MTD 711-1194

Actuator Drive Shaft

$

$

Not available

26

MTD 712-0116

Lock Nut

$4.99

$

In Stock, Qty 6

0

27

MTD 712-0138

Hex Nut 1/4-28

$6.99

$

Usually ships in 3-6 days

0

28

MTD 712-0221

Jam Lock Nut

$

$

Not available

29

MTD 712-0429

Hex Lock Nut

$4.49

$

In Stock, Qty 20+

0

30

MTD 712-0798

Hex Nut 3/8-16

$4.49

$

In Stock, Qty 6

0

31

MTD 712-3010

Hex Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

32

MTD 713-0284

Chain

$24.99

$

Usually ships in 3-6 days

0

33

MTD 713-0286

Chain

$66.99

$

Usually ships in 3-6 days

0

34

MTD 713-0413

Sprocket

$12.99

$

Usually ships in 3-6 days

0

35

MTD 714-0101

Hairpin Clip

$4.99

$

In Stock, only 1 left!

0

36

MTD 714-0104

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

37

MTD 714-0115

Cotter Pin

$3.99

$

In Stock, only 2 left!

0

38

MTD 714-0388

Key
(Superseded to 914-0388)

$7.99

$

In Stock, Qty 20+

0

39

MTD 715-0249

Roll Pin
(Superseded to 915-0249)

$6.99

$

In Stock, Qty 20+

0

40

MTD 717-0302

Drive Plate
(Superseded to 917-0302)

$82.99

$

In Stock, only 1 left!

0

41

MTD 732-0121

Extension Spring
(Superseded to 932-0121)

$14.99

$

In Stock, only 1 left!

0

42

MTD 732-0209

Extension Spring
(Superseded to 932-0209)

$7.99

$

In Stock, only 2 left!

0

43

MTD 736-0119

Lock Washer 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

44

MTD 736-0158

Lock Washer 5/8

$4.49

$

In Stock, Qty 11

0

45

MTD 736-0160

Flat Washer

$4.49

$

In Stock, only 2 left!

0

?46

MTD 736-0163

Flat Washer

$4.49

$

In Stock, Qty 20+

0

47

MTD 736-0217

Lock Washer

$4.49

$

In Stock, Qty 6

0

48

MTD 736-0242

Bell Washer

$4.49

$

In Stock, Qty 20+

0

49

MTD 710-0604A

Self-tapping Screw, 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

50

MTD 736-0300

Flat Washer

$4.49

$

In Stock, Qty 20+

0

51

MTD 736-0329

Lock Washer
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

52

MTD 736-0623

Flat Washer
(Superseded to 736-0187)

$4.49

$

In Stock, Qty 20+

0

53

MTD 712-0717

Nut Insert, 3/8-16

$8.99

$

Usually ships in 3-6 days

0

54

MTD 784-0404

Bearing Retainer Bracket

$8.49

$

In Stock, only 2 left!

0

55

MTD 784-0407

Axle Bearing Support Bracket
(Superseded to 784-0407-0637)

Variations

MTD 784-0407-0637

BRACKET-SUPPORT AXLE - POWDER BLACK (0637)

$37.99

$

Usually ships in 3-6 days

0

$37.99

$

Usually ships in 3-6 days

0

56

MTD 738-0143

Shoulder Screw

$4.49

$

In Stock, Qty 20+

0

57

MTD 738-0279

Spindle: Drive Plate

$57.99

$

Usually ships in 3-6 days

0

58

MTD 738-0924

Shoulder Screw 1/4-28 x .375"
(Superseded to 738-0924A)

$6.99

$

In Stock, Qty 5

0

59

MTD 741-0163A

Bearing Housing Assembly

$48.99

$

Usually ships in 3-6 days

0

60

MTD 714-0151A

Click Pin

$41.99

$

Usually ships in 3-6 days

0

61

MTD 741-0563

Ball Bearing
(Superseded to 941-0563)

$36.99

$

In Stock, Qty 7

0

62

MTD 741-0747

Ball Bearing

$18.99

$

In Stock, only 2 left!

0

63

MTD 746-0949A

Steer Cable

$52.99

$

Usually ships in 3-6 days

0

64

MTD 746-0951

Auger Idler Cable
(Superseded to 946-0951A)

$45.99

$

In Stock, only 3 left!

0

65

MTD 747-0973

Drive Clutch Rod

$48.99

$

Usually ships in 3-6 days

0

66

MTD 750-0903

Split Spacer
(Superseded to 750-0903B)

$10.99

$

Usually ships in 3-6 days

0

67

MTD 750-0997

Spacer
(Superseded to 950-0997)

$6.99

$

In Stock, only 4 left!

0

68

MTD 741-0748

Flange Bearing

$11.99

$

Usually ships in 3-6 days

0

69

MTD 737-3000

Lube Fitting, 3/16
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

70

MTD 756-0344

Drive Pulley

$81.99

$

Usually ships in 3-6 days

0

71

MTD 756-0625

Roller Cable

$9.49

$

In Stock, Qty 14

0

72

MTD 784-0406

Frame Support Bracket
(Superseded to 784-0406A-0637)

Variations

MTD 784-0406-0637

BRACKET-SUPPORT FRAME - POWDER BLACK (0637)

$37.99

$

Usually ships in 3-6 days

0

$37.99

$

Usually ships in 3-6 days

0

73

MTD 784-0379

Frame Cover: Upper

Variations

MTD 784-0379-0498

UPPER FRAME COVER - OLD CUB YELLOW (0498)

$15.99

$

Usually ships in 3-6 days

0

MTD 784-0379-0638

COVER:UPPER FRAME: - MTD/TROY-BILT RED (0638)

$12.99

$

Usually ships in 3-6 days

0

MTD 784-0379-0716

UPPER FRAME COVER - CUB YELLOW-99 (0716)

$15.99

$

Usually ships in 3-6 days

0

MTD 784-0379-0650

COVER:UPPER FRAME: - RED METALLIC (0650)

$

$

Not available

MTD 784-0379-0662

No Longer Available COVER-UPPE - OYSTER GRAY (0662)

$

$

Not available

MTD 784-0379-0665

No Longer Available COVER-UPPE - YARDMAN GREEN (0665)

$

$

Not available

$13.99

$

Usually ships in 3-6 days

0

?74

MTD 784-0380

Frame Cover: Lower

Variations

MTD 784-0380-0498

LOWER FRAME COVER - OLD CUB YELLOW (0498)

$

$

Not available

MTD 784-0380-0637

COVER-LOWER FRAME - POWDER BLACK (0637)

$

$

Not available

MTD 784-0380-0638

COVER-LOWER FRAME - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 784-0380-0650

COVER-LOWER FRAME - RED METALLIC (0650)

$

$

Not available

MTD 784-0380-0662

COVER-LOWER FRAME - OYSTER GRAY (0662)

$

$

Not available

MTD 784-0380-0665

COVER-LOWER FRAME - YARDMAN GREEN (0665)

$

$

Not available

MTD 784-0380-0716

LOWER FRAME COVER - CUB YELLOW-99 (0716)

$

$

Not available

$

$

75

MTD 784-0384

Auger Cable Bracket
(Superseded to 784-0384-0637)

Variations

MTD 784-0384-0637

GUIDE-AUGER CABLE - POWDER BLACK (0637)

$

$

Not available

$

$

76

MTD 784-0403

Shift Bracket
(Superseded to 784-0403-0637)

Variations

MTD 784-0403-0637

Shift Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

77

MTD 738-0975

Axle: Wheel

$182.99

$

In Stock, only 1 left!

0

78

MTD 784-5617A

Friction Plate
(Superseded to 984-0042C)

$138.99

$

In Stock, Qty 17

0

79

MTD 735-0243B

Friction Wheel Rubber
(Superseded to 935-0243B)

$15.99

$

In Stock, Qty 20+

0

80

MTD 718-0301A

Friction Wheel Hub
(Superseded to 984-0042C)

$138.99

$

In Stock, Qty 17

0

81

MTD 618-0063A

Friction Wheel Bearing

$92.99

$

Usually ships in 3-6 days

0

82

MTD 734-1593

Wheel Assembly Comp.
(Superseded to 734-1593A)

Variations

MTD 734-1593-0911

WHEEL-COMPL 16 X 6 - Carlisle Gray (0911)

$

$

Not available

MTD 734-1593-0931

No Longer Available WHEEL ASM - Carlisle Beige (0931)

$

$

Not available

MTD 734-1593-0941

WHEEL-COMPL 16 X 6 - Carlisle Yellow (0941)

$

$

Not available

$225.99

$

Usually ships in 3-6 days

0

MTD 734-1525

Tire Only

$162.99

$

In Stock, only 2 left!

0

MTD 734-1124

Rim Only
(Superseded to 734-1124A)

Variations

MTD 734-1124-0499

RIM-WHEEL 8" - CUB BEIGE (0499)

$132.99

$

Usually ships in 3-6 days

0

MTD 734-1124-0662

RIM ASM-WHEEL 8 X - OYSTER GRAY (0662)

$132.99

$

Usually ships in 3-6 days

0

MTD 734-1124-0674

RIM ASM-WHEEL 8 X - YARDMAN YELLOW (0674)

$115.99

$

Usually ships in 3-6 days

0

$115.99

$

Usually ships in 3-6 days

0

MTD 734-0255

Air Valve Only
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0
