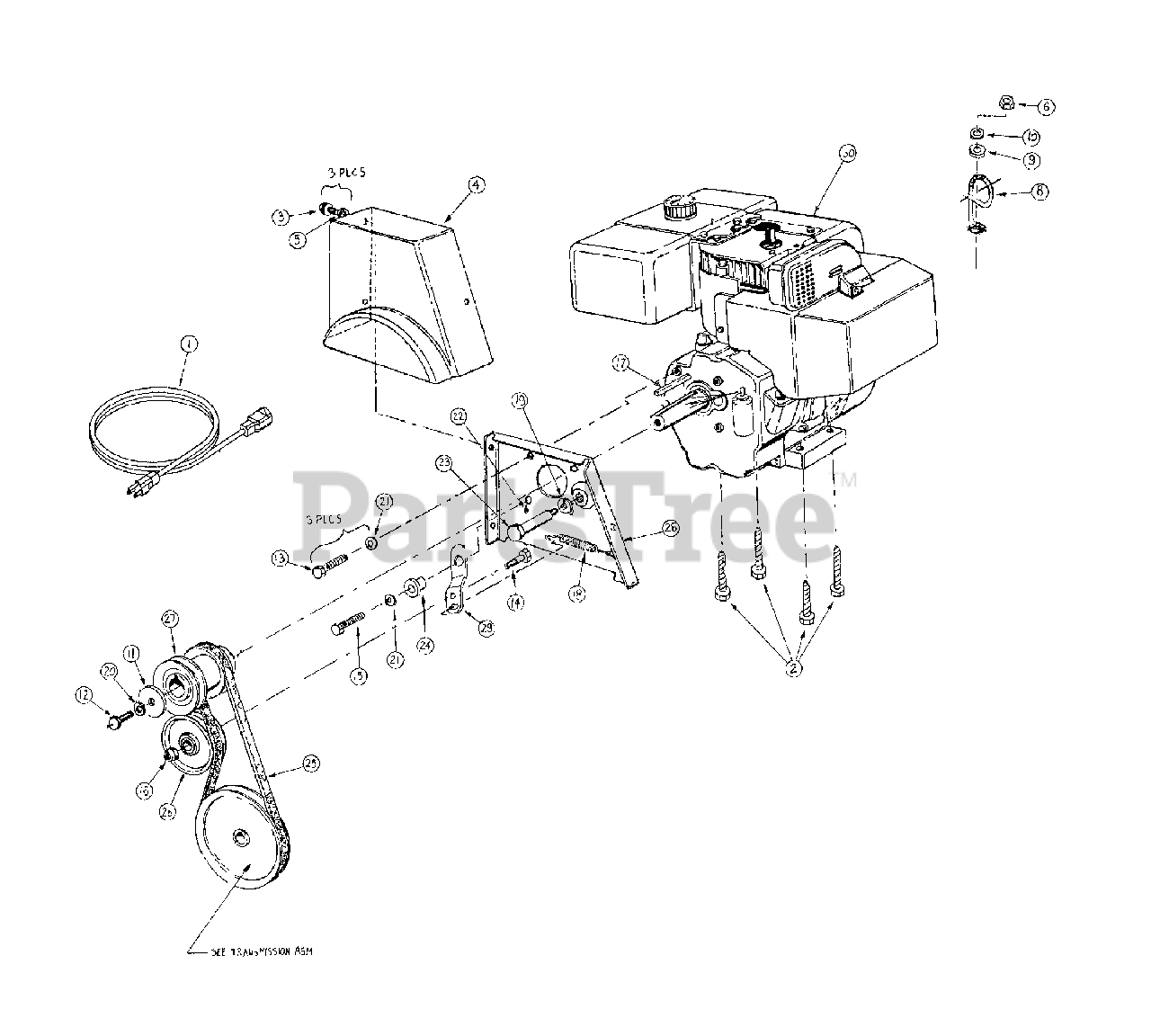

31AE993I401 - Yard-Man Snow Thrower (2000) Engine & V-Belt Parts Diagram

Snow Thrower

Engine & V-Belt Parts Diagram

  • Title

1

MTD 629-0071

Extension Cord 10 Ft.
(Superseded to 929-0071B)

$21.99

$

In Stock, Qty 12

0

2

MTD 710-0502A

Hex L-wash Tt Scr 3/8-16 X 1.25

$6.99

$

In Stock, only 2 left!

0

3

MTD 710-0607

Hwhd 5/16-18 X 1/2 Thd Roll Zn

$6.99

$

In Stock, Qty 9

0

4

MTD 731-0321-1

Belt Cover - Pierced

$

$

Currently unavailable

5

MTD 736-0264

Fl-wash .344 ID X .625 OD X .063

$6.99

$

In Stock, only 2 left!

0

6

MTD 712-3006

Nut 1/4-20 GR B Hex

$4.99

$

In Stock, Qty 17

0

8

MTD 732-0705

Cable Control Wire

$11.99

$

Usually ships in 3-6 days

0

9

MTD 736-0173

Fl-Wash .28 ID x .74 OD x .063

$4.49

$

In Stock, Qty 20+

0

10

MTD 736-0329

Lock Washer 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

11

MTD 07386

Wash .39 ID X 1.75 OD X .175 T

$

$

Not available

12

MTD 710-0191

Scr Hex Cap 3/8-24 X 1. Gd 8

$4.99

$

In Stock, Qty 9

0

13

MTD 710-0237

Scr Hex Cap 5/16-24 X .62 Gd 5

$4.49

$

In Stock, only 1 left!

0

14

MTD 710-0459

Scr Hex Cap 3/8-24 X 1.5 Gd 5
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 8

0

15

MTD 710-1245

Hhcs 5/16-24 X 7/8 Gr 5

$8.49

$

In Stock, only 4 left!

0

16

MTD 712-0116

Hex Ins L-nut 3/8 - 24

$4.99

$

In Stock, Qty 6

0

17

MTD 714-0118

Square Key 1/4 X 1.5

$6.99

$

In Stock, only 4 left!

0

18

MTD 732-0303

Extension Spring .38 OD X 3.18 L
(Superseded to 932-0303)

$10.99

$

In Stock, Qty 11

0

19

MTD 736-0169

L-wash 3/8

$3.99

$

In Stock, Qty 20+

0

20

MTD 736-0217

Lock Washer 3/8 Heavy

$4.49

$

In Stock, Qty 6

0

21

MTD 736-0242

Bell Wash .345 ID X .88 OD X .060

$4.49

$

In Stock, Qty 20+

0

22

MTD 737-0157

Grease - Sunaplex 781 - 1/10

$

$

Currently unavailable

23

MTD 738-0215A

Shoulder Scr .498 Dia X 3.0 Lg

$9.49

$

Usually ships in 3-6 days

0

24

MTD 748-0234

Shldr Spcr .50 Dia X .14 Shldr

$4.49

$

In Stock, Qty 20+

0

25

MTD 754-0131

3v Belt 35.5 Lg
(Superseded to 954-0131)

$28.99

$

In Stock, Qty 7

0

26

MTD 756-0240

3.0 OD Flat Idler With Flange

$

$

Not available

27

MTD 756-0241B

Dbl Engine Pulley 3.25 & 2.75

$99.99

$

In Stock, only 4 left!

0

28

MTD 684-0123A

Brkt Asm Cvr Belt 12 HP
(Superseded to 684-0123A-0637)

Variations

MTD 684-0123A-0637

BRACKET-BELT COVER - POWDER BLACK (0637)

$

$

Not available

$

$

29

MTD 784-5726

Brkt Idlr Dr

$39.99

$

Usually ships in 3-6 days

0

30

Engine

$

$

Not available
