31AE993I401 - Yard-Man Snow Thrower (1998) General Assembly Parts Diagram

Snow Thrower

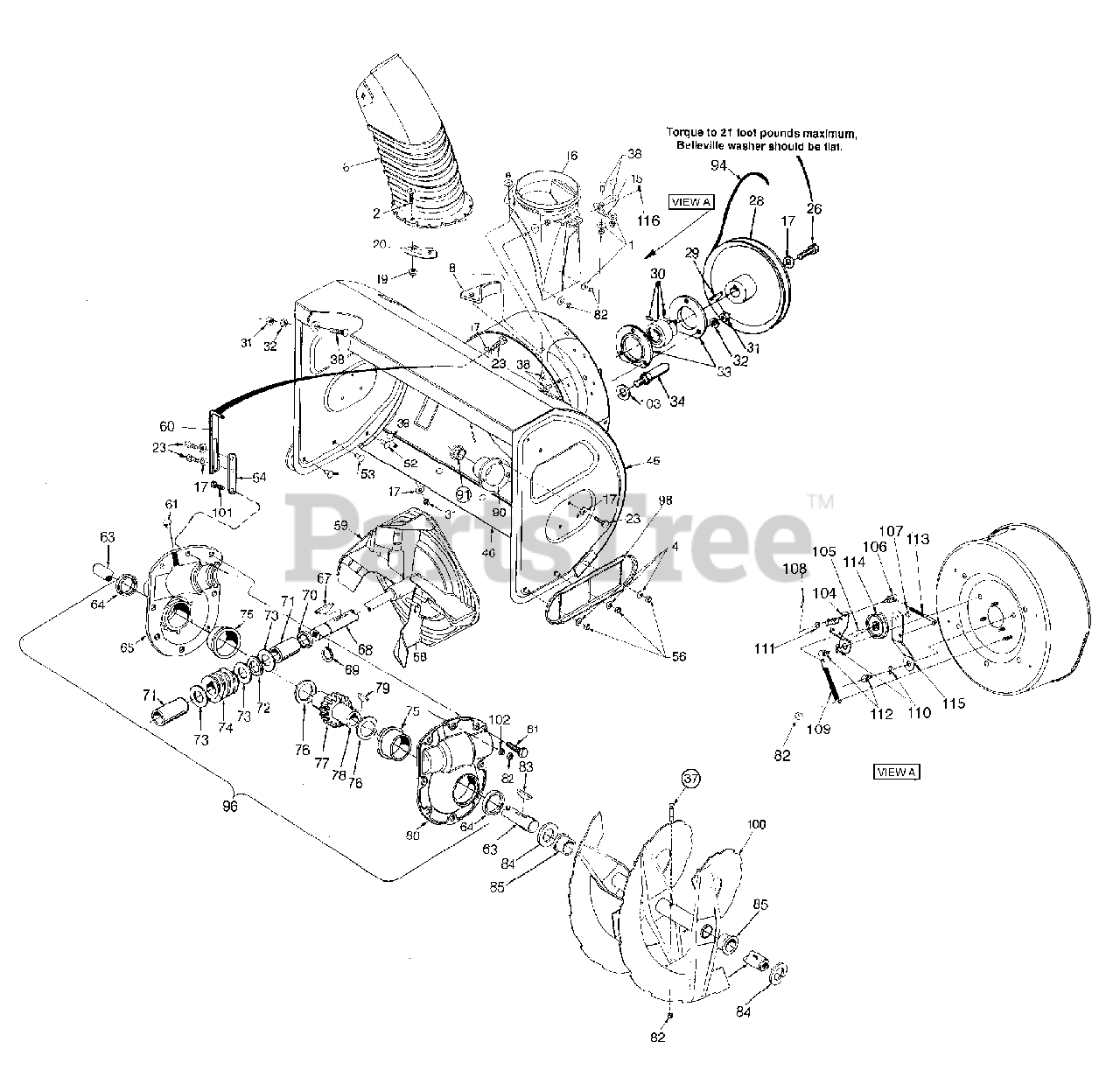

General Assembly Parts Diagram

  • Title

1

MTD 736-0159

Flat Washer .344 ID x .875 OD

$4.49

$

In Stock, Qty 20+

0

2

MTD 710-3015

Truss. Hd. Mach. Scr. 1/4-20 x .75

$3.99

$

In Stock, Qty 20+

0

4

MTD 736-0105

Belleville washer

$4.49

$

In Stock, Qty 20+

0

6

MTD 731-1318

6 Lower Chute Remote Tilt
(Superseded to 731-0903E)

$43.99

$

In Stock, Qty 8

0

8

MTD 784-5711

Chute Bracket
(Superseded to 784-5711-0637)

Variations

MTD 784-5711-0498

Chute Bracket - OLD CUB YELLOW (0498)

$

$

Not available

MTD 784-5711-0637

Chute Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

15

MTD 784-5123

Chute Bracket
(Superseded to 784-5123-0637)

Variations

MTD 784-5123-0637

Chute Crank Bracket - POWDER BLACK (0637)

$17.99

$

In Stock, only 1 left!

0

$17.99

$

In Stock, only 1 left!

0

16

MTD 731-1696

Chute Adapter
(Superseded to 731-1696B)

$91.99

$

In Stock, only 4 left!

0

17

MTD 736-0242

Bell. Washer .345 ID x .88 OD x .06

$4.49

$

In Stock, Qty 20+

0

19

MTD 712-3027

Hex Cent. L-Nut 1/4-20 w/ Flange
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

20

MTD 731-0851A

Chute Flange Keeper

$4.49

$

In Stock, Qty 20+

0

23

MTD 710-0601

Hex Wash HD Self-Tap Scr 5/16-18 x .75
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

26

MTD 710-0371

Hex Screw 5/16-18 x .75
(Superseded to 710-1880)

$4.99

$

In Stock, Qty 11

0

28

MTD 756-0243

1/2 V-Pulley .875 ID x 10.12 OD

$94.99

$

Usually ships in 3-6 days

0

29

MTD 714-0126

#9 Hi-Pro Key 3/16 x 3/4 Dia HT

$4.99

$

In Stock, Qty 19

0

30

MTD 741-0185

Self-Aligning Bearing .875 ID
(Superseded to 941-0185)

$66.99

$

In Stock, only 1 left!

0

31

MTD 712-3010

Hex Nut 5/16-18 GD. 5

$4.49

$

In Stock, Qty 20+

0

32

MTD 736-0119

L-Wash 5/16 ID
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

33

MTD 05244A

Bearing Housing
(Superseded to 05244B)

$23.99

$

In Stock, only 2 left!

0

34

MTD 711-0640

Belt Keeper Studs 3/8-16 x 2.75

$7.99

$

Usually ships in 3-6 days

0

37

UNKNOWN

$

$

Not available

38

MTD 710-0451

Carriage Bolt 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

45

MTD 684-0093A

33 Snowthrower Hsg. Ass'y
(Superseded to 684-0093B)

Variations

MTD 684-0093A-0498

33" AUGER HOUSING (CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

MTD 684-0093A-0638

HOUSING-33" AUGER - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 684-0093A-0650

HOUSING-33" AUGER - RED METALLIC (0650)

$

$

Not available

MTD 684-0093A-0662

No Longer Available HOUSING-33 - OYSTER GRAY (0662)

$

$

Not available

MTD 684-0093A-0665

HOUSING-AUGER 33" - YARDMAN GREEN (0665)

$

$

Not available

MTD 684-0093A-0716

33" AUGER HOUSING (CUB YELLOW 99) - CUB YELLOW-99 (0716)

$

$

Not available

$667.99

$

Usually ships in 3-6 days

0

46

MTD 784-5714

Shave Plate 33"
(Superseded to 784-5714B-0637)

Variations

MTD 784-5714-0637

Shave Plate, 33" Black - POWDER BLACK (0637)

$55.99

$

In Stock, only 1 left!

0

$55.99

$

In Stock, only 1 left!

0

52

MTD 710-3168

Carriage Bolt 3/8-16 x 1.00 Gr. 5

$3.99

$

In Stock, Qty 20+

0

53

MTD 710-0389

Carriage Bolt 3/8-16 x .75" Lg.

$4.49

$

In Stock, Qty 10

0

54

MTD 784-5710

Gear Housing Support Plate 1 x 3/16
(Superseded to 784-5710-0637)

Variations

MTD 784-5710-0637

PLATE-SUPPORT - POWDER BLACK (0637)

$8.49

$

Usually ships in 3-6 days

0

$8.49

$

Usually ships in 3-6 days

0

56

MTD 712-0798

Hex Jam Nut 3/8-16

$4.49

$

In Stock, only 2 left!

0

58

MTD 715-0118

Spring Spiral Pin Heavy 5/16 dia x 1.7

$12.99

$

In Stock, Qty 7

0

59

MTD 684-0090

Blower Fan Ass'y Complete
(Superseded to 684-0090B-0637)

Variations

MTD 684-0090-0637

IMPELLER ASM:16" - POWDER BLACK (0637)

$425.99

$

Usually ships in 3-6 days

0

$425.99

$

Usually ships in 3-6 days

0

60

MTD 784-5076

Gear housing Support Bracket 1 x 3/16
(Superseded to 784-5076-0637)

Variations

MTD 784-5076-0637

PLATE-SUPPORT-GEAR - POWDER BLACK (0637)

$46.99

$

Usually ships in 3-6 days

0

$46.99

$

Usually ships in 3-6 days

0

61

MTD 721-0325

Barbed Plug

$4.49

$

In Stock, only 4 left!

0

63

MTD 738-0491

Spiral Axle -33"

$

$

Not available

64

MTD 721-0146

Oil Seal 1.50 ID Garlock (76 x 6223)
(Superseded to 921-0146)

$12.99

$

In Stock, only 3 left!

0

65

MTD 719-0348

Gear Housing Half - RH
(Superseded to 918-0246)

$

$

Not available

67

MTD 714-0126

#9 Hi-Pro Key 3/16 x 3/4 dia HT

$4.99

$

In Stock, Qty 19

0

68

MTD 711-1133

Auger Drive Shaft

$287.99

$

Usually ships in 3-6 days

0

69

MTD 716-0111

Snap Ring for .875 dia. shaft

$6.99

$

In Stock, Qty 8

0

70

MTD 721-0145

Oil Seal for .875 ID (76 x 6133)
(Superseded to 921-0145)

$9.99

$

In Stock, only 1 left!

0

71

MTD 741-0217

Sleeve Bearing .875 ID
(Superseded to 941-0217)

$17.99

$

In Stock, Qty 10

0

72

MTD 741-0184

Thrust Bearing .88 ID x 1.44 OD x .078

$16.99

$

In Stock, only 3 left!

0

73

MTD 736-0291

Flat Washer .88 ID x 1.4 OD x .125

$11.99

$

Usually ships in 3-6 days

0

74

MTD 717-0299

Worm Gear LH Double Thread
(Superseded to 917-0299)

$124.99

$

In Stock, only 2 left!

0

75

MTD 741-0670

Flange Brg. 1.5 ID x 1.75 OD x .80

$13.99

$

Usually ships in 3-6 days

0

76

MTD 736-0266

Flat Washer 1.5 ID x 2.0 OD x .03
(Superseded to 936-0266)

$

$

Not available

77

MTD 717-1425

Worm Gear LH Double Thread (Bronze)
(Superseded to 917-1425)

$177.99

$

In Stock, only 2 left!

0

78

MTD 738-0275

Worm Gear Shaft

$112.99

$

Usually ships in 3-6 days

0

79

MTD 714-0135

#91 Woodruff Key 1/4 x 3/4 dia

$4.99

$

In Stock, only 2 left!

0

80

MTD 719-0349

Gear Housing Half LH
(Superseded to 918-0247)

$103.99

$

In Stock, only 1 left!

0

81

MTD 710-1260

Hex Flange Scr. 5/16-18 x .75
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

82

MTD 712-0429

Hex Ins. L-Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

83

MTD 714-0135

#91 Woodruff Key 1/4 x 3/4 dia

$4.99

$

In Stock, only 2 left!

0

84

MTD 736-0250

Flat Washer

$4.49

$

In Stock, only 2 left!

0

85

MTD 741-0494

Flange Bearing

$3.99

$

In Stock, only 2 left!

0

?87

MTD 710-0891

Shear Bolt 5/16-18 x 1.75

$7.49

$

In Stock, Qty 20+

0

90

MTD 05845B

Housing bearing 1.5 Dbl D
(Superseded to 05845C-0637)

Variations

MTD 05845B-0637

Bearing Housing - POWDER BLACK (0637)

$23.99

$

In Stock, only 2 left!

0

$23.99

$

In Stock, only 2 left!

0

91

MTD 741-0192

Flange Bearing w/flats
(Superseded to 941-0170)

$19.99

$

In Stock, only 4 left!

0

94

MTD 754-0222

V-Belt 1/2 x 44 LG
(Superseded to 954-0222A)

$40.99

$

In Stock, only 3 left!

0

96

MTD 618-0257

Worm Gear Box Ass'y
(Superseded to 618-0436)

$710.99

$

Usually ships in 3-6 days

0

98

MTD 784-5697

Reversible Skid Shoe

Variations

MTD 784-5697-0716

Snow Skid Shoe, Yellow - CUB YELLOW-99 (0716)

$44.99

$

In Stock, only 2 left!

0

MTD 784-5697-0606

Snow Skid Shoe, Orange - MAJESTIC ORANGE (0606)

$44.99

$

In Stock, Qty 7

0

MTD 784-5697-0637

Snow Skid Shoe, Black - POWDER BLACK (0637)

$44.99

$

In Stock, only 2 left!

0

MTD 784-5697-0717

Snow Skid Shoe, Sliver - SILVER MIST (0717)

$45.99

$

Usually ships in 3-6 days

0

MTD 784-5697-0638

Snow Skid Shoe, Red - MTD/TROY-BILT RED (0638)

$44.99

$

In Stock, only 2 left!

0

MTD 784-5697-0650

Snow Skid Shoe, Red - RED METALLIC (0650)

$44.99

$

In Stock, only 2 left!

0

MTD 784-5697-0684

SHOE-SKID - ZINC YELLOW (0684)

$45.99

$

Usually ships in 3-6 days

0

MTD 784-5697-4033

Snow Skid Shoe, Flint - FLINT MICA (4033)

$44.99

$

In Stock, only 2 left!

0

MTD 784-5697-0691

SHOE-SKID - BLACK JACK (0691)

$44.99

$

In Stock, only 2 left!

0

MTD 784-5697-4021

SHOE-SKID - CUB YELLOW 2 (4021)

$44.99

$

In Stock, only 2 left!

0

$45.99

$

Usually ships in 3-6 days

0

100

MTD 705-5210A

RH Spiral Ass'y Serrated - 33"
(Superseded to 705-5210A-0637)

Variations

MTD 705-5210A-0637

SPIRAL ASM-RH 33" - POWDER BLACK (0637)

$

$

Not available

$

$

MTD 705-5211A

LH Spiral Ass'y Serrated - 33"
(Superseded to 684-04195-0637)

Variations

MTD 705-5211A-0637

SPIRAL ASM-LH 33" - POWDER BLACK (0637)

$

$

Not available

$

$

101

MTD 710-0528

Hex Scr 5/16-18 x 1.25

$4.49

$

In Stock, Qty 20+

0

102

MTD 736-0271

5/16 Sprg Wash
(Superseded to 936-0271)

$4.49

$

In Stock, Qty 10

0

103

MTD 736-0169

3/8 Sprg Lock Wash

$3.99

$

In Stock, Qty 20+

0

104

MTD 618-0281

Brkt Ass'y Brkt
(Superseded to 918-0281A)

$64.99

$

In Stock, only 4 left!

0

105

MTD 710-0459

Scr Hex Cap 3/8-24 x 1.5 GRD 5
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 8

0

106

MTD 711-0677

Adjustment Ferrule
(Superseded to 911-0677)

$17.99

$

In Stock, only 4 left!

0

107

MTD 712-0116

Hex Ins L-Nut 3/8-24

$4.99

$

In Stock, Qty 6

0

108

MTD 714-0104

Intern Cot-Pin 5/16 dia

$4.49

$

In Stock, Qty 20+

0

109

MTD 732-0858

Spr Extn .470 dia x 4.75 Lg

$24.99

$

In Stock, Qty 6

0

110

MTD 736-0174

Wave Washer .66 ID x .88 OD

$6.99

$

In Stock, only 2 left!

0

111

MTD 736-0275

Fl-Wash SAE .34 x .68

$6.99

$

Usually ships in 3-6 days

0

112

MTD 738-0281

Shld Scr .625 dia x .170 x .062

$10.99

$

In Stock, only 1 left!

0

113

MTD 747-0980

Rod Idler Auger
(Superseded to 747-0980A)

$47.99

$

Usually ships in 3-6 days

0

114

MTD 756-0240

3.0 OD Flat Idler with Flanges

$

$

Not available

115

MTD 784-0385

Brkt Idlr Auger
(Superseded to 784-0385D)

Variations

MTD 784-0385-0637

Idler Auger Bracket - POWDER BLACK (0637)

$29.99

$

In Stock, only 1 left!

0

$29.99

$

In Stock, only 1 left!

0

116

MTD 741-0475

Plastic Bushing .380 ID
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0
