31AE983H515 - Mastercraft Snow Thrower (1998) Headlight Assembly Parts Diagram

Snow Thrower

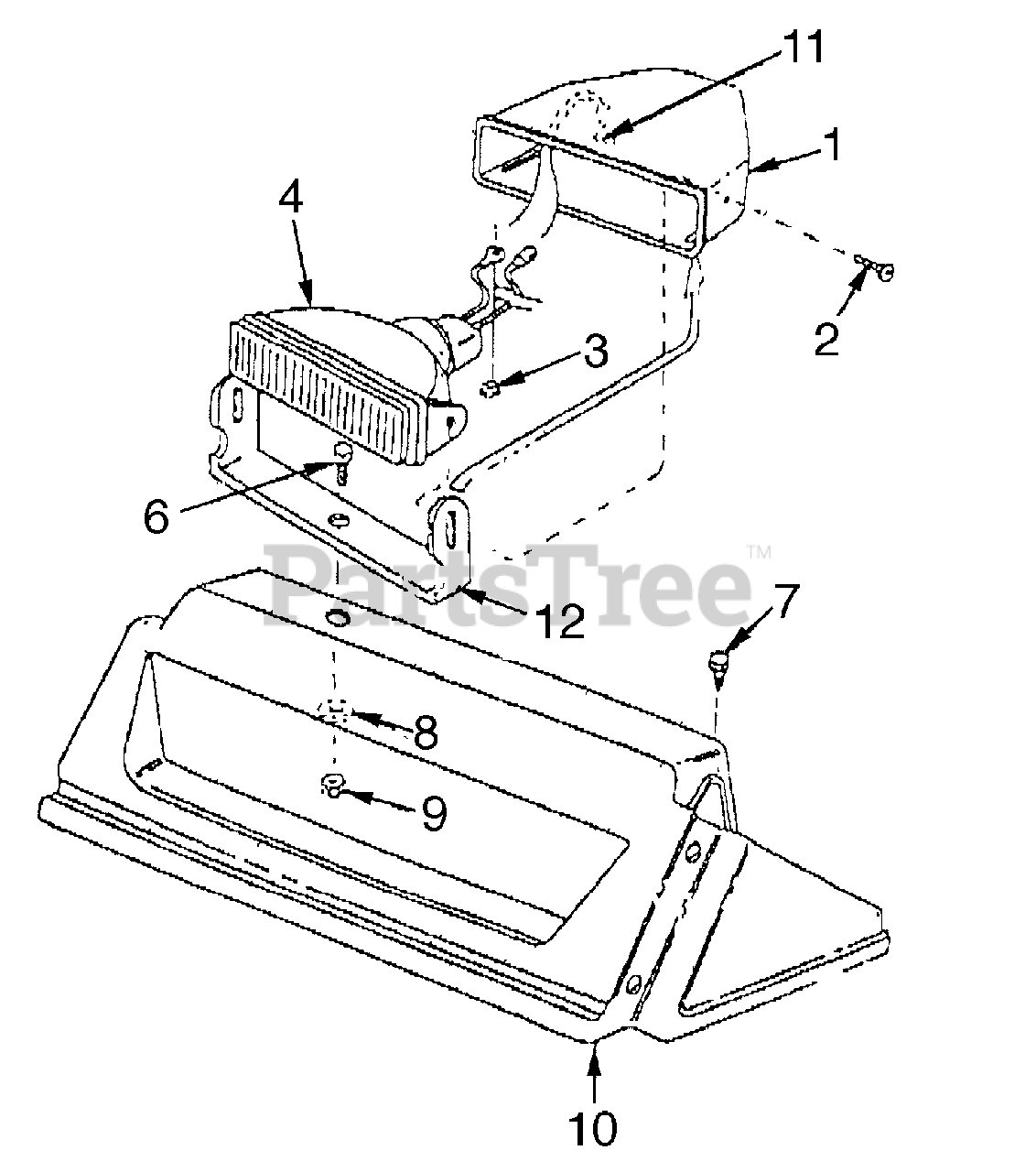

Headlight Assembly Parts Diagram

  • Title
1

MTD 731-1364

Halogen Lamp Housing

$39.99

$

Usually ships in 3-6 days

0

2

MTD 710-1240

Phillips Pan Head Screw M 4 x 16

$7.49

$

Usually ships in 3-6 days

0

3

MTD 712-0271

Hex Sems Nut 1/4-20

$4.49

$

In Stock, Qty 19

0

4

MTD 725-1669

Lamp/Lens Housing Ass'y
(Superseded to 925-1669P)

$

$

Not available

MTD 629-0059

Halogen Light Wire Harness
(Superseded to 929-0059)

$100.99

$

Usually ships in 3-6 days

0

MTD 725-1658

#890 Halogen Bulb
(Superseded to 925-1658)

$60.99

$

In Stock, only 4 left!

0

6

MTD 710-0451

Carriage Bolt 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

7

MTD 710-0351

Pan Head B-Tapp Screw #10

$4.49

$

Usually ships in 3-6 days

0

8

MTD 736-0159

Fl-Wash .344 ID x .88 OD

$4.49

$

In Stock, Qty 20+

0

9

MTD 712-0429

Hex Ins L-Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

10

MTD 731-0061

Handle Panel

$

$

Not available

11

MTD 735-0225

Grommet .38 ID x .50 OD x 12

$3.49

$

Usually ships in 3-6 days

0

12

MTD 705-5217

Lamp Mounting Bracket

$43.99

$

Usually ships in 3-6 days

0
