31AE762F013 - Yard Machines Snow Thrower (2000) (Costco) Handle Assembly Parts Diagram

Snow Thrower

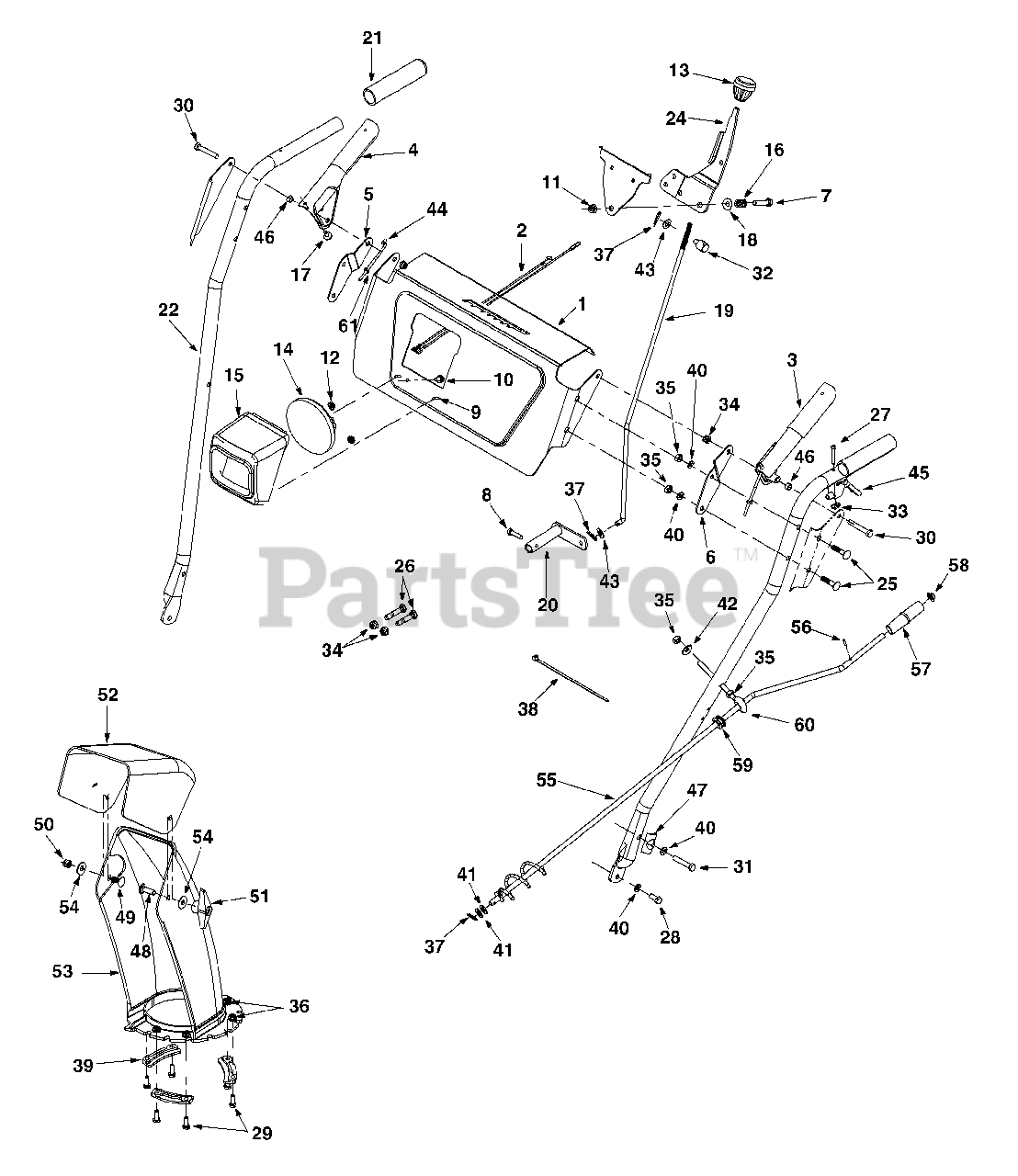

Handle Assembly Parts Diagram

  • Title

1

MTD 684-0145

Control Panel Ass'y.

Variations

MTD 684-0145-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

2

MTD 629-0058

Wire Harness
(Superseded to 929-0058B)

$

$

Not available

3

MTD 705-5233

Clutch Lever -L.H.
(Superseded to 705-5233A)

$

$

Not available

4

MTD 705-5234

Clutch Lever -R.H.
(Superseded to 705-5234A)

$46.99

$

Usually ships in 3-6 days

0

5

MTD 705-5274

Handle Support Brkt. R.H.
(Superseded to 705-5274-0637)

Variations

MTD 705-5274-0637

No Longer Available BRACKET-RH PNL SUP - POWDER BLACK (0637)

$

$

Not available

$

$

6

MTD 705-5275

Handle Support Brkt. L.H.

Variations

MTD 705-5275-0637

No Longer Available BRACKET-LH PNL SUP - POWDER BLACK (0637)

$

$

Not available

$

$

7

MTD 710-0459A

Hex Bolt 3/8-24 x 1.5" Lg.

$6.99

$

In Stock, Qty 8

0

8

MTD 710-0788

Hex TT-Tap Scr. 1/4-20 x 1"

$7.49

$

In Stock, only 2 left!

0

9

MTD 710-1003

Hex B-Tap Scr. #10-16 x .62
(Superseded to 710-04669)

$3.49

$

In Stock, Qty 20+

0

10

MTD 710-1652

Hex TT-Tap Scr. 1/4-20 x .6

$4.49

$

In Stock, Qty 20+

0

11

MTD 712-0116

Hex Jam Nut 3/8-24 Thd.

$4.99

$

In Stock, Qty 6

0

12

MTD 712-0415

Self Threading Nut

$5.49

$

In Stock, only 3 left!

0

13

MTD 720-0232

Shift Knob
(Superseded to 920-0232)

$10.99

$

In Stock, Qty 10

0

14

MTD 725-1300

Headlight
(Superseded to 925-1300)

$

$

Not available

15

MTD 731-1317

Headlight Bezel

$

$

Not available

16

MTD 732-0193

Compression Spring

$4.99

$

In Stock, Qty 6

0

17

MTD 735-0199A

Rubber Bumper

$7.99

$

In Stock, only 4 left!

0

18

MTD 736-0105

Bell-Wash. .4" I.D.

$4.49

$

In Stock, Qty 20+

0

19

MTD 747-0921

Shift Rod

$

$

Not available

20

MTD 684-0008A

Shift Arm
(Superseded to 684-0008A-0637)

Variations

MTD 684-0008A-0637

Shift Arm Assembly - POWDER BLACK (0637)

$50.99

$

Usually ships in 3-6 days

0

$50.99

$

Usually ships in 3-6 days

0

21

MTD 720-0274

Grip

$11.99

$

In Stock, Qty 11

0

22

MTD 749-0910B

Handle R.H.
(Superseded to 749-0910C-0637)

Variations

MTD 749-0910B-0637

HANDLE-RH - POWDER BLACK (0637)

$

$

Not available

$

$

?23

MTD 749-0911B

Handle L.H.

Variations

MTD 749-0911B-0637

No Longer Available HANDLE-LH - POWDER BLACK (0637)

$

$

Not available

$

$

24

MTD 784-5619A

Shift Handle
(Superseded to 753-05395)

Variations

MTD 784-5619A-0637

KIT-SHIFT HANDLE:S - POWDER BLACK (0637)

$

$

Not available

$

$

25

MTD 710-0262

Carriage Bolt

$3.99

$

In Stock, Qty 11

0

26

MTD 710-0890A

Shear Bolt

$1.99

$

In Stock, Qty 20+

0

27

MTD 710-1233

Mach. Scr. #10-24 x 1.37

$4.99

$

In Stock, Qty 11

0

28

MTD 710-3008

Hex Bolt 5/16-18 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

29

MTD 710-3015

Hex Bolt 1/4-20 x .75' Lg.

$3.99

$

In Stock, Qty 20+

0

30

MTD 710-3103

Hex Bolt 5/16-18 x 2" Lg.

$4.49

$

In Stock, Qty 20+

0

31

MTD 710-3180

Hex Bolt 5/16-18 x 1.75" Lg.

$5.49

$

In Stock, Qty 11

0

32

MTD 711-0677

Ferrule
(Superseded to 911-0677)

$17.99

$

In Stock, only 4 left!

0

33

MTD 712-0127

Flat Weld Nut #10-24 thd.

$3.49

$

In Stock, Qty 13

0

34

MTD 712-0429

Hex L-Nut 5/16-18 Thd.

$4.49

$

In Stock, Qty 20+

0

35

MTD 712-3010

Hex Nut 5/16-18 Thd.

$4.49

$

In Stock, Qty 20+

0

36

MTD 712-3027

Hex L-Nut 1/4-20 Thd.
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 17

0

37

MTD 714-0104

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

38

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

39

MTD 731-0851A

Chute Flange Keepers

$4.49

$

In Stock, Qty 20+

0

40

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

41

MTD 736-0185

Fl-Wash. .406" I.D.

$3.99

$

In Stock, Qty 20+

0

42

MTD 736-0242

Bell-Wash. .34' I.D.

$4.49

$

In Stock, Qty 20+

0

43

MTD 736-0275

Flat Wash. 5/16"

$6.99

$

Usually ships in 3-6 days

0

44

MTD 746-0778

"Z" Fitting
(Superseded to 946-0778)

$10.99

$

In Stock, Qty 5

0

45

MTD 746-0950

Control Trigger
(Superseded to 746-0950A)

$22.99

$

Usually ships in 3-6 days

0

46

MTD 750-1032

Spacer .325" I.D.

$4.99

$

Usually ships in 3-6 days

0

47

MTD 784-5599

Handle Tab
(Superseded to 984-5599)

$4.49

$

In Stock, Qty 20+

0

48

MTD 710-0276

Carriage Bolt

$3.99

$

In Stock, Qty 10

0

49

MTD 710-0451

Carriage Bolt 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

50

MTD 712-0429

Hex L-Nut 5/16-18 Thd.

$4.49

$

In Stock, Qty 20+

0

51

MTD 720-0284

Wing Nut Knob Ass'y.

$6.99

$

In Stock, Qty 20+

0

52

MTD 731-0921

Upper Chute
(Superseded to 731-04426C)

$19.99

$

In Stock, Qty 14

0

53

MTD 731-1300A

Lower Chute
(Superseded to 731-1300E)

$56.99

$

In Stock, Qty 8

0

54

MTD 736-0159

Fl-Wash. .349 I.D.

$4.49

$

In Stock, Qty 20+

0

55

MTD 684-0022

Chute Crank Ass'y.
(Superseded to 984-0022)

$99.99

$

In Stock, only 3 left!

0

56

MTD 715-0138

Roll Pin
(Superseded to 915-0138)

$4.99

$

In Stock, only 1 left!

0

57

MTD 720-0201A

Chute Crank Knob

$10.99

$

In Stock, Qty 5

0

58

MTD 726-0100

Push Cap

$4.49

$

In Stock, Qty 20+

0

59

MTD 735-0234

Grommet

$5.49

$

In Stock, only 2 left!

0

60

MTD 747-0697

Eyebolt

$8.49

$

In Stock, only 1 left!

0

61

MTD 712-0121

Hex Jam Nut #10-24 Thd.

$4.49

$

In Stock, Qty 20+

0
