31AE753F401 - Yard-Man Snow Thrower (1998) General Assembly Parts Diagram

Snow Thrower

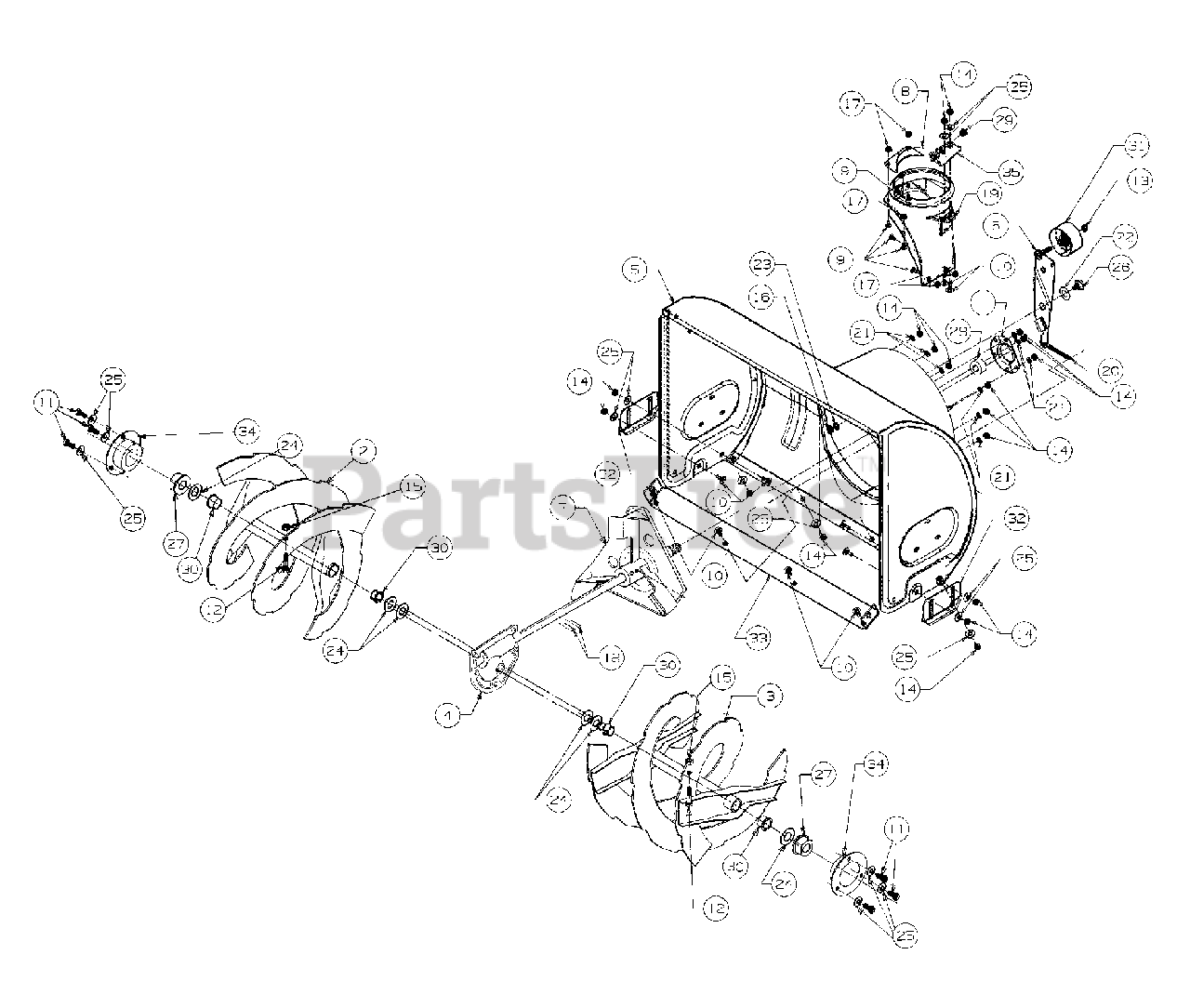

General Assembly Parts Diagram

  • Title
1

MTD 05931

Housing-Bearing
(Superseded to 05931A)

$10.99

$

Usually ships in 3-6 days

0

2

MTD 605-5193-0665

Spiral Assembly - L.H. 26"
(Superseded to 684-04183-0637)

$

$

Not available

3

MTD 605-5192-0665

Spiral Assembly - R.H. 26"
(Superseded to 684-04182-0637)

$187.99

$

Usually ships in 3-6 days

0

4

MTD 618-0121

Gear Assembly 26"
(Superseded to 918-0415B)

$442.99

$

Usually ships in 3-6 days

0

5

MTD 684-0040A

Housing Assembly 26"
(Superseded to 684-0040D)

Variations

MTD 684-0040A-0483

HOUSING ASM-26" - CHARCOAL GRAY (0483)

$

$

Not available

MTD 684-0040A-0498

No Longer Available HOUSING AS - OLD CUB YELLOW (0498)

$

$

Not available

MTD 684-0040A-0638

HOUSING ASM-26" - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 684-0040A-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 684-0040A-0629

HOUSING ASM-26" - SILVER FLAKE (0629)

$

$

Not available

MTD 684-0040A-0665

HOUSING ASM-26" - YARDMAN GREEN (0665)

$

$

Not available

MTD 684-0040A-0667

HOUSING ASM-26" - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 684-0040A-0689

HOUSING ASM-26" - POLO GREEN (0689)

$

$

Not available

$

$

6

MTD 684-0064

Arm - Idler Assembly
(Superseded to 984-0064-0637)

$32.99

$

In Stock, only 2 left!

0

7

MTD 684-0065-0665

Impeller Assembly
(Superseded to 984-0065-0637)

$90.99

$

In Stock, Qty 6

0

8

MTD 705-5226

Reinforcement-Chute

Variations

MTD 705-5226-0637

Chute Reinforcement - POWDER BLACK (0637)

$10.99

$

In Stock, Qty 7

0

MTD 705-5226-0638

Chute Reinforcement - MTD/TROY-BILT RED (0638)

$10.99

$

In Stock, Qty 7

0

$9.99

$

Usually ships in 3-6 days

0

9

MTD 710-0167

Screw - Carriage
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

10

MTD 710-0451

Screw - Carriage

$4.49

$

In Stock, Qty 20+

0

11

MTD 710-0604

Screw - Hex
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

12

MTD 710-0890

Shear Bolt
(Superseded to 710-0890A)

$1.99

$

In Stock, Qty 20+

0

13

MTD 712-0116

Nut - Hex Lock

$4.99

$

In Stock, Qty 6

0

14

MTD 712-0267

Nut - Hex
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

15

MTD 712-0429

Nut - Hex

$4.49

$

In Stock, Qty 20+

0

16

MTD 712-0798

Nut - Hex

$4.49

$

In Stock, Qty 12

0

17

MTD 712-3027

Nut - Hex Lock
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

18

MTD 715-0114

Pin - Spring

$9.49

$

In Stock, Qty 20+

0

19

MTD 731-1379

Adapter - Chute
(Superseded to 731-1379D)

$65.99

$

In Stock, Qty 8

0

20

MTD 732-0611

Spring
(Superseded to 932-0611)

$7.49

$

In Stock, Qty 20+

0

21

MTD 736-0119

Washer - Lock
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

22

MTD 736-0167

Washer - Flat
(Superseded to 936-0167)

$6.99

$

In Stock, Qty 6

0

23

MTD 736-0169

Washer - Lock

$3.99

$

In Stock, Qty 20+

0

24

MTD 736-0188

Washer - Flat

$4.49

$

In Stock, Qty 20+

0

25

MTD 736-0242

Washer - Bell

$4.49

$

In Stock, Qty 20+

0

26

MTD 738-0281

Screw - Shoulder

$10.99

$

In Stock, Qty 7

0

27

MTD 741-0245

Bearing - Flange
(Superseded to 941-0245)

$9.99

$

In Stock, Qty 20+

0

28

MTD 741-0309

Bearing - Ball
(Superseded to 941-0309)

$74.99

$

Usually ships in 3-6 days

0

29

MTD 741-0475

Bushing - Plastic
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

30

MTD 741-0493A

Bushing-Flange
(Superseded to 741-0493C)

$4.49

$

In Stock, Qty 20+

0

31

MTD 756-0178

Idler - Flat

$20.99

$

In Stock, Qty 6

0

32

MTD 784-5580-0665

Shoe - Slide
(Superseded to 784-5580-0637)

$23.99

$

In Stock, Qty 20+

0

33

MTD 784-5579A-0665

Shave Plate 26"

$

$

Currently unavailable

34

MTD 784-5618

Housing - Bearing
(Superseded to 784-5618A-0637)

Variations

MTD 784-5618-0637

Bearing Housing, Black - POWDER BLACK (0637)

$13.99

$

In Stock, only 2 left!

0

$13.99

$

In Stock, only 2 left!

0

35

MTD 784-5647

Bracket - Chute Crank
(Superseded to 784-5647-0637)

Variations

MTD 784-5647-0637

Chute Crank Bracket, Black - POWDER BLACK (0637)

$14.99

$

In Stock, Qty 5

0

$14.99

$

In Stock, Qty 5

0
