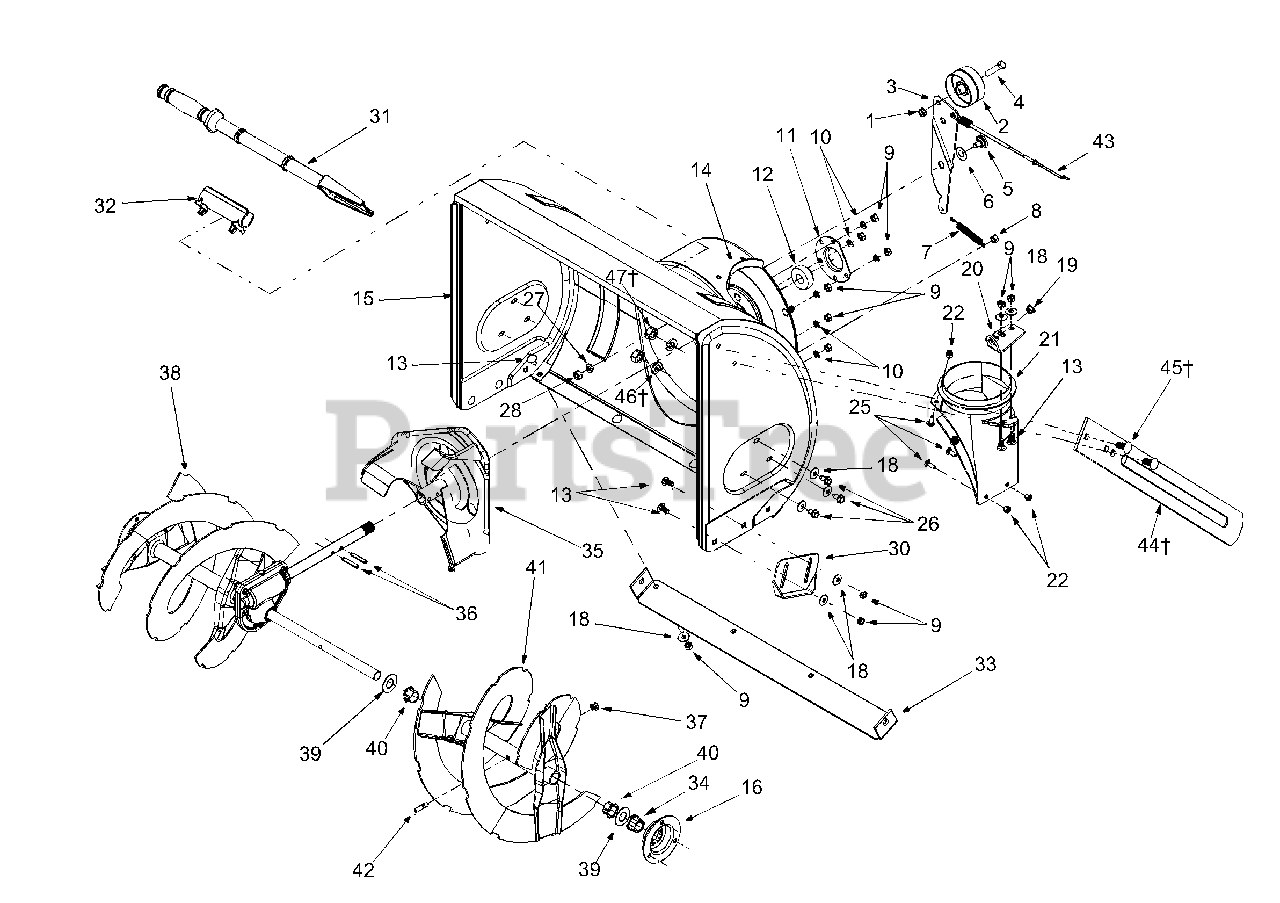

31AE6Q0F034 - Ryobi Snow Thrower (2004) General Assembly Parts Diagram

Snow Thrower

General Assembly Parts Diagram

  • Title

1

MTD 712-0116

Lock Jam Nut 3/8-24

$4.99

$

In Stock, Qty 6

0

2

MTD 756-0178

Flat Idler

$20.99

$

In Stock, Qty 6

0

3

MTD 784-5632B

Auger Idler Arm
(Superseded to 984-0064-0637)

Variations

MTD 784-5632B-0637

ARM ASSY-IDLER - POWDER BLACK (0637)

$32.99

$

In Stock, only 2 left!

0

$32.99

$

In Stock, only 2 left!

0

4

MTD 710-0459A

Hex Cap Screw 3/8-24 x 1.50

$6.99

$

In Stock, Qty 8

0

5

MTD 738-0281

Shoulder Screw

$10.99

$

In Stock, Qty 7

0

6

MTD 736-0167

Flat Washer,.565 x 1.25 x.02
(Superseded to 936-0167)

$6.99

$

In Stock, Qty 6

0

7

MTD 732-0611

Extension Spring
(Superseded to 932-0611)

$7.49

$

In Stock, Qty 20+

0

8

MTD 712-3068

Hex Nut 5/16-18
(Superseded to 912-3009)

$

$

Not available

9

MTD 712-3010

Hex Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

10

MTD 736-0119

Lock Washer 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

11

MTD 05931A

Housing

$10.99

$

Usually ships in 3-6 days

0

12

MTD 741-0309

Ball Bearing
(Superseded to 941-0309)

$74.99

$

Usually ships in 3-6 days

0

13

MTD 710-0451

Carriage Bolt 5/16-18 x.75

$4.49

$

In Stock, Qty 20+

0

14

MTD 705-5226

Reinforcement Chute

Variations

MTD 705-5226-0637

Chute Reinforcement - POWDER BLACK (0637)

$10.99

$

In Stock, Qty 7

0

MTD 705-5226-0638

Chute Reinforcement - MTD/TROY-BILT RED (0638)

$10.99

$

In Stock, Qty 7

0

$9.99

$

Usually ships in 3-6 days

0

15

MTD 684-0039D

24" Housing Assembly

Variations

MTD 684-0039D-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 684-0039D-0498

No Longer Available HOUSINGAS - OLD CUB YELLOW (0498)

$

$

Not available

MTD 684-0039D-0629

HOUSING ASM-24" - SILVER FLAKE (0629)

$

$

Not available

MTD 684-0039D-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 684-0039D-0650

HOUSING ASM-24" - RED METALLIC (0650)

$

$

Not available

MTD 684-0039D-0662

HOUSING ASM-24" - OYSTER GRAY (0662)

$

$

Not available

MTD 684-0039D-0665

HOUSING ASM-24" - YARDMAN GREEN (0665)

$

$

Not available

MTD 684-0039D-0687

HOUSING ASM-24" - PINE GREEN (0687)

$

$

Not available

MTD 684-0039D-0689

HOUSING ASM-24" - POLO GREEN (0689)

$

$

Not available

MTD 684-0039D-0691

HOUSING ASM-24" - BLACK JACK (0691)

$

$

Not available

MTD 684-0039D-0716

"No Longer Available HOUSING ASM-24""" - CUB YELLOW-99 (0716)

$

$

Not available

MTD 684-0039D-0709

"No Longer Available HOUSING ASM-24""" - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

MTD 684-0040D

26" Housing Assembly

Variations

MTD 684-0040D-0709

HOUSING ASM-26" - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 684-0040D-0483

HOUSING ASM-26" - CHARCOAL GRAY (0483)

$

$

Not available

MTD 684-0040D-0498

No Longer Available HOUSING AS - OLD CUB YELLOW (0498)

$

$

Not available

MTD 684-0040D-0638

HOUSING ASM-26" - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 684-0040D-0650

HOUSING ASM-26" - RED METALLIC (0650)

$

$

Not available

MTD 684-0040D-0662

Auger Housing Assy. 26" - OYSTER GRAY (0662)

$

$

Not available

MTD 684-0040D-0691

No Longer Available - BLACK JACK (0691)

$

$

Not available

MTD 684-0040D-0716

"No Longer Available HOUSING ASSY-26""" - CUB YELLOW-99 (0716)

$

$

Not available

MTD 684-0040D-0629

HOUSING ASM-26" - SILVER FLAKE (0629)

$

$

Not available

MTD 684-0040D-0665

HOUSING ASM-26" - YARDMAN GREEN (0665)

$

$

Not available

MTD 684-0040D-0667

HOUSING ASM-26" - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 684-0040D-0683

"No Longer Available HOUSING ASSY-26""" - LESCO GREEN (0683)

$

$

Not available

MTD 684-0040D-0684

No Longer Available - ZINC YELLOW (0684)

$

$

Not available

MTD 684-0040D-0689

HOUSING ASM-26" - POLO GREEN (0689)

$

$

Not available

$

$

MTD 684-0041D

28" Housing Assembly

Variations

MTD 684-0041D-0689

HOUSING ASM-28" - POLO GREEN (0689)

$

$

Not available

MTD 684-0041D-0650

HOUSING ASM-28" - RED METALLIC (0650)

$

$

Not available

MTD 684-0041D-0483

HOUSING ASM-28" - CHARCOAL GRAY (0483)

$

$

Not available

MTD 684-0041D-0606

HOUSING ASM-28" - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 684-0041D-0629

"No Longer Available HOUSING ASM-28""" - SILVER FLAKE (0629)

$

$

Not available

MTD 684-0041D-0638

"No Longer Available HOUSING ASM-28""" - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 684-0041D-0662

HOUSING ASM-28" - OYSTER GRAY (0662)

$

$

Not available

MTD 684-0041D-0665

HOUSING ASM-28" - YARDMAN GREEN (0665)

$

$

Not available

MTD 684-0041D-0691

HOUSING ASM-28" - BLACK JACK (0691)

$

$

Not available

MTD 684-0041D-0709

HOUSING ASM-28" - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 684-0041D-0716

HOUSING ASM-28" - CUB YELLOW-99 (0716)

$

$

Not available

MTD 684-0041D-0721

HOUSING ASM-28" - SEARS RED (0721)

$

$

Not available

MTD 684-0041D-4044

HOUSING ASM-28" - CRAFTSMAN RED (4044)

$

$

Not available

$

$

16

MTD 784-5618

Bearing Housing
(Superseded to 784-5618A-0637)

Variations

MTD 784-5618-0637

Bearing Housing, Black - POWDER BLACK (0637)

$13.99

$

Usually ships in 3-6 days

0

$13.99

$

Usually ships in 3-6 days

0

18

MTD 736-0242

Bell Washer

$4.49

$

In Stock, Qty 20+

0

19

MTD 741-0475

Bushing
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

20

MTD 784-5647

Chute Crank Bracket
(Superseded to 784-5647-0637)

Variations

MTD 784-5647-0637

Chute Crank Bracket, Black - POWDER BLACK (0637)

$14.99

$

In Stock, Qty 5

0

$14.99

$

In Stock, Qty 5

0

21

MTD 731-1379C

Chute Adapter
(Superseded to 731-1379D)

$65.99

$

In Stock, Qty 8

0

22

MTD 712-3027

Hex Flange Lock Nut 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 17

0

25

MTD 710-0703

Carriage Screw 1/4-20 x.75

$4.49

$

In Stock, Qty 15

0

26

MTD 710-0726

Screw 5/16-12

$4.49

$

In Stock, Qty 20+

0

27

MTD 736-0169

Lock Washer 3/8

$3.99

$

In Stock, Qty 20+

0

28

MTD 712-0798

Hex Nut 3/8-16

$4.49

$

In Stock, Qty 12

0

30

MTD 784-5580

Snow Shoe

Variations

MTD 784-5580-0637

Snow Slide Shoe, Black - POWDER BLACK (0637)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-0638

Snow Slide Shoe, Black - MTD/TROY-BILT RED (0638)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-0662

Snow Slide Shoe, Black - OYSTER GRAY (0662)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-0665

Snow Slide Shoe, Black - YARDMAN GREEN (0665)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-0688

Snow Slide Shoe, Black - SPRING GREEN (0688)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-0721

Snow Skid Shoe - SEARS RED (0721)

$23.99

$

In Stock, Qty 18

0

MTD 784-5580-4044

Snow Skid Shoe - CRAFTSMAN RED (4044)

$23.99

$

In Stock, Qty 18

0

MTD 784-5580-0691

Snow Slide Shoe, Black - BLACK JACK (0691)

$23.99

$

In Stock, Qty 7

0

MTD 784-5580-0729

Snow Skid Shoe - STORM GRAY (0729)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-4043

Snow Skid Shoe - CRAFTSMAN METALLIC GRAY (4043)

$23.99

$

In Stock, Qty 20+

0

$23.99

$

In Stock, Qty 20+

0

31

MTD 731-2643

Chute Clean-out Tool
(Superseded to 931-2643)

$19.99

$

In Stock, Qty 16

0

32

MTD 731-2635

Mount, Chute Clean-out Tool
(Superseded to 731-11421)

$11.99

$

In Stock, Qty 20+

0

33

MTD 784-5581A

24" Shave Plate
(Superseded to 790-00120-0637)

Variations

MTD 784-5581A-0637

Shave Plate, 24" Powder Black - POWDER BLACK (0637)

$34.99

$

In Stock, Qty 20+

0

MTD 784-5581A-0662

Shave Plate, 24" Gray - OYSTER GRAY (0662)

$34.99

$

In Stock, Qty 20+

0

MTD 784-5581A-0687

Shave Plate, 24" Green - PINE GREEN (0687)

$34.99

$

In Stock, Qty 20+

0

$34.99

$

In Stock, Qty 20+

0

MTD 784-5579A

26" Shave Plate
(Superseded to 790-00121-0637)

Variations

MTD 784-5579A-0629

Shave Plate, 26" Silver - SILVER FLAKE (0629)

$36.99

$

In Stock, Qty 20+

0

MTD 784-5579A-0637

Shave Plate, 26" Powder Black - POWDER BLACK (0637)

$36.99

$

In Stock, Qty 20+

0

MTD 784-5579A-0638

Shave Plate, 26" Red - MTD/TROY-BILT RED (0638)

$36.99

$

In Stock, Qty 20+

0

MTD 784-5579A-0667

Shave Plate, 26" Blue - MIDNIGHT BLUE (0667)

$36.99

$

In Stock, Qty 20+

0

MTD 784-5579A-0689

Shave Plate, 26" Green - POLO GREEN (0689)

$36.99

$

In Stock, Qty 20+

0

MTD 784-5579A-0691

Shave Plate, 26" Black - BLACK JACK (0691)

$36.99

$

In Stock, Qty 20+

0

MTD 784-5579A-0692

Shave Plate, 26" Blue - AGWAY BLUE (0692)

$36.99

$

In Stock, Qty 20+

0

$36.99

$

In Stock, Qty 20+

0

MTD 784-5582A

28" Shave Plate
(Superseded to 790-00118-0637)

Variations

MTD 784-5582A-0637

Shave Plate, 28" Powder Black - POWDER BLACK (0637)

$37.99

$

In Stock, Qty 20+

0

$37.99

$

In Stock, Qty 20+

0

34

MTD 741-0245

Hex Flange Bearing
(Superseded to 941-0245)

$9.99

$

In Stock, Qty 20+

0

35

MTD 684-0065

Impeller Assembly
(Superseded to 984-0065-0637)

Variations

MTD 684-0065-0662

Impeller, 3-Blade 12" - OYSTER GRAY (0662)

$90.99

$

In Stock, Qty 6

0

MTD 684-0065-0665

Impeller, 3-Blade 12" - YARDMAN GREEN (0665)

$90.99

$

In Stock, Qty 6

0

$90.99

$

In Stock, Qty 6

0

36

MTD 715-0114

Pin

$9.49

$

In Stock, Qty 7

0

37

MTD 712-0429

Lock Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

38

MTD 605-5188A

Spiral 24" RH
(Superseded to 684-04180-0637)

Variations

MTD 605-5188A-0637

Auger Spiral Assembly, RH 24" - POWDER BLACK (0637)

$

$

Not available

$

$

MTD 605-5192A

Spiral 26" RH
(Superseded to 684-04182-0637)

Variations

MTD 605-5192A-0637

Spiral Assembly, RH 26" - POWDER BLACK (0637)

$187.99

$

Usually ships in 3-6 days

0

$187.99

$

Usually ships in 3-6 days

0

MTD 605-5196A

Spiral 28" RH
(Superseded to 684-04184-0637)

Variations

MTD 605-5196A-0637

Auger Spiral Assembly, RH 28" - POWDER BLACK (0637)

$218.99

$

Usually ships in 3-6 days

0

$218.99

$

Usually ships in 3-6 days

0

39

MTD 736-0188

Flat Washer

$4.49

$

In Stock, Qty 20+

0

40

MTD 741-0493A

Flange Bushing
(Superseded to 741-0493C)

$4.49

$

In Stock, Qty 20+

0

41

MTD 605-5189A

Spiral 24" LH
(Superseded to 684-04181-0637)

Variations

MTD 605-5189A-0637

Auger Spiral Assembly, LH 24" - POWDER BLACK (0637)

$178.99

$

In Stock, only 1 left!

0

$178.99

$

In Stock, only 1 left!

0

MTD 605-5193A

Spiral 26" LH
(Superseded to 684-04183-0637)

Variations

MTD 605-5193A-0637

Spiral Assembly, LH 26" - POWDER BLACK (0637)

$

$

Not available

$

$

MTD 605-5197A

Spiral 28" LH
(Superseded to 684-04185-0637)

Variations

MTD 605-5197A-0637

Auger Spiral Assembly, LH 28" - POWDER BLACK (0637)

$184.99

$

Usually ships in 3-6 days

0

$184.99

$

Usually ships in 3-6 days

0

42

MTD 710-0890A

Shear Bolt 5/16-18 x 1.5

$1.99

$

In Stock, Qty 20+

0

43

MTD 746-0897

Drive Cable
(Superseded to 946-0897)

$24.99

$

In Stock, Qty 20+

0

44

MTD 05139A

Blade Guide
(Superseded to 790-00181-0637)

Note: If Equipped

Variations

MTD 05139A-0498

BLADE-GUIDE (DRIFT - OLD CUB YELLOW (0498)

$43.99

$

Usually ships in 3-6 days

0

MTD 05139A-0637

BLADE-GUIDE (DRIFT - POWDER BLACK (0637)

$43.99

$

Usually ships in 3-6 days

0

MTD 05139A-0638

BLADE-GUIDE (DRIFT - MTD/TROY-BILT RED (0638)

$43.99

$

Usually ships in 3-6 days

0

MTD 05139A-0662

BLADE-GUIDE (DRIFT - OYSTER GRAY (0662)

$43.99

$

Usually ships in 3-6 days

0

MTD 05139A-0665

BLADE-GUIDE (DRIFT - YARDMAN GREEN (0665)

$43.99

$

Usually ships in 3-6 days

0

MTD 05139A-0674

BLADE-GUIDE (DRIFT - YARDMAN YELLOW (0674)

$43.99

$

Usually ships in 3-6 days

0

MTD 05139A-0716

BLADE-GUIDE (DRIFT - CUB YELLOW-99 (0716)

$43.99

$

Usually ships in 3-6 days

0

$43.99

$

Usually ships in 3-6 days

0

45

MTD 710-0451

Carriage Bolt 5/16-18

Note: If Equipped

$4.49

$

In Stock, Qty 20+

0

46

MTD 736-0119

Lock Washer 5/16
(Superseded to 936-0119)

Note: If Equipped

$4.99

$

In Stock, Qty 20+

0

47

MTD 712-3010

Hex Nut 5/16-18

Note: If Equipped

$4.49

$

In Stock, Qty 20+

0
