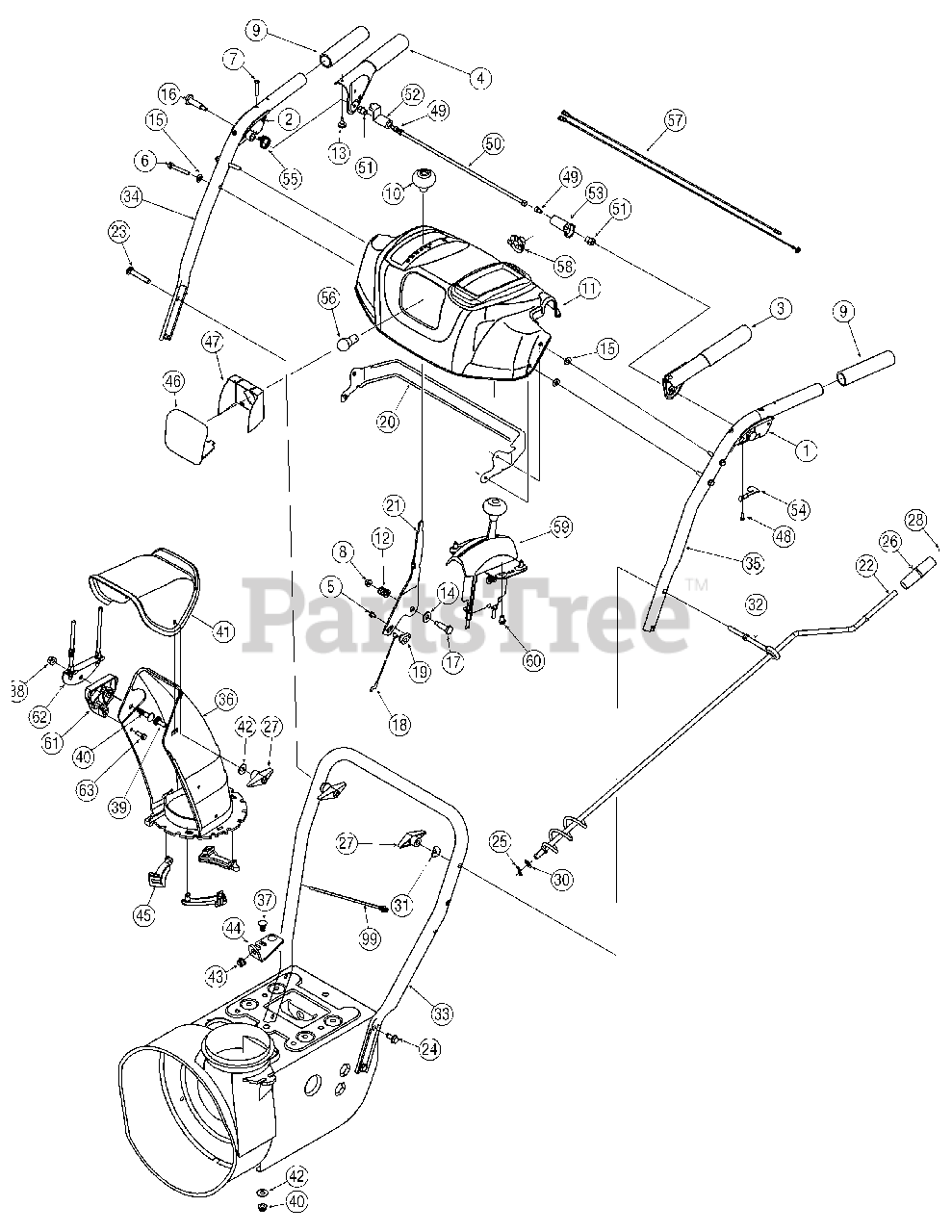

31AE6GKH730 - Huskee Snow Thrower (2005-2) (Tractor Supply) Handle Assembly Parts Diagram

Snow Thrower

Handle Assembly Parts Diagram

  • Title

1

MTD 631-04133

Handle Assembly, Lock, LH
(Superseded to 631-04133A)

$15.99

$

In Stock, Qty 8

0

2

MTD 631-04134A

Handle Assembly, Lock, RH
(Superseded to 631-04134B)

$15.99

$

In Stock, only 1 left!

0

3

MTD 684-04105A

Handle Ass’ y, Engagement LH
(Superseded to 684-04105D)

$22.99

$

In Stock, only 4 left!

0

4

MTD 684-04106A

Handle Ass’y, Engagement, RH
(Superseded to 684-04106D)

$21.99

$

In Stock, only 2 left!

0

5

MTD 710-0224

Screw, #10-16, 0.500
(Superseded to 910-0224)

$3.99

$

In Stock, Qty 20+

0

6

MTD 710-1026

Screw, 1/4-20, 1.750

$6.99

$

In Stock, Qty 13

0

7

MTD 710-1233

Screw, Machine, #10-24, 1.375

$4.99

$

In Stock, Qty 11

0

8

MTD 712-04064

Nut, Flange Lock, 1/4-20, Nylon

$3.99

$

In Stock, Qty 20+

0

9

MTD 720-0274

Grip, 1.0 ID x 5.0

$11.99

$

In Stock, Qty 11

0

10

MTD 720-04039

Knob, Shift

$10.99

$

In Stock, only 2 left!

0

11

MTD 731-05336

Handle Panel, Yellow, K/L - Style
(Superseded to 931-05336)

$

$

Not available

11

MTD 731-05348

Handle Panel, Gray, K/L -Style

$

$

Not available

12

MTD 732-0193

Spring, .39 x .60 x .88

$4.99

$

In Stock, Qty 6

0

13

MTD 735-0199A

Bumper, Rubber, .62 OD x .22

$7.99

$

In Stock, only 4 left!

0

14

MTD 736-0262

Washer, Flat, .385 x .870 x .092

$3.99

$

In Stock, Qty 10

0

15

MTD 736-0463

Washer, Flat, .25 x .630 x .0515

$4.49

$

In Stock, Qty 12

0

16

MTD 738-04122

Screw, Shoulder, .43 x 1.34, 1/4-20
(Superseded to 738-04348)

$3.99

$

In Stock, Qty 20+

0

17

MTD 738-04125

Screw, Shoulder, .374 Dia. X 1.05

$4.99

$

In Stock, only 3 left!

0

18

MTD 746-04227

Cable, Speed Selector
(Superseded to 746-04227A)

$22.99

$

In Stock, Qty 15

0

19

MTD 746-0605

Barrel Holder, Cable, LH
(Superseded to 946-0605)

$4.49

$

In Stock, Qty 20+

0

20

MTD 790-00140

Bracket, Panel
(Superseded to 790-00140-0637)

Variations

MTD 790-00140-0637

BRACKET-PANEL - POWDER BLACK

$

$

Not available

$

$

21

MTD 790-00203

Lever, Shift
(Superseded to 790-00203-0637)

Variations

MTD 790-00203-0637

Shift Lever - POWDER BLACK (0637)

$

$

Not available

$

$

22

MTD 684-04104

Crank Assembly, Chute
(Superseded to 684-04104-0637)

Variations

MTD 684-04104-0637

Chute Crank Assembly, Powder Black - POWDER BLACK (0637)

$62.99

$

Usually ships in 3-6 days

0

$62.99

$

Usually ships in 3-6 days

0

23

MTD 710-0449

Screw, Carriage, 5/16-18, 2.25
(Superseded to 710-0572)

$4.49

$

In Stock, Qty 20+

0

24

MTD 710-1260A

Screw, 5/16-18, 0.75, Gr5

$3.99

$

In Stock, Qty 20+

0

25

MTD 714-0104

Pin, Cotter, .072 x 1.13

$4.49

$

In Stock, Qty 20+

0

26

MTD 720-0201A

Crank Knob, 1.0 Dia. x 3.2, Black

$10.99

$

In Stock, Qty 5

0

27

MTD 720-0284

Knob Assembly, Wing Nut, 5/16-18

$6.99

$

In Stock, Qty 20+

0

28

MTD 726-0100

Cap, Push, 3/8 Rod

$4.49

$

In Stock, Qty 20+

0

29

MTD 735-0234

Grommet, .44 ID x .94 OD x .50

$5.49

$

In Stock, only 2 left!

0

30

MTD 736-0185

Washer, Flat, .375 x .738 x .063

$3.99

$

In Stock, Qty 20+

0

31

MTD 736-0451

Washer, Saddle, 320 x .93 x .060

$4.49

$

In Stock, Qty 11

0

32

MTD 747-04263

Eye Bolt, Chute Crank

$9.49

$

In Stock, only 2 left!

0

33

MTD 749-04138

Handle, Lower
(Superseded to 749-04138A)

Variations

MTD 749-04138-0637

Lower Handle, Snow - POWDER BLACK (0637)

$88.99

$

Usually ships in 3-6 days

0

MTD 749-04138-0638

Lower Handle, Snow - MTD/TROY-BILT RED (0638)

$88.99

$

Usually ships in 3-6 days

0

$88.99

$

Usually ships in 3-6 days

0

34

MTD 749-04141

Handle, Upper, RH

Variations

MTD 749-04141-0637

Right Upper Handle - POWDER BLACK (0637)

$45.99

$

Usually ships in 3-6 days

0

MTD 749-04141-0638

HANDLE-UPPER RH - MTD/TROY-BILT RED (0638)

$45.99

$

Usually ships in 3-6 days

0

$53.99

$

Usually ships in 3-6 days

0

35

MTD 749-04142

Handle, Upper, LH
(Superseded to 749-04191A)

Variations

MTD 749-04142-0638

HANDLE-UPPER LH - MTD/TROY-BILT RED (0638)

$45.99

$

Usually ships in 3-6 days

0

MTD 749-04142-0637

HANDLE-UPPER LH - POWDER BLACK (0637)

$45.99

$

Usually ships in 3-6 days

0

$39.99

$

Usually ships in 3-6 days

0

36

MTD 731-04912A

Chute, Lower, 5.0 Diameter
(Superseded to 731-04912B)

$38.99

$

In Stock, Qty 11

0

37

MTD 710-0276

Bolt, Carriage, 5/16-18, 1.0

$3.99

$

In Stock, Qty 10

0

38

MTD 712-04063

Nut, Flange Lock, 5/16-18, Nylon

$3.99

$

In Stock, Qty 5

0

39

MTD 710-04071

Bolt, Carriage, 5/16-18, 1.0

$4.49

$

In Stock, Qty 13

0

40

MTD 710-0451

Bolt, Carriage, 5/16-18, .750

$4.49

$

In Stock, Qty 20+

0

41

MTD 731-04426A

Chute, Upper, w/ Label
(Superseded to 731-04426C)

$19.99

$

In Stock, Qty 14

0

42

MTD 736-0159

Washer.349 ID x .879 OD x .063

$4.49

$

In Stock, Qty 20+

0

43

MTD 741-0475

Bushing, Plastic, .380
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

44

MTD 784-5647

Bracket, Chute Crank
(Superseded to 784-5647-0637)

Variations

MTD 784-5647-0637

Chute Crank Bracket, Black - POWDER BLACK (0637)

$14.99

$

In Stock, Qty 5

0

$14.99

$

In Stock, Qty 5

0

45

MTD 731-04869

Flange Keeper, Chute
(Superseded to 731-04869A)

$4.49

$

In Stock, Qty 20+

0

46

MTD 731-05320

Lens

$12.99

$

Usually ships in 3-6 days

0

47

MTD 777X41803

Reflector Label, Lens

$10.99

$

Usually ships in 3-6 days

0

48

MTD 710-04326

Screw, #8-16 x 0.50

$3.99

$

In Stock, only 2 left!

0

49

MTD 710-04354

Screw, 1/4-20 x.375

$3.99

$

In Stock, Qty 20+

0

50

MTD 711-04287

Pivot Rod
(Superseded to 753-04882C)

$42.99

$

In Stock, only 2 left!

0

51

MTD 712-04081A

Shoulder Nut, 1/4-20

$7.49

$

In Stock, Qty 20+

0

52

MTD 731-04894A

Lock Plate
(Superseded to 731-04894D)

$5.49

$

In Stock, Qty 11

0

53

MTD 731-04896A

Clutch Lock Cam
(Superseded to 731-04896C)

$4.49

$

In Stock, Qty 20+

0

54

MTD 732-04219

Clutch Lock Spring
(Superseded to 732-04219C)

$4.49

$

In Stock, Qty 20+

0

55

MTD 732-04238

Torsion Spring
(Superseded to 732-04238B)

$5.49

$

In Stock, Qty 11

0

56

MTD 725-04213

Lamp
(Superseded to 925-04213)

$4.99

$

In Stock, Qty 11

0

57

MTD 725-04214

Wire Harness

$

$

Not available

58

MTD 725-1649

Light Socket
(Superseded to 925-1649A)

$11.99

$

In Stock, Qty 20+

0

59

MTD 684-04117A

Chute Control Ass’y, Two-Way
(Superseded to 984-04117A)

$138.99

$

Usually ships in 3-6 days

0

60

MTD 710-04187

Screw, 1/4-15, 0.50
(Superseded to 710-04187A)

$6.99

$

In Stock, Qty 20+

0

61

MTD 731-1313C

Cable Guide, Chute Tilt

$11.99

$

In Stock, Qty 20+

0

62

MTD 784-5594

Bracket, Cable

Variations

MTD 784-5594-0498

Cable Bracket - OLD CUB YELLOW (0498)

$11.99

$

In Stock, only 3 left!

0

MTD 784-5594-0637

Cable Bracket - POWDER BLACK (0637)

$11.99

$

In Stock, only 3 left!

0

MTD 784-5594-0716

Cable Bracket - CUB YELLOW-99 (0716)

$11.99

$

In Stock, only 3 left!

0

$10.99

$

Usually ships in 3-6 days

0

63

MTD 710-0895

Screw, 1/4-15, 0.750

$6.49

$

Usually ships in 3-6 days

0
