31AE6GKH730 - Huskee Snow Thrower (2005-2) (Tractor Supply) Chute Assembly Parts Diagram

Snow Thrower

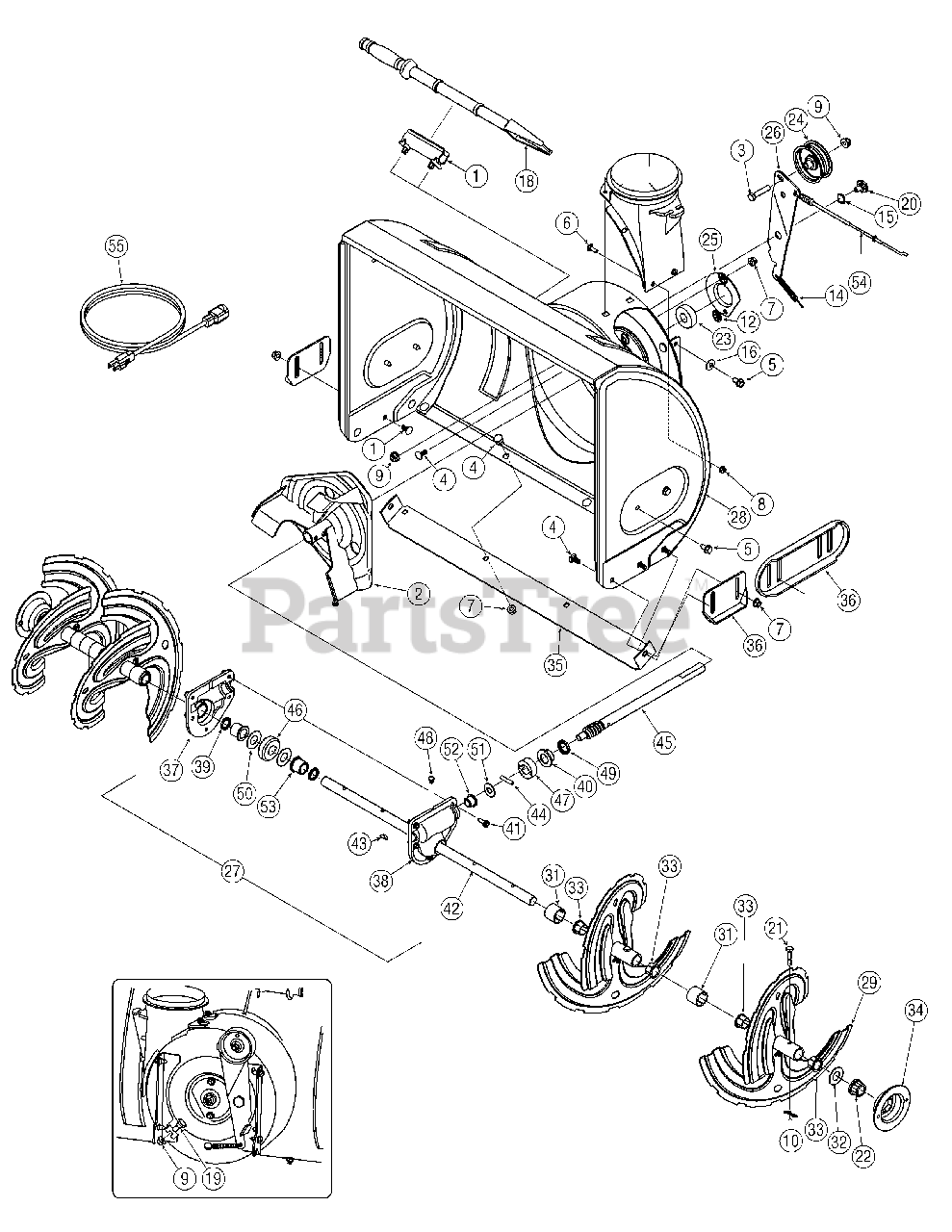

Chute Assembly Parts Diagram

  • Title

1

MTD 731-2635

Snow Removal Tool Mount
(Superseded to 731-11421)

$11.99

$

In Stock, Qty 20+

0

2

MTD 684-04057

Impeller Assembly, 12" Dia.
(Superseded to 684-04057C-0637)

Variations

MTD 684-04057-0637

Impeller, 3-Blade 12" - POWDER BLACK (0637)

$73.99

$

In Stock, Qty 20+

0

$73.99

$

In Stock, Qty 20+

0

3

MTD 710-0347

Hex Screw, 3/8-16, 1.75, Gr5

$5.49

$

In Stock, Qty 20+

0

4

MTD 710-0451

Bolt, Carriage, 5/16-18, .750 Gr1

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-0604A

Screw, 5/16-18, 0.625

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-0703

Screw, Carriage, 1/4-20, .750,

$4.49

$

In Stock, Qty 20+

0

7

MTD 712-04063

Nut, Flange Lock, 5/16-18, Nylon

$3.99

$

In Stock, Qty 20+

0

8

MTD 712-04064

Nut, Flange Lock, 1/4-20, Nylon

$3.99

$

In Stock, Qty 20+

0

9

MTD 712-04065

Nut, Flange Lock, 3/8-16, Nylon

$3.99

$

In Stock, Qty 20+

0

10

MTD 714-04040

Cotter Pin, Bow-tie

$1.49

$

In Stock, Qty 20+

0

11

MTD 725-0157

Cable, Tie, 3/16 x .05 x 7.4

$3.99

$

In Stock, Qty 20+

0

12

MTD 726-04012

Nut, Push-on, .25 Dia

$7.49

$

In Stock, Qty 11

0

13

MTD 731-04705

Chute, Adapter 5" Dia
(Superseded to 731-04705D)

$26.99

$

In Stock, Qty 18

0

14

MTD 732-0611

Spring, Extension, .38 OD x 3
(Superseded to 932-0611)

$7.49

$

In Stock, Qty 20+

0

15

MTD 736-0174

Washer, Wave, .625 x .885 x .015

$6.99

$

In Stock, Qty 11

0

16

MTD 736-0242

Washer, Bell, .340 x .872 x .060

$4.49

$

In Stock, Qty 20+

0

17

MTD 736-0463

Washer, Flat, .25 x .630 x .0515

$4.49

$

In Stock, Qty 12

0

18

MTD 731-2643

Snow Removal Tool
(Superseded to 931-2643)

$19.99

$

In Stock, Qty 14

0

19

MTD 738-0143

Screw, Shoulder, .498 x .34, 3/8-16

$4.49

$

In Stock, Qty 20+

0

20

MTD 738-0281

Screw, Shoulder, .625 x .17, 3/8-16

$10.99

$

In Stock, Qty 6

0

21

MTD 738-04124A

Shear Pin, .25 x 1.50

$1.99

$

In Stock, Qty 20+

0

22

MTD 741-0245

Bearing, Hex Flange x .75 ID
(Superseded to 941-0245)

$9.99

$

In Stock, Qty 20+

0

23

MTD 741-0309

Bearing, Ball, .75 ID x 1.85
(Superseded to 941-0309)

$74.99

$

Usually ships in 3-6 days

0

24

MTD 756-0981A

Flat Pulley, Idler, 2.75 OD
(Superseded to 756-04224)

$26.99

$

In Stock, Qty 20+

0

25

MTD 790-00075

Housing, Bearing, 1.85 ID
(Superseded to 790-00075B)

$6.49

$

In Stock, Qty 12

0

26

MTD 790-00080

Bracket, Auger Idler w/ Brake
(Superseded to 790-00080D)

Variations

Cub Cadet 790-00080

USE 790-00080C BRACKET-AUGER - POWDER BLACK

$28.99

$

In Stock, Qty 10

0

$28.99

$

In Stock, Qty 10

0

27

MTD 618-04165

Gearbox Assembly, Auger, 30"
(Superseded to 918-04165B)

$447.99

$

In Stock, only 2 left!

0

28

MTD 684-04063

Housing Assembly, Auger 30"
(Superseded to 684-04080)

Variations

MTD 684-04063-0716

HOUSING-AUGER ASM - CUB YELLOW-99 (0716)

$495.99

$

Usually ships in 3-6 days

0

MTD 684-04063-0606

HOUSING-AUGER ASM - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 684-04063-0638

HOUSING-AUGER ASM - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 684-04063-0662

HOUSING-AUGER ASM - OYSTER GRAY (0662)

$

$

Not available

MTD 684-04063-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 684-04063-0668

No Longer Available - MOSS GREEN (0668)

$

$

Not available

MTD 684-04063-0691

HOUSING-AUGER ASM - BLACK JACK (0691)

$

$

Not available

MTD 684-04063-0709

HOUSING-AUGER ASM - MASTERCRAFT GREEN (0709)

$

$

Not available

$495.99

$

Usually ships in 3-6 days

0

29

MTD 684-04107

Spiral Assembly, LH
(Superseded to 684-04107A)

Variations

MTD 684-04107-0637

Auger Spiral Assembly, LH - POWDER BLACK (0637)

$89.99

$

In Stock, Qty 20+

0

MTD 684-04107-0638

Auger Spiral Assembly, LH - MTD/TROY-BILT RED (0638)

$89.99

$

In Stock, Qty 20+

0

MTD 684-04107-0499

Auger Spiral Assembly, LH - CUB BEIGE (0499)

$87.99

$

In Stock, Qty 6

0

MTD 684-04107-0662

Auger Spiral Assembly, LH - OYSTER GRAY (0662)

$89.99

$

In Stock, Qty 20+

0

MTD 684-04107-0731

Auger Spiral Assembly, LH - YELLOW JACKET (0731)

$89.99

$

In Stock, Qty 20+

0

MTD 684-04107-4028

Auger Spiral Assembly, LH - SEARS YELLOW (4028)

$89.99

$

In Stock, Qty 20+

0

MTD 684-04107-0606

Auger Spiral Assembly, LH - MAJESTIC ORANGE (0606)

$89.99

$

In Stock, Qty 20+

0

MTD 684-04107-0629

Auger Spiral Assembly, LH - SILVER FLAKE (0629)

$89.99

$

In Stock, Qty 20+

0

MTD 684-04107-0650

Auger Spiral Assembly, LH - RED METALLIC (0650)

$89.99

$

In Stock, Qty 20+

0

MTD 684-04107-0674

SPIRAL ASM-AUGER LH - YARDMAN YELLOW (0674)

$89.99

$

In Stock, Qty 20+

0

MTD 684-04107-0689

Auger Spiral Assembly, LH - POLO GREEN (0689)

$89.99

$

In Stock, Qty 20+

0

MTD 684-04107-0709

AUGER ASM-LH - MASTERCRAFT GREEN (0709)

$89.99

$

In Stock, Qty 20+

0

MTD 684-04107-0716

Auger Spiral Assembly, LH - CUB YELLOW-99 (0716)

$89.99

$

In Stock, Qty 20+

0

MTD 684-04107-0717

Auger Spiral Assembly, LH - SILVER MIST (0717)

$89.99

$

In Stock, Qty 20+

0

MTD 684-04107-4021

Auger Spiral Assembly, LH - CUB YELLOW 2 (4021)

$89.99

$

In Stock, Qty 20+

0

MTD 684-04107-4033

SPIRAL ASM-AUGER LH - FLINT MICA (4033)

$87.99

$

Usually ships in 3-6 days

0

MTD 684-04107-4041

Auger Spiral Assembly, LH - PURE ORANGE (4041)

$89.99

$

In Stock, Qty 20+

0

MTD 684-04107-4044

Auger Spiral Assembly, LH - CRAFTSMAN RED (4044)

$89.99

$

In Stock, Qty 20+

0

$72.99

$

Usually ships in 3-6 days

0

30

MTD 684-04108

Spiral Assembly, RH
(Superseded to 684-04108A)

Variations

MTD 684-04108-0637

Auger Spiral Assembly, RH - POWDER BLACK (0637)

$94.99

$

In Stock, Qty 10

0

MTD 684-04108-0638

Auger Spiral Assembly, RH - MTD/TROY-BILT RED (0638)

$94.99

$

In Stock, Qty 10

0

MTD 684-04108-0499

Auger Spiral Assembly, RH - CUB BEIGE (0499)

$94.99

$

In Stock, Qty 10

0

MTD 684-04108-4028

Auger Assembly, 21" RH - SEARS YELLOW (4028)

$92.99

$

Usually ships in 3-6 days

0

MTD 684-04108-0606

Auger Spiral Assembly, RH - MAJESTIC ORANGE (0606)

$92.99

$

Usually ships in 3-6 days

0

MTD 684-04108-0629

Auger Spiral Assembly, RH - SILVER FLAKE (0629)

$94.99

$

In Stock, Qty 10

0

MTD 684-04108-4044

Auger Spiral Assembly, RH - CRAFTSMAN RED (4044)

$94.99

$

In Stock, Qty 10

0

MTD 684-04108-0650

Auger Spiral Assembly, RH - RED METALLIC (0650)

$94.99

$

In Stock, Qty 10

0

MTD 684-04108-0662

Auger Spiral Assembly, RH - OYSTER GRAY (0662)

$94.99

$

In Stock, Qty 10

0

MTD 684-04108-0674

Auger Spiral Assembly, RH - YARDMAN YELLOW (0674)

$94.99

$

In Stock, Qty 10

0

MTD 684-04108-0709

SPIRAL ASM-AUGER RH - MASTERCRAFT GREEN (0709)

$94.99

$

In Stock, Qty 10

0

MTD 684-04108-0716

Auger Spiral Assembly, RH - CUB YELLOW-99 (0716)

$94.99

$

In Stock, Qty 10

0

MTD 684-04108-0717

AUGER ASM-RH - SILVER MIST (0717)

$94.99

$

In Stock, Qty 10

0

MTD 684-04108-0731

Auger Spiral Assembly, RH - YELLOW JACKET (0731)

$94.99

$

In Stock, Qty 10

0

MTD 684-04108-4021

Auger Spiral Assembly, RH - CUB YELLOW 2 (4021)

$94.99

$

In Stock, Qty 10

0

MTD 684-04108-4033

SPIRAL ASM-AUGER RH - FLINT MICA (4033)

$94.99

$

In Stock, Qty 10

0

MTD 684-04108-4041

Auger Spiral Assembly, RH - PURE ORANGE (4041)

$94.99

$

In Stock, Qty 10

0

$76.99

$

Usually ships in 3-6 days

0

31

MTD 731-04870

Spacer, 1.25 OD x .75 ID x 1.00 - None found between spirals on models w/22" or 30" auger housing.

$4.99

$

In Stock, Qty 20+

0

32

MTD 736-0188

Washer, Flat, .76 x 1.49 x .06

$4.49

$

In Stock, Qty 20+

0

33

MTD 741-0493A

Bushing, Flange, .80 ID x .91
(Superseded to 741-0493C)

$4.49

$

In Stock, Qty 20+

0

34

MTD 790-00087A

Housing, 1" Hex Bearing

Variations

MTD 790-00087A-0637

Bearing Housing, 1" - POWDER BLACK

$22.99

$

In Stock, Qty 7

0

MTD 790-00087A-0638

Bearing Housing, 1" - MTD/TROY-BILT RED

$22.99

$

In Stock, Qty 7

0

$21.99

$

Usually ships in 3-6 days

0

35

MTD 790-00119

Shave Plate, 2.25 x 29.66

Variations

MTD 790-00119-0637

Shave Plate, 30" Powder Black - POWDER BLACK

$39.99

$

In Stock, Qty 20+

0

MTD 790-00119-4033

Shave Plate, 30" - FLINT MICA

$39.99

$

In Stock, Qty 20+

0

MTD 790-00119-0638

Shave Plate, 30" - MTD/TROY-BILT RED

$39.99

$

In Stock, Qty 20+

0

MTD 790-00119-0606

Shave Plate, 30" - MAJESTIC ORANGE

$39.99

$

In Stock, Qty 20+

0

MTD 790-00119-0691

Shave Plate, 30" - BLACK JACK

$39.99

$

In Stock, Qty 20+

0

MTD 790-00119-0667

Shave Plate, 30" - MIDNIGHT BLUE

$39.99

$

In Stock, Qty 20+

0

MTD 790-00119-0665

Shave Plate, 30" - YARDMAN GREEN

$39.99

$

In Stock, Qty 20+

0

MTD 790-00119-4021

Shave Plate, 30" - CUB YELLOW 2

$39.99

$

In Stock, Qty 20+

0

MTD 790-00119-0689

Shave Plate, 30" - POLO GREEN

$39.99

$

In Stock, Qty 20+

0

MTD 790-00119-0709

PLATE-SHAVE 30" - MASTERCRAFT GREEN

$39.99

$

In Stock, Qty 20+

0

MTD 790-00119-4062

PLATE-SHAVE 30" - COOL GRAY (4062)

$39.99

$

In Stock, Qty 20+

0

$33.99

$

Usually ships in 3-6 days

0

36

MTD 784-5580

Slide Shoe

Variations

MTD 784-5580-0637

Snow Slide Shoe, Black - POWDER BLACK (0637)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-0638

Snow Slide Shoe, Black - MTD/TROY-BILT RED (0638)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-0662

Snow Slide Shoe, Black - OYSTER GRAY (0662)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-0665

Snow Slide Shoe, Black - YARDMAN GREEN (0665)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-0688

Snow Slide Shoe, Black - SPRING GREEN (0688)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-0721

Snow Skid Shoe - SEARS RED (0721)

$23.99

$

In Stock, Qty 18

0

MTD 784-5580-4044

Snow Skid Shoe - CRAFTSMAN RED (4044)

$23.99

$

In Stock, Qty 18

0

MTD 784-5580-0691

Snow Slide Shoe, Black - BLACK JACK (0691)

$23.99

$

In Stock, Qty 7

0

MTD 784-5580-0729

Snow Skid Shoe - STORM GRAY (0729)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-4043

Snow Skid Shoe - CRAFTSMAN METALLIC GRAY (4043)

$23.99

$

In Stock, Qty 20+

0

$23.99

$

In Stock, Qty 20+

0

MTD 790-00091

Slide Shoe, Deluxe

Variations

MTD 790-00091-0638

Snow Slide Shoe, Red - MTD/TROY-BILT RED

$30.99

$

In Stock, Qty 20+

0

MTD 790-00091-0637

Snow Slide Shoe, Black - POWDER BLACK

$30.99

$

In Stock, Qty 20+

0

MTD 790-00091-0606

Snow Slide Shoe, Orange - MAJESTIC ORANGE

$27.99

$

In Stock, Qty 16

0

MTD 790-00091-4033

Snow Slide Shoe, Flint - FLINT MICA

$30.99

$

In Stock, Qty 20+

0

MTD 790-00091-0691

Snow Slide Shoe, Black - BLACK JACK

$30.99

$

In Stock, Qty 20+

0

MTD 790-00091-0650

Snow Slide Shoe - RED METALLIC

$30.99

$

In Stock, Qty 20+

0

MTD 790-00091-4021

Snow Slide Shoe, Yellow - CUB YELLOW 2

$28.99

$

Usually ships in 3-6 days

0

MTD 790-00091-0662

Snow Slide Shoe, Gray - OYSTER GRAY

$28.99

$

In Stock, only 1 left!

0

MTD 790-00091-0709

Snow Slide Shoe, Dark Green - MASTERCRAFT GREEN

$28.99

$

Usually ships in 3-6 days

0

MTD 790-00091-0667

SLIDE SHOE - MIDNIGHT BLUE

$28.99

$

Usually ships in 3-6 days

0

$28.99

$

Usually ships in 3-6 days

0

37

MTD 719-0319

Housing, Auger, RH Reduced
(Superseded to 918-0123A)

$52.99

$

In Stock, Qty 15

0

38

MTD 719-0320

Housing, Auger, LH Reduced
(Superseded to 918-0124A)

$52.99

$

In Stock, Qty 13

0

39

MTD 721-0179

Seal, Oil, .750 ID

$8.99

$

In Stock, Qty 20+

0

40

MTD 741-0662

Bearing, Flange, .75 x 1.0 x .59

$10.99

$

In Stock, Qty 17

0

41

MTD 710-0642

Screw, Self-tapping, 1/4-20, 0.750

$4.49

$

In Stock, Qty 20+

0

42

MTD 711-04282

Axle, Auger, 30"
(Superseded to 711-04282A)

$112.99

$

Usually ships in 3-6 days

0

43

MTD 714-0161

Key, Hi-pro 3/16 x 5/8
(Superseded to 914-0161)

$4.49

$

In Stock, Qty 20+

0

44

MTD 715-04021

Pin, Dowel, .25 OD x 1.2

$4.49

$

In Stock, Qty 14

0

45

MTD 717-04126

Shaft, Worm .75 OD
(Superseded to 917-04126)

$79.99

$

In Stock, Qty 8

0

46

MTD 717-0528A

Gear, Worm 20T
(Superseded to 917-04861)

$43.99

$

In Stock, Qty 20+

0

47

MTD 718-04071

Collar, Thrust

$7.99

$

In Stock, Qty 9

0

48

MTD 721-0325

Plug, 1/4 x .437

$4.49

$

In Stock, Qty 20+

0

49

MTD 721-0327

Seal, Oil, .75 x 1 x .131

$6.99

$

In Stock, Qty 20+

0

50

MTD 736-0351

Washer, Flat, .760 ID x 1.5 OD

$4.49

$

In Stock, Qty 20+

0

51

MTD 736-3084

Washer, Flat, .51 x 1.12

$4.99

$

In Stock, Qty 20+

0

52

MTD 741-0663

Bearing, Flange, .75 x 1.0 x .925

$9.99

$

In Stock, Qty 20+

0

53

MTD 741-0661A

Bearing, Flange, .75 x 1.00 x .975
(Superseded to 741-0661B)

$10.99

$

In Stock, Qty 11

0

54

MTD 746-04230

Clutch Cable, Auger, 47.23"
(Superseded to 946-04230B)

$23.99

$

In Stock, Qty 20+

0

55

MTD 629-0071

Extention Cord, 110V
(Superseded to 929-0071B)

$21.99

$

In Stock, only 1 left!

0
