31AE6FFF700 - Yard Machines Snow Thrower (2005) General Assembly Parts Diagram

Snow Thrower

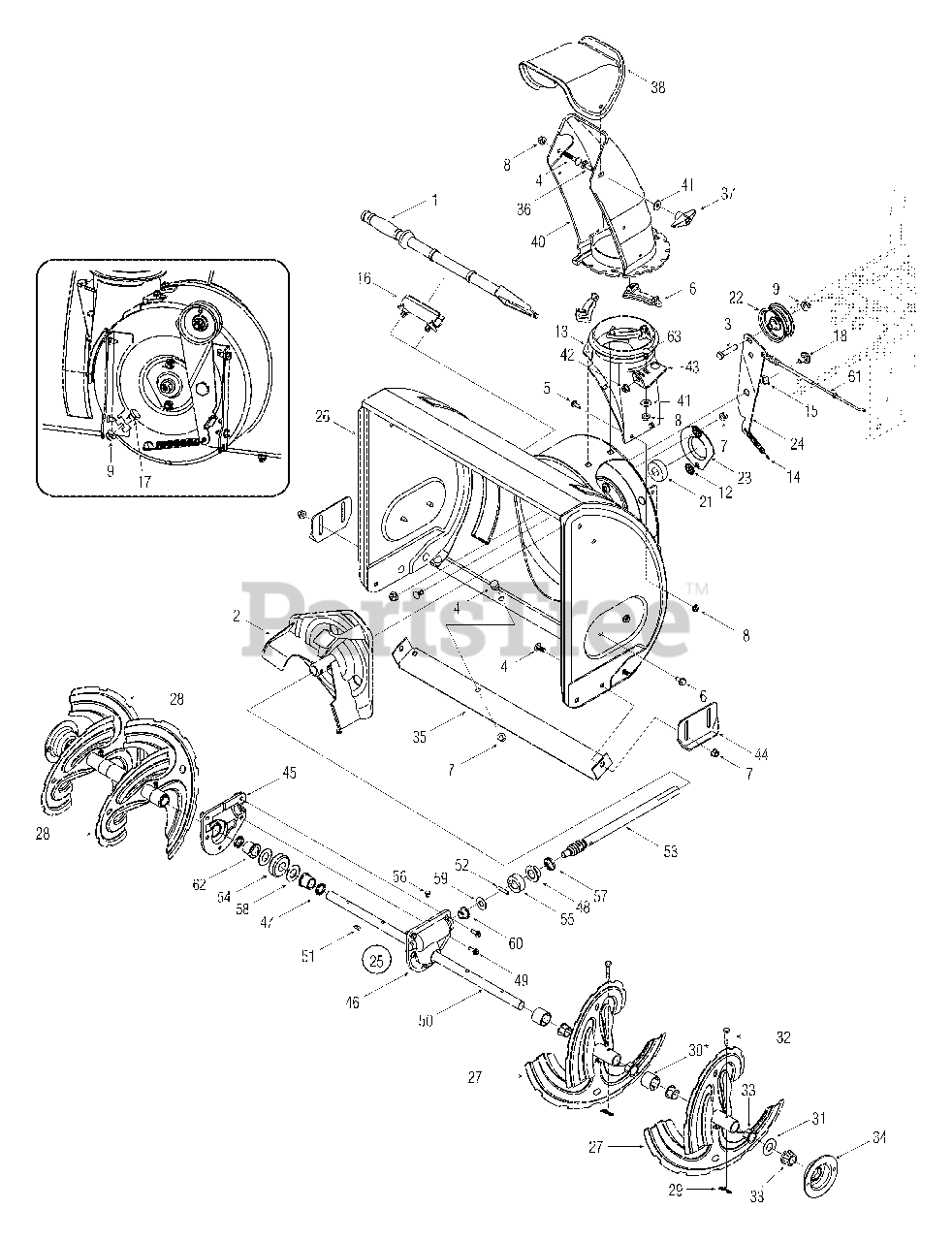

General Assembly Parts Diagram

1

MTD 731-2643

Clean Out Tool
(Superseded to 931-2643)

$19.99

$

In Stock, only 3 left!

0

2

MTD 684-04057-0637

Impeller, 3-Blade 12" - POWDER BLACK (0637)
(Superseded to 684-04057C-0637)

Variations

$73.99

$

In Stock, Qty 13

0

3

MTD 710-0347

Hex Screw, 3/8-16, 1.75, Gr5, Std

$5.49

$

In Stock, Qty 20+

0

4

MTD 710-0451

Bolt, Carriage, 5/16-18, .750 Gr1

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-0703

Screw, Carriage, 1/4-20, .75, Gr5

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-0726

Screw, Self-tapping, 5/16-12, 0.750

$4.49

$

In Stock, Qty 20+

0

6

MTD 731-04869

Chute, Keeper Flange
(Superseded to 731-04869A)

$4.49

$

In Stock, only 2 left!

0

7

MTD 712-04063

Nut, Flange Lock, 5/16-18, Grf, Nylon

$3.99

$

In Stock, Qty 20+

0

8

MTD 712-04064

Nut, Flange Lock, 1/4-20, Grf, Nylon

$3.99

$

In Stock, Qty 20+

0

9

MTD 712-04065

Nut, Flange Lock, 3/8-16, Grf, Nylon

$3.99

$

In Stock, Qty 20+

0

10

MTD 714-0149B

Internal Cotter Pin

$4.49

$

In Stock, Qty 16

0

11

MTD 725-0157

Cable, Tie, 3/16 x .05 x 7.4

$3.99

$

In Stock, Qty 20+

0

12

MTD 726-04012

Nut, Push-on, .25 Diameter

$7.49

$

In Stock, only 4 left!

0

13

MTD 731-04705

Chute, Adapter 5" Diameter
(Superseded to 731-04705D)

$26.99

$

In Stock, only 2 left!

0

14

MTD 732-0611

Spring, Extension, .38 OD x 3.6
(Superseded to 932-0611)

$7.49

$

In Stock, Qty 11

0

15

MTD 736-0174

Washer, Wave, .625 x.885 x.015

$6.99

$

In Stock, only 2 left!

0

16

MTD 731-2635

Mount, Clean Out Tool
(Superseded to 731-11421)

$11.99

$

In Stock, Qty 7

0

17

MTD 738-0143

Screw, Shoulder, .498 x .340, 3/8-16

$4.49

$

In Stock, Qty 20+

0

18

MTD 738-0281

Screw, Shoulder, .625 x .170, 3/8-16

$10.99

$

In Stock, only 2 left!

0

19

MTD 738-04124

Pin, Shear, .25 x 1.50, Gr2
(Superseded to 738-04124A)

$1.99

$

In Stock, Qty 20+

0

20

MTD 741-0245

Bearing, Hex Flange x .75 ID
(Superseded to 941-0245)

$9.99

$

In Stock, Qty 20+

0

21

MTD 741-0309

Bearing, Ball, .75 ID x 1.85 OD
(Superseded to 941-0309)

$74.99

$

In Stock, Qty 20+

0

22

MTD 756-0981A

Idler Pulley, Flat 2.75 OD
(Superseded to 756-04224)

$26.99

$

In Stock, Qty 20+

0

23

MTD 790-00075

Housing, Bearing, 1.85 ID
(Superseded to 790-00075B)

$6.49

$

In Stock, only 3 left!

0

24

Cub Cadet 790-00080

USE 790-00080C BRACKET-AUGER - POWDER BLACK
(Superseded to 790-00080D)

Variations

$28.99

$

In Stock, Qty 5

0

25

MTD 618-04170

Gearbox Assembly, Auger, 22"
(Superseded to 918-04170C)

$399.99

$

In Stock, only 2 left!

0

25

MTD 618-04171

Gearbox Assembly, Auger, 24"
(Superseded to 918-04171C)

$407.99

$

In Stock, Qty 5

0

25

MTD 618-04172

Gearbox Assembly, Auger, 26"
(Superseded to 918-04172C)

$434.99

$

Usually ships in 3-6 days

0

25

MTD 618-04173

Gearbox Assembly, Auger, 28"
(Superseded to 918-04173B)

$331.99

$

In Stock, only 1 left!

0

25

MTD 618-04165

Gearbox Assembly, Auger, 30"
(Superseded to 918-04165B)

$447.99

$

In Stock, only 1 left!

0

26

MTD 684-04067-0638

HOUSING-AUGER 22" - MTD/TROY-BILT RED (0638)

Variations

$

$

Not available

26

MTD 684-04069-0638

HOUSING-AUGER 24" - MTD/TROY-BILT RED (0638)

Variations

$388.99

$

Usually ships in 3-6 days

0

26

MTD 684-04071-0638

HOUSING-AUGER 26" - MTD/TROY-BILT RED (0638)

Variations

$

$

Not available

26

MTD 684-04073-0691

HOUSING-AUGER 28" - BLACK JACK (0691)

Variations

$456.99

$

Usually ships in 3-6 days

0

26

MTD 684-04063-0716

HOUSING-AUGER ASM - CUB YELLOW-99 (0716)
(Superseded to 684-04080)

Variations

$495.99

$

Usually ships in 3-6 days

0

27

MTD 684-04107-0637

Auger Spiral Assembly, LH - POWDER BLACK (0637)
(Superseded to 684-04107A)

Variations

$89.99

$

In Stock, only 3 left!

0

28

MTD 684-04108-0637

Auger Spiral Assembly, RH - POWDER BLACK (0637)
(Superseded to 684-04108A)

Variations

$94.99

$

In Stock, only 4 left!

0

29

MTD 714-04040

Cotter Pin, Bow-Tie

$1.49

$

In Stock, Qty 20+

0

30

MTD 731-04870

Spacer, 1.25 OD x .75 ID x 1.00

$4.99

$

In Stock, Qty 20+

0

31

MTD 736-0188

Washer, Flat, .76 x 1.49 x .06

$4.49

$

In Stock, Qty 20+

0

32

MTD 738-04124

Shear Pin, .25 x 1.50, Gr2
(Superseded to 738-04124A)

$1.99

$

In Stock, Qty 20+

0

33

MTD 741-0493A

Bushing, Flange, .800 ID x .910 OD
(Superseded to 741-0493C)

$4.49

$

In Stock, Qty 20+

0

34

Cub Cadet 790-00087A-0637

Bearing Housing, 1" - POWDER BLACK
(Superseded to 790-00087A-0637)

Variations

$22.99

$

In Stock, only 2 left!

0

35

MTD 790-00117-0637

Shave Plate, 22" Black - POWDER BLACK

Variations

$30.99

$

In Stock, Qty 17

0

35

MTD 790-00120-0637

Shave Plate, 24" Powder Black - POWDER BLACK

Variations

$34.99

$

In Stock, Qty 12

0

35

MTD 790-00121-0637

Shave Plate, 26" Powder Black - POWDER BLACK

Variations

$36.99

$

In Stock, Qty 9

0

35

MTD 790-00118-0637

Shave Plate, 28" Powder Black - POWDER BLACK

Variations

$37.99

$

In Stock, only 4 left!

0

35

MTD 790-00119-0637

Shave Plate, 30" Powder Black - POWDER BLACK

Variations

$39.99

$

In Stock, Qty 6

0

36

MTD 710-04071

Bolt, Carriage, 5/16-18, 1.0

$4.49

$

In Stock, only 2 left!

0

37

MTD 720-04032

Knob Assembly

$

$

Not available

38

MTD 731-04426A

Chute, Upper, w/ Domestic Label
(Superseded to 731-04426C)

$19.99

$

In Stock, only 2 left!

0

39

MTD 731-04869

Chute, Keeper Flange
(Superseded to 731-04869A)

$4.49

$

In Stock, only 2 left!

0

40

MTD 731-04912

Chute, Lower, 5.0 Diameter
(Superseded to 731-04912B)

$38.99

$

In Stock, only 1 left!

0

41

MTD 736-0159

Washer.349 ID x .879 OD x .063

$4.49

$

In Stock, Qty 20+

0

42

MTD 741-0475

Bushing, Plastic, .380
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

43

MTD 784-5647-0637

Chute Crank Bracket, Black - POWDER BLACK (0637)
(Superseded to 784-5647-0637)

Variations

$14.99

$

In Stock, only 3 left!

0

44

MTD 784-5580-0637

Snow Slide Shoe, Black - POWDER BLACK (0637)

Variations

$23.99

$

In Stock, Qty 20+

0

45

MTD 719-0319

Housing, Auger, RH Reduced
(Superseded to 918-0123A)

$52.99

$

In Stock, only 2 left!

0

46

MTD 719-0320

Housing, Auger, LH Reduced
(Superseded to 918-0124A)

$52.99

$

In Stock, only 2 left!

0

47

MTD 721-0179

Seal, Oil, .750 ID

$8.99

$

In Stock, Qty 20+

0

48

MTD 741-0662

Bearing, Flange, .75 ID x 1.00 OD x .59

$10.99

$

In Stock, Qty 6

0

49

MTD 710-0642

Screw, Self-tapping, 1/4-20, 0.750

$4.49

$

In Stock, Qty 20+

0

50

MTD 711-04286

Axle, Auger, 22"
(Superseded to 711-04286A)

$45.99

$

Usually ships in 3-6 days

0

50

MTD 711-04285

Axle, Auger, 24"
(Superseded to 711-04285A)

$90.99

$

In Stock, only 2 left!

0

50

MTD 711-04284

Axle, Auger, 26"
(Superseded to 711-06144)

$82.99

$

In Stock, only 2 left!

0

50

MTD 711-04283

Axle, Auger, 28"
(Superseded to 711-06145)

$89.99

$

In Stock, only 2 left!

0

50

MTD 711-04282

Axle, Auger, 30"
(Superseded to 711-04282A)

$112.99

$

Usually ships in 3-6 days

0

51

MTD 714-0161

Key, Hi-pro 3/16 x 5/8
(Superseded to 914-0161)

$4.49

$

In Stock, Qty 20+

0

52

MTD 715-04021

Pin, Dowel, .25 OD x 1.2

$4.49

$

In Stock, only 4 left!

0

53

MTD 717-04126

Shaft, Worm .75 OD
(Superseded to 917-04126)

$79.99

$

In Stock, only 2 left!

0

54

MTD 717-0528A

Gear, Worm 20T
(Superseded to 917-04861)

$43.99

$

In Stock, Qty 20+

0

55

MTD 718-04071

Collar, Thrust

$7.99

$

In Stock, Qty 12

0

56

MTD 721-0325

Plug, 1/4 x .437

$4.49

$

In Stock, only 3 left!

0

57

MTD 721-0327

Seal, Oil, .75 x 1 x .131

$6.99

$

In Stock, Qty 20+

0

58

MTD 736-0351

Washer, Flat, .760 ID x 1.5 OD

$4.49

$

In Stock, Qty 20+

0

59

MTD 736-3084

Washer, Flat, .51 x 1.12

$4.99

$

In Stock, Qty 20+

0

60

MTD 741-0663

Bearing, Flange, .75 ID x 1.00 OD x .925

$9.99

$

In Stock, Qty 15

0

61

MTD 746-0897

Auger Clutch Cable, 44.75"
(Superseded to 946-0897)

$24.99

$

In Stock, only 2 left!

0

62

MTD 741-0661A

Bearing, Flange, .75 ID x 1.00 OD x .975
(Superseded to 741-0661B)

$10.99

$

In Stock, only 2 left!

0

63

MTD 710-0276

Bolt, Carriage, 5/16-18, 1.0 Gr1

$3.99

$

In Stock, Qty 20+

0
