31AE6BHE722 - MTD Gold Snow Thrower (2005) General Assembly Parts Diagram

Gold Snow Thrower

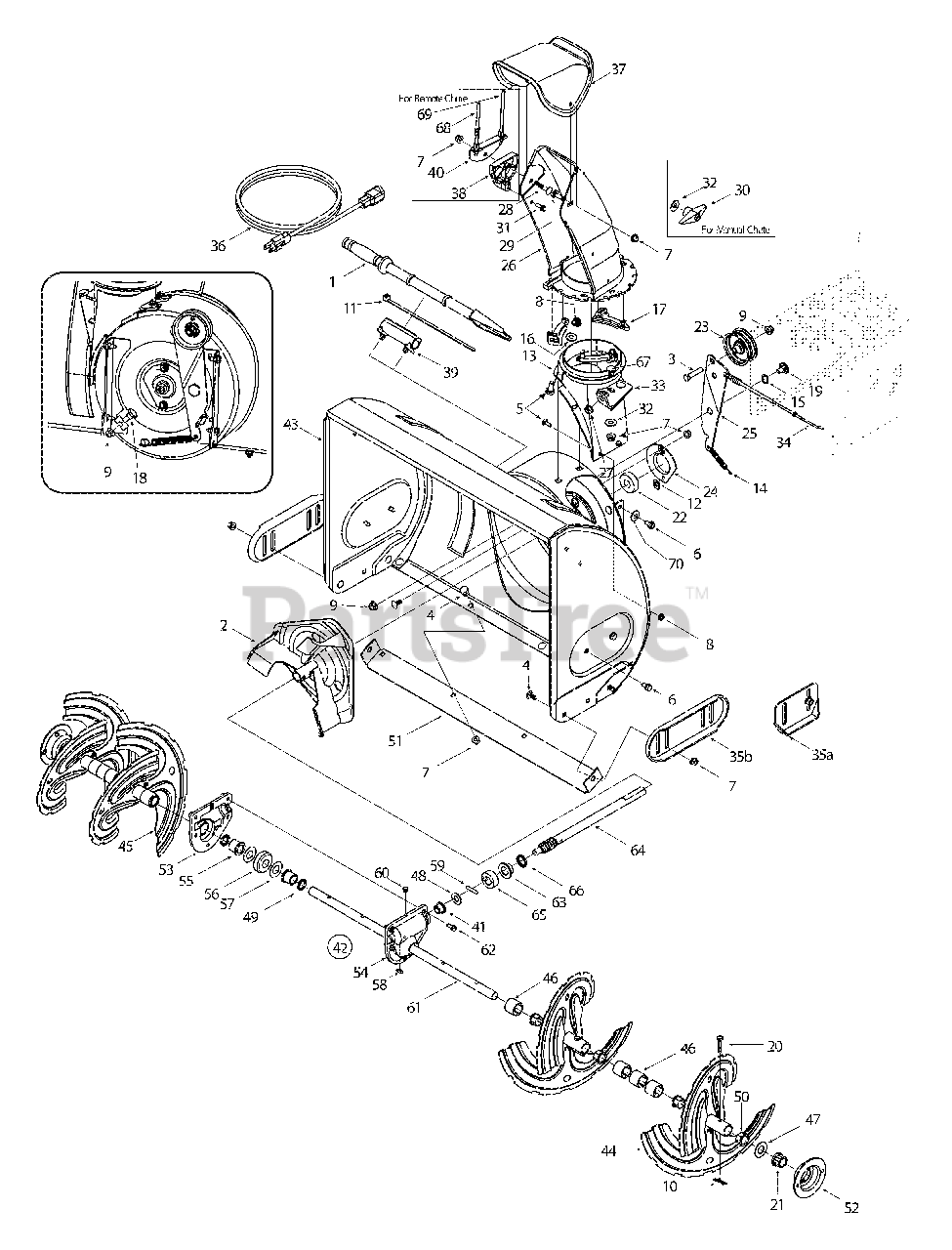

General Assembly Parts Diagram

  • Title

1

MTD 731-2643

Clean Out Tool
(Superseded to 931-2643)

$19.99

$

In Stock, Qty 16

0

2

MTD 684-04057

Impeller Assembly, 12" Dia
(Superseded to 684-04057C-0637)

Variations

MTD 684-04057-0637

Impeller, 3-Blade 12" - POWDER BLACK (0637)

$73.99

$

In Stock, Qty 20+

0

$73.99

$

In Stock, Qty 20+

0

3

MTD 710-0347

Screw, 3/8-16 x 1.75, Gr5, Std

$5.49

$

In Stock, Qty 20+

0

4

MTD 710-0451

Bolt, Carriage, 5/16-18 x.750 Gr1

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-0703

Screw, Carriage, 1/4-20 x.75, Gr5

$4.49

$

In Stock, Qty 15

0

6

MTD 710-0726

Screw, 5/16-12 x 0.750

$4.49

$

In Stock, Qty 20+

0

7

MTD 712-04063

Nut, Flange Lock, Nylon, 5/16-18, Gr F

$3.99

$

In Stock, Qty 5

0

8

MTD 712-04064

Nut, Flange Lock, Nylon, 1/4-20, Gr F

$3.99

$

In Stock, Qty 20+

0

9

MTD 712-04065

Nut, Flange Lock, Nylon, 3/8-16, Gr F

$3.99

$

In Stock, Qty 20+

0

10

MTD 714-04040

Pin, Cotter, Bow Tie

$1.49

$

In Stock, Qty 20+

0

11

MTD 725-0157

Cable, Tie, 3/16 x.05 x 7.4

$3.99

$

In Stock, Qty 20+

0

12

MTD 726-04012

Nut, Push-on,.25 Dia

$7.49

$

In Stock, Qty 11

0

13

MTD 731-04705

Chute, Adapter 5" Dia
(Superseded to 731-04705D)

$26.99

$

In Stock, Qty 20+

0

14

MTD 732-0611

Spring, Extension,.38 OD x 3.6
(Superseded to 932-0611)

$7.49

$

In Stock, Qty 20+

0

15

MTD 736-0174

Washer, Wave,.625 x.885 x.015

$6.99

$

In Stock, Qty 12

0

16

MTD 736-0463

Washer, Flat,.25 x.630 x.0515

$4.49

$

In Stock, Qty 12

0

17

MTD 731-04869

Keeper, Flange
(Superseded to 731-04869A)

$4.49

$

In Stock, Qty 20+

0

18

MTD 738-0143

Screw, Shoulder,.498 x.340, 3/8-16

$4.49

$

In Stock, Qty 20+

0

19

MTD 738-0281

Screw, Shoulder,.625 x.17, 3/8-16

$10.99

$

In Stock, Qty 7

0

20

MTD 738-04124

Pin, Shear,.25 x1.50, Gr2
(Superseded to 738-04124A)

$1.99

$

In Stock, Qty 20+

0

21

MTD 741-0245

Bearing, Hex Flange x.75 ID
(Superseded to 941-0245)

$9.99

$

In Stock, Qty 20+

0

22

MTD 741-0309

Bearing, Ball,.75 ID x 1.85 OD
(Superseded to 941-0309)

$74.99

$

Usually ships in 3-6 days

0

23

MTD 756-0981A

Pulley, Idler, Flat 2.75 OD
(Superseded to 756-04224)

$26.99

$

In Stock, Qty 20+

0

24

MTD 790-00075

Housing, Bearing, 1.85 ID
(Superseded to 790-00075B)

$6.49

$

In Stock, Qty 12

0

25

MTD 790-00080

Bracket, Auger Idler w/ Brake
(Superseded to 790-00080D)

Variations

Cub Cadet 790-00080

USE 790-00080C BRACKET-AUGER - POWDER BLACK

$28.99

$

In Stock, Qty 11

0

$28.99

$

In Stock, Qty 11

0

26

MTD 631-04131

Chute Assembly, Lower, 2-way
(Superseded to 631-04131B)

Note: (Inc. Ref 17, Qty. 3)

$37.99

$

In Stock, Qty 14

0

27

MTD 741-0475

Plastic Bushing
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

28

MTD 710-0451

Bolt, Carriage, 5/16-18,.750, Gr1

Note: H-Style

$4.49

$

In Stock, Qty 20+

0

MTD 710-0262

Bolt, Carriage, 5/16-18, 1.50, Gr2

Note: K-Style

$3.99

$

In Stock, Qty 11

0

29

MTD 710-04071

Bolt, Carriage, 5/16-18, 1.00

$4.49

$

In Stock, Qty 13

0

30

MTD 720-0284

Knob Assembly

Note: H-Style

$6.99

$

In Stock, Qty 20+

0

31

MTD 710-0895

Screw, 1/4-15 x 0.75

Note: K-Style

$6.49

$

Usually ships in 3-6 days

0

32

MTD 736-0159

Flat Washer,.349 x.879 x.063

$4.49

$

In Stock, Qty 20+

0

33

MTD 784-5647

Chute Directional Control Bracket
(Superseded to 784-5647-0637)

Variations

MTD 784-5647-0637

Chute Crank Bracket, Black - POWDER BLACK (0637)

$14.99

$

In Stock, Qty 5

0

$14.99

$

In Stock, Qty 5

0

34

MTD 746-0897

Auger Clutch Cable, 44.75"
(Superseded to 946-0897)

$24.99

$

In Stock, Qty 20+

0

35A

MTD 784-5580

Shoe, Slide, Standard

Variations

MTD 784-5580-0637

Snow Slide Shoe, Black - POWDER BLACK (0637)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-0638

Snow Slide Shoe, Black - MTD/TROY-BILT RED (0638)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-0662

Snow Slide Shoe, Black - OYSTER GRAY (0662)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-0665

Snow Slide Shoe, Black - YARDMAN GREEN (0665)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-0688

Snow Slide Shoe, Black - SPRING GREEN (0688)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-0721

Snow Skid Shoe - SEARS RED (0721)

$23.99

$

In Stock, Qty 18

0

MTD 784-5580-4044

Snow Skid Shoe - CRAFTSMAN RED (4044)

$23.99

$

In Stock, Qty 18

0

MTD 784-5580-0691

Snow Slide Shoe, Black - BLACK JACK (0691)

$23.99

$

In Stock, Qty 7

0

MTD 784-5580-0729

Snow Skid Shoe - STORM GRAY (0729)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-4043

Snow Skid Shoe - CRAFTSMAN METALLIC GRAY (4043)

$23.99

$

In Stock, Qty 20+

0

$23.99

$

In Stock, Qty 20+

0

35B

MTD 790-00091

Shoe, Slide, Deluxe

Note: If Equipped

Variations

MTD 790-00091-0638

Snow Slide Shoe, Red - MTD/TROY-BILT RED

$30.99

$

In Stock, Qty 20+

0

MTD 790-00091-0637

Snow Slide Shoe, Black - POWDER BLACK

$30.99

$

In Stock, Qty 20+

0

MTD 790-00091-0606

Snow Slide Shoe, Orange - MAJESTIC ORANGE

$27.99

$

In Stock, Qty 16

0

MTD 790-00091-4033

Snow Slide Shoe, Flint - FLINT MICA

$30.99

$

In Stock, Qty 20+

0

MTD 790-00091-0691

Snow Slide Shoe, Black - BLACK JACK

$30.99

$

In Stock, Qty 20+

0

MTD 790-00091-0650

Snow Slide Shoe - RED METALLIC

$30.99

$

In Stock, Qty 20+

0

MTD 790-00091-4021

Snow Slide Shoe, Yellow - CUB YELLOW 2

$28.99

$

Usually ships in 3-6 days

0

MTD 790-00091-0662

Snow Slide Shoe, Gray - OYSTER GRAY

$28.99

$

In Stock, only 1 left!

0

MTD 790-00091-0709

Snow Slide Shoe, Dark Green - MASTERCRAFT GREEN

$28.99

$

Usually ships in 3-6 days

0

MTD 790-00091-0667

SLIDE SHOE - MIDNIGHT BLUE

$28.99

$

Usually ships in 3-6 days

0

$28.99

$

Usually ships in 3-6 days

0

36

MTD 629-0071

Extension Cord, 3-Prong
(Superseded to 929-0071B)

$21.99

$

In Stock, only 1 left!

0

37

MTD 731-04426A

Upper Chute, Manual
(Superseded to 731-04426C)

Note: H-Style

$19.99

$

In Stock, Qty 14

0

MTD 731-04427A

Upper Chute, Remote
(Superseded to 731-04427B)

Note: K-Style

$16.99

$

In Stock, Qty 6

0

38

MTD 731-1313C

Cable Guide, Chute Tilt

$11.99

$

In Stock, Qty 20+

0

39

MTD 731-2635

Mount, Clean Out Tool
(Superseded to 731-11421)

$11.99

$

In Stock, Qty 20+

0

40

MTD 784-5594

Cable Bracket

Note: (Cables not included); K-Style

Variations

MTD 784-5594-0498

Cable Bracket - OLD CUB YELLOW (0498)

$11.99

$

In Stock, only 3 left!

0

MTD 784-5594-0637

Cable Bracket - POWDER BLACK (0637)

$11.99

$

In Stock, only 3 left!

0

MTD 784-5594-0716

Cable Bracket - CUB YELLOW-99 (0716)

$11.99

$

In Stock, only 3 left!

0

$10.99

$

Usually ships in 3-6 days

0

41

MTD 741-0663

Bearing, Flange,.75 ID x 1.00 OD x.925

$9.99

$

In Stock, Qty 20+

0

42

MTD 618-04171

Gearbox Assembly, Auger, 24"
(Superseded to 918-04171C)

$407.99

$

In Stock, only 2 left!

0

MTD 618-04173

Gearbox Assembly, Auger, 28"
(Superseded to 918-04173B)

$331.99

$

In Stock, only 1 left!

0

MTD 618-04165

Gearbox Assembly, Auger, 30"
(Superseded to 918-04165B)

$447.99

$

In Stock, only 3 left!

0

43

MTD 684-04069

Housing Assembly, Auger 24"

Variations

MTD 684-04069-0638

HOUSING-AUGER 24" - MTD/TROY-BILT RED (0638)

$388.99

$

Usually ships in 3-6 days

0

MTD 684-04069-0691

HOUSING-AUGER 24" - BLACK JACK (0691)

$388.99

$

Usually ships in 3-6 days

0

MTD 684-04069-0721

HOUSING-AUGER 24" - SEARS RED (0721)

$388.99

$

Usually ships in 3-6 days

0

MTD 684-04069-4044

HOUSING-AUGER 24" - CRAFTSMAN RED (4044)

$388.99

$

Usually ships in 3-6 days

0

MTD 684-04069-0689

HOUSING-AUGER 24" - POLO GREEN (0689)

$

$

Not available

MTD 684-04069-0665

HOUSING-AUGER 24" - YARDMAN GREEN (0665)

$

$

Not available

MTD 684-04069-0709

HOUSING-AUGER 24" - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 684-04069-0729

HOUSING-AUGER 24" - STORM GRAY (0729)

$

$

Not available

$338.99

$

Usually ships in 3-6 days

0

MTD 684-04073

Housing Assembly, Auger 28"

Variations

MTD 684-04073-0691

HOUSING-AUGER 28" - BLACK JACK (0691)

$456.99

$

Usually ships in 3-6 days

0

MTD 684-04073-0716

HOUSING-AUGER 28" - CUB YELLOW-99 (0716)

$424.99

$

Usually ships in 3-6 days

0

MTD 684-04073-0606

HOUSING-AUGER 28" - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 684-04073-0650

HOUSING-AUGER 28" - RED METALLIC (0650)

$

$

Not available

MTD 684-04073-0662

HOUSING-AUGER 28" - OYSTER GRAY (0662)

$

$

Not available

MTD 684-04073-0638

HOUSING-AUGER 28" - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 684-04073-0665

HOUSING-AUGER 28" - YARDMAN GREEN (0665)

$

$

Not available

MTD 684-04073-0668

HOUSING-AUGER 28" - MOSS GREEN (0668)

$

$

Not available

MTD 684-04073-0689

HOUSING-AUGER 28" - POLO GREEN (0689)

$

$

Not available

MTD 684-04073-0709

HOUSING-AUGER 28" - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 684-04073-0721

HOUSING-AUGER 28" - SEARS RED (0721)

$

$

Not available

MTD 684-04073-4044

HOUSING-AUGER 28" - CRAFTSMAN RED (4044)

$

$

Not available

$369.99

$

Usually ships in 3-6 days

0

MTD 684-04063

Housing Assembly, Auger 30"
(Superseded to 684-04080)

Variations

MTD 684-04063-0716

HOUSING-AUGER ASM - CUB YELLOW-99 (0716)

$495.99

$

Usually ships in 3-6 days

0

MTD 684-04063-0606

HOUSING-AUGER ASM - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 684-04063-0638

HOUSING-AUGER ASM - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 684-04063-0662

HOUSING-AUGER ASM - OYSTER GRAY (0662)

$

$

Not available

MTD 684-04063-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 684-04063-0668

No Longer Available - MOSS GREEN (0668)

$

$

Not available

MTD 684-04063-0691

HOUSING-AUGER ASM - BLACK JACK (0691)

$

$

Not available

MTD 684-04063-0709

HOUSING-AUGER ASM - MASTERCRAFT GREEN (0709)

$

$

Not available

$495.99

$

Usually ships in 3-6 days

0

44

MTD 684-04107

Spiral Assembly, LH
(Superseded to 684-04107A)

Variations

MTD 684-04107-0637

Auger Spiral Assembly, LH - POWDER BLACK (0637)

$89.99

$

In Stock, Qty 20+

0

MTD 684-04107-0638

Auger Spiral Assembly, LH - MTD/TROY-BILT RED (0638)

$89.99

$

In Stock, Qty 20+

0

MTD 684-04107-0499

Auger Spiral Assembly, LH - CUB BEIGE (0499)

$87.99

$

In Stock, Qty 6

0

MTD 684-04107-0662

Auger Spiral Assembly, LH - OYSTER GRAY (0662)

$89.99

$

In Stock, Qty 20+

0

MTD 684-04107-0731

Auger Spiral Assembly, LH - YELLOW JACKET (0731)

$89.99

$

In Stock, Qty 20+

0

MTD 684-04107-4028

Auger Spiral Assembly, LH - SEARS YELLOW (4028)

$89.99

$

In Stock, Qty 20+

0

MTD 684-04107-0606

Auger Spiral Assembly, LH - MAJESTIC ORANGE (0606)

$89.99

$

In Stock, Qty 20+

0

MTD 684-04107-0629

Auger Spiral Assembly, LH - SILVER FLAKE (0629)

$89.99

$

In Stock, Qty 20+

0

MTD 684-04107-0650

Auger Spiral Assembly, LH - RED METALLIC (0650)

$89.99

$

In Stock, Qty 20+

0

MTD 684-04107-0674

SPIRAL ASM-AUGER LH - YARDMAN YELLOW (0674)

$89.99

$

In Stock, Qty 20+

0

MTD 684-04107-0689

Auger Spiral Assembly, LH - POLO GREEN (0689)

$89.99

$

In Stock, Qty 20+

0

MTD 684-04107-0709

AUGER ASM-LH - MASTERCRAFT GREEN (0709)

$89.99

$

In Stock, Qty 20+

0

MTD 684-04107-0716

Auger Spiral Assembly, LH - CUB YELLOW-99 (0716)

$89.99

$

In Stock, Qty 20+

0

MTD 684-04107-0717

Auger Spiral Assembly, LH - SILVER MIST (0717)

$89.99

$

In Stock, Qty 20+

0

MTD 684-04107-4021

Auger Spiral Assembly, LH - CUB YELLOW 2 (4021)

$89.99

$

In Stock, Qty 20+

0

MTD 684-04107-4033

SPIRAL ASM-AUGER LH - FLINT MICA (4033)

$87.99

$

Usually ships in 3-6 days

0

MTD 684-04107-4041

Auger Spiral Assembly, LH - PURE ORANGE (4041)

$89.99

$

In Stock, Qty 20+

0

MTD 684-04107-4044

Auger Spiral Assembly, LH - CRAFTSMAN RED (4044)

$89.99

$

In Stock, Qty 20+

0

$72.99

$

Usually ships in 3-6 days

0

45

MTD 684-04108

Spiral Assembly, RH
(Superseded to 684-04108A)

Variations

MTD 684-04108-0637

Auger Spiral Assembly, RH - POWDER BLACK (0637)

$94.99

$

In Stock, Qty 10

0

MTD 684-04108-0638

Auger Spiral Assembly, RH - MTD/TROY-BILT RED (0638)

$94.99

$

In Stock, Qty 10

0

MTD 684-04108-0499

Auger Spiral Assembly, RH - CUB BEIGE (0499)

$94.99

$

In Stock, Qty 10

0

MTD 684-04108-4028

Auger Assembly, 21" RH - SEARS YELLOW (4028)

$92.99

$

Usually ships in 3-6 days

0

MTD 684-04108-0606

Auger Spiral Assembly, RH - MAJESTIC ORANGE (0606)

$92.99

$

Usually ships in 3-6 days

0

MTD 684-04108-0629

Auger Spiral Assembly, RH - SILVER FLAKE (0629)

$94.99

$

In Stock, Qty 10

0

MTD 684-04108-4044

Auger Spiral Assembly, RH - CRAFTSMAN RED (4044)

$94.99

$

In Stock, Qty 10

0

MTD 684-04108-0650

Auger Spiral Assembly, RH - RED METALLIC (0650)

$94.99

$

In Stock, Qty 10

0

MTD 684-04108-0662

Auger Spiral Assembly, RH - OYSTER GRAY (0662)

$94.99

$

In Stock, Qty 10

0

MTD 684-04108-0674

Auger Spiral Assembly, RH - YARDMAN YELLOW (0674)

$94.99

$

In Stock, Qty 10

0

MTD 684-04108-0709

SPIRAL ASM-AUGER RH - MASTERCRAFT GREEN (0709)

$94.99

$

In Stock, Qty 10

0

MTD 684-04108-0716

Auger Spiral Assembly, RH - CUB YELLOW-99 (0716)

$94.99

$

In Stock, Qty 10

0

MTD 684-04108-0717

AUGER ASM-RH - SILVER MIST (0717)

$94.99

$

In Stock, Qty 10

0

MTD 684-04108-0731

Auger Spiral Assembly, RH - YELLOW JACKET (0731)

$94.99

$

In Stock, Qty 10

0

MTD 684-04108-4021

Auger Spiral Assembly, RH - CUB YELLOW 2 (4021)

$94.99

$

In Stock, Qty 10

0

MTD 684-04108-4033

SPIRAL ASM-AUGER RH - FLINT MICA (4033)

$94.99

$

In Stock, Qty 10

0

MTD 684-04108-4041

Auger Spiral Assembly, RH - PURE ORANGE (4041)

$94.99

$

In Stock, Qty 10

0

$76.99

$

Usually ships in 3-6 days

0

46

MTD 731-04870

Spacer, 1.25 OD x.75 ID x 1.00

$4.99

$

In Stock, Qty 20+

0

MTD 731-04871

Spacer, 1.25 OD x.75 ID x 3/16

$6.99

$

In Stock, Qty 20+

0

47

MTD 736-0188

Washer, Flat,.76 x 1.49 x.06

$4.49

$

In Stock, Qty 20+

0

48

MTD 736-3084

Washer, Flat,.51 x 1.12

$4.99

$

In Stock, Qty 20+

0

49

MTD 721-0179

Seal, Oil,.750 ID

$8.99

$

In Stock, only 1 left!

0

50

MTD 741-0493A

Bushing, Flange,.800 ID x.910 OD
(Superseded to 741-0493C)

$4.49

$

In Stock, Qty 20+

0

51

MTD 790-00120

Plate, Shave, 24"

Variations

MTD 790-00120-0637

Shave Plate, 24" Powder Black - POWDER BLACK

$34.99

$

In Stock, Qty 20+

0

MTD 790-00120-0638

Shave Plate, 24" Mtd/Troy-Bilt Red - MTD/TROY-BILT RED

$34.99

$

In Stock, Qty 20+

0

MTD 790-00120-0606

Shave Plate, 24" Orange - MAJESTIC ORANGE

$34.99

$

In Stock, Qty 20+

0

Cub Cadet 790-00120-4044

Shave Plate, 24" Red - CRAFTSMAN RED

$34.99

$

In Stock, Qty 20+

0

MTD 790-00120-4044

Shave Plate, 24" Red - CRAFTSMAN RED

$34.99

$

In Stock, Qty 20+

0

MTD 790-00120-4021

Shave Plate, 24" Yellow - CUB YELLOW 2

$34.99

$

In Stock, Qty 20+

0

MTD 790-00120-0691

Shave Plate, 24" Black - BLACK JACK

$34.99

$

In Stock, Qty 20+

0

MTD 790-00120-4062

Shave Plate, 24" - COOL GRAY (4062)

$34.99

$

In Stock, Qty 20+

0

MTD 790-00120-0665

Shave Plate, 24" - YARDMAN GREEN

$34.99

$

In Stock, Qty 20+

0

MTD 790-00120-4043

Shave Plate, 24" - CRAFTSMAN METALLIC GRAY

$34.99

$

In Stock, Qty 20+

0

MTD 790-00120-0662

Shave Plate, 24" Gray - OYSTER GRAY

$34.99

$

In Stock, Qty 20+

0

MTD 790-00120-0689

Shave Plate, 24" - POLO GREEN

$34.99

$

In Stock, Qty 20+

0

MTD 790-00120-0709

Shave Plate, 24" - MASTERCRAFT GREEN

$34.99

$

In Stock, Qty 20+

0

MTD 790-00120-4041

Shave Plate, 24" - PURE ORANGE

$34.99

$

In Stock, Qty 20+

0

MTD 790-00120-0729

PLATE-SHAVE 24" - STORM GRAY

$

$

Not available

$29.99

$

Usually ships in 3-6 days

0

MTD 790-00118

Plate, Shave, 28"

Variations

MTD 790-00118-0637

Shave Plate, 28" Powder Black - POWDER BLACK

$37.99

$

In Stock, Qty 20+

0

MTD 790-00118-0606

Shave Plate, 28" - MAJESTIC ORANGE

$37.99

$

In Stock, Qty 20+

0

MTD 790-00118-0638

Shave Plate, 28" Red - MTD/TROY-BILT RED

$37.99

$

In Stock, Qty 20+

0

Cub Cadet 790-00118-4044

Shave Plate, 28" - CRAFTSMAN RED

$37.99

$

In Stock, Qty 20+

0

MTD 790-00118-4044

Shave Plate, 28" - CRAFTSMAN RED

$37.99

$

In Stock, Qty 20+

0

MTD 790-00118-4021

Shave Plate, 28" Yellow - CUB YELLOW 2

$37.99

$

In Stock, Qty 20+

0

MTD 790-00118-0691

Shave Plate, 28" Black - BLACK JACK

$37.99

$

In Stock, Qty 20+

0

MTD 790-00118-0650

PLATE-SHAVE 28" - RED METALLIC

$37.99

$

In Stock, Qty 20+

0

MTD 790-00118-0665

Shave Plate, 28" - YARDMAN GREEN

$37.99

$

In Stock, Qty 20+

0

MTD 790-00118-0709

PLATE-SHAVE 28" - MASTERCRAFT GREEN

$37.99

$

In Stock, Qty 20+

0

MTD 790-00118-0662

Shave Plate, 28" - OYSTER GRAY

$37.99

$

In Stock, Qty 20+

0

$35.99

$

Usually ships in 3-6 days

0

MTD 790-00119

Plate, Shave, 30"

Variations

MTD 790-00119-0637

Shave Plate, 30" Powder Black - POWDER BLACK

$39.99

$

In Stock, Qty 20+

0

MTD 790-00119-4033

Shave Plate, 30" - FLINT MICA

$39.99

$

In Stock, Qty 20+

0

MTD 790-00119-0638

Shave Plate, 30" - MTD/TROY-BILT RED

$39.99

$

In Stock, Qty 20+

0

MTD 790-00119-0606

Shave Plate, 30" - MAJESTIC ORANGE

$39.99

$

In Stock, Qty 20+

0

MTD 790-00119-0691

Shave Plate, 30" - BLACK JACK

$39.99

$

In Stock, Qty 20+

0

MTD 790-00119-0667

Shave Plate, 30" - MIDNIGHT BLUE

$39.99

$

In Stock, Qty 20+

0

MTD 790-00119-0665

Shave Plate, 30" - YARDMAN GREEN

$39.99

$

In Stock, Qty 20+

0

MTD 790-00119-4021

Shave Plate, 30" - CUB YELLOW 2

$39.99

$

In Stock, Qty 20+

0

MTD 790-00119-0689

Shave Plate, 30" - POLO GREEN

$39.99

$

In Stock, Qty 20+

0

MTD 790-00119-0709

PLATE-SHAVE 30" - MASTERCRAFT GREEN

$39.99

$

In Stock, Qty 20+

0

MTD 790-00119-4062

PLATE-SHAVE 30" - COOL GRAY (4062)

$39.99

$

In Stock, Qty 20+

0

$33.99

$

Usually ships in 3-6 days

0

52

MTD 790-00087

Housing, Bearing, 1" Hex
(Superseded to 790-00087A-0637)

Variations

Cub Cadet 790-00087A-0637

Bearing Housing, 1" - POWDER BLACK

$22.99

$

In Stock, Qty 8

0

$22.99

$

In Stock, Qty 8

0

53

MTD 618-0123

Housing Assembly, Auger, RH Reducer
(Superseded to 918-0123A)

Note: (Inc. Refs. 49 & 55)

$52.99

$

In Stock, Qty 20+

0

54

MTD 618-0124

Housing Assembly, Auger, LH Reducer
(Superseded to 918-0124A)

Note: (Inc. Refs. 49 & 55)

$52.99

$

In Stock, Qty 17

0

55

MTD 741-0661A

Bearing, Flange,.75 ID x 1.00 OD x.975
(Superseded to 741-0661B)

$10.99

$

In Stock, Qty 11

0

56

MTD 717-0528A

Gear, Worm 20T
(Superseded to 917-04861)

$43.99

$

In Stock, Qty 20+

0

57

MTD 736-0351

Washer, Flat,.760 ID x 1.5 OD

$4.49

$

In Stock, Qty 20+

0

58

MTD 714-0161

Key, Hi-pro 3/16 x 5/8
(Superseded to 914-0161)

$4.49

$

In Stock, Qty 20+

0

59

MTD 715-04021

Pin, Dowel,.25 OD x 1.2

$4.49

$

In Stock, Qty 16

0

60

MTD 721-0325

Plug, 1/4 x.437

$4.49

$

In Stock, Qty 20+

0

61

MTD 711-04285

Axle, Auger, 24"
(Superseded to 711-04285A)

$90.99

$

In Stock, only 3 left!

0

MTD 711-04283

Axle, Auger, 28"
(Superseded to 711-06145)

$89.99

$

In Stock, only 2 left!

0

MTD 711-04282

Axle, Auger, 30"
(Superseded to 711-04282A)

$112.99

$

Usually ships in 3-6 days

0

62

MTD 710-0642

Screw, Self-tapping, 1/4-20, 0.750

$4.49

$

In Stock, Qty 20+

0

63

MTD 741-0662

Bearing, Flange,.75 ID x 1.00 OD x.59

$10.99

$

In Stock, Qty 18

0

64

MTD 717-04126

Shaft, Worm.75 OD
(Superseded to 917-04126)

$79.99

$

In Stock, Qty 11

0

65

MTD 718-04071

Collar, Thrust

$7.99

$

In Stock, Qty 9

0

66

MTD 721-0327

Seal, Oil,.75 x 1 x.131

$6.99

$

In Stock, Qty 20+

0

67

MTD 710-0276

Carriage Screw, 5/16-18 x 1.00

$3.99

$

In Stock, Qty 10

0

68

MTD 746-0901

Chute Deflector Cable w/Clip
(Superseded to 946-0901)

$64.99

$

Usually ships in 3-6 days

0

69

MTD 746-0896

Chute Deflector Control Cable
(Superseded to 946-0896)

$56.99

$

In Stock, only 1 left!

0

70

MTD 736-0242

Bell Washer

$4.49

$

In Stock, Qty 20+

0
