31AE6A4E120 - Yard Machines Snow Thrower (2000) (K-Mart) Engine And V-Belts Parts Diagram

Snow Thrower

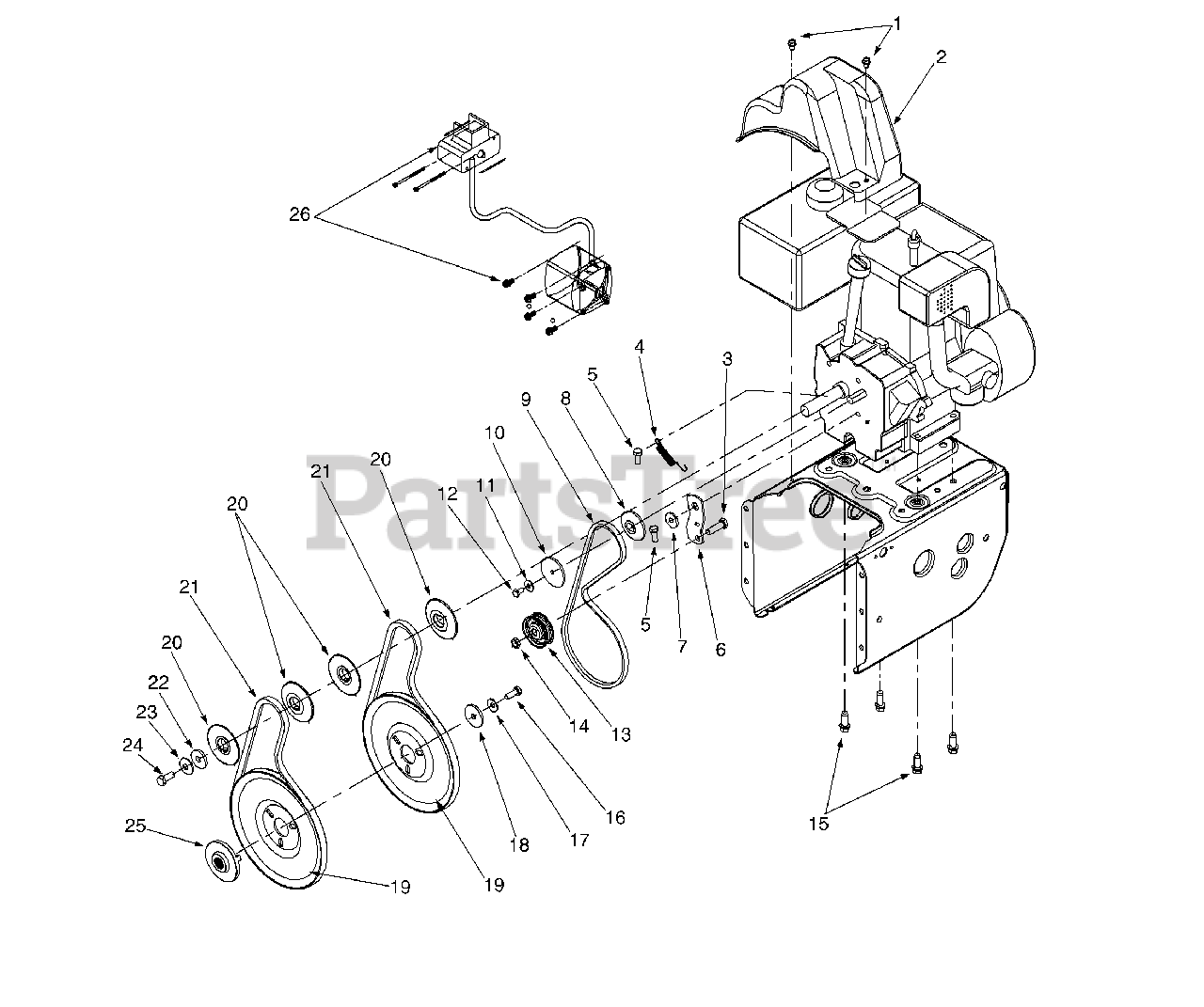

Engine And V-Belts Parts Diagram

  • Title
1

MTD 710-1652

Hex Washer Screw 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

2

MTD 731-1324

Belt Cover

$21.99

$

In Stock, only 1 left!

0

3

MTD 710-3005

Hex Cap Screw 3/8-16 x 1.25

$3.99

$

In Stock, Qty 9

0

4

MTD 732-0710

Spring Extension
(Superseded to 932-0710)

$7.49

$

In Stock, Qty 18

0

5

MTD 710-0627

Hex Screw 5/16-24 x .75

$4.49

$

In Stock, Qty 20+

0

6

MTD 05896A

Drive Clutch Idler Bracket

Variations

MTD 05896A-0637

No Longer Available BRACKET-ID - POWDER BLACK (0637)

$

$

Not available

$

$

7

MTD 748-0234

Shoulder Spacer

$4.49

$

In Stock, Qty 20+

0

8

MTD 756-0987

Pulley Half
(Superseded to 956-0987)

$

$

Not available

9

MTD 754-0346

Belt
(Superseded to 954-0346)

$28.99

$

In Stock, Qty 20+

0

10

MTD 756-0986

Pulley Half

$

$

Not available

11

MTD 736-0270

Bell Washer

$3.99

$

In Stock, Qty 20+

0

12

MTD 710-0230

Hex Cap Screw

$

$

Not available

13

MTD 756-0313

Flat Idler

$26.99

$

In Stock, Qty 6

0

14

MTD 712-0181

Lock Jam Nut 3/8-16

$4.49

$

In Stock, only 3 left!

0

15

MTD 710-0654A

Hex Washer Screw 3/8-16 x 1.0

$4.49

$

In Stock, only 3 left!

0

16

MTD 710-1245

Hex Lock Screw 5/16-24 x .875

$8.49

$

In Stock, only 2 left!

0

17

MTD 736-0242

Bell Washer .340 ID x .872 OD

$4.49

$

In Stock, Qty 20+

0

18

MTD 736-0505

Flat Washer .341 ID x .50 OD

$6.49

$

In Stock, Qty 12

0

19

MTD 756-0967

Pulley Auger

$56.99

$

Usually ships in 3-6 days

0

20

MTD 756-0569

Pulley Half

$10.99

$

Usually ships in 3-6 days

0

21

MTD 754-0430A

V-Belt
(Superseded to 954-0430C)

$28.99

$

In Stock, Qty 20+

0

22

MTD 736-0247

Flat Washer

$9.49

$

In Stock, Qty 14

0

23

MTD 736-0331

Bell Washer .39 ID x 1.13 OD

$3.99

$

In Stock, Qty 10

0

24

MTD 710-0696

Hex Cap Screw 3/8-24 x .875

$6.99

$

In Stock, only 2 left!

0

25

MTD 748-0360

Pulley Adapter
(Superseded to 948-0360)

$22.99

$

In Stock, only 1 left!

0

26

MTD OEM-390-987

Electric Start
(Superseded to TC-33329H)

$

$

Not available
