31AE665E118 - Yard Machines Snow Thrower (2001) (Sam's Club) Handle Assembly Parts Diagram

Snow Thrower

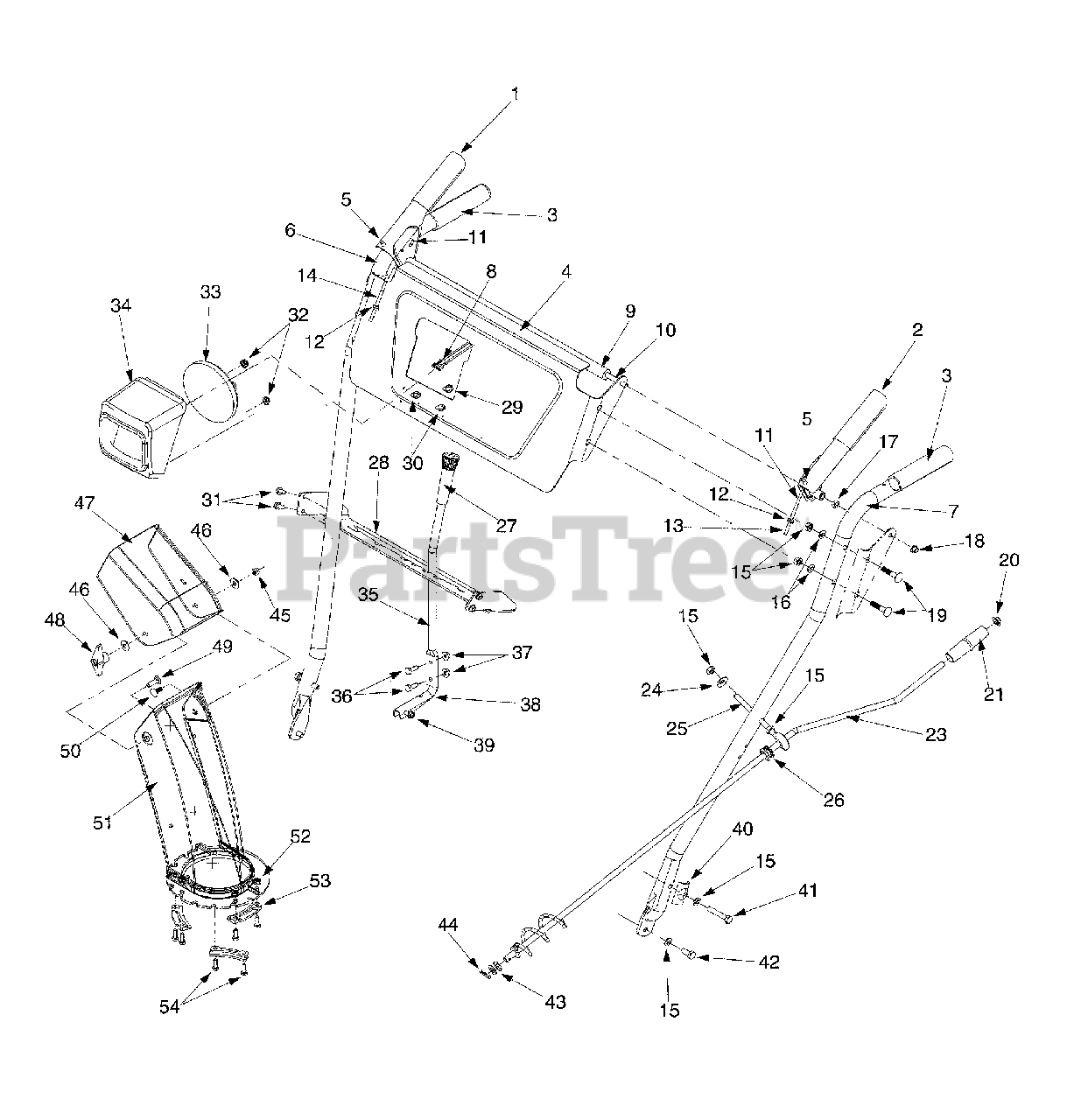

Handle Assembly Parts Diagram

  • Title

1

MTD 705-5234

Clutch Lever Assembly - RH
(Superseded to 705-5234A)

$46.99

$

Usually ships in 3-6 days

0

2

MTD 705-5233

Clutch Lever Assembly - LH
(Superseded to 705-5233A)

$

$

Not available

3

MTD 720-0274

Grip

$11.99

$

In Stock, Qty 11

0

4

MTD 784-5717

Control Panel Assembly

Note: Models (615, E6A5E)

Variations

MTD 784-5717-0638

PANEL HANDLE ASM - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 784-5717-0689

PANEL HANDLE ASM - POLO GREEN (0689)

$

$

Not available

MTD 784-5717-0691

PANEL HANDLE ASM - BLACK JACK (0691)

$

$

Not available

$

$

MTD 784-5718

Control Panel Assembly
(Superseded to 784-5718A)

Note: Models (E645, E665)

Variations

MTD 784-5718-0483

No Longer Available PANEL HAND - CHARCOAL GRAY (0483)

$

$

Not available

MTD 784-5718-0638

No Longer Available PANEL HAND - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 784-5718-0691

HANDLE-PANEL 5-STY - BLACK JACK (0691)

$

$

Not available

$73.99

$

Usually ships in 3-6 days

0

5

MTD 735-0199A

Bumper Rubber

$7.99

$

In Stock, only 4 left!

0

6

MTD 749-0910B

Handle RH
(Superseded to 749-0910C-0637)

Variations

MTD 749-0910B-0637

HANDLE-RH - POWDER BLACK (0637)

$

$

Not available

$

$

7

MTD 749-0911B

Handle LH

Variations

MTD 749-0911B-0637

No Longer Available HANDLE-LH - POWDER BLACK (0637)

$

$

Not available

$

$

8

MTD 629-0058

Light Harness
(Superseded to 929-0058B)

Note: If equipped

$

$

Not available

9

MTD 731-1500

Pivot Rod Cover

$

$

Not available

10

MTD 747-0984

Pivot Rod

$

$

Not available

11

MTD 746-0778

"Z" Fitting
(Superseded to 946-0778)

$10.99

$

In Stock, Qty 5

0

12

MTD 712-0121

Hex Nut

$4.49

$

In Stock, Qty 20+

0

13

MTD 746-0897

Auger Clutch Cable
(Superseded to 946-0897)

$24.99

$

In Stock, Qty 20+

0

14

MTD 746-0898

Drive Clutch Cable
(Superseded to 946-0898)

$27.99

$

In Stock, Qty 20+

0

15

MTD 712-3010

Hex Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

16

MTD 736-0119

Lock Washer 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

17

MTD 750-1053

Spacer

$

$

Not available

18

MTD 726-0135

Nut Cap

$6.99

$

In Stock, only 1 left!

0

19

MTD 710-0262

Carriage Bolt 5/16-18 x 1.5

$3.99

$

In Stock, Qty 12

0

20

MTD 726-0100

Push Rod Cap

$4.49

$

In Stock, only 1 left!

0

21

MTD 720-0201A

Chute Crank Knob

$10.99

$

In Stock, Qty 5

0

?22

MTD 715-0138

Roll Pin
(Superseded to 915-0138)

$4.99

$

In Stock, only 1 left!

0

23

MTD 705-5204A

Chute Crank Assembly
(Superseded to 984-0022)

$99.99

$

In Stock, only 3 left!

0

24

MTD 736-0242

Bell Washer.340 ID x .873 OD

$4.49

$

In Stock, Qty 20+

0

25

MTD 747-0697

Eyebolt

$8.49

$

In Stock, only 1 left!

0

26

MTD 735-0234

Rubber Grommet

$5.49

$

In Stock, only 2 left!

0

27

MTD 720-0223

Grip

$14.99

$

In Stock, Qty 7

0

28

MTD 705-5265

Speed Selector Plate (1 Rev)

Variations

MTD 705-5265-0638

No Longer Available PANEL-5 SP - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 705-5265-0691

No Longer Available PANEL-5 SP - BLACK JACK (0691)

$

$

Not available

MTD 705-5265-0687

No Longer Available PANEL-5 SP - PINE GREEN (0687)

$

$

Not available

$

$

MTD 705-5231

Speed Selector Plate (2 Rev)

Variations

MTD 705-5231-0637

Select Panel, 5-Speed Black - POWDER BLACK (0637)

$

$

Not available

MTD 705-5231-0638

Select Panel, 5-Speed Black - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 705-5231-0687

Select Panel, 5-Speed Black - PINE GREEN (0687)

$

$

Not available

MTD 705-5231-0689

Select Panel, 5-Speed Black - POLO GREEN (0689)

$

$

Not available

$38.99

$

Usually ships in 3-6 days

0

29

MTD 710-1652

Hex Washer Screw 1/4-20 x .625

Note: If equipped

$4.49

$

In Stock, Qty 20+

0

30

MTD 710-1003

Hex Washer Screw #10 16 x .625
(Superseded to 710-04669)

Note: If equipped

$3.49

$

In Stock, Qty 20+

0

31

MTD 710-0599

Hex Washer Screw 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

32

MTD 712-0415

Hex Nut

Note: If equipped

$5.49

$

In Stock, only 3 left!

0

33

MTD 725-1300

Headlight 18 Watt
(Superseded to 925-1300)

Note: If equipped

$

$

Not available

34

MTD 731-1317

Headlight Cover

Note: If equipped

$

$

Not available

35

MTD 747-0904

Shift Lever
(Superseded to 747-0904-0637)

Variations

MTD 747-0904-0637

Shift Lever, Powder Black - POWDER BLACK (0637)

$94.99

$

Usually ships in 3-6 days

0

$94.99

$

Usually ships in 3-6 days

0

36

MTD 710-3015

Hex Cap Screw 1 /4-20 x .75

$3.99

$

In Stock, Qty 20+

0

37

MTD 712-3027

Hex Lock Nut 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 18

0

38

MTD 732-0733

Shift Lever Support

$19.99

$

In Stock, Qty 5

0

39

MTD 710-0788

Hex Washer

$7.49

$

In Stock, only 2 left!

0

40

MTD 784-5599

Handle Tab
(Superseded to 984-5599)

$4.49

$

In Stock, Qty 20+

0

41

MTD 710-3180

Hex Cap Screw 5/16-18 x 1.75

$5.49

$

In Stock, Qty 12

0

42

MTD 710-3008

Hex Cap Screw 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

43

MTD 736-0185

Flat Washer 3/8 ID x .738 OD

$3.99

$

In Stock, Qty 20+

0

44

MTD 714-0104

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

45

MTD 712-0429

Hex Lock Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

46

MTD 736-0159

Washer 5/16

$4.49

$

In Stock, Qty 20+

0

47

MTD 731-0921

Upper Chute
(Superseded to 731-04426C)

$19.99

$

In Stock, only 3 left!

0

48

MTD 720-0284

Knob 5/16-18

$6.99

$

In Stock, Qty 20+

0

49

MTD 710-0276

Carriage Screw 5/16-18 x 1.0

$3.99

$

In Stock, Qty 11

0

50

MTD 710-0451

Carriage Bolt 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

51

MTD 731-1300A

Lower Chute
(Superseded to 731-1300E)

$56.99

$

In Stock, Qty 8

0

52

MTD 712-3027

Hex Lock Nut 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 18

0

53

MTD 731-0851A

Chute Flange Keeper

$4.49

$

In Stock, Qty 20+

0

54

MTD 710-3015

Hex Cap Screw 1/4-20 x .75

$3.99

$

In Stock, Qty 20+

0
