31AE664G352 - Yard Machines Snow Thrower (2004) (Walmart) Gear Assembly Parts Diagram

Snow Thrower

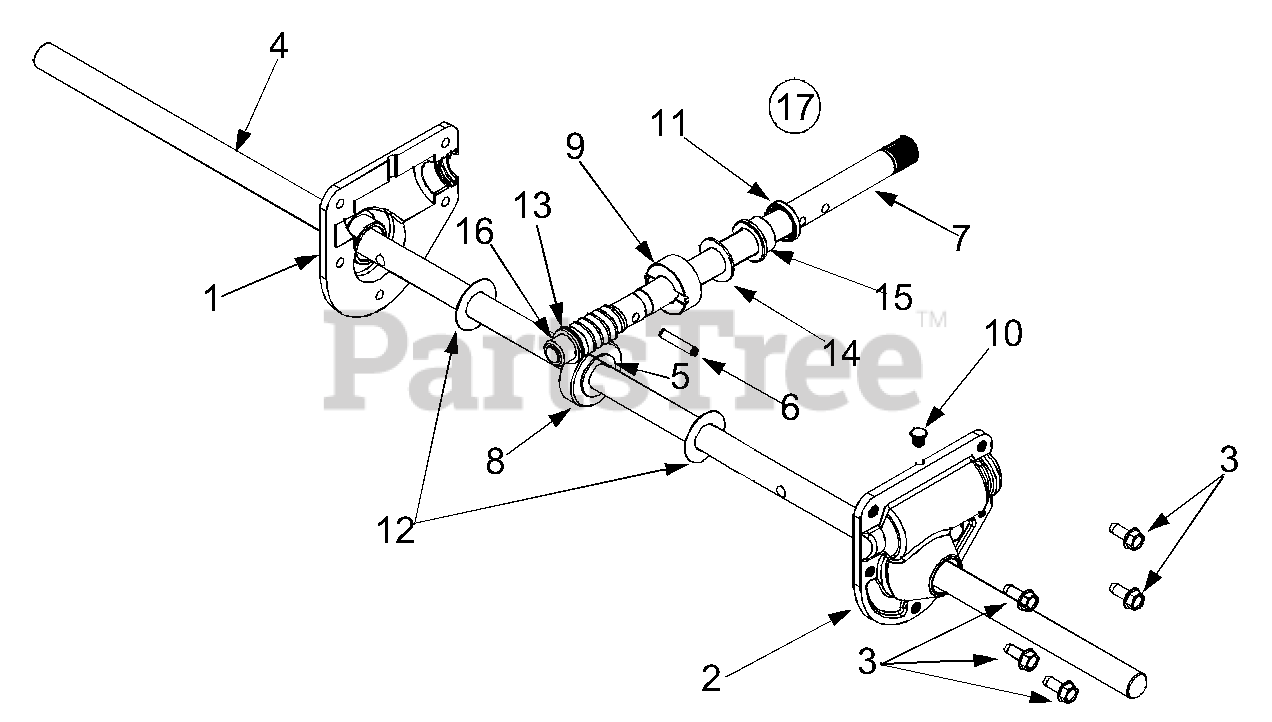

Gear Assembly Parts Diagram

  • Title

1

MTD 618-0123

Housing-R.H.
(Superseded to 918-0123A)

$52.99

$

In Stock, Qty 13

0

2

MTD 618-0124

Housing-L.H.
(Superseded to 918-0124A)

$52.99

$

In Stock, Qty 18

0

3

MTD 710-0642

Hex Screw 1/4-20 x.75

$4.49

$

In Stock, Qty 20+

0

4

MTD 711-0908A

Spiral Axle 24"

$

$

Not available

MTD 711-0910A

Spiral Axle 28"

$130.99

$

Usually ships in 3-6 days

0

5

MTD 714-0161

Key
(Superseded to 914-0161)

$4.49

$

In Stock, Qty 20+

0

6

MTD 715-0143

Spiral Pin

$4.99

$

In Stock, Qty 15

0

7

MTD 717-0526

Worm Shaft
(Superseded to 717P0526)

$108.99

$

In Stock, Qty 6

0

8

MTD 717-0528

Worm Gear
(Superseded to 917-04861)

$43.99

$

In Stock, Qty 20+

0

9

MTD 718-0186

Thrust Collar

$8.49

$

In Stock, only 2 left!

0

10

MTD 721-0325

Plug

$4.49

$

In Stock, only 4 left!

0

11

MTD 721-0327

Oil Seal

$6.99

$

In Stock, Qty 20+

0

12

MTD 736-0351

Flat Washer

$4.49

$

In Stock, Qty 20+

0

13

MTD 736-0369

Flat Washer

$4.49

$

In Stock, Qty 20+

0

14

MTD 736-0445

Flat Washer

$4.49

$

In Stock, Qty 13

0

15

MTD 741-0662

Flange Bearing

$10.99

$

In Stock, Qty 20+

0

16

MTD 741-0663

Flange Bearing

$9.99

$

In Stock, Qty 20+

0

17

MTD 618-0120A

Ass'y. Complete 24"
(Superseded to 918-0414B)

$

$

Not available

MTD 618-0122A

Ass'y. Complete 28"
(Superseded to 918-0416B)

$474.99

$

Usually ships in 3-6 days

0
