Yard-Man 31AE663H401 - Yard-Man Snow Thrower (2004) Frame Parts Lookup with Diagrams

1

MTD 710-1652

Self-tapping Screw, 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

2

MTD 784-5688-0637

BRACKET-GUIDE-DRIVE - POWDER BLACK (0637)

(Superseded to 784-5688-0637) 

Variations

MTD 784-5688-0637

BRACKET-GUIDE-DRIVE - POWDER BLACK (0637)

$

Not available 

MTD 784-5688-0662

BRACKET-GUIDE-DRIVE - OYSTER GRAY (0662)

$

Not available 

$

Not available 

3

MTD 784-5687A-0637

BRACKET-GUIDE-AUGER - POWDER BLACK (0637)

(Superseded to 784-5687A-0637) 

Variations

MTD 784-5687A-0637

BRACKET-GUIDE-AUGER - POWDER BLACK (0637)

$

Not available 

$

Not available 

4

MTD 756-0625

Cable Roller

$9.49

$

In Stock, Qty 11

5

MTD 738-0924

Hex Screw 1/4-28

(Superseded to 738-0924A) 

$6.99

$

In Stock, only 2 left!

6

MTD 784-5630B

Frame Assembly

$

Not available 

7

MTD 741-0563

Ball Bearing

(Superseded to 941-0563) 

$36.99

$

In Stock, Qty 6

8

MTD 736-0105

Bell Washer

$4.49

$

In Stock, Qty 20+

9

MTD 712-0116

Lock Jam Nut

$4.99

$

In Stock, only 3 left!

10

MTD 741-04026

Hex Flange Bearing

$10.99

$

Usually ships in 3-6 days

11

MTD 736-0188

Flat Washer

Note: Add a second washer, Ref #11, if needed, to reduce axle play.

$4.49

$

In Stock, Qty 20+

12

MTD 784-5689A-0637

Guide Bracket, Front - POWDER BLACK (0637)

(Superseded to 784-5689A-0637) 

Variations

MTD 784-5689A-0637

Guide Bracket, Front - POWDER BLACK (0637)

$

Not available 

MTD 784-5689A-0662

Guide Bracket, Front - OYSTER GRAY (0662)

$

Not available 

$

Not available 

13

MTD 710-0538

Lock Hex Screw

$4.49

$

In Stock, only 3 left!

14

MTD 736-0242

Bell Washer .340 ID x .872 OD

$4.49

$

In Stock, Qty 20+

15

MTD 714-0474

Cotter Pin

$4.99

$

In Stock, Qty 13

16

MTD 736-0160

Flat Washer .536 ID x .930 OD

$4.49

$

Usually ships in 3-6 days

17

MTD 710-0809

Self-tapping Screw, 1/4-20 x 1.25

$6.99

$

In Stock, Qty 10

18

MTD 784-5590-0637

Shift Fram Bracket - POWDER BLACK (0637)

Variations

MTD 784-5590-0637

Shift Fram Bracket - POWDER BLACK (0637)

$15.99

$

Usually ships in 3-6 days

MTD 784-5590-0662

Shift Fram Bracket - OYSTER GRAY (0662)

$15.99

$

Usually ships in 3-6 days

MTD 784-5590-0638

BRACKET-SHIFT FRAM - MTD/TROY-BILT RED (0638)

$15.99

$

Usually ships in 3-6 days

MTD 784-5590-4033

BRACKET-SHIFT FRAM - FLINT MICA (4033)

$12.99

$

Usually ships in 3-6 days

MTD 784-5590-0650

BRACKET-SHIFT FRAM - RED METALLIC (0650)

$

Not available 

MTD 784-5590-0689

BRACKET-SHIFT FRAM - POLO GREEN (0689)

$

Not available 

MTD 784-5590-4021

BRACKET-SHIFT FRAM - CUB YELLOW 2 (4021)

$

Not available 

$15.99

$

Usually ships in 3-6 days

19

MTD 784-5638A-0629

Frame Cover, Black - SILVER FLAKE (0629)

Variations

MTD 784-5638A-0629

Frame Cover, Black - SILVER FLAKE (0629)

$

Not available 

MTD 784-5638A-0637

Frame Cover, Black - POWDER BLACK (0637)

$

Not available 

MTD 784-5638A-0638

Frame Cover, Black - MTD/TROY-BILT RED (0638)

$

Not available 

MTD 784-5638A-0650

Frame Cover, Black - RED METALLIC (0650)

$

Not available 

MTD 784-5638A-0662

Frame Cover, Black - OYSTER GRAY (0662)

$

Not available 

MTD 784-5638A-0665

Frame Cover, Black - YARDMAN GREEN (0665)

$

Not available 

MTD 784-5638A-0683

Frame Cover, Black - LESCO GREEN (0683)

$

Not available 

MTD 784-5638A-0689

Frame Cover, Black - POLO GREEN (0689)

$

Not available 

MTD 784-5638A-0709

Frame Cover, Black - MASTERCRAFT GREEN (0709)

$

Not available 

MTD 784-5638A-0716

Frame Cover, Black - CUB YELLOW-99 (0716)

$

Not available 

MTD 784-5638A-0721

Frame Cover, Black - SEARS RED (0721)

$

Not available 

$

Not available 

20

MTD 710-1652

Hex Washer Screw 1/4-20

$4.49

$

In Stock, Qty 20+

21

MTD 736-0351

Flat Washer .760 ID x .50 OD

$4.49

$

In Stock, Qty 20+

22

MTD 717-1445

Gear

$107.99

$

Usually ships in 3-6 days

23

MTD 714-0126

Key

$4.99

$

In Stock, Qty 20+

24

MTD 717-04094

7-Tooth Shaft

(Superseded to 917-04094) 

$96.99

$

Usually ships in 3-6 days

25

MTD 715-0249

Roll Pin

(Superseded to 915-0249) 

$6.99

$

In Stock, Qty 19

26

MTD 714-0143

Klik Pin

(Superseded to 714-0143A) 

$6.49

$

Usually ships in 3-6 days

27

MTD 684-0042C

Friction Wheel Assembly

(Superseded to 984-0042C) 

$138.99

$

In Stock, Qty 8

28

MTD 656-0012A

Friction Disc Wheel

(Superseded to 956-0012A) 

$125.99

$

In Stock, only 2 left!

29

MTD 684-0013B

Wheel Shift Rod Assembly

(Superseded to 684-04243) 

$

Not available 

30

MTD 710-0599

Self-tapping Screw, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

31

MTD 748-0190

Spacer

$6.49

$

In Stock, Qty 8

32

MTD 684-0021-0637

Support Bracket Assembly - POWDER BLACK (0637)

(Superseded to 984-0021-0637) 

Variations

MTD 684-0021-0637

Support Bracket Assembly - POWDER BLACK (0637)

$

Not available 

$

Not available 

33

MTD 732-0264

Extension Spring

(Superseded to 932-0264) 

$4.99

$

In Stock, only 1 left!

34

MTD 712-0711

Jam Nut 3/8-24

$4.49

$

In Stock, Qty 20+

35

MTD 746-0898B

Drive Cable, Clutch

(Superseded to 946-0898) 

$27.99

$

In Stock, only 2 left!

36

MTD 738-0830

Axle (E663H)

$

Not available 

36

MTD 738-0869

Axle (E643E)

$139.99

$

Usually ships in 3-6 days

37

MTD 790-00010

Friction Plate

$13.99

$

In Stock, only 1 left!

38

MTD 735-0243B

Friction Wheel Rubber

(Superseded to 935-0243B) 

$15.99

$

In Stock, Qty 20+

39

N/A

Friction Wheel Hub

Note: use 684-0042C

$

Not available 

40

MTD 618-0063A

Friction Wheel Bearing

$92.99

$

Usually ships in 3-6 days

41

MTD 711-1364

Clevis Pin, 1/4 x 1.3725

$8.49

$

In Stock, only 2 left!

42

MTD 736-0142

Flat Washer, .281 x .5 x .063

$4.99

$

In Stock, Qty 20+

43

MTD 714-0507

Cotter Pin, .75

$4.49

$

In Stock, Qty 11

44

MTD 712-0703A

Insert Nut, 5/16-18

$7.49

$

Usually ships in 3-6 days

45

MTD 746-0897

Drive Cable, Auger

(Superseded to 946-0897) 

$24.99

$

In Stock, only 2 left!

46

MTD 784-5632B-0637

ARM ASSY-IDLER - POWDER BLACK (0637)

(Superseded to 984-0064-0637) 

Variations

MTD 784-5632B-0637

ARM ASSY-IDLER - POWDER BLACK (0637)

$32.99

$

In Stock, only 2 left!

$32.99

$

In Stock, only 2 left!

47

MTD 734-0255

Air Valve

(Superseded to 934-0255) 

$4.49

$

In Stock, Qty 20+

48

MTD 734-1712A-0911

WHEEL ASM-COMP - Carlisle Gray (0911)

Variations

MTD 734-1712A-0911

WHEEL ASM-COMP - Carlisle Gray (0911)

$

Not available 

MTD 734-1712A-0931

No Longer Available WHEEL ASM- - Carlisle Beige (0931)

$

Not available 

MTD 734-1712A-0941

No Longer Available - Carlisle Yellow (0941)

$

Not available 

$

Not available 

48

MTD 634-0140A-0911

No Longer Available WHEEL ASM-COMP - Carlisle Gray (0911)

Variations

MTD 634-0140A-0911

No Longer Available WHEEL ASM-COMP - Carlisle Gray (0911)

$

Not available 

MTD 634-0140A-0931

No Longer Available WHEEL ASM- - Carlisle Beige (0931)

$

Not available 

MTD 634-0140A-0941

No Longer Available WHEEL ASM- - Carlisle Yellow (0941)

$

Not available 

$

Not available 

49

MTD 741-0401

Sleeve Bearing, .75 x .87 x 1

(Superseded to 941-0401) 

$7.49

$

In Stock, Qty 6

50

MTD 734-1525

Tire Only, 16 x 6.5 x 8 (E663H)

$162.99

$

In Stock, only 2 left!

50

MTD 734-1859-0901

TIRE 15X5 - Carlisle (0901)

(Superseded to 734-1859-0901) 

Variations

MTD 734-1859-0901

TIRE 15X5 - Carlisle (0901)

$105.99

$

Usually ships in 3-6 days

$105.99

$

Usually ships in 3-6 days

51

MTD 716-0102

Snap Ring

$5.49

$

In Stock, Qty 13

52

MTD 790-00011

Friction Plate

$13.99

$

Usually ships in 3-6 days

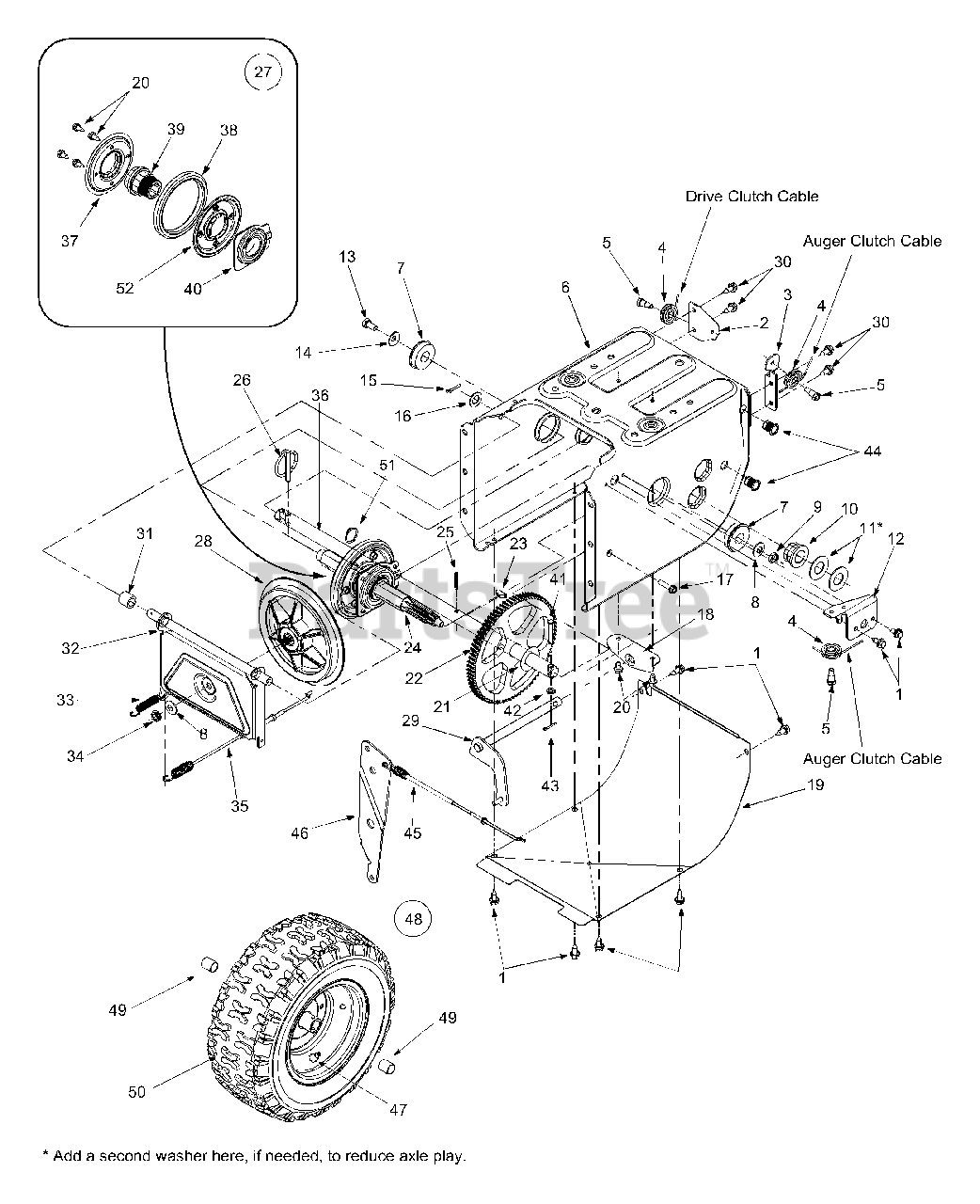

31AE663H401 - Yard-Man Snow Thrower (2004) Frame Parts Diagram
