31AE663H401 - Yard-Man Snow Thrower (2002) General Assembly Parts Diagram

Snow Thrower

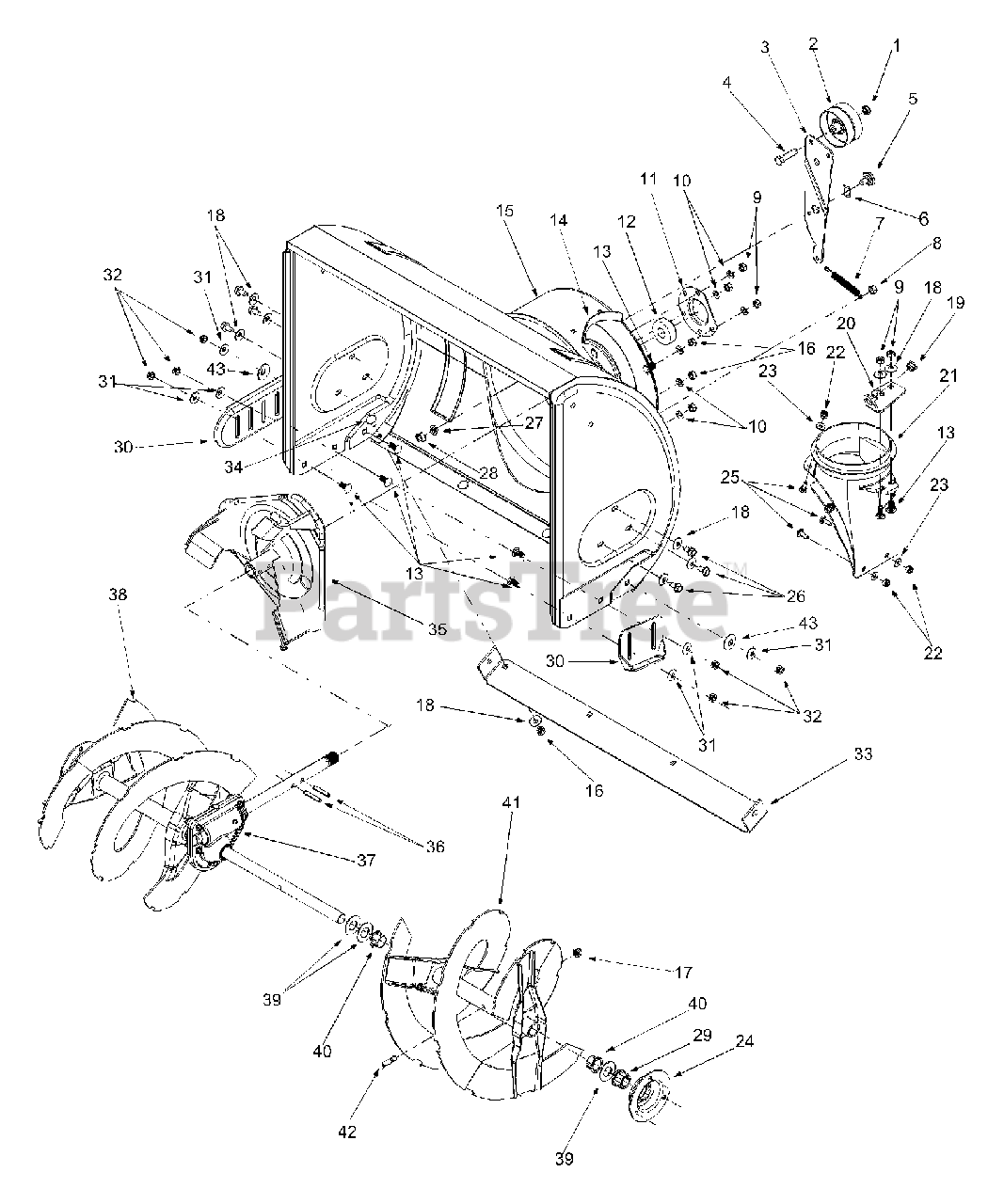

General Assembly Parts Diagram

  • Title

1

MTD 712-0116

Lock Jam Nut 3/8-24

$4.99

$

In Stock, Qty 6

0

2

MTD 756-0178

Flat Idler, 2.75 w/o Flanges

$20.99

$

In Stock, only 4 left!

0

3

MTD 784-5632A

Auger Idler Arm
(Superseded to 984-0064-0637)

Variations

MTD 784-5632A-0637

ARM ASSY-IDLER - POWDER BLACK (0637)

$32.99

$

In Stock, only 2 left!

0

$32.99

$

In Stock, only 2 left!

0

4

MTD 710-0459A

Hex Cap Screw 3/8-24 x 1.50

$6.99

$

In Stock, Qty 8

0

5

MTD 738-0281

Shoulder Screw

$10.99

$

In Stock, only 1 left!

0

6

MTD 736-0174

Wave Washer

$6.99

$

In Stock, Qty 12

0

7

MTD 732-0611

Extension Spring
(Superseded to 932-0611)

$7.49

$

In Stock, Qty 20+

0

8

MTD 712-3068

Hex Nut 5/16-18
(Superseded to 912-3009)

$

$

Not available

9

MTD 712-0429

Hex Lock Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

10

MTD 736-0119

Lock Washer 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

11

MTD 05931A

Bearing Housing, 1.85

$10.99

$

Usually ships in 3-6 days

0

12

MTD 741-0309

Ball Bearing, .75 x 1.85
(Superseded to 941-0309)

$74.99

$

Usually ships in 3-6 days

0

13

MTD 710-0451

Carriage Bolt 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

14

MTD 705-5226

Chute Reinforcement

Variations

MTD 705-5226-0637

Chute Reinforcement - POWDER BLACK (0637)

$10.99

$

In Stock, Qty 7

0

MTD 705-5226-0638

Chute Reinforcement - MTD/TROY-BILT RED (0638)

$10.99

$

In Stock, Qty 7

0

$9.99

$

Usually ships in 3-6 days

0

15

MTD 684-0055B

30" Housing Assembly
(Superseded to 684-0055C)

Variations

MTD 684-0055B-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 684-0055B-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

MTD 684-0055B-0650

No Longer Available HOUSING AS - RED METALLIC (0650)

$

$

Not available

MTD 684-0055B-0662

No Longer Available HOUSING AS - OYSTER GRAY (0662)

$

$

Not available

MTD 684-0055B-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 684-0055B-0716

No Longer Available - CUB YELLOW-99 (0716)

$

$

Not available

$

$

16

MTD 712-3010

Hex Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

17

MTD 712-0429

Lock Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

18

MTD 736-0242

Bell Washer

$4.49

$

In Stock, Qty 20+

0

19

MTD 741-0475

Plastic Bushing, .380
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

20

MTD 784-5647

Chute Crank Bracket
(Superseded to 784-5647-0637)

Variations

MTD 784-5647-0637

Chute Crank Bracket, Black - POWDER BLACK (0637)

$14.99

$

In Stock, Qty 5

0

$14.99

$

In Stock, Qty 5

0

21

MTD 731-1379C

Chute Adapter, 5.0
(Superseded to 731-1379D)

$65.99

$

In Stock, only 1 left!

0

22

MTD 712-0324

Hex Lock Nut 1/4-20

$3.99

$

In Stock, Qty 16

0

23

MTD 736-0463

Flat Washer

$4.49

$

In Stock, Qty 12

0

24

MTD 784-5618

Bearing Housing
(Superseded to 784-5618A-0637)

Variations

MTD 784-5618-0637

Bearing Housing, Black - POWDER BLACK (0637)

$13.99

$

In Stock, only 2 left!

0

$13.99

$

In Stock, only 2 left!

0

25

MTD 710-0703

Carriage Screw 1/4-20 x .75

$4.49

$

In Stock, Qty 15

0

26

MTD 710-0604

Hex Washer Screw 5/16-18
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

27

MTD 736-0169

Lock Washer 3/8

$3.99

$

In Stock, Qty 20+

0

28

MTD 712-0798

Hex Nut 3/8-16

$4.49

$

In Stock, only 2 left!

0

29

MTD 741-0245

Hex Flange Bearing
(Superseded to 941-0245)

$9.99

$

In Stock, Qty 20+

0

30

MTD 784-5580

Skid Shoe

Variations

MTD 784-5580-0637

Snow Slide Shoe, Black - POWDER BLACK (0637)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-0638

Snow Slide Shoe, Black - MTD/TROY-BILT RED (0638)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-0662

Snow Slide Shoe, Black - OYSTER GRAY (0662)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-0665

Snow Slide Shoe, Black - YARDMAN GREEN (0665)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-0688

Snow Slide Shoe, Black - SPRING GREEN (0688)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-0721

Snow Skid Shoe - SEARS RED (0721)

$23.99

$

In Stock, Qty 18

0

MTD 784-5580-4044

Snow Skid Shoe - CRAFTSMAN RED (4044)

$23.99

$

In Stock, Qty 18

0

MTD 784-5580-0691

Snow Slide Shoe, Black - BLACK JACK (0691)

$23.99

$

In Stock, Qty 7

0

MTD 784-5580-0729

Snow Skid Shoe - STORM GRAY (0729)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-4043

Snow Skid Shoe - CRAFTSMAN METALLIC GRAY (4043)

$23.99

$

In Stock, Qty 20+

0

$23.99

$

In Stock, Qty 20+

0

31

MTD 736-0242

Bell Washer

$4.49

$

In Stock, Qty 20+

0

32

MTD 712-3010

Hex Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

33

MTD 784-5575

Shave Plate, 29.66"
(Superseded to 790-00119-0637)

Variations

MTD 784-5575-0637

Shave Plate, 30" Powder Black - POWDER BLACK (0637)

$39.99

$

In Stock, Qty 20+

0

$39.99

$

In Stock, Qty 20+

0

34

MTD 710-0260

Carriage Bolt 5/16-18 x .62
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

35

MTD 684-0065

Impeller Assembly, 12
(Superseded to 984-0065-0637)

Variations

MTD 684-0065-0662

Impeller, 3-Blade 12" - OYSTER GRAY (0662)

$90.99

$

In Stock, Qty 6

0

MTD 684-0065-0665

Impeller, 3-Blade 12" - YARDMAN GREEN (0665)

$90.99

$

In Stock, Qty 6

0

$90.99

$

In Stock, Qty 6

0

36

MTD 715-0114

Spiral Pin, .25 x 1.5

$9.49

$

In Stock, only 3 left!

0

37

MTD 618-0160A

Gear Assembly Complete, 30"
(Superseded to 918-0417B)

$400.99

$

Usually ships in 3-6 days

0

38

MTD 605-5248B

RH Serrated Spiral Assembly
(Superseded to 684-04186-0637)

Variations

MTD 605-5248B-0637

Auger Spiral Assembly, RH 30" - POWDER BLACK (0637)

$201.99

$

Usually ships in 3-6 days

0

$201.99

$

Usually ships in 3-6 days

0

39

MTD 736-0188

Flat Washer

$4.49

$

In Stock, Qty 20+

0

40

MTD 741-0493A

Flange Bushing
(Superseded to 741-0493C)

$4.49

$

In Stock, Qty 20+

0

41

MTD 605-5249B

LH Serrated Spiral Assembly
(Superseded to 684-04187-0637)

Variations

MTD 605-5249B-0637

Auger Spiral Assembly, LH 30" - POWDER BLACK (0637)

$

$

Not available

$

$

42

MTD 710-0890A

Shear Bolt 5/16-18 x 1.5

$1.99

$

In Stock, Qty 20+

0

43

MTD 736-0231

Flat Washer, .344 x 1.12 x .87

$4.99

$

In Stock, Qty 20+

0
