31AE663H401 - Yard-Man Snow Thrower (2000) Gear Assembly Parts Diagram

Snow Thrower

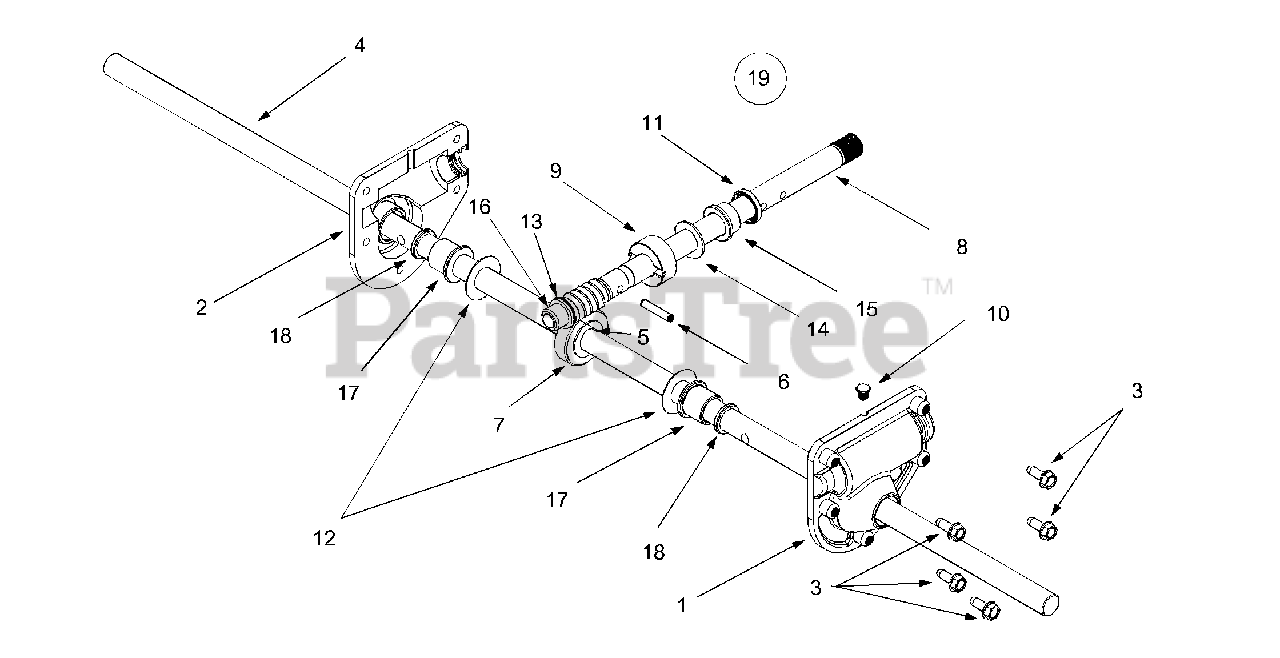

Gear Assembly Parts Diagram

  • Title

1

MTD 618-0123

RH Reducer Housing
(Superseded to 918-0123A)

Note: (Incl. Ref. 17, 18)

$52.99

$

In Stock, Qty 20+

0

2

MTD 618-0124

LH Reducer Housing
(Superseded to 918-0124A)

Note: (Incl. Ref. 17, 18)

$52.99

$

In Stock, Qty 17

0

3

MTD 710-0642

Self Tapping Screw, 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

4

MTD 711-1024

Spiral Axle, 30
(Superseded to 711-1024A)

$136.99

$

Usually ships in 3-6 days

0

5

MTD 714-0161

Hi-Pro Key, 3/16 x 5/8
(Superseded to 914-0161)

$4.49

$

In Stock, Qty 20+

0

6

MTD 715-0143

Spring Spirol Pin, .25 x 1.25

$4.99

$

In Stock, Qty 15

0

7

MTD 717-0528

Worm Gear, 20-tooth
(Superseded to 917-04861)

$43.99

$

In Stock, Qty 20+

0

8

MTD 717-0526

Worm Shaft
(Superseded to 717P0526)

$108.99

$

In Stock, Qty 6

0

9

MTD 718-0186

Thrust Collar

$8.49

$

In Stock, Qty 12

0

10

MTD 721-0325

Grease Plug

$4.49

$

In Stock, Qty 20+

0

11

MTD 721-0327

Grease Seal

$6.99

$

In Stock, Qty 20+

0

12

MTD 736-0351

Flat Washer, .76 x 1.5 x .030

$4.49

$

In Stock, Qty 20+

0

13

MTD 736-0369

Flat Washer, .508 x 1.0 x .020

$4.49

$

In Stock, Qty 20+

0

14

MTD 736-0445

Flat Washer, .76 x 1.5 x .060

$4.49

$

In Stock, Qty 13

0

15

MTD 741-0662

Flange Bearing, .75 x 1.0 x .59

$10.99

$

In Stock, Qty 20+

0

16

MTD 748-0663

Flange Bearing, .75 x 1.0 x .925

$

$

Currently unavailable

17

MTD 741-0661

Flange Bearing, .754 x 1.0 x .925
(Superseded to 741-0661B)

$10.99

$

In Stock, Qty 15

0

18

MTD 721-0179

Grease Seal

$8.99

$

In Stock, only 4 left!

0

19

MTD 618-0160

Gear Assembly Complete, 30"
(Superseded to 918-0417B)

Note: (Model E663H)

$400.99

$

Usually ships in 3-6 days

0

MTD 737-0168

Grease (Two Ounces)
(Superseded to 737-0168A)

$30.99

$

In Stock, Qty 14

0
