31AE663G131 - Huskee Snow Thrower (2002) (Tractor Supply) Handle & Chute Parts Diagram

Snow Thrower

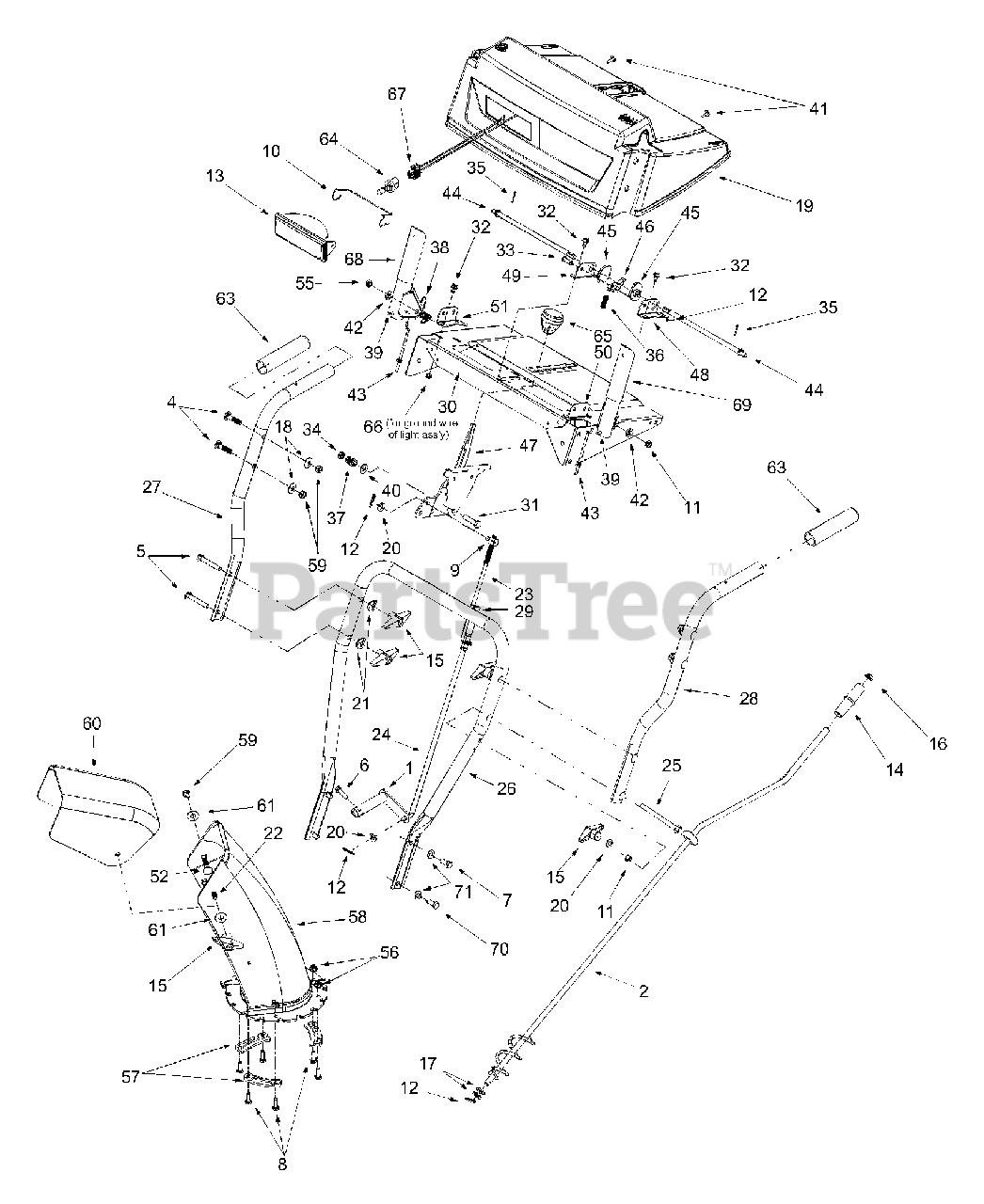

Handle & Chute Parts Diagram

  • Title

1

MTD 684-0008A

Shift Arm Assembly
(Superseded to 684-0008A-0637)

Variations

MTD 684-0008A-0637

Shift Arm Assembly - POWDER BLACK (0637)

$50.99

$

Usually ships in 3-6 days

0

$50.99

$

Usually ships in 3-6 days

0

2

MTD 705-5204A

Chute Crank Ass'y
(Superseded to 984-0022)

$99.99

$

In Stock, only 2 left!

0

4

MTD 710-0458

Carriage Bolt, 5/16-18 x 1.75

$4.49

$

In Stock, only 4 left!

0

5

MTD 710-0449

Carriage Bolt, 5/16-18 x 2.25
(Superseded to 710-0572)

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-0788

Self Tapping Screw, 1/4-20 x 1

$7.49

$

In Stock, only 2 left!

0

7

MTD 710-0643

Hex Cap Screw, 5/16-18 x 1.0

$6.99

$

In Stock, Qty 5

0

8

MTD 710-3015

Hex Cap Screw, 1/4-20 x .75

$3.99

$

In Stock, Qty 20+

0

9

MTD 711-0677

Ferrule, 5/16-18 x .312
(Superseded to 911-0677)

$17.99

$

In Stock, only 4 left!

0

10

MTD 747-1136

Headlamp Retainer

$11.99

$

Usually ships in 3-6 days

0

11

MTD 712-3010

Hex Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

12

MTD 714-0104

Internal Cotter Pin

$4.49

$

In Stock, Qty 20+

0

13

MTD 725-1672

Lens Assembly / Lamp Housing
(Superseded to 925-1672)

$89.99

$

Usually ships in 3-6 days

0

14

MTD 720-0201A

Chute Crank Knob

$10.99

$

In Stock, only 4 left!

0

15

MTD 720-0284

Wing Knob, 5/16-18

$6.99

$

In Stock, Qty 20+

0

16

MTD 726-0100

Push Cap, 3/8

$4.49

$

In Stock, Qty 17

0

17

MTD 736-0185

Flat Washer, .375 x .738 x .063

$3.99

$

In Stock, Qty 20+

0

18

MTD 736-0242

Bell Washer, .34 x .872

$4.49

$

In Stock, Qty 20+

0

19

MTD 731-2606

Plastic Handle Panel (Black)

$

$

Currently unavailable

20

MTD 736-0275

Flat Washer, .344 x .688 x .065

$6.99

$

Usually ships in 3-6 days

0

21

MTD 736-0451

Saddle Washer, .32 x .93

$4.49

$

In Stock, Qty 11

0

22

MTD 710-0276

Carriage Screw, 5/16-18 x 1

$3.99

$

In Stock, Qty 20+

0

23

MTD 747-0620A

Upper Shift Rod

$11.99

$

In Stock, only 3 left!

0

24

MTD 747-0621

Lower Shift Rod

$

$

Not available

25

MTD 747-0697

Eyebolt

$8.49

$

In Stock, only 1 left!

0

MTD 735-0234

Eyebolt Grommet

Note: (Not Shown)

$5.49

$

In Stock, only 2 left!

0

26

MTD 749-0951

Lower Handle
(Superseded to 749-0951A)

Variations

MTD 749-0951-0637

HANDLE-LOWER SNOW - POWDER BLACK (0637)

$66.99

$

Usually ships in 3-6 days

0

MTD 749-0951-0638

HANDLE-LOWER SNOW - MTD/TROY-BILT RED (0638)

$

$

Not available

$66.99

$

Usually ships in 3-6 days

0

27

MTD 749-0952A

RH Handle (Upper)

Variations

MTD 749-0952A-0637

HANDLE-UPPER-RH - POWDER BLACK (0637)

$

$

Not available

MTD 749-0952A-0638

HANDLE-UPPER-RH - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 749-0952A-0665

HANDLE-UPPER-RH - YARDMAN GREEN (0665)

$

$

Not available

$

$

28

MTD 749-0953A

LH Handle (Upper)

Variations

MTD 749-0953A-0637

HANDLE-UPPER-LH - POWDER BLACK (0637)

$

$

Not available

MTD 749-0953A-0638

HANDLE-UPPER-LH - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 749-0953A-0665

HANDLE-UPPER-LH - YARDMAN GREEN (0665)

$

$

Not available

$

$

29

MTD 750-0963

Shift Rod Connector
(Superseded to 950-0963)

$34.99

$

In Stock, only 3 left!

0

30

MTD 684-0103

Handle Panel Assembly
(Superseded to 684-0103A)

Variations

MTD 684-0103-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

MTD 684-0103-0629

No Longer Available PANELASM: - SILVER FLAKE (0629)

$

$

Not available

MTD 684-0103-0637

PANEL ASM:HANDLE - POWDER BLACK (0637)

$

$

Not available

MTD 684-0103-0638

PANEL ASM:HANDLE - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 684-0103-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 684-0103-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$

31

MTD 710-0459A

Hex Cap Screw, 3/8-24 x 1.5

$6.99

$

In Stock, Qty 8

0

32

MTD 710-0599

Self Tapping Screw, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

33

MTD 711-0653

Clevis Pin

$3.99

$

Usually ships in 3-6 days

0

34

MTD 712-0116

Jam Nut, 3/8-24

$4.99

$

In Stock, Qty 6

0

35

MTD 714-0507

Internal Cotter Pin

$4.49

$

In Stock, Qty 12

0

36

MTD 732-0145

Compression Spring, .36 x 1.0

$4.49

$

Usually ships in 3-6 days

0

37

MTD 732-0193

Comp. Spring, .39 x .6 x .88

$4.99

$

In Stock, Qty 5

0

38

MTD 732-0746

Torsion Spring, .44 x .8

$4.49

$

In Stock, Qty 13

0

39

MTD 735-0199A

Rubber Bumper

$7.99

$

In Stock, only 1 left!

0

40

MTD 736-0105

Bell Washer, .401 x .87 x .063

$4.49

$

In Stock, Qty 20+

0

41

MTD 710-1003

Special Screw, #10-16 x .625
(Superseded to 710-04669)

$3.49

$

In Stock, Qty 20+

0

42

MTD 736-0509

Special Washer, .35 x .72 x .13

$6.99

$

In Stock, only 1 left!

0

43

MTD 746-0778

"Z" Fittings For Control Cables
(Superseded to 946-0778)

$10.99

$

In Stock, Qty 5

0

44

MTD 747-0877

Cam Rod

$22.99

$

Usually ships in 3-6 days

0

45

MTD 748-0362

Cam Handle Lock

$7.99

$

Usually ships in 3-6 days

0

46

MTD 748-0363

Handle Lock Pawl
(Superseded to 948-0363)

$16.99

$

Usually ships in 3-6 days

0

47

MTD 784-5619A

Shift Handle
(Superseded to 753-05395)

Variations

MTD 784-5619A-0637

KIT-SHIFT HANDLE:S - POWDER BLACK (0637)

$

$

Not available

$

$

48

MTD 784-5679

LH Handle Support Bracket
(Superseded to 784-5679-0637)

Variations

MTD 784-5679-0637

BRACKET-HANDLE-LH - POWDER BLACK (0637)

$8.99

$

Usually ships in 3-6 days

0

$8.99

$

Usually ships in 3-6 days

0

49

MTD 784-5680

RH Handle Support Bracket
(Superseded to 784-5680-0637)

Variations

MTD 784-5680-0637

BRACKET-HDL SUP-RH - POWDER BLACK (0637)

$12.99

$

Usually ships in 3-6 days

0

$12.99

$

Usually ships in 3-6 days

0

50

MTD 784-5681

LH Handle Support Bracket

Variations

MTD 784-5681-0637

BRACKET-HANDLE SUP - POWDER BLACK (0637)

$9.49

$

Usually ships in 3-6 days

0

$9.49

$

Usually ships in 3-6 days

0

51

MTD 784-5682

RH Handle Support Bracket
(Superseded to 784-5682-0637)

Variations

MTD 784-5682-0637

Handle Support Bracket - POWDER BLACK (0637)

$28.99

$

Usually ships in 3-6 days

0

$28.99

$

Usually ships in 3-6 days

0

52

MTD 710-0451

Carriage Bolt, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

55

MTD 712-0429

Hex Lock Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

56

MTD 712-3027

Hex Flange Lock Nut, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

57

MTD 731-0851A

Lower Chute Flange Keeper

$4.49

$

In Stock, Qty 20+

0

58

MTD 731-1300A

Lower Chute
(Superseded to 731-1300E)

$56.99

$

In Stock, Qty 8

0

59

MTD 712-3068

Hex Lock Nut, 5/16-18
(Superseded to 912-3009)

$

$

Not available

60

MTD 731-0921

Upper Chute
(Superseded to 731-04426C)

$19.99

$

In Stock, Qty 9

0

61

MTD 736-0159

Washer, 5/16

$4.49

$

In Stock, Qty 20+

0

?62

MTD 736-0506

Special Washer, .28 x 1.2 x .06
(Superseded to 736-0506A)

$

$

Not available

63

MTD 720-0274

Handle Grip

$11.99

$

In Stock, Qty 8

0

64

MTD 725-1658

Halogen Lamp, 12-volt, 27 Watt
(Superseded to 925-1658)

$60.99

$

In Stock, only 4 left!

0

65

MTD 720-0232

Plastic Knob
(Superseded to 920-0232)

$10.99

$

In Stock, Qty 10

0

66

MTD 712-0271

Hex Sems Nut, 1/4-20

$4.49

$

In Stock, Qty 19

0

67

MTD 629-0059

Halogen Light Harness
(Superseded to 929-0059)

$100.99

$

Usually ships in 3-6 days

0

68

MTD 684-0036A

RH Engagement Handle Ass'y

$44.99

$

Usually ships in 3-6 days

0

69

MTD 684-0037B

LH Engagement Handle Ass'y

$38.99

$

In Stock, only 2 left!

0

70

MTD 710-1880

Hex Cap Screw, 5/16-18 x .75

$4.99

$

In Stock, Qty 11

0

71

MTD 736-0119

Lock Washer, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0
