31AE644E131 - Huskee Snow Thrower (1998) (Tractor Supply) Gear Assembly Parts Diagram

Snow Thrower

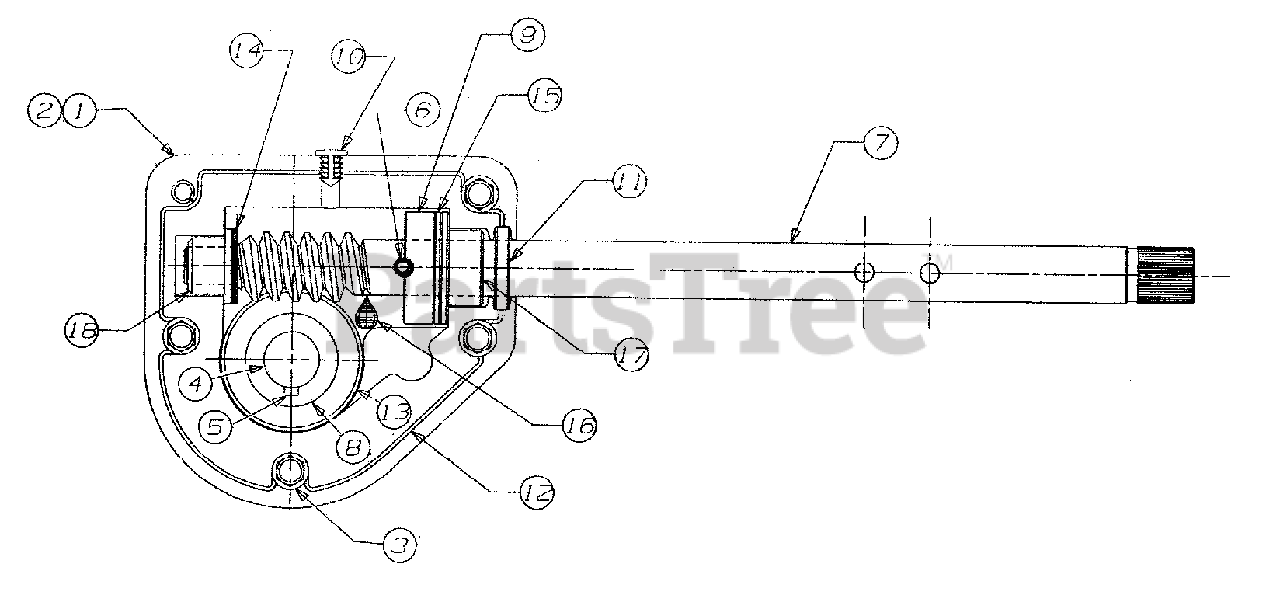

Gear Assembly Parts Diagram

  • Title

1

MTD 618-0123

Housing-L.H.
(Superseded to 918-0123A)

$52.99

$

In Stock, Qty 19

0

2

MTD 618-0124

Housing-R.H.
(Superseded to 918-0124A)

$52.99

$

In Stock, Qty 16

0

3

MTD 710-0642

Screw

$4.49

$

In Stock, Qty 20+

0

4

MTD 711-0908

Spiral Axle 24"
(Superseded to 711-0908A)

$

$

Not available

MTD 711-0909

Spiral Axle 26"
(Superseded to 711-0909A)

$

$

Not available

MTD 711-1024

Spiral Axle 30"
(Superseded to 711-1024A)

$136.99

$

Usually ships in 3-6 days

0

5

MTD 714-0161

Key
(Superseded to 914-0161)

$4.49

$

In Stock, Qty 20+

0

6

MTD 715-0143

Pin-Spiral

$4.99

$

In Stock, Qty 15

0

7

MTD 717-0526

Shaft-Worm
(Superseded to 717P0526)

$108.99

$

In Stock, Qty 5

0

8

MTD 717-0528

Gear-Worm
(Superseded to 917-04861)

$43.99

$

In Stock, Qty 20+

0

9

MTD 718-0186

Collar-Thrust

$8.49

$

In Stock, Qty 12

0

10

MTD 721-0325

Plug

$4.49

$

In Stock, Qty 20+

0

11

MTD 721-0327

Seal-Oil

$6.99

$

In Stock, Qty 20+

0

12

MTD 721-0328

Locktite 5699

$

$

Currently unavailable

13

MTD 736-0351

Washer-Flat

$4.49

$

In Stock, Qty 20+

0

14

MTD 736-0369

Washer-Flat

$4.49

$

In Stock, Qty 20+

0

15

MTD 736-0445

Washer-Flat

$4.49

$

In Stock, Qty 13

0

16

MTD 737-0168

Grease
(Superseded to 737-0168A)

$30.99

$

In Stock, Qty 14

0

17

MTD 741-0662

Bearing-Flange

$10.99

$

In Stock, Qty 17

0

18

MTD 741-0663

Bearing-Flange

$9.99

$

In Stock, Qty 20+

0

MTD 618-0120

Ass'y. Complete 24"
(Superseded to 918-0414B)

$

$

Not available

MTD 618-0121

Ass'y. Complete 26"
(Superseded to 918-0415B)

$442.99

$

Usually ships in 3-6 days

0

MTD 618-0160

Ass'y. Complete 30"
(Superseded to 918-0417B)

$400.99

$

Usually ships in 3-6 days

0
