31AE643G131 - Huskee Snow Thrower (2003) (Tractor Supply) Drive & Frame Parts Diagram

Snow Thrower

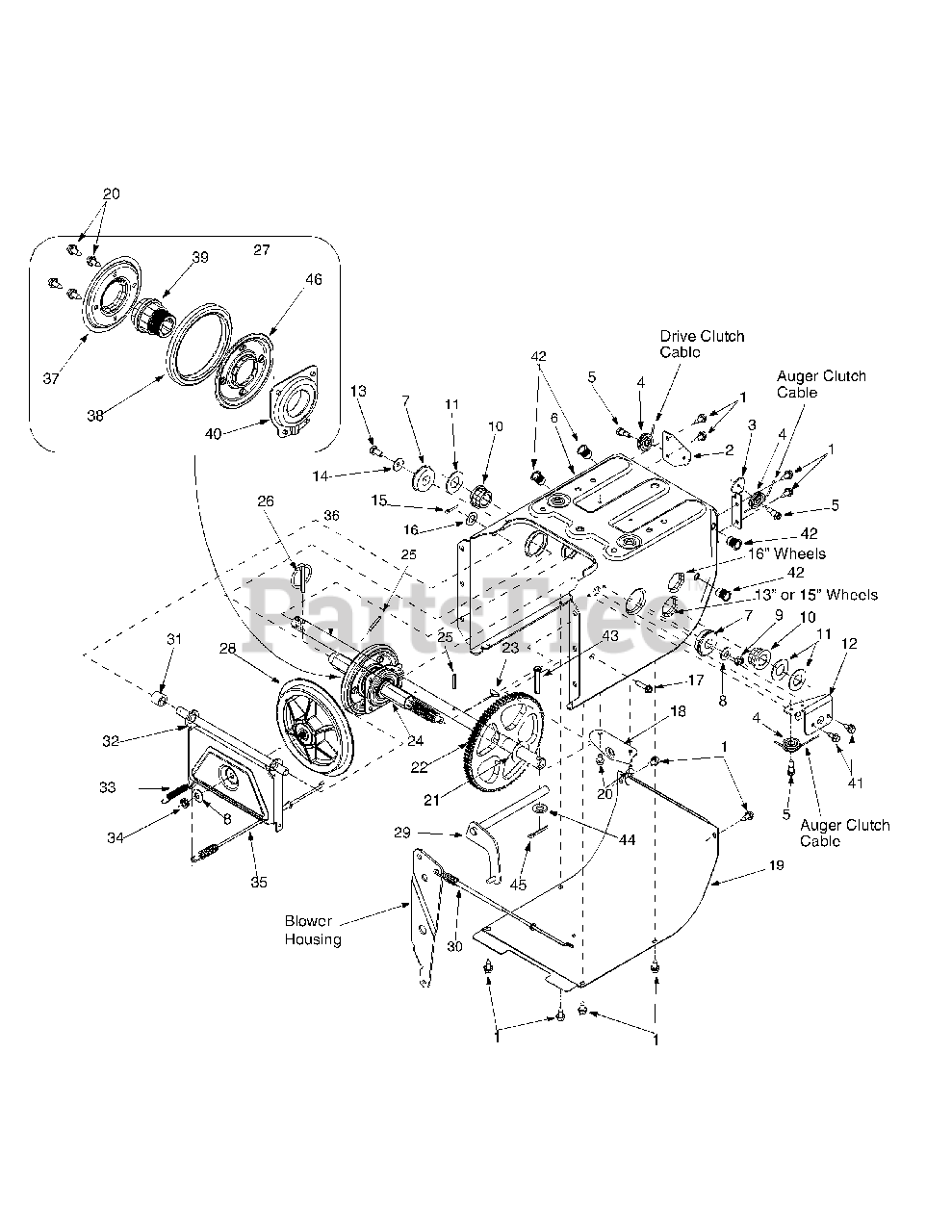

Drive & Frame Parts Diagram

  • Title

1

MTD 710-0599

Hex Screw

$4.49

$

In Stock, Qty 20+

0

2

MTD 784-5688

Drive Cable Guide Bracket
(Superseded to 784-5688-0637)

Variations

MTD 784-5688-0637

BRACKET-GUIDE-DRIVE - POWDER BLACK (0637)

$

$

Not available

MTD 784-5688-0662

BRACKET-GUIDE-DRIVE - OYSTER GRAY (0662)

$

$

Not available

$

$

3

MTD 784-5687A

Auger Clutch Cable Bracket
(Superseded to 784-5687A-0637)

Variations

MTD 784-5687A-0637

BRACKET-GUIDE-AUGER - POWDER BLACK (0637)

$

$

Not available

$

$

4

MTD 756-0625

Roller Cable

$9.49

$

In Stock, Qty 16

0

5

MTD 738-0924

Hex Screw 1/4-28
(Superseded to 738-0924A)

$6.99

$

In Stock, Qty 5

0

6

MTD 784-5630B

Frame Assembly

$

$

Not available

7

MTD 741-0563

Ball Bearing
(Superseded to 941-0563)

$36.99

$

In Stock, Qty 11

0

8

MTD 736-0105

Bell Washer

$4.49

$

In Stock, Qty 20+

0

9

MTD 712-0116

Lock Jam Nut

$4.99

$

In Stock, Qty 6

0

10

MTD 741-0598

Hex Flange Bearing
(Superseded to 941-0598)

$12.99

$

In Stock, Qty 20+

0

11

MTD 736-0188

Flat Washer

$4.49

$

In Stock, Qty 20+

0

12

MTD 784-5689A

Front Support Guide Bracket
(Superseded to 784-5689A-0637)

Variations

MTD 784-5689A-0637

Guide Bracket, Front - POWDER BLACK (0637)

$

$

Not available

MTD 784-5689A-0662

Guide Bracket, Front - OYSTER GRAY (0662)

$

$

Not available

$

$

13

MTD 710-0538

Lock Hex Screw

$4.49

$

In Stock, Qty 9

0

14

MTD 736-0242

Bell Washer .340 ID x .872 OD

$4.49

$

In Stock, Qty 20+

0

15

MTD 714-0474

Cotter Pin

$4.99

$

In Stock, Qty 14

0

16

MTD 736-0160

Flat Washer .536 ID x .930 OD

$4.49

$

In Stock, only 2 left!

0

17

MTD 710-0809

Hex Washer Screw 1/4-20

$6.99

$

In Stock, Qty 19

0

18

MTD 784-5590

Frame Shift Bracket

Variations

MTD 784-5590-0637

Shift Fram Bracket - POWDER BLACK (0637)

$15.99

$

Usually ships in 3-6 days

0

MTD 784-5590-0662

Shift Fram Bracket - OYSTER GRAY (0662)

$15.99

$

Usually ships in 3-6 days

0

MTD 784-5590-0638

BRACKET-SHIFT FRAM - MTD/TROY-BILT RED (0638)

$15.99

$

Usually ships in 3-6 days

0

MTD 784-5590-4033

BRACKET-SHIFT FRAM - FLINT MICA (4033)

$12.99

$

Usually ships in 3-6 days

0

MTD 784-5590-0650

BRACKET-SHIFT FRAM - RED METALLIC (0650)

$

$

Not available

MTD 784-5590-0689

BRACKET-SHIFT FRAM - POLO GREEN (0689)

$

$

Not available

MTD 784-5590-4021

BRACKET-SHIFT FRAM - CUB YELLOW 2 (4021)

$

$

Not available

$12.99

$

Usually ships in 3-6 days

0

19

MTD 784-5638

Frame Cover
(Superseded to 784-5638A)

Variations

MTD 784-5638-0483

Frame Cover, Black - CHARCOAL GRAY (0483)

$

$

Not available

MTD 784-5638-0498

Frame Cover, Black - OLD CUB YELLOW (0498)

$

$

Not available

MTD 784-5638-0499

Frame Cover, Black - CUB BEIGE (0499)

$

$

Not available

MTD 784-5638-0629

Frame Cover, Black - SILVER FLAKE (0629)

$

$

Not available

MTD 784-5638-0637

Frame Cover, Black - POWDER BLACK (0637)

$

$

Not available

MTD 784-5638-0638

Frame Cover, Black - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 784-5638-0650

Frame Cover, Black - RED METALLIC (0650)

$

$

Not available

MTD 784-5638-0662

Frame Cover, Black - OYSTER GRAY (0662)

$

$

Not available

MTD 784-5638-0665

Frame Cover, Black - YARDMAN GREEN (0665)

$

$

Not available

MTD 784-5638-0683

Frame Cover, Black - LESCO GREEN (0683)

$

$

Not available

MTD 784-5638-0689

Frame Cover, Black - POLO GREEN (0689)

$

$

Not available

MTD 784-5638-0709

Frame Cover, Black - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 784-5638-0716

Frame Cover, Black - CUB YELLOW-99 (0716)

$

$

Not available

$

$

20

MTD 710-0599

Hex Washer Screw 1/4-20

$4.49

$

In Stock, Qty 20+

0

21

MTD 736-0351

Flat Washer .760 ID x .50 OD

$4.49

$

In Stock, Qty 20+

0

22

MTD 717-1445

Gear

$107.99

$

Usually ships in 3-6 days

0

23

MTD 714-0126

Key

$4.99

$

In Stock, Qty 18

0

24

MTD 717-1444

7-Tooth Shaft
(Superseded to 917-04094)

$96.99

$

In Stock, only 2 left!

0

25

MTD 715-0249

Roll Pin
(Superseded to 915-0249)

$6.99

$

In Stock, only 2 left!

0

26

MTD 714-0143

Klik Pin
(Superseded to 714-0143A)

$6.49

$

In Stock, Qty 7

0

27

MTD 684-0042C

Friction Wheel Assembly
(Superseded to 984-0042C)

$138.99

$

In Stock, Qty 16

0

28

MTD 656-0012A

Friction Disc Wheel
(Superseded to 956-0012A)

$125.99

$

In Stock, Qty 8

0

29

MTD 684-0013B

Wheel Shift Rod Assembly
(Superseded to 684-04243)

$

$

Not available

30

MTD 746-0897

Drive Cable
(Superseded to 946-0897)

$24.99

$

In Stock, Qty 20+

0

31

MTD 748-0190

Spacer

$6.49

$

In Stock, only 1 left!

0

32

MTD 684-0021

Friction Wheel Bracket Assembly
(Superseded to 984-0021-0637)

Variations

MTD 684-0021-0637

Support Bracket Assembly - POWDER BLACK (0637)

$

$

Not available

$

$

33

MTD 732-0264

Extension Spring
(Superseded to 932-0264)

$4.99

$

In Stock, Qty 20+

0

34

MTD 712-0711

Jam Nut 3/8-24

$4.49

$

In Stock, Qty 20+

0

35

MTD 746-0898B

Drive Cable
(Superseded to 946-0898)

$27.99

$

In Stock, Qty 20+

0

36

MTD 738-0869

Axle 13" Wheels

$139.99

$

Usually ships in 3-6 days

0

36

MTD 738-0830

Axle 16" Wheels

$

$

Not available

37

MTD 790-00010

Friction Plate

$13.99

$

In Stock, only 1 left!

0

38

MTD 735-0243B

Friction Wheel Rubber
(Superseded to 935-0243B)

$15.99

$

In Stock, Qty 20+

0

39

MTD 718-0301A

Friction Wheel Hub
(Superseded to 984-0042C)

$138.99

$

In Stock, Qty 16

0

40

MTD 618-0063A

Friction Wheel Bearing

$92.99

$

Usually ships in 3-6 days

0

41

MTD 710-1652

Tap Screw 1/4-20

$4.49

$

In Stock, Qty 20+

0

42

MTD 712-0703A

Insert Nut 5/16-18

$7.49

$

Usually ships in 3-6 days

0

43

MTD 711-1364

Clevis Pin

$8.49

$

In Stock, only 2 left!

0

44

MTD 736-0142

Flat Washer .281 ID x .50 OD

$4.99

$

In Stock, Qty 20+

0

45

MTD 714-0507

Cotter Pin

$4.49

$

In Stock, only 2 left!

0

46

MTD 790-00011

Friction Plate

$13.99

$

Usually ships in 3-6 days

0
