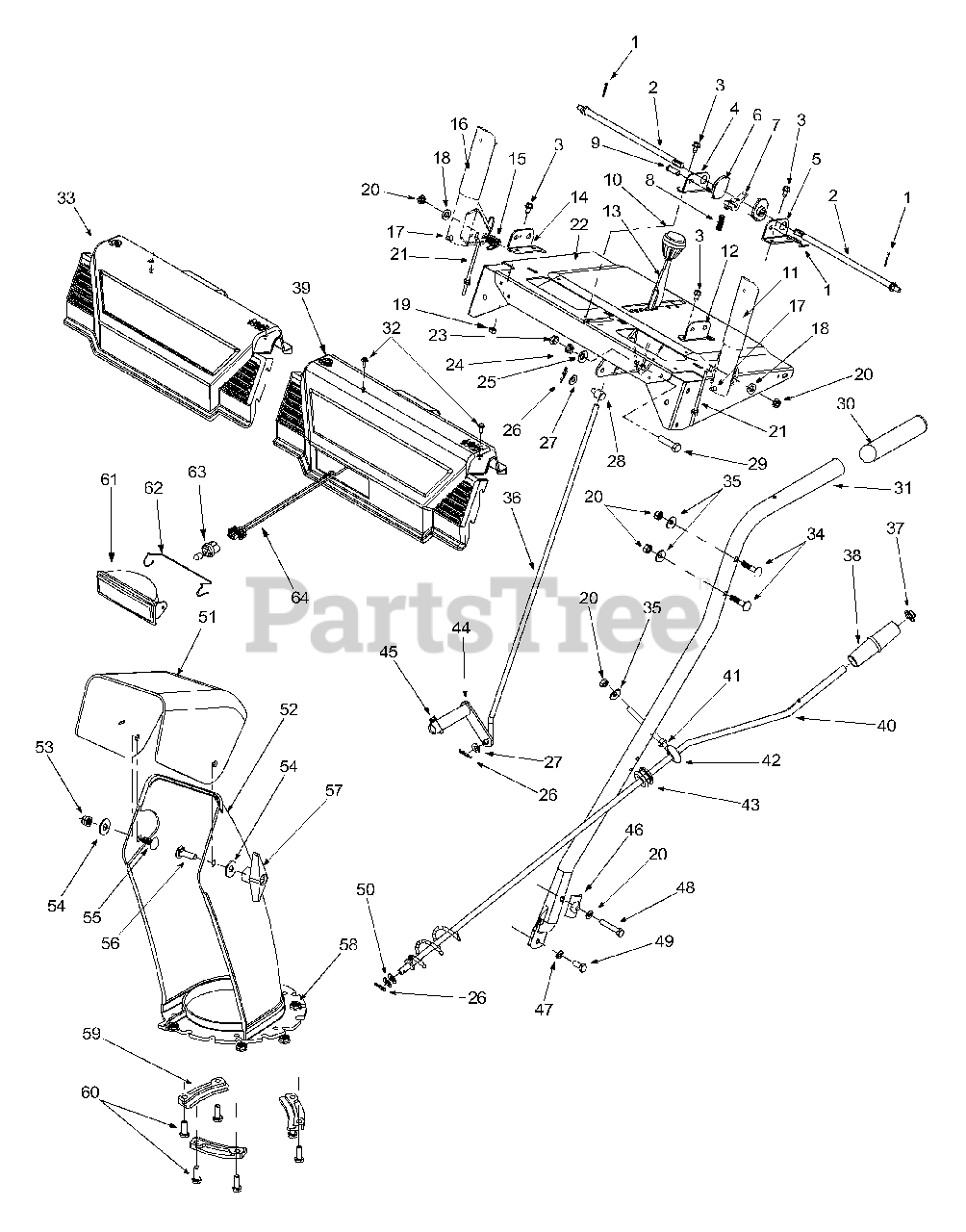

31AE640F000 - Yard Machines Snow Thrower (2003) Handle & Chute Parts Diagram

Snow Thrower

Handle & Chute Parts Diagram

  • Title

1

MTD 714-0507

Cotter Pin

$4.49

$

In Stock, Qty 12

0

2

MTD 747-0877

Rod

$22.99

$

Usually ships in 3-6 days

0

3

MTD 710-0599

Hex Washer Screw 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

4

MTD 784-5680

Handle Support Bracket - RH
(Superseded to 784-5680-0637)

Variations

MTD 784-5680-0637

BRACKET-HDL SUP-RH - POWDER BLACK (0637)

$12.99

$

Usually ships in 3-6 days

0

$12.99

$

Usually ships in 3-6 days

0

5

MTD 784-5679

Handle Support Bracket - LH
(Superseded to 784-5679-0637)

Variations

MTD 784-5679-0637

BRACKET-HANDLE-LH - POWDER BLACK (0637)

$8.99

$

Usually ships in 3-6 days

0

$8.99

$

Usually ships in 3-6 days

0

6

MTD 748-0362

Cam Lock Handle

$7.99

$

Usually ships in 3-6 days

0

7

MTD 748-0363

Handle Lock Pawl
(Superseded to 948-0363)

$16.99

$

Usually ships in 3-6 days

0

8

MTD 732-0145

Compression Spring

$4.49

$

Usually ships in 3-6 days

0

9

MTD 711-0653

Clevis Pin

$3.99

$

Usually ships in 3-6 days

0

10

MTD 720-0232

Knob
(Superseded to 920-0232)

$10.99

$

In Stock, Qty 10

0

11

MTD 684-0037B

Handle Assy - LH

$38.99

$

In Stock, only 2 left!

0

12

MTD 784-5681

Handle Support Bracket - LH

Variations

MTD 784-5681-0637

BRACKET-HANDLE SUP - POWDER BLACK (0637)

$9.49

$

Usually ships in 3-6 days

0

$9.49

$

Usually ships in 3-6 days

0

13

MTD 784-5619A

Shift Handle
(Superseded to 753-05395)

Variations

MTD 784-5619A-0637

KIT-SHIFT HANDLE:S - POWDER BLACK (0637)

$

$

Not available

$

$

14

MTD 784-5682

Handle Support Bracket - RH
(Superseded to 784-5682-0637)

Variations

MTD 784-5682-0637

Handle Support Bracket - POWDER BLACK (0637)

$28.99

$

Usually ships in 3-6 days

0

$28.99

$

Usually ships in 3-6 days

0

15

MTD 732-0746

Torsion Spring

$4.49

$

In Stock, Qty 13

0

16

MTD 684-0036A

Handle Assy - RH

$44.99

$

Usually ships in 3-6 days

0

17

MTD 735-0199A

Rubber Bumper

$7.99

$

In Stock, only 1 left!

0

18

MTD 736-0509

Washer

$6.99

$

In Stock, only 1 left!

0

19

MTD 712-0271

Hex Nut 1/4-20

Note: Used with ground wire; found on model's with an in-dash light only.

$4.49

$

In Stock, Qty 19

0

20

MTD 712-3068

Hex Nut 5/16-18
(Superseded to 912-3009)

$

$

Not available

21

MTD 746-0778

Cable
(Superseded to 946-0778)

$10.99

$

In Stock, Qty 5

0

22

MTD 684-0103

Panel
(Superseded to 684-0103A)

Variations

MTD 684-0103-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

MTD 684-0103-0629

No Longer Available PANELASM: - SILVER FLAKE (0629)

$

$

Not available

MTD 684-0103-0637

PANEL ASM:HANDLE - POWDER BLACK (0637)

$

$

Not available

MTD 684-0103-0638

PANEL ASM:HANDLE - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 684-0103-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 684-0103-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$

23

MTD 712-0116

Jam Lock Nut 3/8-24

$4.99

$

In Stock, Qty 6

0

24

MTD 732-0193

Compression Spring

$4.99

$

In Stock, Qty 5

0

25

MTD 736-0105

Bell Washer

$4.49

$

In Stock, Qty 20+

0

26

MTD 714-0104

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

27

MTD 736-0275

Flat Washer 5/16

$6.99

$

Usually ships in 3-6 days

0

28

MTD 711-0677

Ferrule
(Superseded to 911-0677)

$17.99

$

In Stock, only 4 left!

0

29

MTD 710-0459A

Hex Cap Screw 3/8-24 x 1.50

$6.99

$

In Stock, Qty 8

0

30

MTD 720-0274

Grip

$11.99

$

In Stock, Qty 8

0

31

MTD 749-0911C

Handle -LH

Variations

MTD 749-0911C-0637

Handle - LH - POWDER BLACK (0637)

$

$

Not available

$

$

MTD 749-0910C

Handle -RH
(Superseded to 749-0910C-0637)

Note: (Not shown)

Variations

MTD 749-0910C-0637

HANDLE-RH - POWDER BLACK (0637)

$

$

Not available

$

$

32

MTD 710-1003

Hex Washer Screw
(Superseded to 710-04669)

$3.49

$

In Stock, Qty 20+

0

33

MTD 731-1391

Handle Panel (w/o lamp cut-out)

$43.99

$

Usually ships in 3-6 days

0

34

MTD 710-0262

Carriage Bolt 5/16-18 x 1.50

$3.99

$

In Stock, Qty 9

0

35

MTD 736-0242

Bell Washer .340 ID x .872 OD

$4.49

$

In Stock, Qty 20+

0

36

MTD 747-0798A

Shift Rod

$38.99

$

Usually ships in 3-6 days

0

37

MTD 726-0100

Push Cap

$4.49

$

In Stock, Qty 17

0

38

MTD 720-0201A

Chute Knob

$10.99

$

In Stock, only 4 left!

0

39

MTD 731-1392

Panel (w/ lamp cut-out)

$

$

Not available

40

MTD 705-5204A

Chute Crank
(Superseded to 984-0022)

$99.99

$

In Stock, only 2 left!

0

41

UNKNOWN

$

$

Not available

42

MTD 747-0697

Chute Crank Eyebolt

$8.49

$

In Stock, only 1 left!

0

43

MTD 735-0234

Rubber Grommet

$5.49

$

In Stock, only 2 left!

0

44

MTD 684-0008A

Shift Arm Assembly
(Superseded to 684-0008A-0637)

Variations

MTD 684-0008A-0637

Shift Arm Assembly - POWDER BLACK (0637)

$50.99

$

Usually ships in 3-6 days

0

$50.99

$

Usually ships in 3-6 days

0

45

MTD 710-0788

Hex Washer Screw 1/4-20 x 1.0

$7.49

$

In Stock, only 2 left!

0

46

MTD 784-5599

Handle Tab
(Superseded to 984-5599)

$4.49

$

In Stock, Qty 18

0

47

MTD 736-0119

Lock Washer 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

48

MTD 710-04039

Hex Cap Screw 5/16-18 x 2

$4.99

$

In Stock, only 4 left!

0

49

MTD 710-3008

Hex Cap Screw 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

50

MTD 736-0185

Flat Washer

$3.99

$

In Stock, Qty 20+

0

51

MTD 731-0921

Upper Chute
(Superseded to 731-04426C)

$19.99

$

In Stock, Qty 9

0

52

MTD 731-1300B

Lower Chute
(Superseded to 731-1300E)

$56.99

$

In Stock, Qty 8

0

53

MTD 712-3068

Hex Lock Nut 5/16-18
(Superseded to 912-3009)

$

$

Not available

54

MTD 736-0159

5/16 Washer

$4.49

$

In Stock, Qty 20+

0

55

MTD 710-0451

Carriage Bolt 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

56

MTD 710-04071

Carriage Screw 5/16-18 x 1.0

$4.49

$

In Stock, Qty 10

0

57

MTD 720-0284

Knob

$6.99

$

In Stock, Qty 20+

0

58

MTD 712-3027

Hex Lock Nut 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

59

MTD 731-0851A

Flange Keeper

$4.49

$

In Stock, Qty 20+

0

60

MTD 710-3015

Hex Cap Screw 1/4-20 x .75

$3.99

$

In Stock, Qty 20+

0

61

MTD 725-1672

Lens Housing Assembly
(Superseded to 925-1672)

$89.99

$

Usually ships in 3-6 days

0

62

MTD 747-1136

Headlight Retaining Wire

$11.99

$

Usually ships in 3-6 days

0

63

MTD 725-1658

Halogen Light
(Superseded to 925-1658)

$60.99

$

In Stock, only 4 left!

0

64

MTD 629-0059

Light Harness
(Superseded to 929-0059)

$100.99

$

Usually ships in 3-6 days

0
