31AE623D401 - Yard-Man Snow Thrower (1998) Belt Assembly Parts Diagram

Snow Thrower

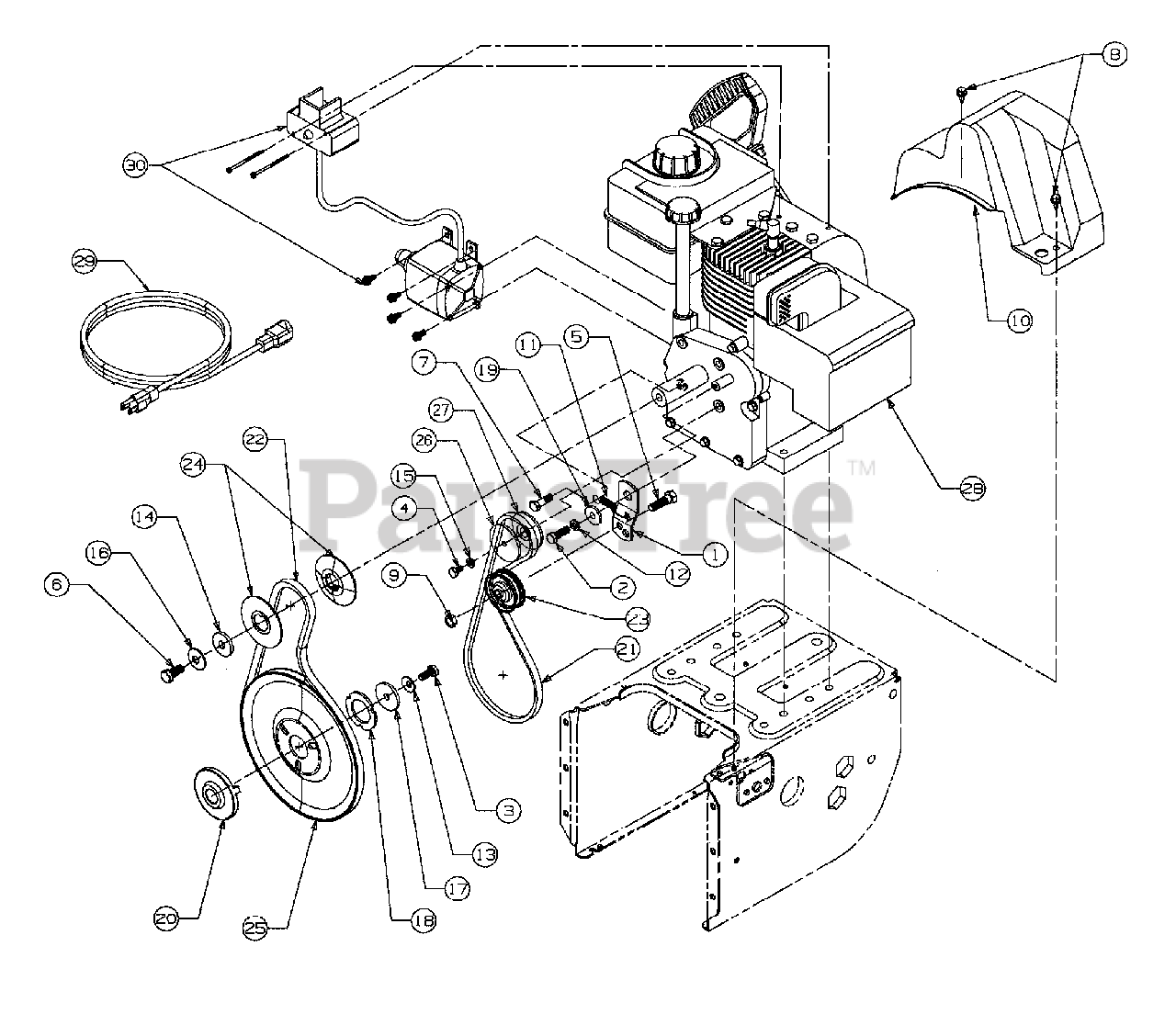

Belt Assembly Parts Diagram

  • Title
1

MTD 05896A

Bracket

Variations

MTD 05896A-0637

No Longer Available BRACKET-ID - POWDER BLACK (0637)

$

$

Not available

$

$

2

MTD 710-0627

Screw

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-0157

Screw

$4.49

$

In Stock, Qty 18

0

4

MTD 710-0230

Screw

$

$

Not available

5

MTD 710-0342

Screw
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 20+

0

6

MTD 710-0696

Screw

$6.99

$

In Stock, only 2 left!

0

7

MTD 710-0888

Screw

$4.49

$

In Stock, Qty 20+

0

8

MTD 710-0896

Screw

$4.49

$

In Stock, Qty 20+

0

9

MTD 712-0181

Nut, Hex Jam

$4.49

$

In Stock, only 3 left!

0

10

MTD 731-1324

Belt Cover

$21.99

$

In Stock, Qty 11

0

11

MTD 732-0339

Spring
(Superseded to 932-0339)

$

$

Not available

12

MTD 736-0159

Washer

$4.49

$

In Stock, Qty 20+

0

13

MTD 736-0242

Washer - Bell

$4.49

$

In Stock, Qty 20+

0

14

MTD 736-0247

Washer

$9.49

$

In Stock, Qty 14

0

15

MTD 736-0329

Washer
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

16

MTD 736-0331

Washer - Bell

$3.99

$

In Stock, Qty 20+

0

17

MTD 736-0505

Washer - Flat

$6.49

$

In Stock, Qty 11

0

18

MTD 736-0507

Washer
(Superseded to 936-0507)

$6.99

$

Usually ships in 3-6 days

0

19

MTD 750-1053

Spacer

$

$

Not available

20

MTD 748-0360

Pulley, Adapter
(Superseded to 948-0360)

$22.99

$

In Stock, only 1 left!

0

21

MTD 754-0456

V-Belt
(Superseded to 954-0456)

$29.99

$

In Stock, Qty 5

0

22

MTD 754-0430

V-Belt Matched
(Superseded to 954-0430C)

$28.99

$

In Stock, Qty 20+

0

23

MTD 756-0313

Idler, Flat

$26.99

$

In Stock, Qty 5

0

24

MTD 756-0569

Pulley, Half

$10.99

$

Usually ships in 3-6 days

0

25

MTD 756-0967

Pulley, Auger

$56.99

$

Usually ships in 3-6 days

0

26

MTD 756-0984

Pulley Half

$

$

Not available

27

MTD 756-0985

Pulley, Half

$

$

Not available

28

Engine

$

$

Not available

29

MTD 629-0071

Cord Extension
(Superseded to 929-0071B)

$21.99

$

In Stock, only 2 left!

0

30

MTD 390-986

Starter
(Superseded to TC-33290H)

$377.99

$

Usually ships in 3-6 days

0
