31AE600E382 - MTD Gold Snow Thrower (1999) Engine & V-Belts Parts Diagram

Gold Snow Thrower

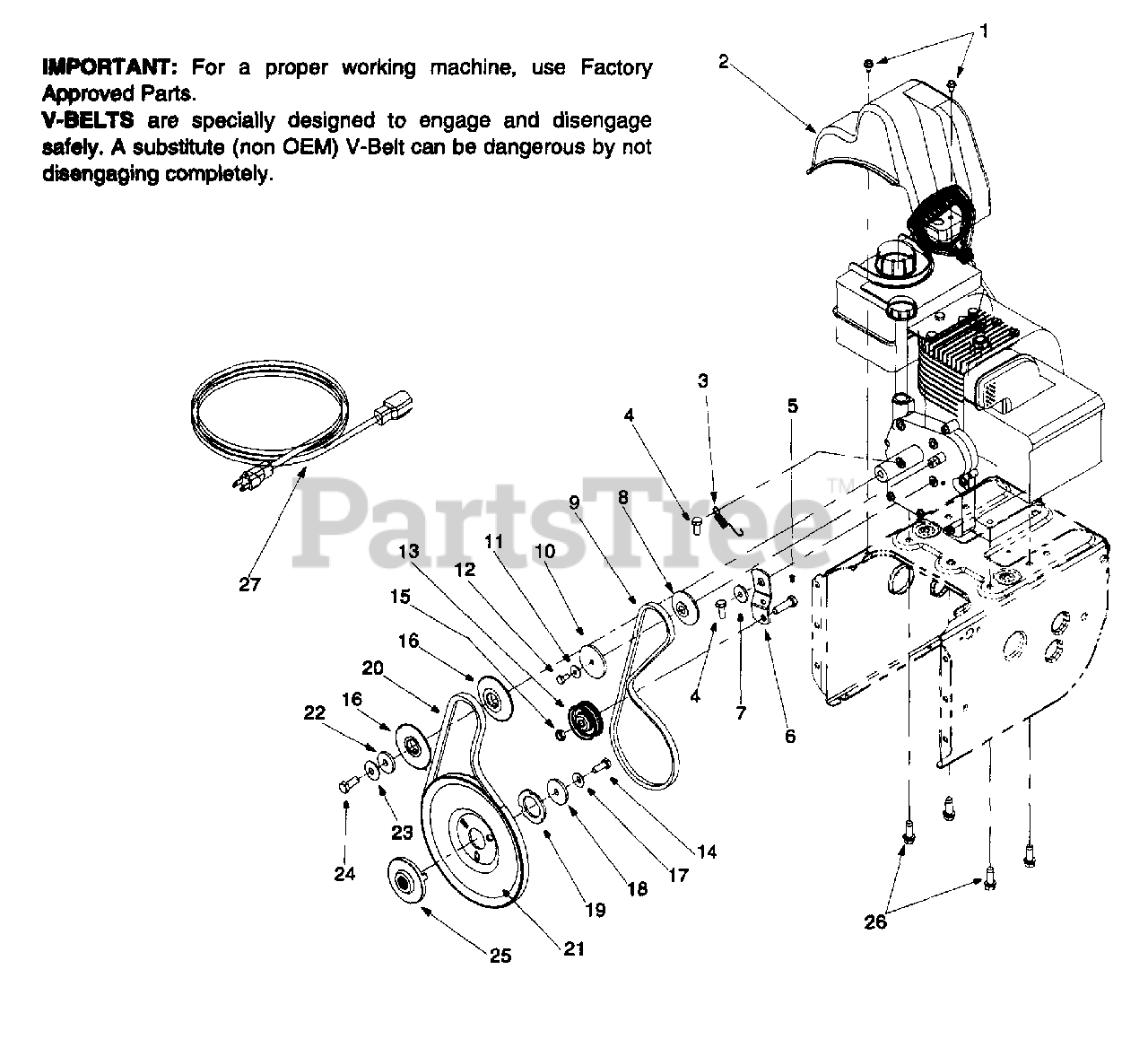

Engine & V-Belts Parts Diagram

  • Title
1

MTD 710-0599

Hex Washer Screw 1/4-20 x.5

$4.49

$

In Stock, Qty 20+

0

2

MTD 731-1324

Belt Cover

$21.99

$

In Stock, only 1 left!

0

3

MTD 732-0339

Extension Spring
(Superseded to 932-0339)

$

$

Not available

4

MTD 710-0627

Hex Screw 5/16-24 x .75

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-3005

Hex Cap Screw 3/8-16 x 1.25

$3.99

$

In Stock, Qty 11

0

6

MTD 05898A

Drive Clutch Bracket

$

$

Not available

7

MTD 748-0234

Shoulder Spacer

$4.49

$

Usually ships in 3-6 days

0

8

MTD 756-0985

Pulley Half

$

$

Not available

9

MTD 754-0343

V-Belt
(Superseded to 954-0343)

$29.99

$

In Stock, only 2 left!

0

10

MTD 756-0984

Pulley Half

$

$

Not available

11

MTD 736-0270

Bell Washer

$3.99

$

In Stock, Qty 20+

0

12

MTD 710-0230

Hex Cap Screw 1/4-28 x .50

$

$

Not available

13

MTD 756-0313

Flat Idler

$26.99

$

In Stock, Qty 6

0

14

MTD 710-1245

Lock Cap Screw 5/16-24

$8.49

$

In Stock, only 2 left!

0

15

MTD 712-0181

Lock Jam Nut 3/8-16

$4.49

$

In Stock, only 3 left!

0

16

MTD 756-0569

Pulley Half

$10.99

$

Usually ships in 3-6 days

0

17

MTD 736-0242

Bell Washer

$4.49

$

In Stock, Qty 20+

0

18

MTD 736-0505

Flat Washer

$6.49

$

In Stock, only 2 left!

0

19

MTD 736-0507

Washer
(Superseded to 936-0507)

$6.99

$

Usually ships in 3-6 days

0

20

MTD 754-0430

Belt
(Superseded to 954-0430C)

$28.99

$

In Stock, Qty 20+

0

21

MTD 756-0967

Auger Pulley

$56.99

$

Usually ships in 3-6 days

0

22

MTD 736-0247

Flat Washer

$9.49

$

In Stock, Qty 14

0

23

MTD 736-0331

Bell Washer

$3.99

$

In Stock, Qty 10

0

24

MTD 710-0696

Hex Cap Screw 3/8-24

$6.99

$

In Stock, only 2 left!

0

25

MTD 748-0360

Pulley
(Superseded to 948-0360)

$22.99

$

In Stock, only 1 left!

0

26

MTD 710-0654A

Hex Washer Screw 3/8-16 x 1.0

$4.49

$

In Stock, only 3 left!

0

27

MTD 629-0071

Extension Cord
(Superseded to 929-0071B)

$21.99

$

Usually ships in 3-6 days

0

MTD OEM-390-986

Electric Start Kit
(Superseded to TC-33290H)

$377.99

$

Usually ships in 3-6 days

0
