31AE5KLG801 - Yard-Man Snow Thrower (2007) Blower Housing Assembly Parts Diagram

Snow Thrower

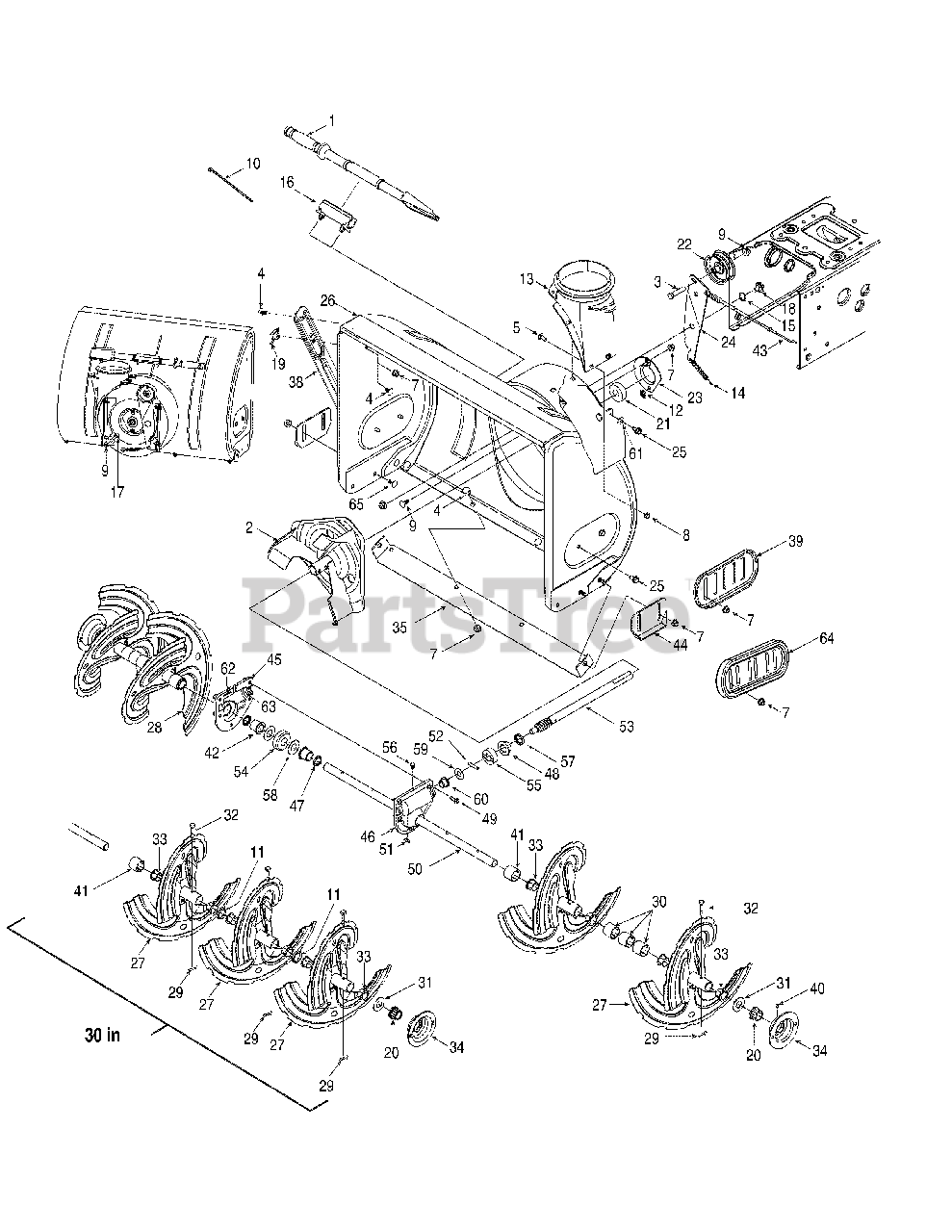

Blower Housing Assembly Parts Diagram

1

MTD 731-2643

Clean-Out Tool
(Superseded to 931-2643)

$19.99

$

In Stock, only 3 left!

0

2

MTD 684-04057A-0637

Impeller, 3-Blade 12" - POWDER BLACK (0637)
(Superseded to 684-04057C-0637)

Variations

$73.99

$

In Stock, Qty 13

0

3

MTD 710-0347

Hex Screw 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

4

MTD 710-0451

Carriage Bolt 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-0703

Carriage Screw 1/4-20 x .75 Gr. 5

$4.49

$

In Stock, Qty 20+

0

7

MTD 712-04063

Flange Locknut 5/16-18 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

8

MTD 712-04064

Hex L-Flanged Nut 1/4-20 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

9

MTD 712-04065

Hex L-Flanged Nut 3/8-16 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

10

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

11

MTD 731-04871

Spacer 1.25 x .75 x 3-16'' Lg

$6.99

$

In Stock, Qty 20+

0

12

MTD 726-04012

Pushon Nut .25 Dia

$7.49

$

In Stock, only 4 left!

0

13

MTD 731-04705

Chute Adapter
(Superseded to 731-04705D)

$26.99

$

In Stock, only 2 left!

0

14

MTD 732-04460

Extension Spring .38 OD x 4.59'' LG

$5.49

$

In Stock, Qty 14

0

15

MTD 736-0174

Wave Washer .660 ID x .88 OD x .010

$6.99

$

In Stock, only 2 left!

0

16

MTD 731-2635

Clean-Out Tool Mount
(Superseded to 731-11421)

$11.99

$

In Stock, Qty 8

0

17

MTD 738-0143

Shoulder Screw .500 Dia x .335'' Lg

$4.49

$

In Stock, Qty 20+

0

18

MTD 738-0281

Shoulder Screw .625 Dia x .170

$10.99

$

In Stock, only 2 left!

0

19

MTD 720-0284

Hand Knob

$6.99

$

In Stock, Qty 20+

0

20

MTD 741-0245

Hex Flange Brg. .751'' ID
(Superseded to 941-0245)

$9.99

$

In Stock, Qty 20+

0

21

MTD 741-0309

Self-aligning bearing
(Superseded to 941-0309)

$74.99

$

Usually ships in 3-6 days

0

22

MTD 756-0981B

Flat Idler Pulley 2.75'' OD
(Superseded to 756-04224)

$26.99

$

In Stock, Qty 20+

0

23

MTD 790-00075

Bearing Housing 1.85 ID
(Superseded to 790-00075B)

$6.49

$

In Stock, Qty 6

0

24

Cub Cadet 790-00080C-0637

Auger Idler Bracket - POWDER BLACK
(Superseded to 790-00080D)

Variations

$28.99

$

In Stock, Qty 5

0

25

MTD 710-04484

Hex TT Screw 3/8-16 x .75

$3.99

$

In Stock, Qty 20+

0

26

MTD 684-04065

24'' Auger Housing

$

$

Currently unavailable

26

MTD 684-04264-0606

HOUSING ASM-AUGER - MAJESTIC ORANGE (0606)
(Superseded to 684-04264A)

Variations

$275.99

$

Usually ships in 3-6 days

0

26

MTD 684-04268-0691

HOUSING ASM-AUGER - BLACK JACK (0691)
(Superseded to 684-04268A)

Variations

$374.99

$

Usually ships in 3-6 days

0

26

MTD 684-04067-0638

HOUSING-AUGER 22" - MTD/TROY-BILT RED (0638)

Variations

$

$

Not available

27

MTD 684-04107-0637

Auger Spiral Assembly, LH - POWDER BLACK (0637)
(Superseded to 684-04107A)

Variations

$89.99

$

In Stock, only 3 left!

0

28

MTD 684-04108-0637

Auger Spiral Assembly, RH - POWDER BLACK (0637)
(Superseded to 684-04108A)

Variations

$94.99

$

In Stock, only 4 left!

0

29

MTD 714-04040

Bow Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

30

MTD 711-04285

24'' Auger Axle
(Superseded to 711-04285A)

$90.99

$

In Stock, only 2 left!

0

30

MTD 711-04284

26'' Auger Axle
(Superseded to 711-06144)

$82.99

$

In Stock, only 2 left!

0

30

MTD 711-04283

28'' Auger Axle
(Superseded to 711-06145)

$89.99

$

In Stock, only 2 left!

0

30

MTD 711-04282

30'' Auger Axle
(Superseded to 711-04282A)

$112.99

$

Usually ships in 3-6 days

0

31

MTD 736-0188

Flat Washer .760 ID x 1.49 OD

$4.49

$

In Stock, Qty 20+

0

32

MTD 738-04124A

Sheer Pin .25 x 1.5 Gr. 2

$1.99

$

In Stock, Qty 20+

0

33

MTD 741-0493A

Flange Bushing
(Superseded to 741-0493C)

$4.49

$

In Stock, Qty 20+

0

34

MTD 790-00087A-0637

Bearing Housing, 1" - POWDER BLACK

Variations

$22.99

$

In Stock, only 2 left!

0

34

MTD 790-00138A-0637

Bearing Housing, 1" Hex - POWDER BLACK
(Superseded to 790-00138A-0637)

Note: (w/grease fitting hole)

Variations

$

$

Not available

35

MTD 790-00120-0637

Shave Plate, 24" Powder Black - POWDER BLACK

Variations

$34.99

$

In Stock, Qty 19

0

35

MTD 790-00121-0637

Shave Plate, 26" Powder Black - POWDER BLACK

Variations

$36.99

$

In Stock, Qty 13

0

35

MTD 790-00118-0637

Shave Plate, 28" Powder Black - POWDER BLACK

Variations

$37.99

$

In Stock, Qty 6

0

35

MTD 790-00119-0637

Shave Plate, 30" Powder Black - POWDER BLACK

Variations

$39.99

$

In Stock, Qty 6

0

38

MTD 790-00181-0637

BLADE-GUIDE (DRIFT - POWDER BLACK (0637)

Note: (Optional)

Variations

$43.99

$

Usually ships in 3-6 days

0

39

MTD 790-00091-0638

Snow Slide Shoe, Red - MTD/TROY-BILT RED

Note: (Steel)

Variations

$30.99

$

In Stock, only 4 left!

0

40

MTD 737-3000

Grease Fitting(optional)
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

41

MTD 731-04870

Spacer 1.25 x .75 x 1.00

$4.99

$

In Stock, Qty 20+

0

42

MTD 741-0661A

Flange Bearing .75 ID x 1.0 OD x .975
(Superseded to 741-0661B)

$10.99

$

In Stock, only 2 left!

0

43

MTD 746-04230

Auger Clutch Cable
(Superseded to 946-04230B)

$23.99

$

In Stock, Qty 20+

0

44

MTD 784-5580-0637

Snow Slide Shoe, Black - POWDER BLACK (0637)

Variations

$23.99

$

In Stock, Qty 20+

0

45

MTD 719-04291

RH - Reduced Auger Housing
(Superseded to 918-0123A)

$52.99

$

In Stock, only 2 left!

0

46

MTD 719-04292

LH - Reduced Auger Housing
(Superseded to 918-0124A)

$52.99

$

In Stock, only 2 left!

0

47

MTD 721-0338

Oil Seal .75 x 1.0 x .125
(Superseded to 921-0338)

$7.49

$

In Stock, Qty 20+

0

48

MTD 741-0662

Flange Bearing .75 ID x 1.00 OD x .50

$10.99

$

In Stock, Qty 6

0

49

MTD 710-0642

Thread Forming Screw, 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

50

MTD 618-04171A

24'' Gearbox Assembly
(Superseded to 918-04171C)

$407.99

$

In Stock, Qty 6

0

50

MTD 618-04172A

26'' Gearbox Assembly
(Superseded to 918-04172C)

$434.99

$

Usually ships in 3-6 days

0

50

MTD 618-04173A

28'' Gearbox Assembly
(Superseded to 918-04173B)

$331.99

$

In Stock, only 1 left!

0

50

MTD 618-04165A

30'' Gearbox Assembly
(Superseded to 918-04165B)

$447.99

$

In Stock, only 1 left!

0

51

MTD 714-0161

Hi-Pro Key 3/16 x 5/8
(Superseded to 914-0161)

$4.49

$

In Stock, Qty 20+

0

52

MTD 715-04021

Dowel Pin .25 OD x 1.2

$4.49

$

In Stock, only 4 left!

0

53

MTD 717-04126

Worm Shaft .75 OD
(Superseded to 917-04126)

$79.99

$

In Stock, only 3 left!

0

54

MTD 717-04449

24'' Worm Gear
(Superseded to 917-04861)

$43.99

$

In Stock, Qty 20+

0

54

MTD 717-04449

26'' Worm Gear
(Superseded to 917-04861)

$43.99

$

In Stock, Qty 20+

0

54

MTD 717-0528A

28'' Worm Gear
(Superseded to 917-04861)

$43.99

$

In Stock, Qty 20+

0

54

MTD 717-0528A

30'' Worm Gear
(Superseded to 917-04861)

$43.99

$

In Stock, Qty 20+

0

55

MTD 718-04071

Thrust Collar

$7.99

$

In Stock, Qty 12

0

56

MTD 721-0325

Plug 1/4 x .437

$4.49

$

In Stock, only 4 left!

0

57

MTD 721-0327

Oil Seal .75 x 1 x .131

$6.99

$

In Stock, Qty 20+

0

58

MTD 736-0351

Flat Washer .76 ID x 1.5OD x .03

$4.49

$

In Stock, Qty 20+

0

59

MTD 736-3084

Flat Washer .510 x 1.120 x .060

$4.99

$

In Stock, Qty 20+

0

60

MTD 741-0663

Flange Bearing .75 ID x 1.0 OD x .925

$9.99

$

In Stock, Qty 15

0

61

MTD 736-0242

Cupped Washer .345 ID x .88 OD x .060

$4.49

$

In Stock, Qty 20+

0

62

MTD 721-0328

Loctite Sealant 5699

$

$

Currently unavailable

63

MTD 737-0168A

Grease- Alvania EP Lead Free

$30.99

$

In Stock, Qty 10

0

64

MTD 731-05984

Reversible Slide Shoe
(Superseded to 731-05984A)

Note: Polymer

$30.99

$

In Stock, only 2 left!

0

64

MTD 753-06205

Deluxe Polymer Reversible Shoe Kit

Note: (Will replace 731-05984A, includes hardware & 2 shoes)

$45.99

$

In Stock, only 3 left!

0

65

MTD 710-0451

Carriage Bolt 5/16-18 x .75

Note: (w/Steel Slide Shoes)

$4.49

$

In Stock, Qty 20+

0

65

MTD 710-0276

Carriage Bolt 5/16-18 x 1.0

Note: (w/Polymer Slide Shoes)

$3.99

$

In Stock, Qty 20+

0
