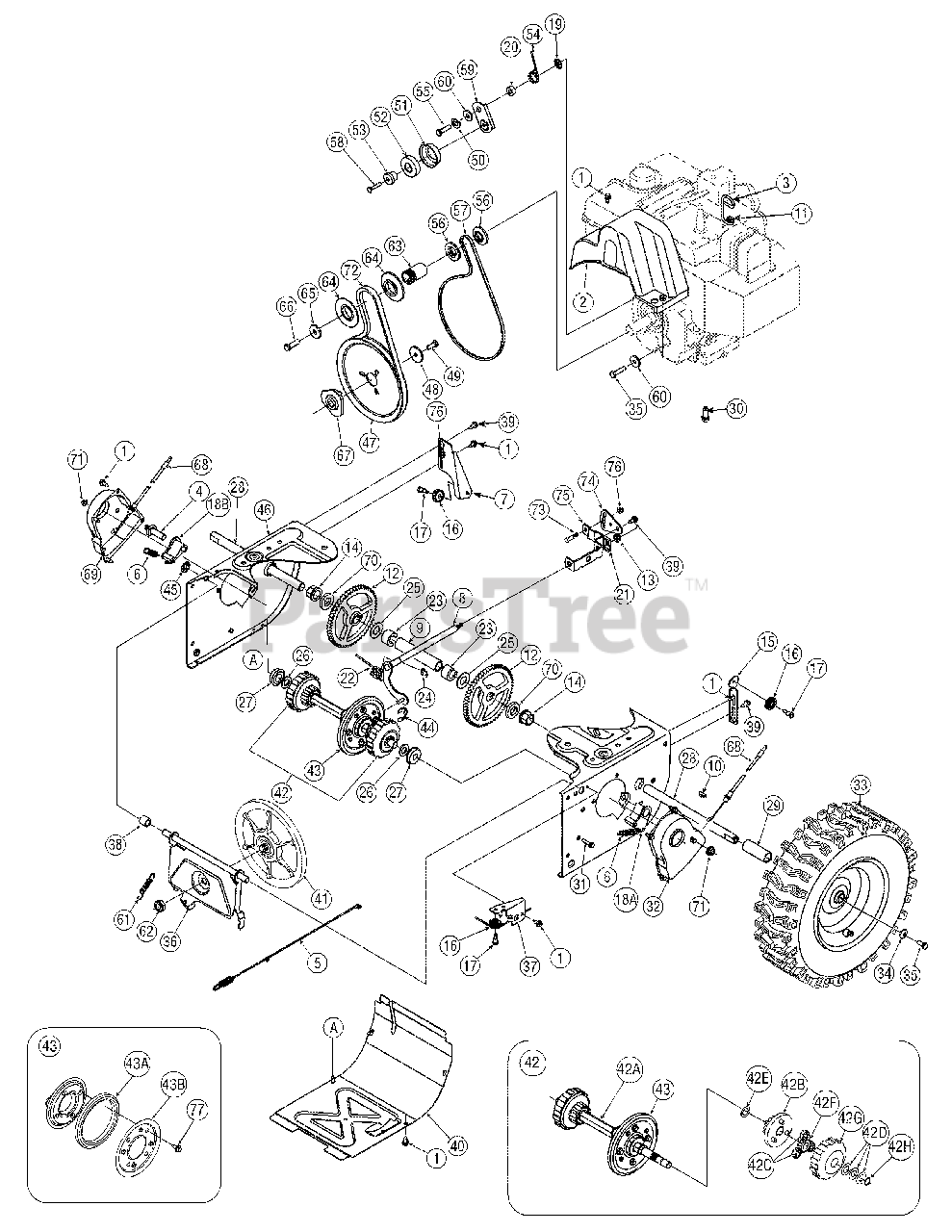

31AE5KLF801 - Yard-Man Snow Thrower (2006) Drive Assembly Parts Diagram

Snow Thrower

Drive Assembly Parts Diagram

  • Title

1

MTD 710-1652

Hex Wash Hd TT Scr. 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

2

MTD 731-04792A

Belt Cover (w/4 Way Chute Control)
(Superseded to 731Z04792F)

$24.99

$

In Stock, only 1 left!

0

2

MTD 731-05353

Belt Cover (Std.)
(Superseded to 731-05353B)

$

$

Not available

3

MTD 732-0705

Cable Control Wire

$11.99

$

Usually ships in 3-6 days

0

4

MTD 711-1268B

Drive Shaft Actuator

$10.99

$

Usually ships in 3-6 days

0

5

MTD 746-04229

Drive Clutch Cable 44.83" Lg.
(Superseded to 946-04229B)

$21.99

$

In Stock, Qty 20+

0

6

MTD 732-04345

Extension Spring .5 OD x 1.71 Lg.

$10.99

$

In Stock, only 1 left!

0

7

MTD 790-00207A

Guide Bracket - Drive Cable
(Superseded to 790-03997)

Variations

MTD 790-00207A-0637

Clutch Drive Cable - POWDER BLACK (0637)

$5.49

$

In Stock, only 4 left!

0

$5.49

$

In Stock, only 4 left!

0

8

MTD 684-04156

Shift Rod Ass’y
(Superseded to 684-04156A)

$61.99

$

Usually ships in 3-6 days

0

9

MTD 750-04474

Axle Support Tube

$42.99

$

In Stock, only 1 left!

0

10

MTD 714-0126

#9 HI-Pro Key 3/16 x 3/4 Dia HT

$4.99

$

In Stock, Qty 19

0

11

MTD 710-0602

Hex Wash Hd Tapp Scr 5/16-18 x 1.00

$4.49

$

In Stock, Qty 20+

0

12

MTD 717-04210

Gear, 56T
(Superseded to 917-04210)

$79.99

$

Usually ships in 3-6 days

0

13

MTD 712-04063

Flange Lock-Nut 5/16-18 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

14

MTD 741-0245

Hex. Flange Bearing.751" ID
(Superseded to 941-0245)

$9.99

$

In Stock, Qty 20+

0

15

MTD 790-00206A

Guide Bracket - Auger Cable
(Superseded to 790-00206B)

Variations

MTD 790-00206A-0637

Auger Cable Guide Bracket - POWDER BLACK (0637)

$8.49

$

In Stock, only 1 left!

0

$8.49

$

In Stock, only 1 left!

0

16

MTD 756-0625

Cable Guide Roller

$9.49

$

In Stock, Qty 16

0

17

MTD 738-0924A

Hex Shld.Scr.1/4-28 x .375

$6.99

$

In Stock, Qty 5

0

18A

MTD 618-04288

Dogg Assembly - LH

$21.99

$

Usually ships in 3-6 days

0

18B

MTD 618-04287

Dogg Assembly - RH

$23.99

$

Usually ships in 3-6 days

0

19

MTD 726-04012

Push Nut

$7.49

$

In Stock, Qty 9

0

20

MTD 750-04477

Spacer .340 x .750 x .360" Lg.
(Superseded to 750-04477A)

$5.49

$

In Stock, only 4 left!

0

21

MTD 790-00156

Shift Spacer Bracket

$7.99

$

Usually ships in 3-6 days

0

22

MTD 732-04311

Torsion Spring .750 ID x .968" Lg.
(Superseded to 732-04311A)

$10.99

$

In Stock, only 1 left!

0

23

MTD 731-05297

Spacer

$9.99

$

In Stock, only 2 left!

0

24

MTD 716-0104

Retaining Ring
(Superseded to 916-0104)

$3.99

$

In Stock, Qty 15

0

25

MTD 736-0188

Flat Washer .760 ID x 1.49 OD

$4.49

$

In Stock, Qty 20+

0

26

MTD 736-0626

Flat Washer .580 x 1.125 x .080

$9.49

$

In Stock, only 2 left!

0

27

MTD 741-04076

Ball Bearing

$14.99

$

In Stock, Qty 16

0

28

MTD 738-04180

Axle
(Superseded to 938-04180)

$70.99

$

In Stock, only 2 left!

0

29

MTD 731-04873

Spacer

$10.99

$

In Stock, only 2 left!

0

30

MTD 710-0654A

Hex Wash HD Tap Scr 3/8-16 x .88

$4.49

$

In Stock, only 3 left!

0

31

MTD 710-0788

Hex Bolt 1/4-20 x 1.00

$7.49

$

In Stock, only 4 left!

0

32

MTD 790-00185

Shaft Retainer - LH

Variations

MTD 790-00185-0606

RETAINER-HEX SHFT LH - MAJESTIC ORANGE (0606)

$22.99

$

Usually ships in 3-6 days

0

MTD 790-00185-0638

RETAINER-HEX SHFT LH - MTD/TROY-BILT RED (0638)

$22.99

$

Usually ships in 3-6 days

0

MTD 790-00185-0662

RETAINER-HEX SHFT LH - OYSTER GRAY (0662)

$22.99

$

Usually ships in 3-6 days

0

MTD 790-00185-0691

RETAINER:SHF:DR/ACTR LH - BLACK JACK (0691)

$28.99

$

Usually ships in 3-6 days

0

MTD 790-00185-0709

RETAINER:SHF:DR/ACTR LH - MASTERCRAFT GREEN (0709)

$22.99

$

Usually ships in 3-6 days

0

MTD 790-00185-0721

RETAINER-HEX SHFT LH - SEARS RED (0721)

$22.99

$

Usually ships in 3-6 days

0

MTD 790-00185-4021

RETAINER-HEX SHFT LH - CUB YELLOW 2 (4021)

$30.99

$

Usually ships in 3-6 days

0

MTD 790-00185-4044

RETAINER-HEX SHFT LH - CRAFTSMAN RED (4044)

$22.99

$

Usually ships in 3-6 days

0

$24.99

$

Usually ships in 3-6 days

0

33

MTD 634-04141

16 x 4.8 Snow Hog Wheel

Note: Wheel Assembly

Variations

MTD 634-04141-0911

WHEEL ASM COMPLETE - Carlisle Gray (0911)

$243.99

$

Usually ships in 3-6 days

0

MTD 634-04141-0941

WHEEL ASM COMPLETE - Carlisle Yellow (0941)

$226.99

$

Usually ships in 3-6 days

0

MTD 634-04141-0951

WHEEL ASM COMPLETE - Carlisle Yellow (0951)

$226.99

$

Usually ships in 3-6 days

0

$197.99

$

Usually ships in 3-6 days

0

33

MTD 734-1530

Tire 16 x 4.8 size

Variations

MTD 734-1530-0901

TIRE-SNOW HOG-4.80 - Carlisle (0901)

$168.99

$

Usually ships in 3-6 days

0

MTD 734-1530-0905

TIRE-SNOW HOG-4.80 - Duro (0905)

$168.99

$

Usually ships in 3-6 days

0

$137.99

$

Usually ships in 3-6 days

0

33

MTD 634-04173

Rim 16 x 4.8 size

Variations

MTD 634-04173-0499

Rim Assembly, 8.0 X 3.75 with Valve - CUB BEIGE (0499)

$83.99

$

Usually ships in 3-6 days

0

MTD 634-04173-0662

RIM ASM-8.0X3.75 W - OYSTER GRAY (0662)

$83.99

$

Usually ships in 3-6 days

0

MTD 634-04173-0674

RIM ASM-8.0X3.75 W - YARDMAN YELLOW (0674)

$77.99

$

Usually ships in 3-6 days

0

MTD 634-04173-4042

RIM ASM-8.0X3.75 W - CRAFTSMAN GRAY (4042)

$62.99

$

Usually ships in 3-6 days

0

$67.99

$

Usually ships in 3-6 days

0

33

MTD 738-04168

Axle 16 x 4.8 size
(Superseded to 938-04493)

$63.99

$

In Stock, only 1 left!

0

34

MTD 736-0242

Cupped Washer .345 ID x .88 OD x .060

$4.49

$

In Stock, Qty 20+

0

35

MTD 710-0627

Hex L-Bolt 5/16-24 x .75 Gr. 5

$4.49

$

In Stock, Qty 20+

0

36

MTD 684-04154

Friction Wheel Support Brkt Ass’y
(Superseded to 684-04154B-0637)

Variations

MTD 684-04154-0637

BRACKET ASM-SUPPORT - POWDER BLACK (0637)

$41.99

$

Usually ships in 3-6 days

0

$41.99

$

Usually ships in 3-6 days

0

37

MTD 790-00096

Auger Cable Guide Bracket
(Superseded to 790-00096B)

Variations

Cub Cadet 790-00096A-0637

Auger Cable Bracket, Black - POWDER BLACK

$9.49

$

In Stock, only 1 left!

0

$9.49

$

In Stock, only 1 left!

0

38

MTD 748-0190

Spacer .513 ID x 1.0

$6.49

$

In Stock, only 1 left!

0

39

MTD 738-04184A

Shoulder Screw .373 x .105:TT 1/4-20

$6.99

$

In Stock, Qty 15

0

40

MTD 790-00226

Frame Cover

Variations

MTD 790-00226-0637

Frame Cover - POWDER BLACK (0637)

$

$

Not available

MTD 790-00226-0638

Frame Cover - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

41

MTD 656-04025A

Friction Wheel Disc Assembly
(Superseded to 656-04055A)

$59.99

$

Usually ships in 3-6 days

0

42

MTD 618-04283

Drive Shaft Assembly (w/o Friction Wheel Ass'y)
(Superseded to 918-04322A)

$495.99

$

Usually ships in 3-6 days

0

42A

MTD 711-04416

Hex Drive Shaft (500)
(Superseded to 711-04416A)

$128.99

$

Usually ships in 3-6 days

0

42B

MTD 618-04284

Planetary Carrier Ass'y
(Superseded to 918-04284)

$67.99

$

Usually ships in 3-6 days

0

42C

MTD 717-1209A

Gear 12T

$4.99

$

Usually ships in 3-6 days

0

42D

MTD 736-0502

Flat Washer .58 x 1.12 x .02
(Superseded to 936-0502)

$6.99

$

Usually ships in 3-6 days

0

42E

MTD 736-0336

Flat Washer 5/8 ID x 1.0 OD
(Superseded to 936-0336)

$4.49

$

In Stock, Qty 7

0

42F

MTD 717-1210A

Gear 18T

$8.99

$

In Stock, only 3 left!

0

42G

MTD 618-04285

Ring Planetary Gear Ass'y (500)
(Superseded to 918-04285)

$68.99

$

In Stock, only 1 left!

0

42H

MTD 716-0194

Retaining Ring 1.56 diam.

$3.99

$

In Stock, only 3 left!

0

43

MTD 684-04159

Friction Wheel Assembly
(Superseded to 684-04159C)

$96.99

$

In Stock, only 2 left!

0

43A

MTD 735-04054

Friction Wheel Rubber
(Superseded to 935-04054A)

$39.99

$

In Stock, Qty 20+

0

43B

MTD 790-00174

Friction Plate
(Superseded to 790-00174C)

$14.99

$

Usually ships in 3-6 days

0

44

MTD 716-0136

Retainer Ring

$8.99

$

In Stock, only 2 left!

0

45

MTD 726-0221

Cap Speed Nut 1/4 Rod

$6.49

$

In Stock, only 1 left!

0

46

MTD 790-00183

Wheel Drive Frame
(Superseded to 790-00183E)

Variations

MTD 790-00183-0637

FRAME-500/700 DR - POWDER BLACK (0637)

$106.99

$

Usually ships in 3-6 days

0

MTD 790-00183-0638

FRAME-WHEEL DRIVE - MTD/TROY-BILT RED (0638)

$98.99

$

Usually ships in 3-6 days

0

MTD 790-00183-0650

FRAME-WHEEL DRIVE - RED METALLIC (0650)

$98.99

$

Usually ships in 3-6 days

0

MTD 790-00183-0716

FRM:500:WHL DR CUB - CUB YELLOW-99 (0716)

$106.99

$

Usually ships in 3-6 days

0

$85.99

$

Usually ships in 3-6 days

0

47

MTD 756-04109

Auger Pulley

$54.99

$

In Stock, only 2 left!

0

48

MTD 736-0505

Flat Washer .34 x 1.50 x .150

$6.49

$

In Stock, only 2 left!

0

49

MTD 710-1245B

Hex Bolt 5/16-24 x 0.875

$8.49

$

In Stock, only 2 left!

0

50

MTD 736-0119

L-Wash 5/16 ID
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

51

MTD 790-00230

Bearing Sleeve

$7.49

$

Usually ships in 3-6 days

0

52

MTD 741-0919

Ball Bearing 20 x 47 x 14:6204:DS
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

53

MTD 750-04571

Spacer

$6.99

$

In Stock, only 3 left!

0

54

MTD 732-04308A

Torsion Spring .850 ID x .354" Lg.
(Superseded to 732-04308C)

$5.49

$

In Stock, only 3 left!

0

55

MTD 710-0672

Hex HD. Cap Scr. 5/16-24 x 1.25 Lg.

$4.49

$

In Stock, Qty 18

0

56

MTD 756-04179

Pulley HalfL 1/4 V x 1.5 OD
(Superseded to 956-04179)

$8.99

$

In Stock, only 1 left!

0

57

MTD 754-04088

Belt 33.0" Lg.

$15.99

$

Usually ships in 3-6 days

0

58

MTD 710-0809

Hex Bolt 1/4-20 x 1.25

$6.99

$

In Stock, Qty 19

0

59

MTD 790-00208

Wheel Drive Idler Bracket
(Superseded to 790-00208D)

$8.99

$

Usually ships in 3-6 days

0

60

MTD 748-04112

Shoulder Spacer
(Superseded to 748-04112B)

$4.49

$

Usually ships in 3-6 days

0

61

MTD 732-0264

Extension Spring 3/8 OD x 2.50
(Superseded to 932-0264)

$4.99

$

In Stock, Qty 20+

0

62

MTD 712-0413

Jam L-Nut 5/8-18 Gr. 5 Nylon

$6.49

$

In Stock, only 1 left!

0

63

MTD 750-04303

Spacer .875 ID x 1.185 OD

$17.99

$

In Stock, only 1 left!

0

64

MTD 756-04113

Pulley Half
(Superseded to 756-06563)

$3.99

$

In Stock, Qty 6

0

65

MTD 736-0247

Flat Washer .40 ID x 1.25 OD x .160

$9.49

$

In Stock, Qty 16

0

66

MTD 710-0191

Hex Screw 3/8-24 x 1.25

$4.99

$

In Stock, Qty 8

0

67

MTD 748-04053

PulleyAdapter
(Superseded to 748-04053A)

$22.99

$

In Stock, only 1 left!

0

68

MTD 746-0956A

Steering Cable
(Superseded to 946-0956C)

$23.99

$

In Stock, Qty 7

0

69

MTD 790-00186

Shaft Retainer - RH

Variations

MTD 790-00186-0606

RETAINER-HEX SHFT RH - MAJESTIC ORANGE (0606)

$21.99

$

Usually ships in 3-6 days

0

MTD 790-00186-0638

RETAINER-HEX SHFT RH - MTD/TROY-BILT RED (0638)

$25.99

$

Usually ships in 3-6 days

0

MTD 790-00186-0662

RETAINER-HEX SHFT RH - OYSTER GRAY (0662)

$23.99

$

Usually ships in 3-6 days

0

MTD 790-00186-0691

RETAINER:SHF:DR/ACTR RH - BLACK JACK (0691)

$26.99

$

Usually ships in 3-6 days

0

MTD 790-00186-0709

RETAINER:SHF:DR/ACTR RH - MASTERCRAFT GREEN (0709)

$21.99

$

Usually ships in 3-6 days

0

MTD 790-00186-0721

RETAINER-HEX SHFT RH - SEARS RED (0721)

$21.99

$

Usually ships in 3-6 days

0

MTD 790-00186-4021

RETAINER-HEX SHFT RH - CUB YELLOW 2 (4021)

$25.99

$

Usually ships in 3-6 days

0

MTD 790-00186-4044

RETAINER-HEX SHFT RH - CRAFTSMAN RED (4044)

$21.99

$

Usually ships in 3-6 days

0

$23.99

$

Usually ships in 3-6 days

0

70

MTD 750-0767

Axle Spacer

$5.99

$

Usually ships in 3-6 days

0

71

MTD 712-04065

Flange Lock-Nut 3/8-16 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

72

MTD 754-04050

Belt .5 x 35.0" Lg.
(Superseded to 954-04050A)

$27.99

$

In Stock, Qty 20+

0

73

MTD 710-0751

Hex Bolt 1/4-20 x .62 Gr. 5

$3.99

$

In Stock, Qty 20+

0

74

MTD 790-00217A

Pivot Bracket

Variations

MTD 790-00217A-0637

Pivot Bracket - POWDER BLACK (0637)

$53.99

$

In Stock, only 1 left!

0

$9.49

$

Usually ships in 3-6 days

0

75

MTD 790-00218A

Shift Bracket

Variations

MTD 790-00218A-0637

Shift Speed Bracket - POWDER BLACK (0637)

$47.99

$

Usually ships in 3-6 days

0

$47.99

$

Usually ships in 3-6 days

0

76

MTD 712-04064

Flange Lock-Nut 1/4-20 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

77

MTD 710-0896

Hex Wash. Hd. TT Scr. 1/4-14 x .625

$4.49

$

In Stock, Qty 20+

0
