31AE553F401 - Yard-Man Snow Thrower (1999) Frame Assembly Parts Diagram

Snow Thrower

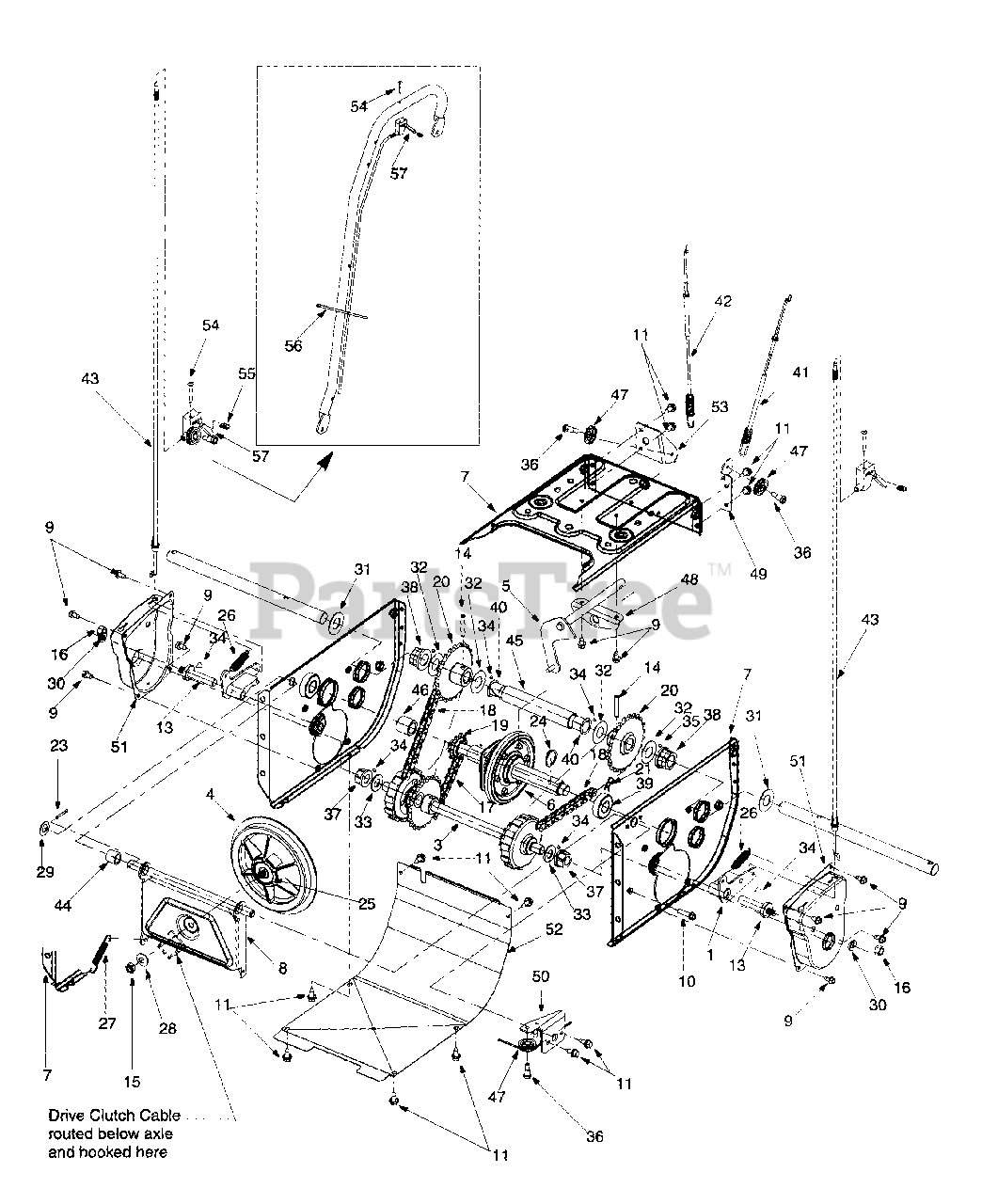

Frame Assembly Parts Diagram

  • Title

1

MTD 618-0043

Dogg Assembly: RH

$23.99

$

In Stock, only 1 left!

0

2

MTD 618-0044

Dogg Assembly: LH

$24.99

$

In Stock, only 1 left!

0

3

MTD 618-0303A

Shift Assembly: Steerable Drive
(Superseded to 618-0575)

$

$

Not available

4

MTD 656-0012A

Friction Wheel Disc Assy.
(Superseded to 956-0012A)

$125.99

$

In Stock, Qty 6

0

5

MTD 684-0014B

Shift Rod Assembly
(Superseded to 684-0014B-0637)

Variations

MTD 684-0014B-0637

Shift Rod Assembly - POWDER BLACK (0637)

$47.99

$

In Stock, only 1 left!

0

$47.99

$

In Stock, only 1 left!

0

6

MTD 984-0042C

Friction Wheel Assembly, Complete

Note: See "Friction Wheel Assembly"

$138.99

$

In Stock, Qty 17

0

7

MTD 684-0130

Transmission Frame Assembly

Variations

MTD 684-0130-0498

No Longer Available FRAME ASM - OLD CUB YELLOW (0498)

$

$

Not available

MTD 684-0130-0662

FRAME ASM. TRANS. - OYSTER GRAY (0662)

$

$

Not available

MTD 684-0130-0665

No Longer Available FRAME ASM - YARDMAN GREEN (0665)

$

$

Not available

MTD 684-0130-0689

Transmission Frame Assembly - POLO GREEN (0689)

$

$

Not available

MTD 684-0130-0716

No Longer Available - CUB YELLOW-99 (0716)

$

$

Not available

$

$

8

MTD 684-0131

Support Bracket Assembly
(Superseded to 684-0131A-0637)

Variations

MTD 684-0131-0637

No Longer Available BRACKET AS - POWDER BLACK (0637)

$

$

Not available

$

$

9

MTD 710-0599

Hex Washer Screw 1/4-20 x 0.5"

$4.49

$

In Stock, Qty 20+

0

10

MTD 710-0788

Hex Washer Screw 1/4-20 x 1.0"

$7.49

$

In Stock, only 2 left!

0

11

MTD 710-1652

Hex Washer Screw 1/4-20 x .625"

$4.49

$

In Stock, Qty 20+

0

12

MTD 711-1267

Drive Shaft

$70.99

$

In Stock, only 1 left!

0

13

MTD 711-1268

Actuator Shaft

$

$

Not available

14

MTD 711-1364

Pin

$8.49

$

In Stock, only 2 left!

0

15

MTD 712-0711

Jam Nut 3/8-24 Gr.8

$4.49

$

In Stock, Qty 20+

0

16

MTD 712-3017

Hex Nut: 3/8-16

$4.49

$

In Stock, Qty 20+

0

17

MTD 713-0233

Chain

$41.99

$

Usually ships in 3-6 days

0

18

MTD 713-0374

Chain

$25.99

$

Usually ships in 3-6 days

0

19

MTD 713-0413

Sprocket: 10T

$12.99

$

Usually ships in 3-6 days

0

20

MTD 713-0472

Sprocket

$

$

Not available

21

MTD 714-0104

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

23

MTD 714-0474

Cotter Pin

$4.99

$

In Stock, Qty 13

0

24

MTD 716-0102

Snap Ring

$5.49

$

In Stock, Qty 20+

0

25

MTD 721-0263

Adhesive: Loctite

$

$

Currently unavailable

26

MTD 732-0209

Extension Spring
(Superseded to 932-0209)

$7.99

$

In Stock, only 2 left!

0

27

MTD 732-0264

Extension Spring
(Superseded to 932-0264)

$4.99

$

In Stock, Qty 20+

0

28

MTD 736-0105

Bell Washer

$4.49

$

In Stock, Qty 20+

0

29

MTD 736-0160

Flat Washer

$4.49

$

In Stock, only 2 left!

0

30

MTD 736-0169

Lock Washer

$3.99

$

In Stock, Qty 20+

0

31

MTD 736-0188

Flat Washer

$4.49

$

In Stock, Qty 20+

0

32

MTD 736-0351

Flat Washer

$4.49

$

In Stock, Qty 20+

0

33

MTD 736-0626

Flat Washer

$9.49

$

In Stock, only 2 left!

0

34

N/A

Lubricant: 6 in 1

Note: Purchase locally

$

$

Not available

35

N/A

Grease

Note: Purchase locally

$

$

Not available

36

MTD 736-0924

Shoulder Screw

$

$

Currently unavailable

37

MTD 741-0597

Hex Flange Bearing
(Superseded to 941-0597)

$12.99

$

In Stock, Qty 10

0

38

MTD 741-0598

Hex Flange Bearing
(Superseded to 941-0598)

$12.99

$

In Stock, Qty 20+

0

39

MTD 741-0600

Ball Bearing
(Superseded to 941-0600)

$25.99

$

In Stock, Qty 20+

0

40

MTD 741-0701

Flange Bushing

$

$

Not available

41

MTD 746-0897

Auger Clutch Cable
(Superseded to 946-0897)

$24.99

$

In Stock, Qty 20+

0

42

MTD 746-0898

Drive Clutch Cable
(Superseded to 946-0898)

$27.99

$

In Stock, Qty 19

0

43

MTD 746-0956

Steering Cable
(Superseded to 946-0956C)

$23.99

$

In Stock, Qty 15

0

44

MTD 748-0190

Spacer

$6.49

$

In Stock, Qty 11

0

45

MTD 750-1161

Support Tube: Axle
(Superseded to 750-1161A)

$46.99

$

Usually ships in 3-6 days

0

46

MTD 750-1162

Spacer

$

$

Not available

47

MTD 756-0625

Roller Cable

$9.49

$

In Stock, Qty 14

0

48

MTD 784-5590

Shift Bracket

Variations

MTD 784-5590-0637

Shift Fram Bracket - POWDER BLACK (0637)

$15.99

$

Usually ships in 3-6 days

0

MTD 784-5590-0662

Shift Fram Bracket - OYSTER GRAY (0662)

$15.99

$

Usually ships in 3-6 days

0

MTD 784-5590-0638

BRACKET-SHIFT FRAM - MTD/TROY-BILT RED (0638)

$15.99

$

Usually ships in 3-6 days

0

MTD 784-5590-4033

BRACKET-SHIFT FRAM - FLINT MICA (4033)

$12.99

$

Usually ships in 3-6 days

0

MTD 784-5590-0650

BRACKET-SHIFT FRAM - RED METALLIC (0650)

$

$

Not available

MTD 784-5590-0689

BRACKET-SHIFT FRAM - POLO GREEN (0689)

$

$

Not available

MTD 784-5590-4021

BRACKET-SHIFT FRAM - CUB YELLOW 2 (4021)

$

$

Not available

$12.99

$

Usually ships in 3-6 days

0

49

MTD 784-5687

Auger Clutch Cable Guide Bracket
(Superseded to 784-5687A-0637)

Variations

MTD 784-5687-0637

BRACKET-GUIDE-AUGER - POWDER BLACK (0637)

$

$

Not available

MTD 784-5687-0662

BRACKET-GUIDE-AUGER - OYSTER GRAY (0662)

$

$

Not available

$

$

50

MTD 784-5689A

Front Support Guide Bracket
(Superseded to 784-5689A-0637)

Variations

MTD 784-5689A-0637

Guide Bracket, Front - POWDER BLACK (0637)

$

$

Not available

MTD 784-5689A-0662

Guide Bracket, Front - OYSTER GRAY (0662)

$

$

Not available

$

$

51

MTD 784-5730

Retaining Shaft: Actuator Drive
(Superseded to 784-5730A-0637)

$

$

Not available

52

MTD 784-5732

Frame Cover
(Superseded to 784-5638A)

Variations

MTD 784-5732-0650

Frame Cover, Black - RED METALLIC (0650)

$

$

Not available

MTD 784-5732-0662

Frame Cover, Black - OYSTER GRAY (0662)

$

$

Not available

MTD 784-5732-0665

Frame Cover, Black - YARDMAN GREEN (0665)

$

$

Not available

MTD 784-5732-0689

Frame Cover, Black - POLO GREEN (0689)

$

$

Not available

MTD 784-5732-0716

Frame Cover, Black - CUB YELLOW-99 (0716)

$

$

Not available

$

$

53

MTD 784-5733

Roller Bracket: Drive Cable
(Superseded to 784-5733-0637)

Variations

MTD 784-5733-0637

BRACKET-DRIVE ROLL - POWDER BLACK (0637)

$

$

Not available

$

$

54

MTD 710-1233

Oval C-Sunk Machine screw

$4.99

$

In Stock, Qty 11

0

55

MTD 712-0127

Weld Nut

$3.49

$

In Stock, Qty 13

0

56

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

57

MTD 746-0950

Turn Trigger
(Superseded to 746-0950A)

$22.99

$

Usually ships in 3-6 days

0

58

MTD 714-0104

Cotter Pin

$4.49

$

In Stock, Qty 20+

0
