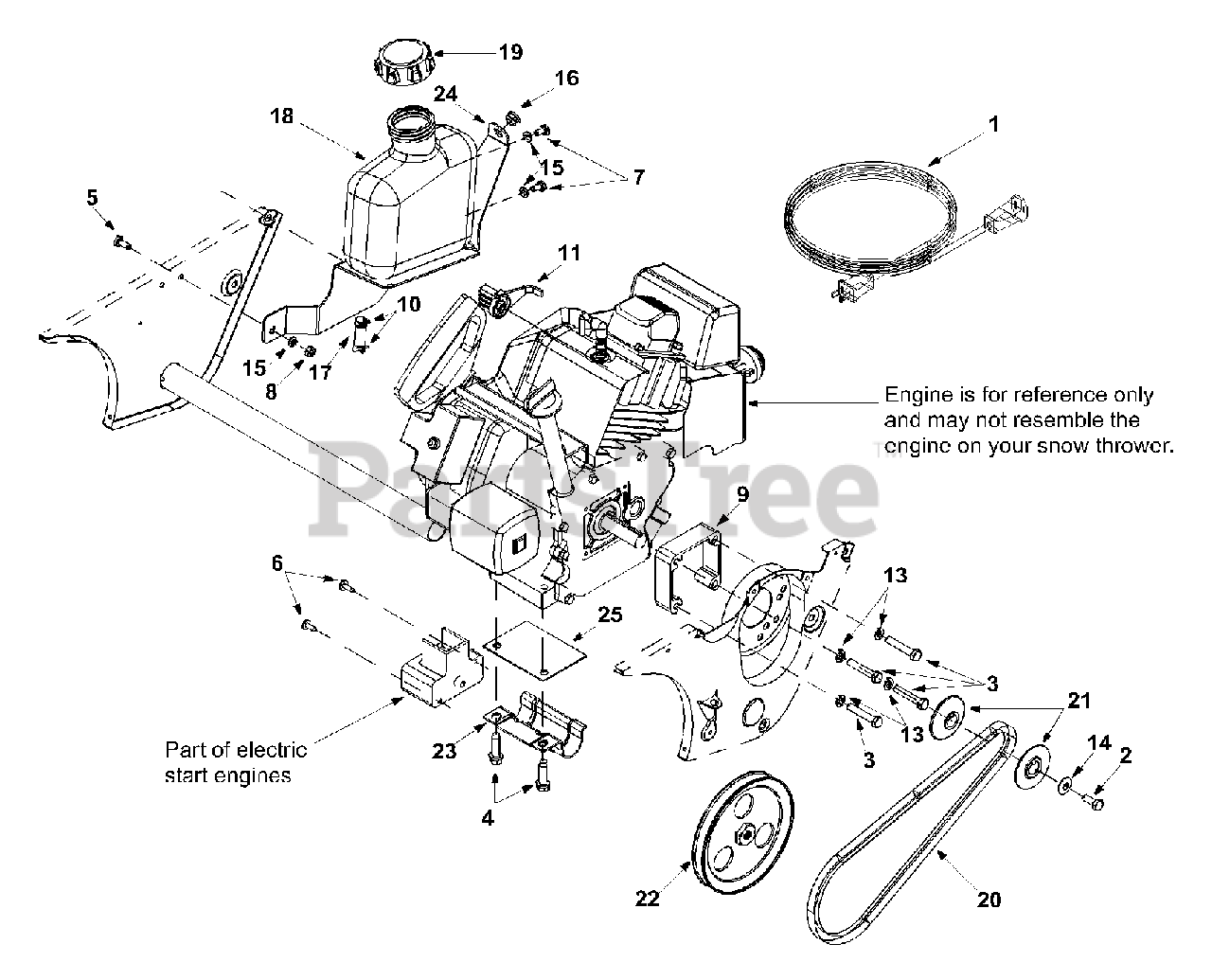

31AE295-401 - Yard-Man Snow Thrower (2002) Drive & Fuel Tank Parts Diagram

Snow Thrower

Drive & Fuel Tank Parts Diagram

  • Title

1

MTD 629-0236

Extension Cord

Note: For Electric Start models only

$

$

Not available

2

MTD 710-0157

Hex Bolt 5/16-24 x 0.75"

$4.49

$

In Stock, Qty 18

0

3

MTD 710-0409

Hex Bolt 5/16-24 x 1.75"

$4.99

$

Usually ships in 3-6 days

0

4

MTD 710-0502A

TT Sems Screw

$6.99

$

In Stock, only 2 left!

0

5

MTD 710-0751

Hex Screw 1/4-20 x 0.620"

$3.99

$

In Stock, Qty 20+

0

6

MTD 710-1003

B Screw #10-16 x 0.625"
(Superseded to 710-04669)

Note: For Electric Start models only

$3.49

$

In Stock, Qty 20+

0

7

MTD 710-3013

Hex Screw 1/4-20 x 0.50"

$4.99

$

In Stock, only 1 left!

0

8

MTD 712-3006

Hex Nut 1/4-20

$4.99

$

In Stock, Qty 19

0

9

MTD 719-0581

Spacer

$

$

Not available

10

MTD 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 18

0

11

MTD 731-2005

Choke Knob
(Superseded to 731-2825)

$17.99

$

Usually ships in 3-6 days

0

13

MTD 736-0119

Lock Washer
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

14

MTD 736-0242

Beleville Washer

$4.49

$

In Stock, Qty 20+

0

15

MTD 736-0329

Lock Washer
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

16

MTD 741-0475

Plastic Bushing
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

17

MTD 751-0535

Fuel Line Hose

$

$

Currently unavailable

18

MTD 751-0540A

Gas Tank

$

$

Not available

19

MTD 751-0603

Fuel Cap
(Superseded to 751-0603B)

$23.99

$

Usually ships in 3-6 days

0

20

MTD 754-0101A

V-Belt
(Superseded to 954-0101A)

$28.99

$

In Stock, Qty 20+

0

21

MTD 756-0416B

V-Pulley Half
(Superseded to 956-0416B)

$10.99

$

In Stock, only 2 left!

0

22

MTD 756-0475

Pulley

$79.99

$

Usually ships in 3-6 days

0

23

MTD 784-0322

Engine Mount

Variations

MTD 784-0322-0637

No Longer Available MOUNT-ENGI - POWDER BLACK (0637)

$

$

Not available

$

$

24

MTD 784-0323

Support Bracket
(Superseded to 784-0323-0637)

Variations

MTD 784-0323-0637

BRACKET-SUPPORT - POWDER BLACK (0637)

$

$

Not available

$

$

25

MTD 784-0374

Support Plate: Engine Mount
(Superseded to 784-0374-0637)

Note: For Model E295 only

Variations

MTD 784-0374-0637

PLATE-SUPPORT ENGI - POWDER BLACK (0637)

$

$

Not available

$

$
