31AE295-401 - Yard-Man Snow Thrower (2002) Chute Parts Diagram

Snow Thrower

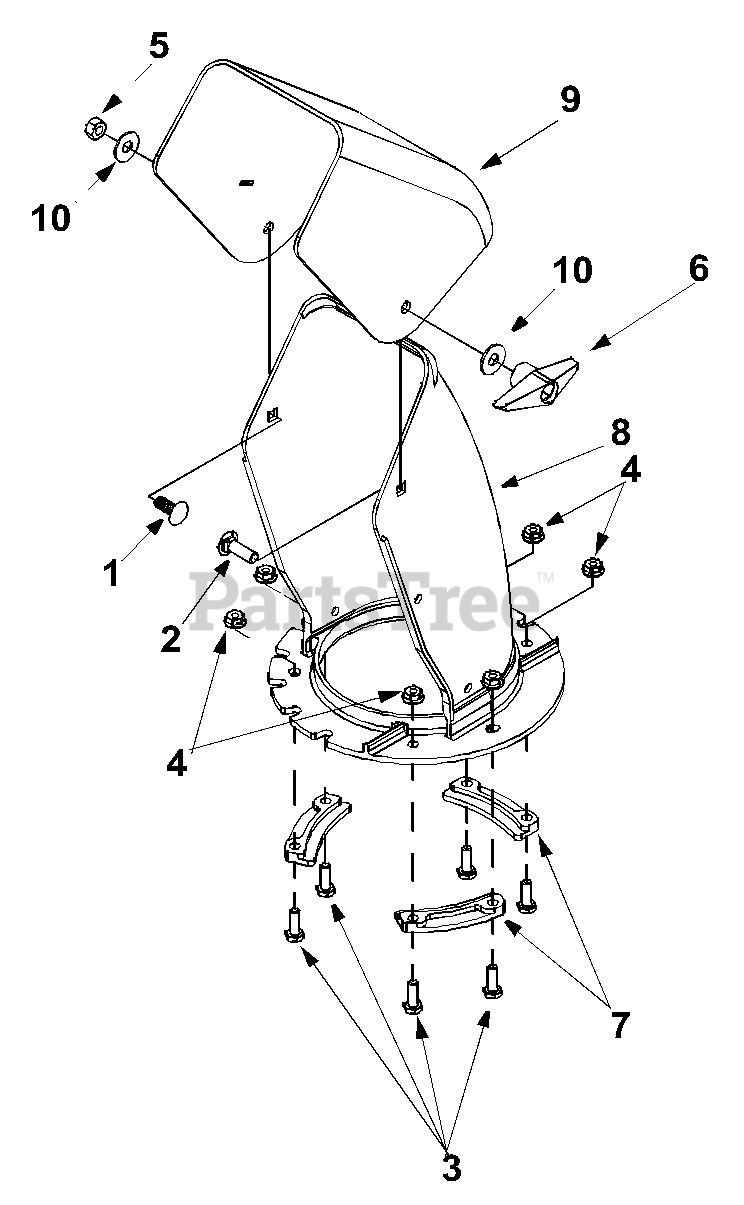

Chute Parts Diagram

  • Title
1

MTD 710-0276

Carriage Screw: Special

$3.99

$

In Stock, Qty 20+

0

2

MTD 710-0451

Carr. Bolt 5/16-18 x 0.750"

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-3015

Hex Screw 1/4-20 x 0.75"

$3.99

$

In Stock, Qty 20+

0

4

MTD 712-3027

Lock Nut
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

5

MTD 712-3068

Hex Lock Nut
(Superseded to 912-3009)

$

$

Not available

6

MTD 720-0284

Hand Knob

$6.99

$

In Stock, Qty 20+

0

7

MTD 731-0851A

Flange Keeper: Chute

$4.49

$

In Stock, Qty 20+

0

8

MTD 731-0915B

Lower Chute
(Superseded to 731-0915C)

$

$

Not available

9

MTD 731-0921

Upper Chute
(Superseded to 731-04426C)

$19.99

$

In Stock, Qty 14

0

10

MTD 736-0159

Washer

$4.49

$

In Stock, Qty 20+

0
