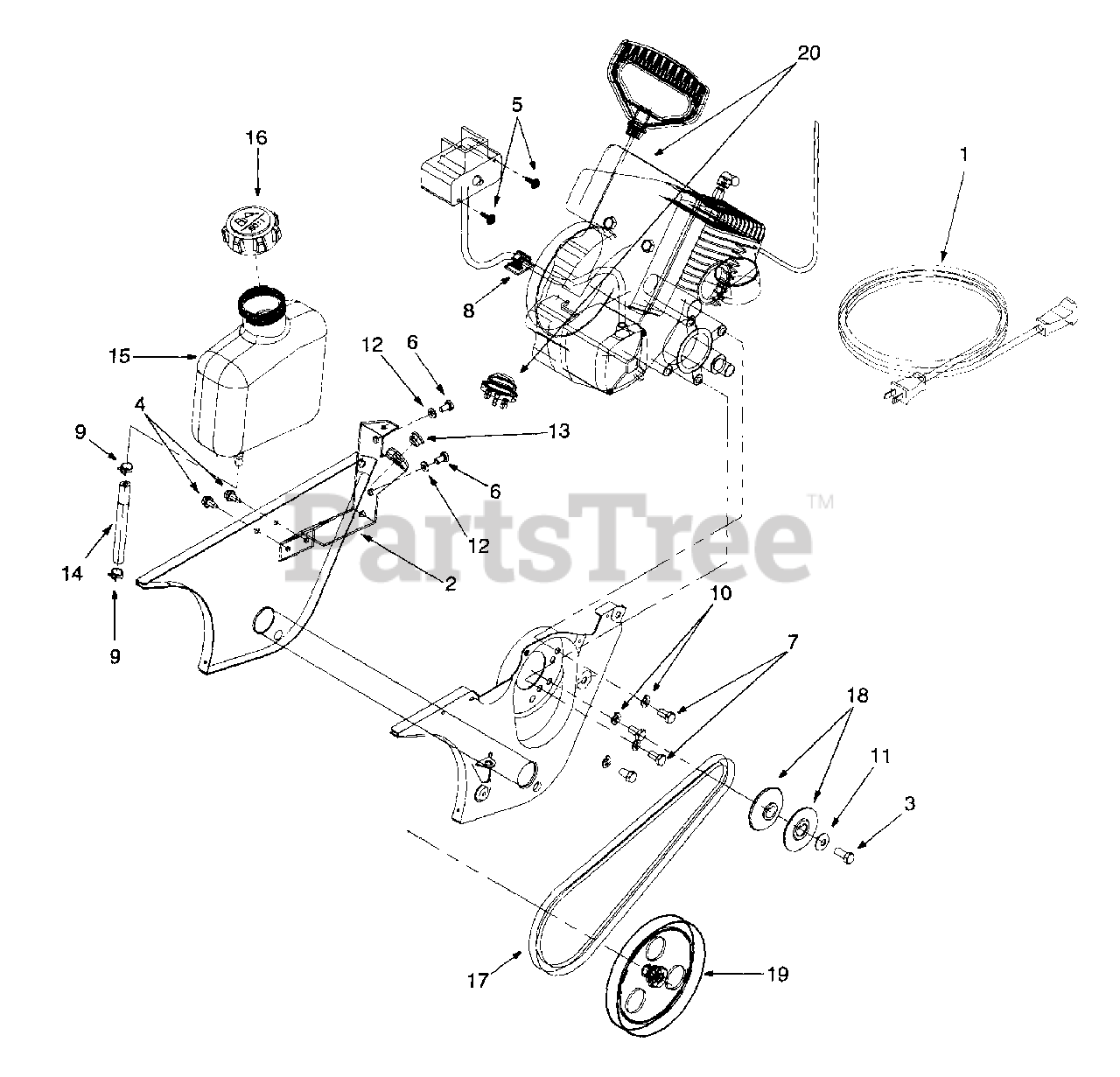

31AE162-401 - Yard-Man Snow Thrower (1999) Drive Assembly / Fuel Tank Parts Diagram

Snow Thrower

Drive Assembly / Fuel Tank Parts Diagram

  • Title

1

MTD 629-0236

Cord-Extension

$

$

Not available

2

MTD 705-5139A

Bracket
(Superseded to 705-5139A-0637)

Variations

MTD 705-5139A-0637

BRACKET-FUEL TANK - POWDER BLACK (0637)

$

$

Not available

$

$

3

MTD 710-0157

Screw-Hex Cap

$4.49

$

In Stock, Qty 18

0

4

MTD 710-0896

Screw-Washer

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-1003

Screw-Hex
(Superseded to 710-04669)

$3.49

$

In Stock, Qty 20+

0

6

MTD 710-3013

Screw-Hex

$4.99

$

In Stock, only 1 left!

0

7

MTD 710-3025

Screw-Hex Cap

$3.99

$

In Stock, Qty 8

0

8

MTD 726-0152

Clamp-Mounting

$

$

Not available

9

MTD 726-0205

Clamp-Hose

$3.99

$

In Stock, Qty 18

0

10

MTD 736-0119

Washer-Lock
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

11

MTD 736-0242

Washer-Bell

$4.49

$

In Stock, Qty 20+

0

12

MTD 736-0329

Washer-Lock
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

13

MTD 741-0475

Bushing
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

14

MTD 751-0535

Hose-Fuel

$

$

Currently unavailable

15

MTD 751-0540A

Tank-Fuel

$

$

Not available

16

MTD 751-0800

Cap-Fuel
(Superseded to 751-0603B)

$23.99

$

Usually ships in 3-6 days

0

17

MTD 751-0101A

V-Belt
(Superseded to 954-0101A)

$28.99

$

In Stock, Qty 20+

0

18

MTD 756-0416B

V-Pulley-Half
(Superseded to 956-0416B)

$10.99

$

In Stock, only 2 left!

0

19

MTD 756-0475

Pulley

$79.99

$

Usually ships in 3-6 days

0

20

UNKNOWN

$

$

Not available
